For indoor and outdoor drainage installations requiring a clean, low-profile finish, the Standard Floor Grate provides a highly adaptable linear drainage channel. Built from anodised aluminium, this 23mm deep grate fits shallow screed depths while delivering the structural capacity needed for residential and light commercial traffic.
What it does
The Standard Floor Grate drains surface water through a 70mm wide anodised aluminium channel. The anodised surface treatment provides long-term corrosion resistance in wet areas and outdoor environments, backed by a Lifetime Rustproof Warranty. Designed with UV stability, the grate maintains its Silver or Midnight finish under direct sunlight without degrading. For long runs, the channel lengths can be extended using compatible joiners, or cut down on-site with a drop saw to fit exact bathroom, balcony, or courtyard dimensions.
Numbers that matter
- 23mm depth: Low-profile clearance fits shallow screed beds and retrofits without requiring deep floor excavation.
- Class B load rating: Tested to withstand a maximum load of 10.2 tonnes, making it suitable for pedestrian areas and light vehicular traffic.
- DN50 scope of use: Compatible with 40mm and 50mm waste outlets for standard plumbing connections.
- 200mm anodising allowance: On the 3000mm and 5600mm configurations, the total out-of-pack length is 3.2m and 5.8m respectively, providing a guaranteed usable length of 3.0m and 5.6m after trimming any anodising wastage.
Limitations
- Do not clean the grates with acidic chemicals, as these will damage the anodised aluminium finish.
- Do not use abrasive cloths, scourers, or harsh scrubbing tools during maintenance; restrict cleaning to regular, gentle washing with soapy water.
Frequently asked questions
Can I cut the Lauxes Grates Standard Floor Grate on site?
Yes, the Standard Floor Grate is designed for onsite cutting. Use a standard aluminium cutting saw to adjust lengths for custom fits or last-minute job changes.
Does this grate require special plumbing for installation?
No major plumbing is required for the Standard Floor Grate. The waste outlet can be positioned anywhere along the base tray, which offers installation flexibility.
Is the Standard Floor Grate suitable for outdoor use?

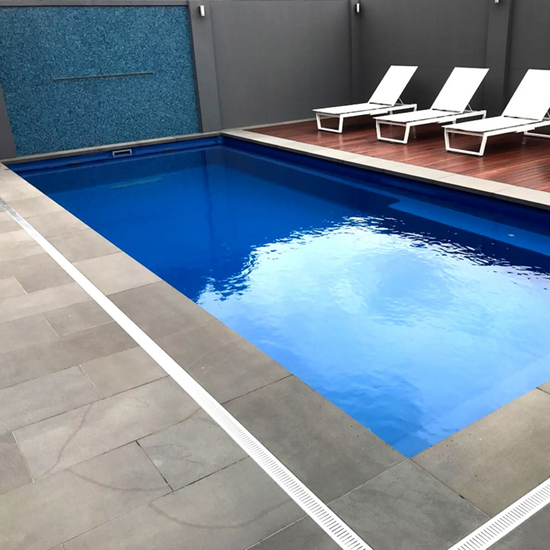

Yes, it is suitable for exposed outdoor areas like balconies and pool surrounds. The grate is 100% UV stabilised and comes with a Lifetime Rustproof Warranty.
How do I clean the Lauxes Grates Standard Floor Grate?
The top grate is easily removable for cleaning. This allows for fast and simple maintenance of both the grate and the waste channel using standard household tools or a pressure hose.
Can multiple grates be joined together for longer runs?
Yes, the system supports seamless extension beyond 5.6 metres. Use Lauxes joiners to create custom lengths without compromising aesthetics or performance.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Balcony drainage | Rustproof performance with a Lifetime Warranty and no visible staining in exposed areas. | Builders, Landscapers |

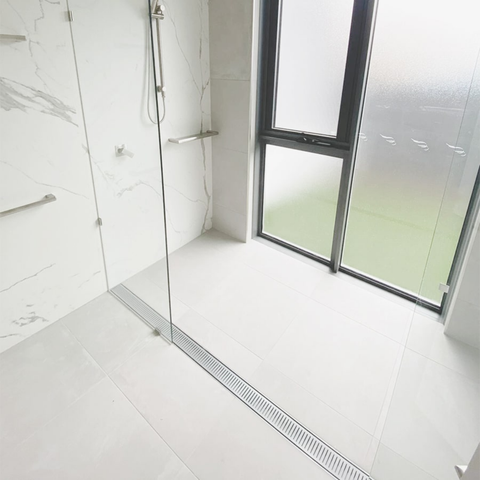

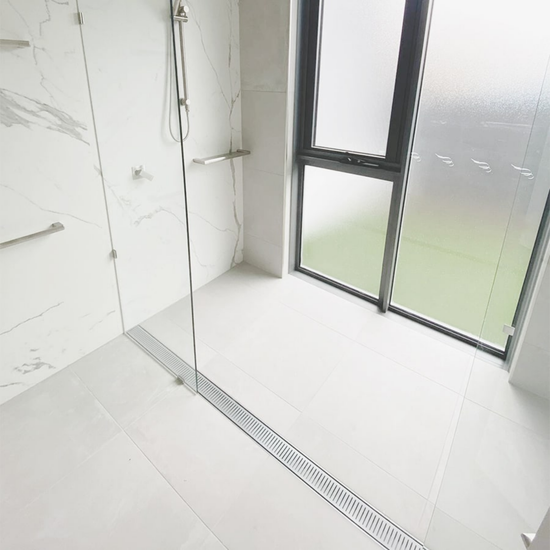

| Shower and bathroom floors | Flexible waste outlet placement simplifies plumbing, offering a sleek, modern drainage solution. | Plumbers, Tilers |
| Commercial wet areas | Durable, easy-to-clean design supports hygiene standards and withstands frequent use. | Builders, Commercial Fit-out Contractors |
| Outdoor kitchens and entertainment areas | UV stabilised and rustproof material ensures longevity and aesthetic retention in direct sunlight and weather. | Landscapers, Outdoor Builders |
How to apply Lauxes Grates Standard Floor Grate:
- Measure the area and cut the grate to size using a mitre saw or aluminium blade.
- Dry-fit the grate into the recess or trench to ensure accurate placement and outlet alignment.
- Position the waste outlet along the base tray where needed and secure it to drainage pipework.
- Seal ends with silicone if required, and ensure a slight fall for effective water flow.
- Snap the top grate into place after verifying drainage performance and alignment.
Product limitations
- Not for: Heavy vehicle traffic. This grate is designed for pedestrian and light commercial use; reinforced steel grates are required for driveways or industrial zones.
- Installation note: May require bedding mortar for uneven surfaces to ensure proper levelling and optimal drainage performance.
Safety and handling
Personal protective equipment
When cutting aluminium on site, wear safety glasses to protect eyes from debris and gloves to prevent cuts or abrasions.
Ventilation
No special ventilation is required as this product does not involve chemicals or adhesives during installation.
First aid
- Cuts/Abrasions: In case of cuts or abrasions during onsite cutting, follow standard wound care procedures as advised by Safe Work Australia.
Storage and disposal
Store grates flat to prevent denting or edge damage. Handle with care during transport and installation. Aluminium is recyclable; dispose of offcuts in accordance with local recycling guidelines.
Substrate guide
Proper surface preparation ensures optimal performance and fit for your Lauxes Grate.
Concrete
Surface prep: Ensure the surface is level and clean. For uneven concrete, bedding mortar may be required to achieve optimal grate performance.
Primer: Not required.
Tile
Surface prep: Prepare the tiling substrate as per standard tiling practices, ensuring adequate fall to the grate. Levelling beneath the grate is critical.
Primer: Not required.
Vinyl
Surface prep: The surface must be clean and level. Compatible with vinyl flooring when using appropriate edge trims for a neat finish.
Primer: Not required.
Stone
Surface prep: Ensure the stone installation is level with appropriate fall. Bedding mortar may be needed for levelling on uneven surfaces.
Primer: Not required.

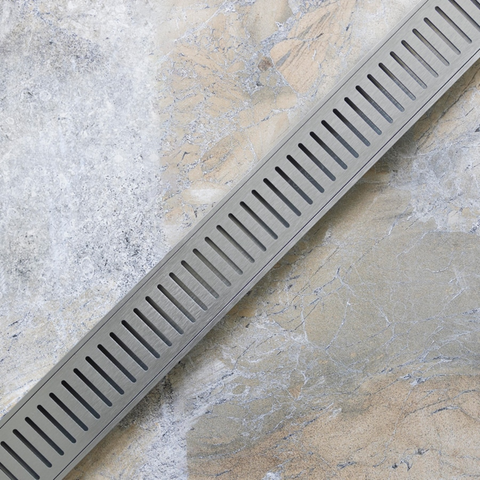

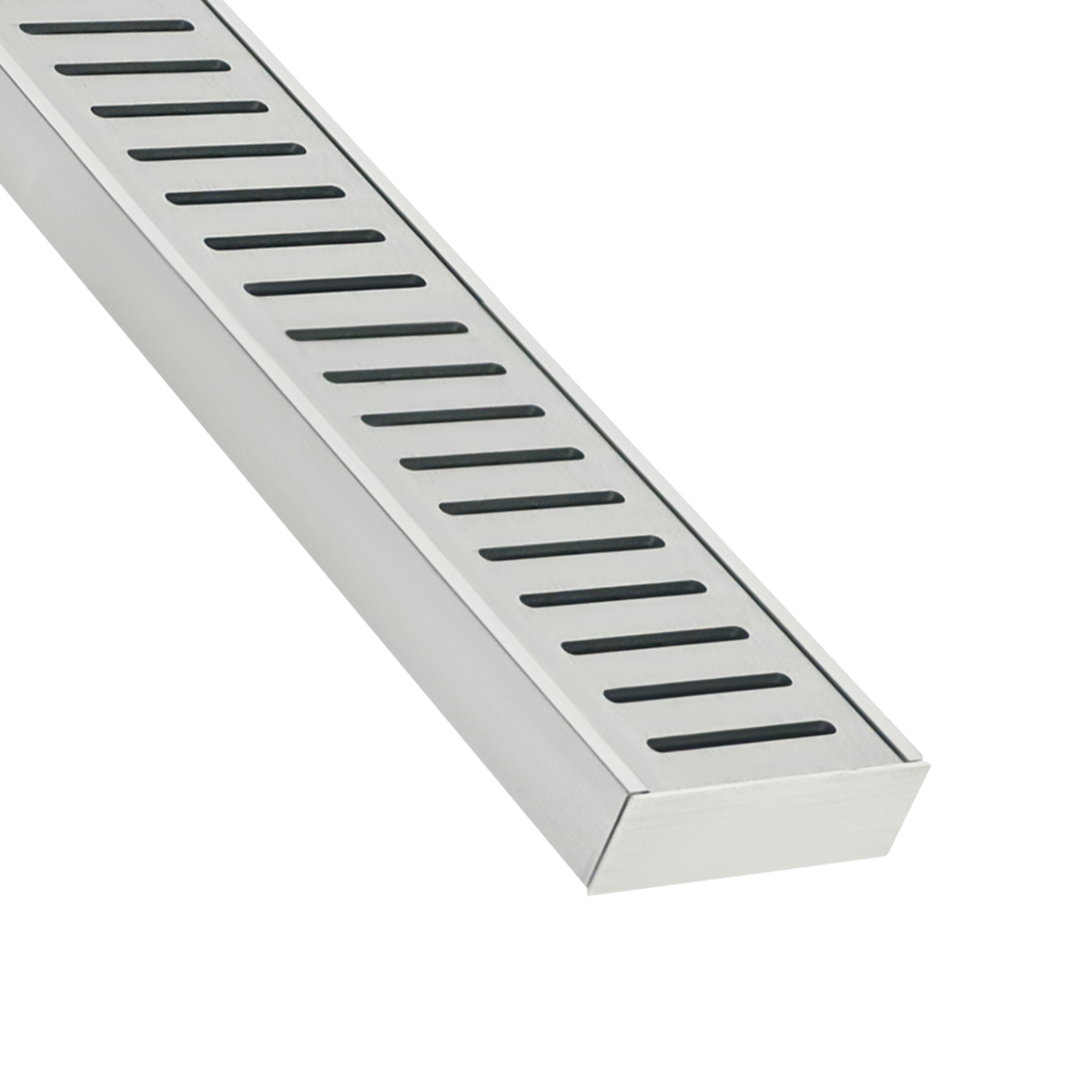

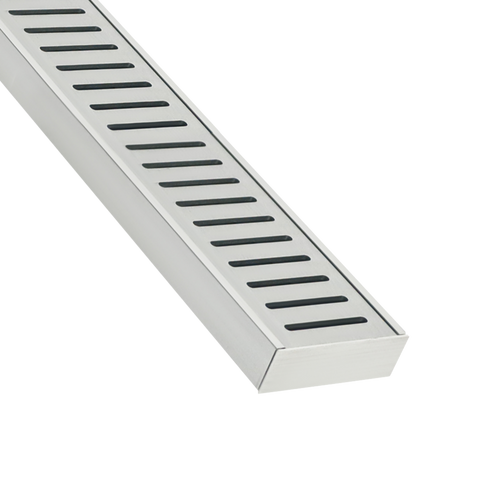

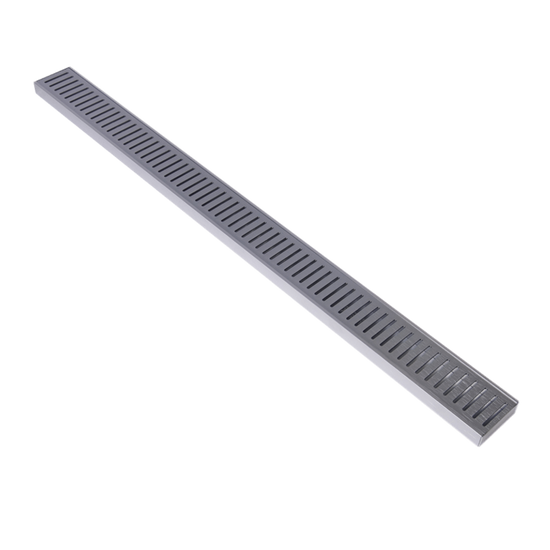

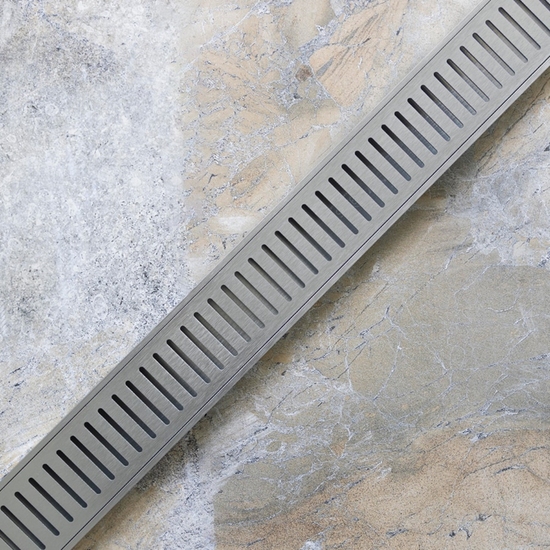

Lauxes Standard Floor Grate 70mm x 23mm – Silver Physical Properties
| Property | Value |
|---|---|
| Product Name | Standard Floor Grate (SFG) |
| Dimensions | 5600mm X 70mm x 23 mm |
| Available Lengths | 1000 mm,1600 mm, 3000 mm, 5600 mm, Custom Length |
| Colour | Midnight Black |
| Material Properties | Rustproof, UV Stabilised |
| UV Stability | 100% UV Stabilised |
| Rust Resistance | Lifetime Rustproof Warranty |
| Customisation | Can be cut onsite or custom ordered to size |
| Weight | Lightweight |
| Cleaning | Top grate easily removed for cleaning |
| Installation Flexibility | Waste outlet can be positioned anywhere along the tray, no major plumbing required |
| Extension Capability | Extendable beyond 5.6 m using Lauxes joiners |
| Coverage Rate | extendable with joiners |
