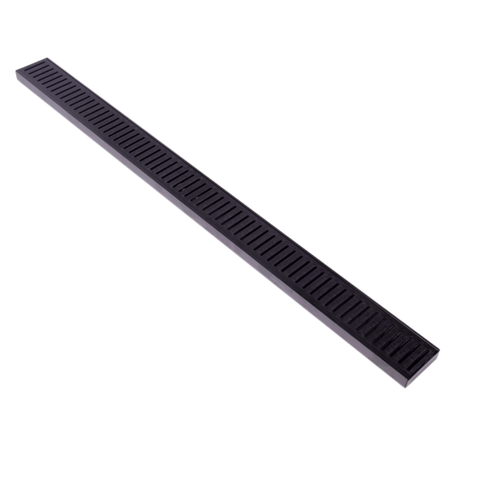

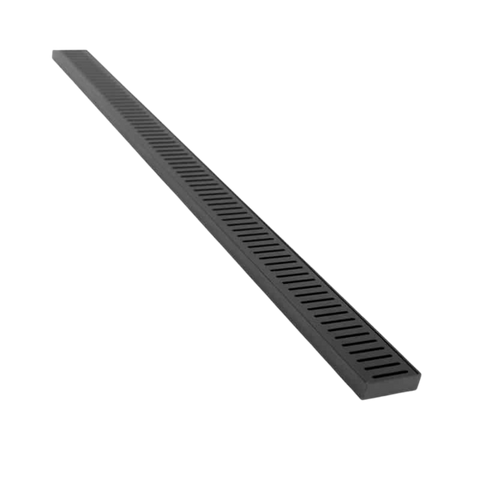

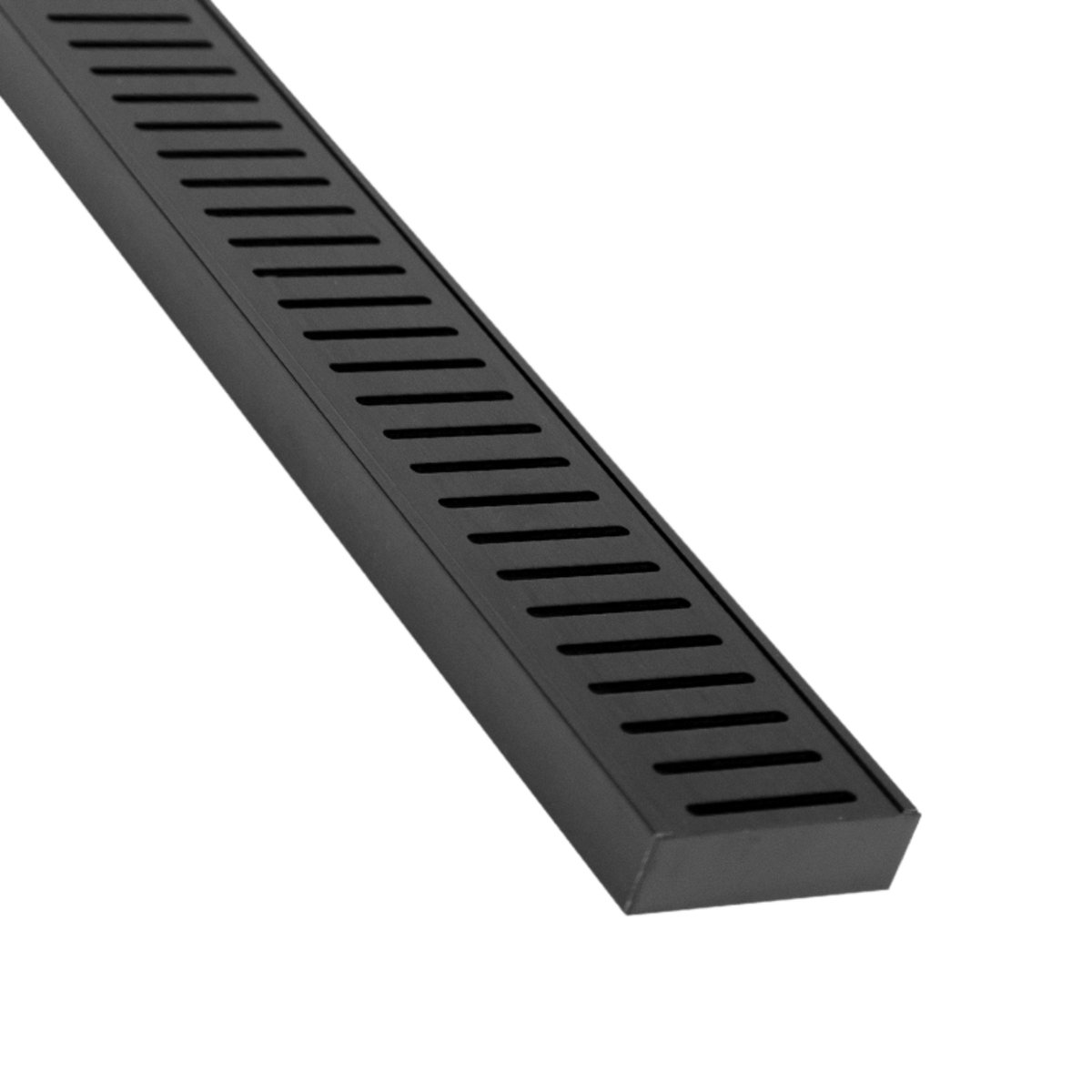

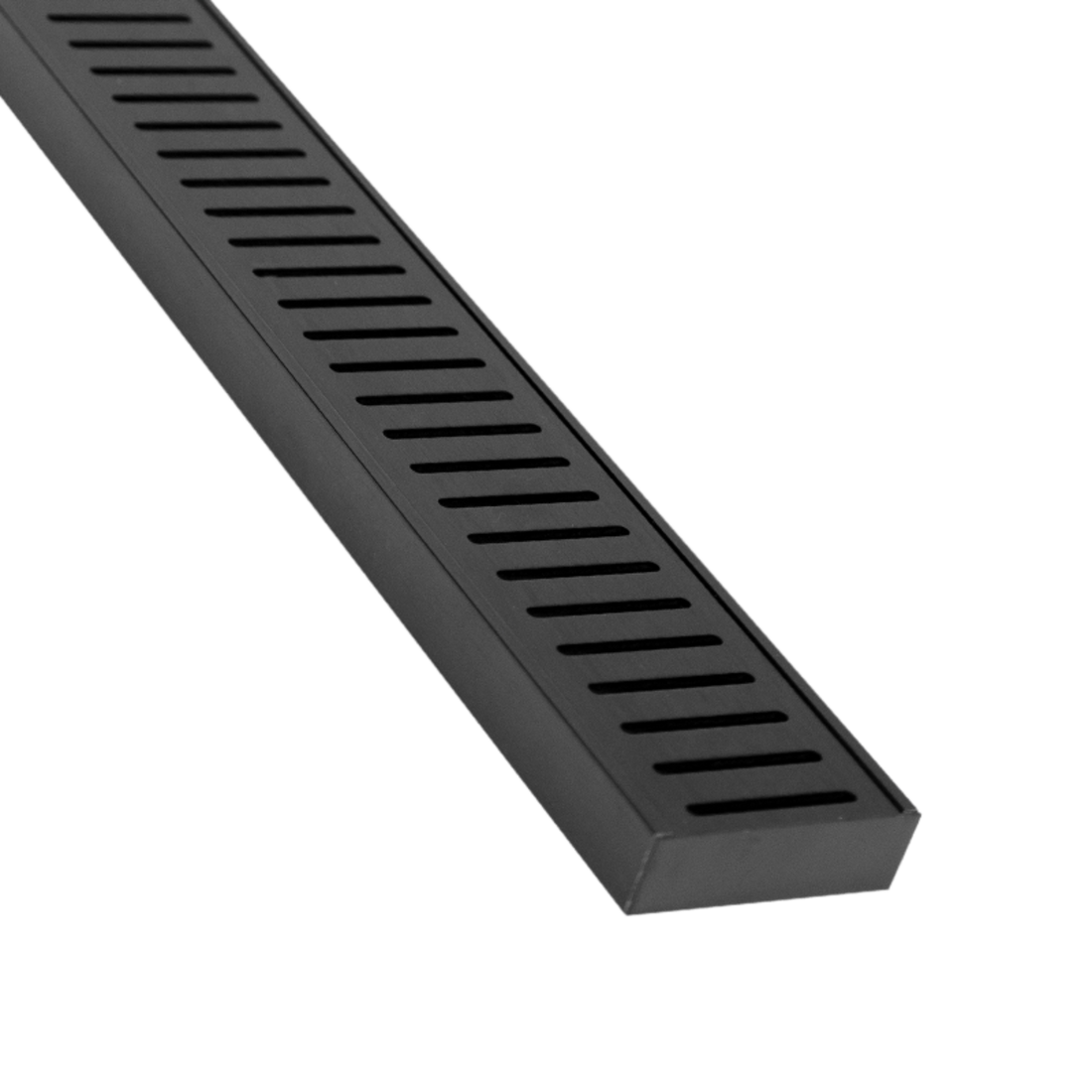

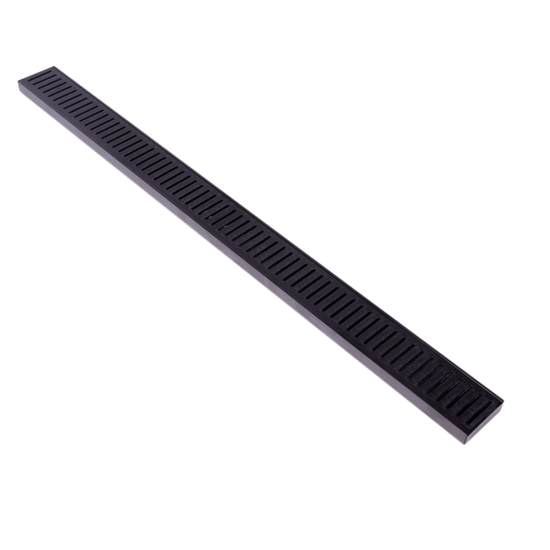

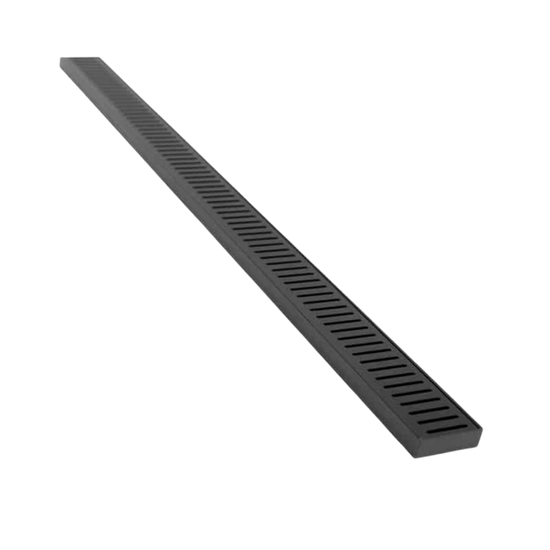

Lauxes Grates Standard Floor Grate – Midnight is the original compact Lauxes linear drainage profile for renovations, retrofits and other indoor or outdoor applications. The anodised aluminium profile is 70mm wide x 23mm deep and uses 40mm or 50mm waste outlets.
Adheseal sell lengths
Adheseal currently offers this Midnight profile as a 1000mm customer-facing sell unit backed by its per-metre range. It can be cut on site to suit the finished installation.
Lauxes manufacturer full lengths
Lauxes manufactures the Standard Floor Grate in 3000mm and 5600mm full lengths. These manufacturer lengths are product specifications and are not separate Adheseal online sell variants on this listing.
Installation and care
- Suitable for indoor and outdoor use
- Install after waterproofing, tiling and grouting are complete; the grate does not form part of the waterproofing system
- Keep the grate out of wet cement and screed; use a template or spacer during screeding or concreting
- Use neutral-cure silicone for assembly and fixing
- Position the waste hole where required to align with the floor waste
- Clean construction residue before it dries
- UV stable and backed by Lauxes’ lifetime rustproof warranty
Which waste outlets suit the Standard Floor Grate? Lauxes specifies 40mm and 50mm outlets for the 70mm-wide profile.
Can the Standard Floor Grate be cut to length onsite? Yes. Lauxes states its grates can be cut, joined and adjusted onsite.
Does the grate need fall built into it? No. The floor must be graded toward the drain; the grate itself does not require built-in fall.
Can it be used outdoors? Yes. The 2026 catalogue specifies indoor and outdoor use.
Standard Floor Grate is a 70mm wide, 23mm deep anodised aluminium slotted linear drain intended especially for renovations and retrofit projects where a compact profile is required. Lauxes specifies 40mm and 50mm waste outlets and lists the range for indoor and outdoor use.
Use the Standard Floor Grate for indoor or outdoor floor drainage, particularly renovations and retrofit work where the 70mm profile suits the available space. Form the recess with a template 10 to 20mm wider than the grate, cut the channel to length, drill the waste opening to align with the drain pipe and fit the outlet and end caps with neutral-cure silicone. Install the grate level as the final flooring step.
The grate does not form part of the waterproofing system and must not contact wet cement or screed. The 70mm Standard Floor Grate is specified for 40mm and 50mm waste outlets, not 72mm or 80mm outlets. Install after waterproofing, tiling and grouting with neutral-cure silicone.
Tiled floor systems over concrete or screed with a separate waterproofing membrane; fibre-cement sheet floor systems; waterproofing foam-board systems. The grate sits in the prepared recess and is fixed with neutral-cure silicone.
Lauxes Grates Standard Floor Grate 70 x 23mm – Midnight Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Standard Floor Grate 70 x 23mm – Midnight |
| Manufacturer Full Lengths | 3000mm, 5600mm |
| Adheseal Sell Lengths | 1000mm |
| Profile Width | 70mm |
| Profile Depth | 23mm |
| Material | Anodised aluminium |
| Colour | Midnight |
| Applications | Indoor and outdoor |
| Outlet Sizes | 40mm, 50mm |
| Cutting Capability | Can be cut on site to finished length |
| Waste Outlet Positioning | Waste hole can be drilled at the required position to align with the floor waste |
| Cleaning Access | Clean construction residue before it dries; maintain with soapy water or mild detergent and a soft cloth or brush |
| UV Stability | UV stable |
| Rustproof Guarantee | Lifetime rustproof warranty |
