Lauxes Grates Standard Floor Grate 70 x 23mm in Brushed Nickel
Lauxes Grates Standard Floor Grate 70 x 23mm in Brushed Nickel

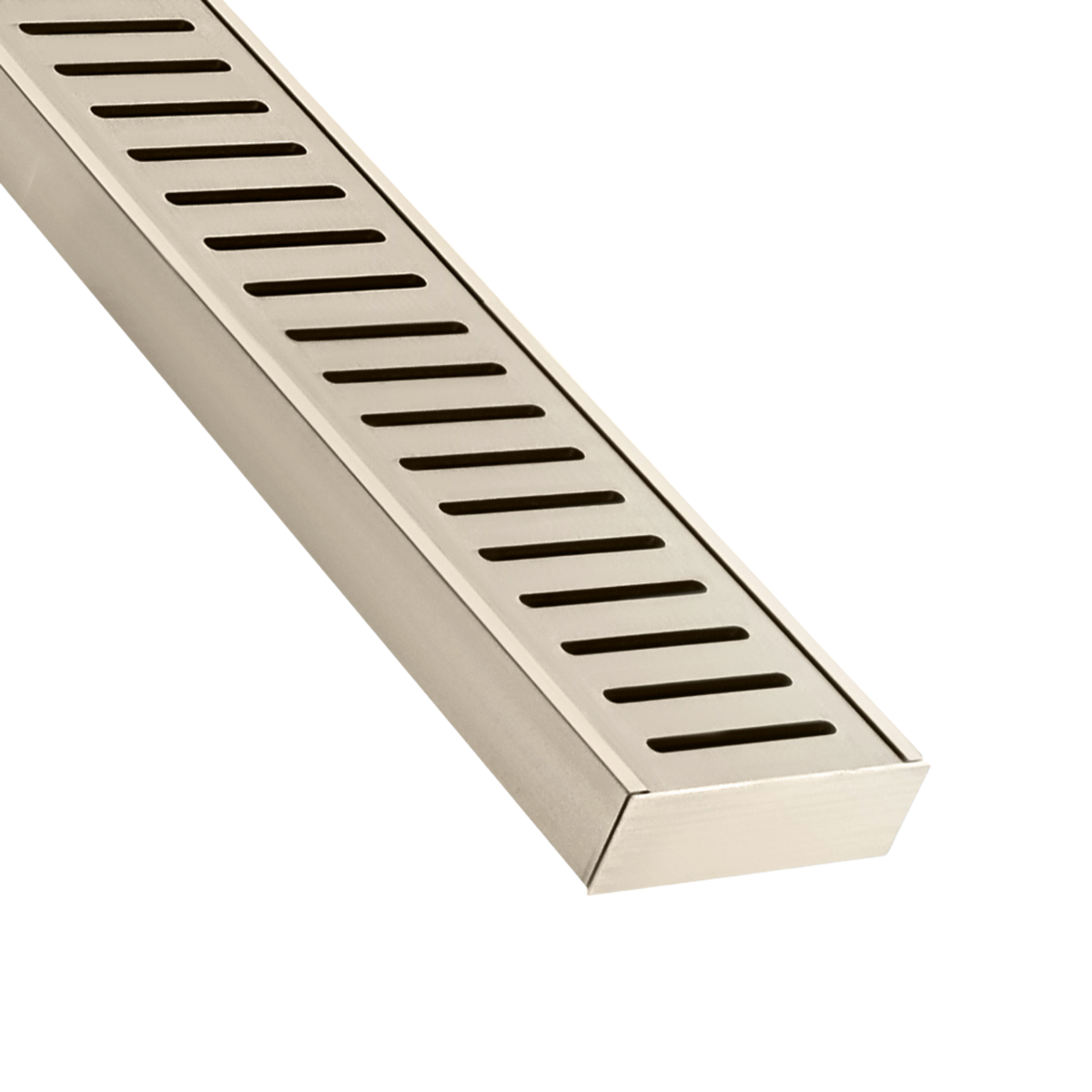

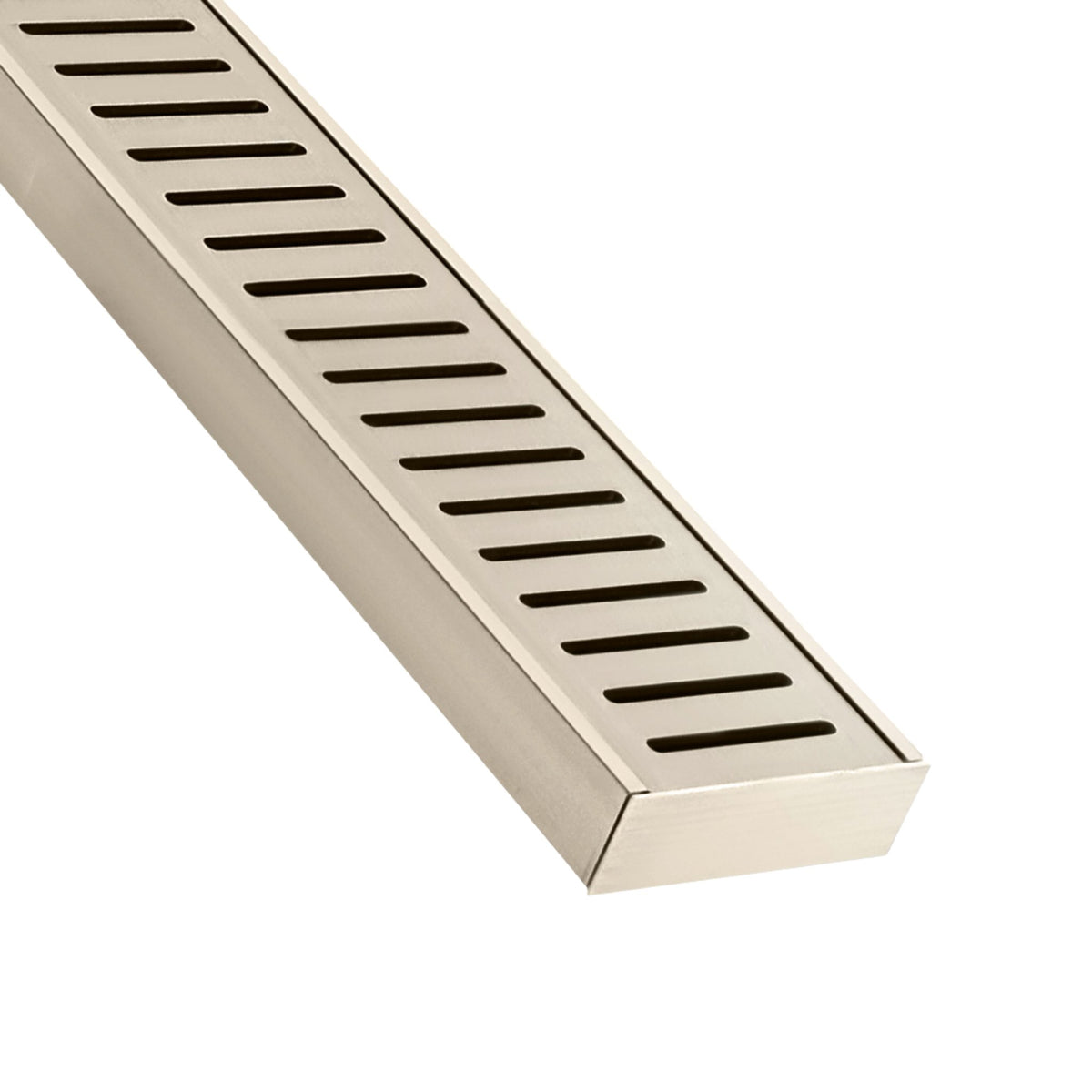

Lauxes Grates Standard Floor Grate 70 x 23mm – Brushed Nickel

70mm wide, 23mm deep anodised aluminium slotted linear drain for renovation and retrofit drainage, with 40mm or 50mm waste outlet options.

Vendor: Lauxes Grates
SKU: LUXSTD23THINBN
Availability: Out Of Stock
$135.64
$135.64
Prices do not include GST

Special order

This item is supplied to order and is not confirmed as in stock at any store. For availability before visiting, email contact@adheseal.com.au.

Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Download Product Data

Download TDS
Description

Lauxes Grates Standard Floor Grate – Brushed Nickel is a narrow 70mm wide, 23mm deep anodised aluminium linear drain for suitable bathrooms, balconies and renovation drainage runs. Its compact width makes it a useful alternative where the design calls for a narrower channel than the 100mm-wide Lauxes profiles.

The grate can be cut to the required length on site. Choose a compatible 40mm or 50mm waste outlet and confirm floor falls, waterproofing and the available channel depth before installation. The Brushed Nickel finish provides the visible architectural detail without changing the profile dimensions.

Before ordering

Confirm the listed Adheseal selling length and required outlet size. The 70mm Standard Floor Grate does not accept 72mm or 80mm outlets. Follow Lauxes' installation and care guidance to protect the anodised finish.

Common Questions

Which waste outlets suit the Standard Floor Grate?
Lauxes specifies 40mm and 50mm outlets for the 70mm-wide profile.

Can the Standard Floor Grate be cut to length onsite?
Yes. Lauxes states its grates can be cut, joined and adjusted onsite.

Does the grate need fall built into it?
No. The floor must be graded toward the drain; the grate itself does not require built-in fall.

Can it be used outdoors?
Yes. The 2026 catalogue specifies indoor and outdoor use.

Uses & Benefits
Standard Floor Grate is a 70mm wide, 23mm deep anodised aluminium slotted linear drain intended especially for renovations and retrofit projects where a compact profile is required. Lauxes specifies 40mm and 50mm waste outlets and lists the range for indoor and outdoor use.
How To Apply
Use the Standard Floor Grate for indoor or outdoor floor drainage, particularly renovations and retrofit work where the 70mm profile suits the available space. Form the recess with a template 10 to 20mm wider than the grate, cut the channel to length, drill the waste opening to align with the drain pipe and fit the outlet and end caps with neutral-cure silicone. Install the grate level as the final flooring step.
Limitations and Safety Info
The grate does not form part of the waterproofing system and must not contact wet cement or screed. The 70mm Standard Floor Grate is specified for 40mm and 50mm waste outlets, not 72mm or 80mm outlets. Install after waterproofing, tiling and grouting with neutral-cure silicone.
Suitable Substrates
Tiled floor systems over concrete or screed with a separate waterproofing membrane; fibre-cement sheet floor systems; waterproofing foam-board systems. The grate sits in the prepared recess and is fixed with neutral-cure silicone.

Lauxes Grates Standard Floor Grate 70 x 23mm – Brushed Nickel Physical Properties

Lauxes Grates Standard Floor Grate 70 x 23mm – Brushed Nickel Physical Properties
Property Value
Product Name Standard Floor Grate (SFG)
Dimensions 5600mm X 70mm x 23 mm
Available Lengths 1000 mm, 1600mm, 3000 mm, 5600 mm, Custom Length
Colour Brushed Nickel
Material Properties Rustproof, UV Stabilised
UV Stability 100% UV Stabilised
Rust Resistance Lifetime Rustproof Warranty
Customisation Can be cut onsite or custom ordered to size
Weight Lightweight
Cleaning Top grate easily removed for cleaning
Installation Flexibility Waste outlet can be positioned anywhere along the tray, no major plumbing required
Extension Capability Extendable beyond 5.6 m using Lauxes joiners
Coverage Rate Extendable with joiners
