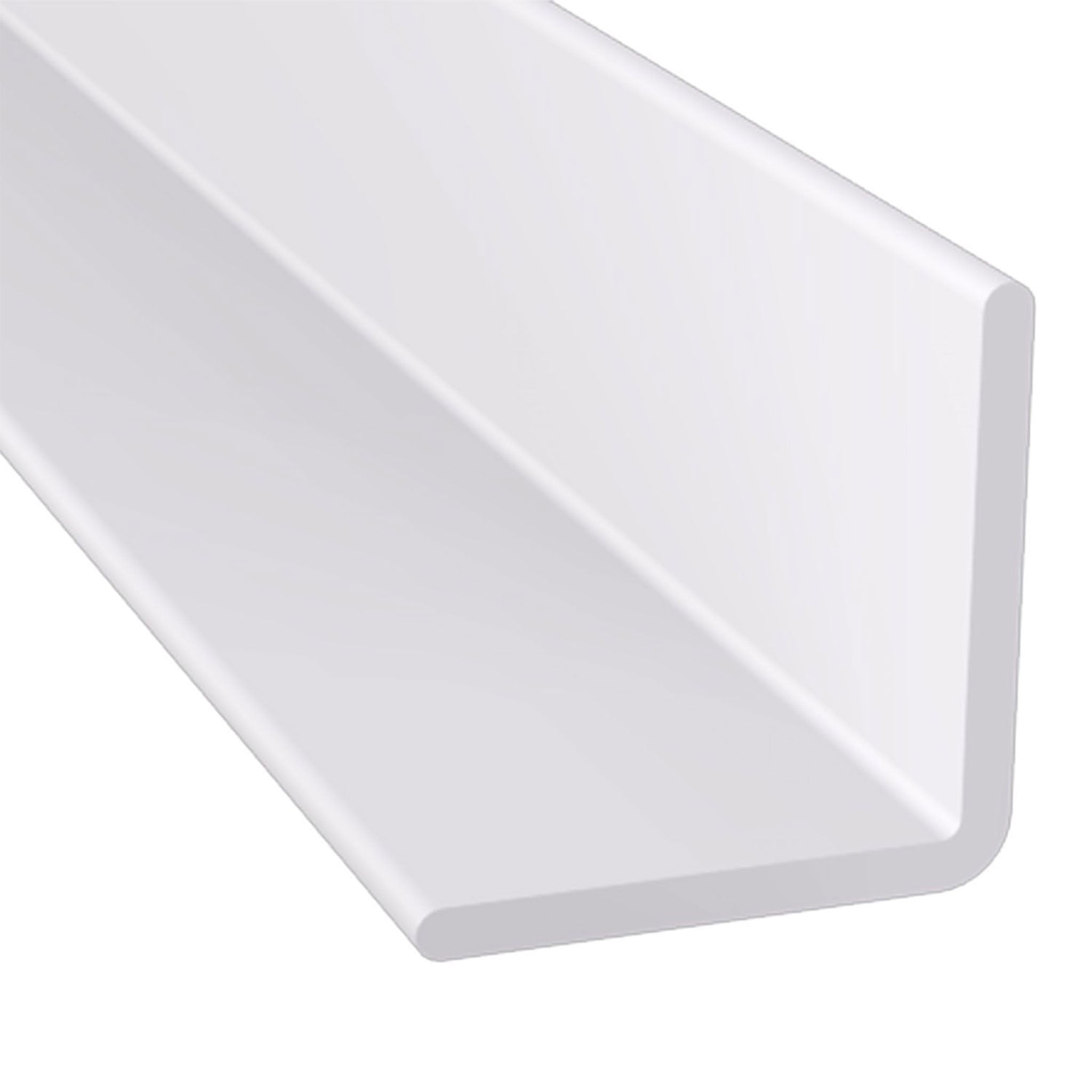

Fatra PVC Coated Angle covers the Fatranyl PVC-coated metal profiles used to terminate and detail Fatrafol PVC waterproofing membranes. The coated surface can be hot-air welded into the compatible PVC membrane system, giving the installer a purpose-made edge, peel-stop, chase, flashing or fold profile rather than an improvised termination. Fatra also offers custom-fabricated dimensions for project-specific details.
| Profile | Current manufacturer dimensions |
|---|---|
| F1 | 40 × 40 mm internally coated Peel Stop, 2 m |
| F2 | 50 × 15 mm internally coated Peel Stop, 2 m |
| F3 | 40 × 40 mm externally coated Peel Stop, 2 m |
| F4 | 50 mm PVC-coated flat bar, 2 m |
| F5 | 50 × 15 mm chase termination, 2 m |
| F6 | 50 × 20 mm K-flashing, 2 m |
| F7 | 50 × 50 mm crush-and-fold profile, 2 m |
Select the Fatranyl profile from the membrane termination detail rather than by nominal angle size alone. Heat-weld the coated face only as specified for the Fatrafol PVC system and use custom-fabricated profiles where the standard F1–F7 geometry does not suit the project.
Fatranyl-based coated termination angle providing a monolithic heat-welded bond at waterproofing perimeters. Peel Stop and Chase Termination profiles prevent capillary ingress at wall-to-floor junctions and can be custom-fabricated to project dimensions.
