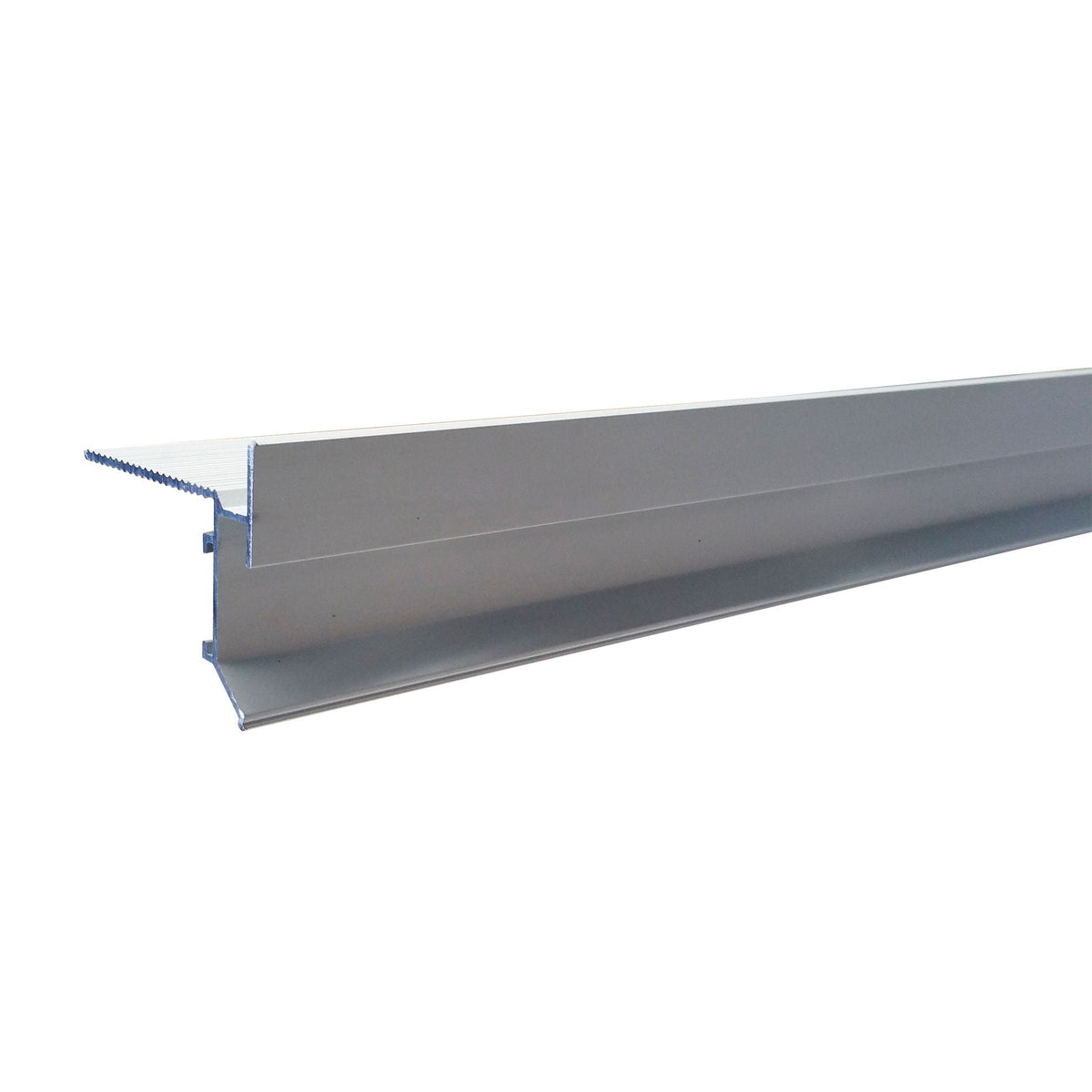

B.A.T 12 mm Anodised Aluminium Balcony Drip Angle is a 5 m balcony drip edge for longer tiled or rendered balcony runs. Its drip lip projects runoff clear of the fascia, cladding or render below, helping stop water tracking back beneath the balcony edge. The anodised profile also provides a continuous finished perimeter line.
| Material | Anodised aluminium |
|---|---|

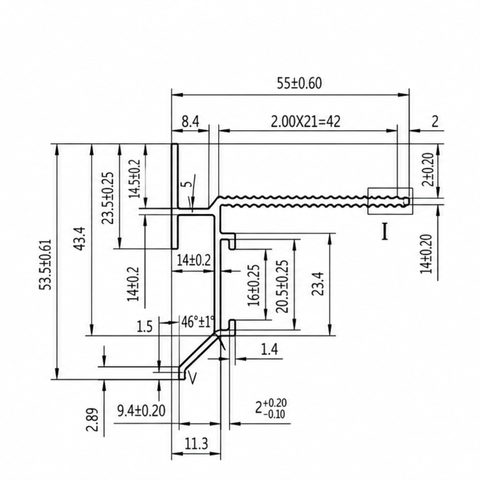

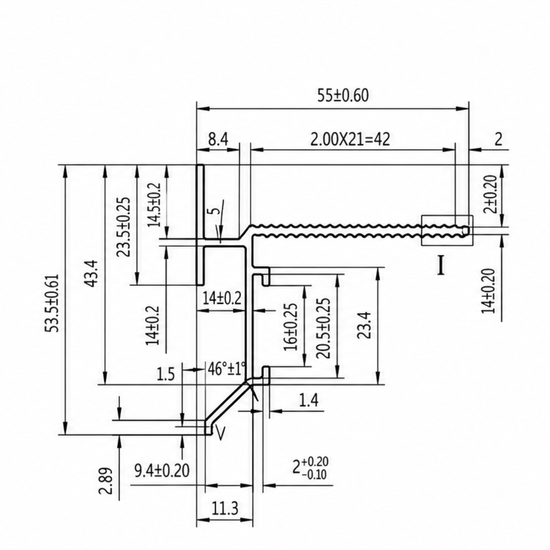

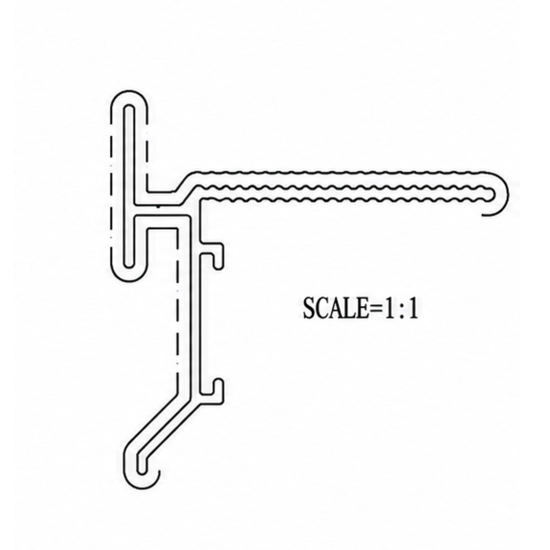

| Profile | 12 mm drip angle |
| Length | 5 m |

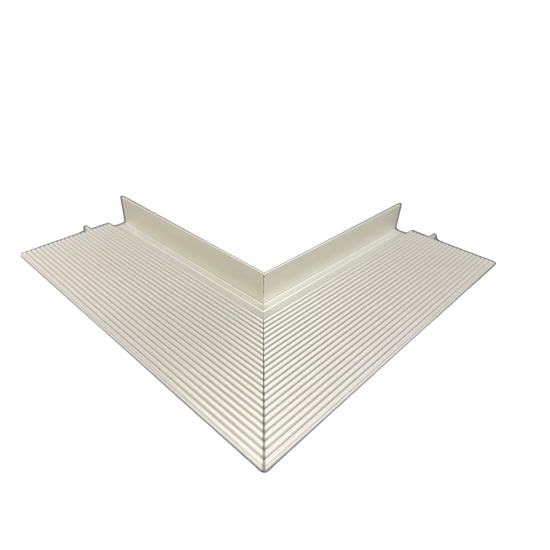

| Matching corners | 90° internal and external corner options |
Install the profile at the balcony perimeter before the final tile or render finish, with the drip lip facing outward and downward. Integrate it with the project waterproofing and floor-fall detail, and keep the drip edge clear so runoff can discharge freely.
When should I use the 5 m balcony drip angle?
Use the 5 m profile for longer continuous balcony runs where reducing joints is useful. It uses the same 12 mm drip detail and matching 90° corner components as the shorter profile.
- Prepared concrete or screed balcony edges
- Waterproofed balcony edge systems
- Tile adhesive beds where the project detail embeds the profile
Anodized Aluminum Balcony Drip Angle (12mm x 5m) Physical Properties
| Property | Value |
|---|---|
| Material Type | Anodised Aluminium |
| Finish Options | Anodised |
| Dimensions | 12mm profile, 3.0m and 5.0m lengths |

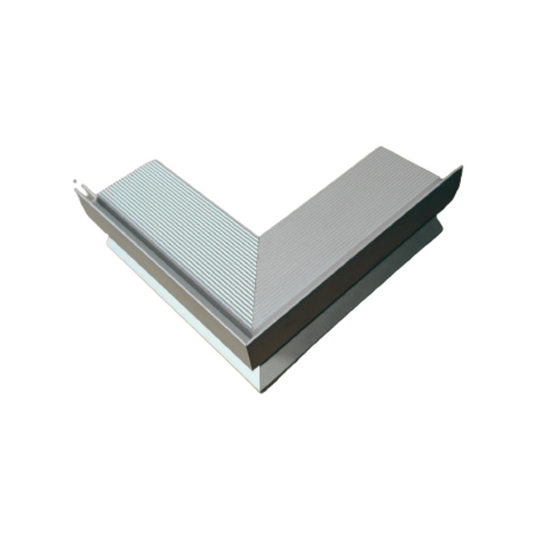

| Corner Profiles | Internal 90° (155mm x 155mm), External 90° (155mm x 155mm) |
| Installation Method | Mechanical fixing, Embedded in tile adhesive |
| Substrate Compatibility | Concrete screeds, Waterproof membranes, Tile beds |
| Shelf Life | Indefinite |
| Storage Conditions | Store flat, dry, away from corrosive chemicals |
