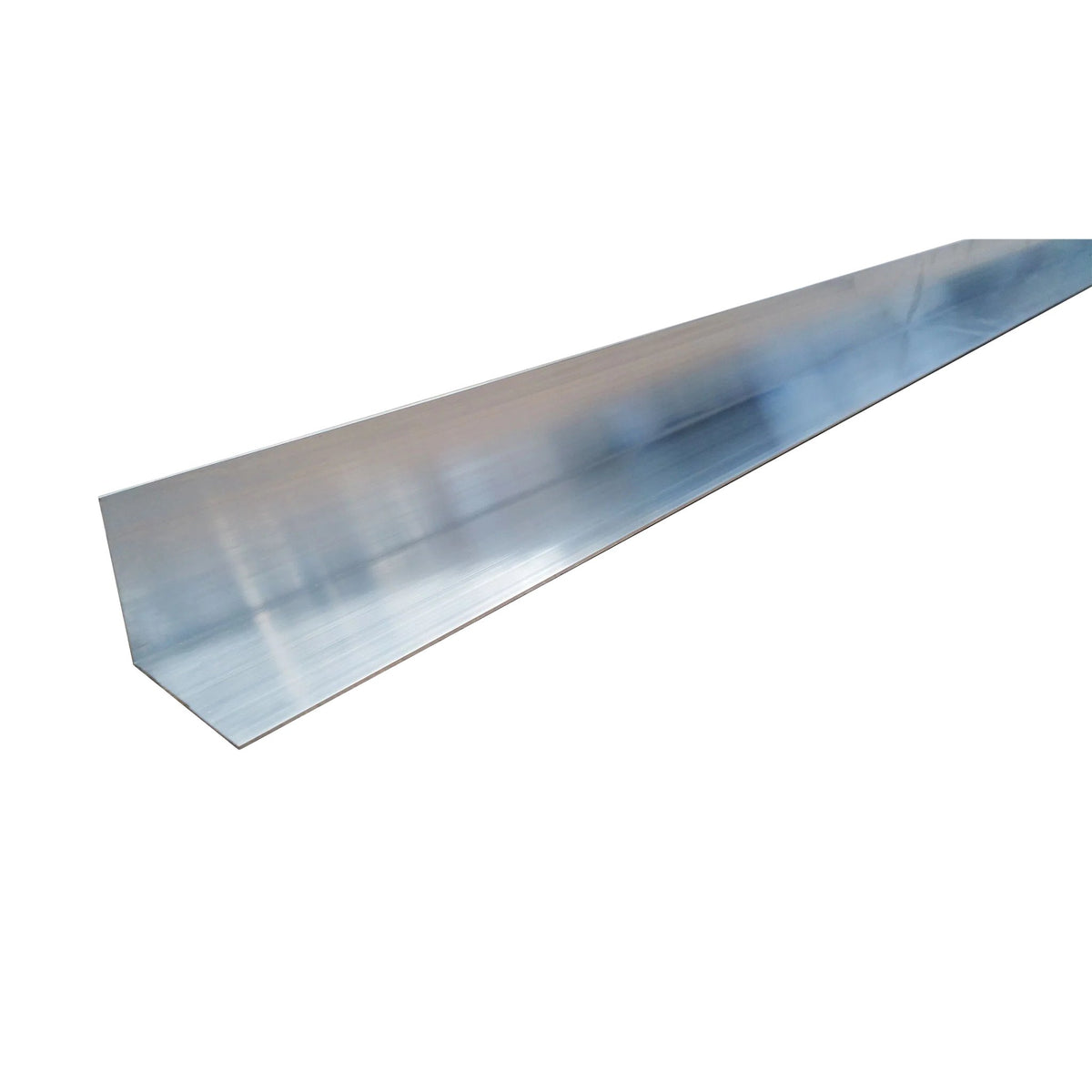

Aluminium Angle Unequal 70 × 25 is a wide-face, shallow-return 6060-T5 aluminium section with a 70mm covering leg and 25mm return. It suits selected fascia edges, broad sheet overlaps and caravan or shopfitting panels where the visible side needs generous cover but the return must stay compact.
Its 1.6mm wall makes this a different stock section from the thicker 60 × 25mm angle. Choose 70 × 25mm for the wider face dimension, not because it has a higher load or impact rating.
| Leg dimensions | 70 × 25 mm |
|---|---|
| Geometry | Unequal angle |
| Alloy / temper | 6060 T5 |
| Finish | Mill finish |
| Current stock | 1.6 mm × 2165 mm |
Current stock: 1.6mm thick × 2165mm long. Check straightness, face coverage and fastening clearances before cutting; keep the shallow return oriented correctly in the installation.
Prepare the mill finish for any specified adhesive or coating and deburr all cut edges. This profile is not a substitute for a designed load-bearing support or a balcony drip edge that manages runoff.
What stock options are available in 70 × 25 mm aluminium angle?
Current Adheseal stock is 1.6 mm × 2165 mm, supplied in 6060 T5 mill finish.
Aluminium Angle Unequal 70x25 Physical Properties
| Property | Value |
|---|---|
| Alloy | 6060 |
| Temper | T5 |
| Finish | Mill Finish |
| Form | Angle Extrusion |
| Strength to Weight Ratio | High |
| Corrosion Resistance | Excellent |
| Weldability | Excellent |
| Machinability | Good |
| Lengths Available | Varies by size |
| Processing Capabilities | Cutting, drilling, welding, anodising, powder coating, painting |
| Typical Applications | Vehicle body building, caravans, aerospace, shopfitting, frames, architectural frameworks |
