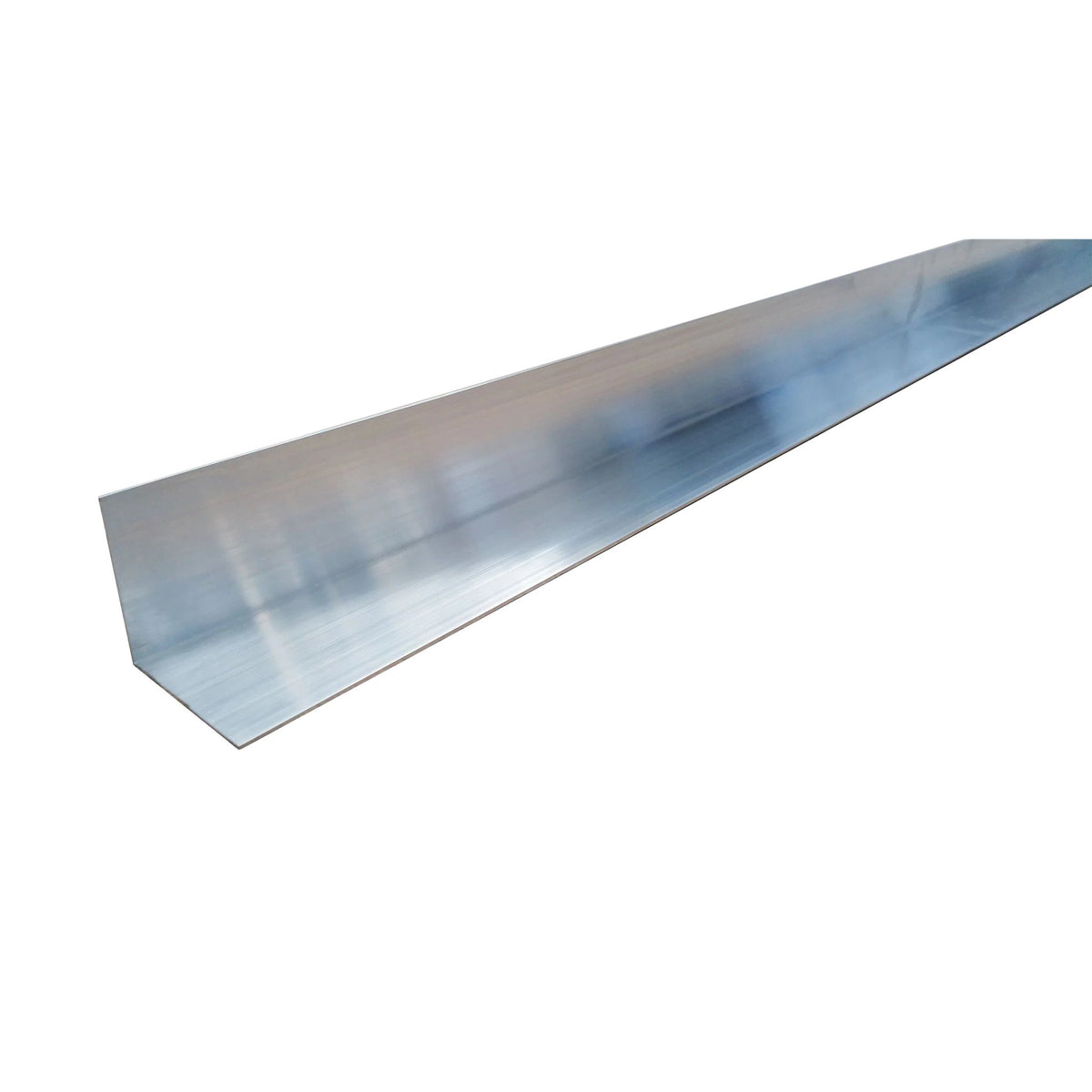

Aluminium Angle Equal 50 × 50 gives you a 50mm return on both faces of a 90-degree corner. This mill-finish 6060-T5 aluminium extrusion is useful where shopfitting, panel framing or vehicle fabrication needs broader, evenly matched edges than a small trim can provide.
Compared with 40 × 40mm equal angle, the extra 10mm on each leg provides more surface coverage. The profile comes in two thicknesses: choose based on the fixing detail and the project's engineering requirements, not on a generic strength claim.
| Leg dimensions | 50 × 50 mm |
|---|---|
| Geometry | Equal angle |
| Alloy / temper | 6060 T5 |
| Finish | Mill finish |
| Current stock | 1.6 mm × 2165 mm or 3.0 mm × 2165 mm |
Available lengths and thicknesses: 1.6mm or 3.0mm wall thickness, both supplied in 2165mm lengths. Confirm which section the design calls for before ordering.
Cut with a non-ferrous blade, deburr and prepare any coating or fixing areas. Mill finish is not the same as anodised or powder-coated aluminium. No rated structural capacity is provided for these stock sections; loading and fastening require project-specific verification.
What stock options are available in 50 × 50 mm aluminium angle?
Current Adheseal stock is 1.6 mm × 2165 mm or 3.0 mm × 2165 mm, supplied in 6060 T5 mill finish.
Aluminium Angle Equal 50x50 Physical Properties
| Property | Value |
|---|---|
| Alloy | 6060 |
| Temper | T5 |
| Finish | Mill Finish |
| Form | Angle Extrusion |
| Strength to Weight Ratio | High |
| Corrosion Resistance | Excellent |
| Weldability | Excellent |
| Machinability | Good |
| Lengths Available | Varies by size |
| Processing Capabilities | Cutting, drilling, welding, anodising, powder coating, painting |
| Typical Applications | Vehicle body building, caravans, aerospace, shopfitting, frames, architectural frameworks |
