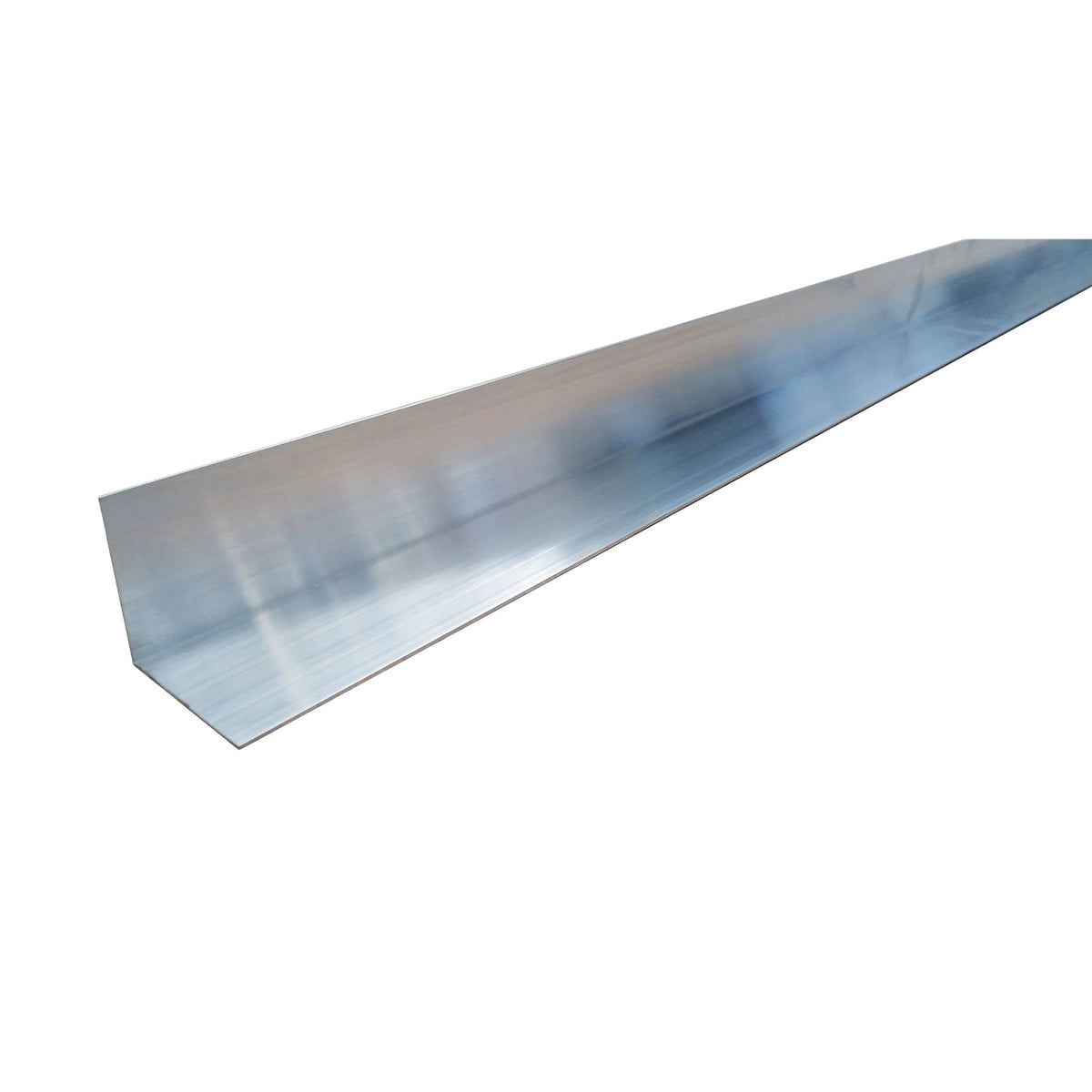

Aluminium Angle Unequal 32 × 20 provides a 32mm main face and 20mm return in a compact 6060-T5 mill-finish aluminium profile. It suits panel edging, small trim assemblies and fabrication details where a 25 × 12mm angle is too narrow but a large corner extrusion would dominate the finish.
This is a useful in-between size for shopfitting, compatible caravan panels and light fabricated enclosures. Choose the available 1.6mm or 3.0mm wall according to the attachment method and design, not by assuming either variant carries a standard load rating.
| Leg dimensions | 32 × 20 mm |
|---|---|
| Geometry | Unequal angle |
| Alloy / temper | 6060 T5 |
| Finish | Mill finish |
| Current stock | 1.6 mm × 2165 mm or 3.0 mm × 2165 mm |
Available sections: 1.6mm × 2165mm or 3.0mm × 2165mm. Both variants share the same leg geometry, so selecting wall thickness does not change the 32mm and 20mm returns.
Measure clearance, cut and deburr the profile and prepare the mill finish for any adhesive, mechanical fixing or coating. Confirm compatibility and required fixing strength for the finished assembly.
What stock options are available in 32 × 20 mm aluminium angle?
Current Adheseal stock is 1.6 mm × 2165 mm or 3.0 mm × 2165 mm, supplied in 6060 T5 mill finish.
Aluminium Angle Unequal 32x20 Physical Properties
| Property | Value |
|---|---|
| Alloy | 6060 |
| Temper | T5 |
| Finish | Mill Finish |
| Form | Angle Extrusion |
| Strength to Weight Ratio | High |
| Corrosion Resistance | Excellent |
| Weldability | Excellent |
| Machinability | Good |
| Lengths Available | Varies by size |
| Processing Capabilities | Cutting, drilling, welding, anodising, powder coating, painting |
| Typical Applications | Vehicle body building, caravans, aerospace, shopfitting, frames, architectural frameworks |
