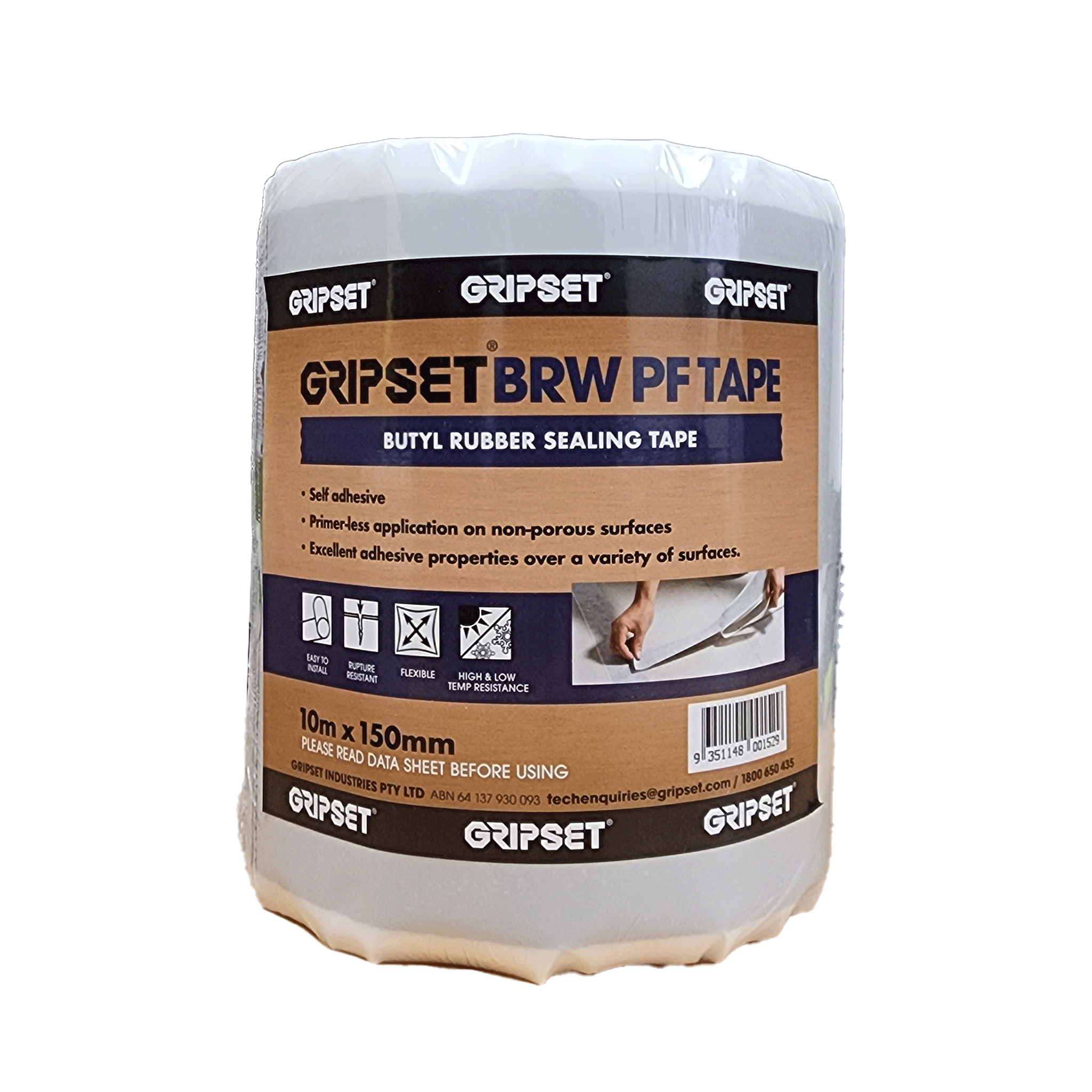

Gripset BRW PF butyl rubber tape roll seals joints, penetrations in waterproofing systems with membrane-compatible polyest...

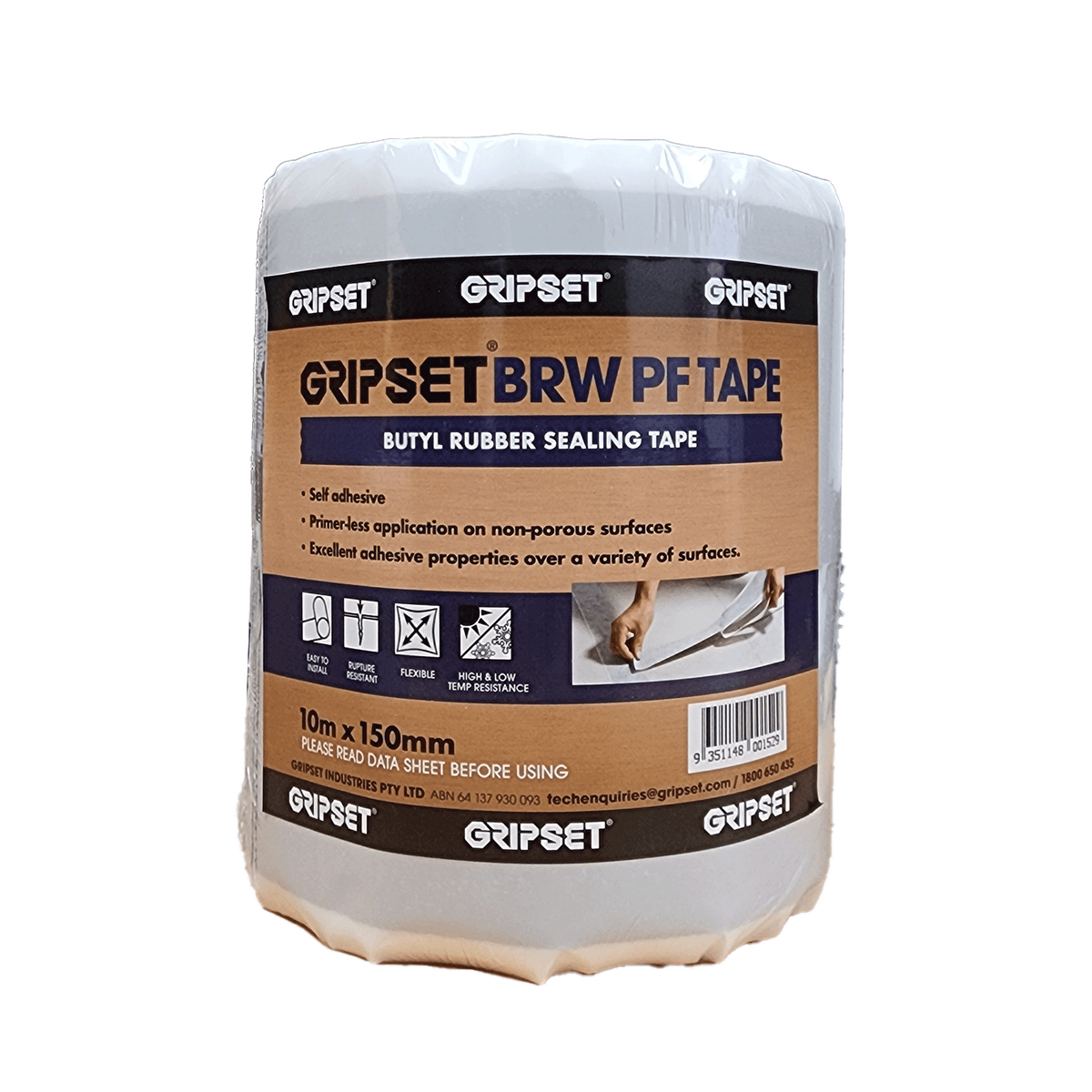

Gripset BRW PF butyl rubber tape roll seals joints, penetrations in waterproofing systems with membrane-compatible polyest...

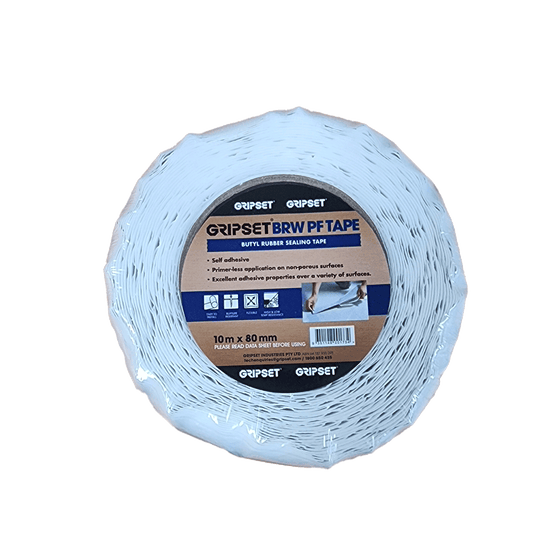

Gripset BRW PF butyl rubber waterproofing tape roll, 10m x 80mm self-adhesive, seals joints & penetrations for membrane sy...

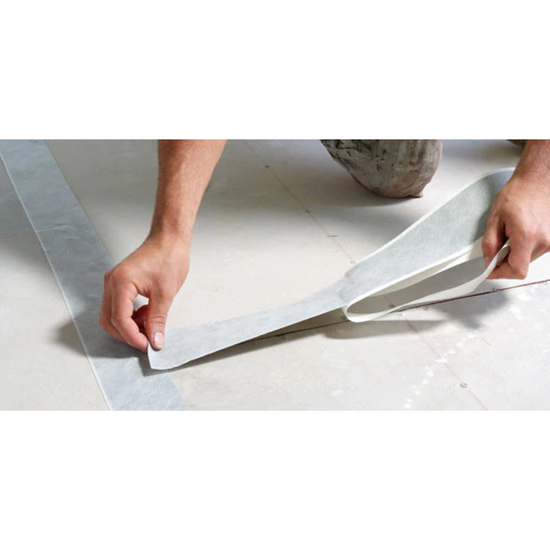

Worker applying Gripset BRW PF butyl rubber waterproofing tape to seal concrete wall-floor junction, compatible with membr...
Gripset BRW PF butyl rubber tape roll seals joints, penetrations in waterproofing systems with membrane-compatible polyest...
Gripset BRW PF butyl rubber tape roll seals joints, penetrations in waterproofing systems with membrane-compatible polyest...
Gripset BRW PF butyl rubber waterproofing tape roll, 10m x 80mm self-adhesive, seals joints & penetrations for membrane sy...
Worker applying Gripset BRW PF butyl rubber waterproofing tape to seal concrete wall-floor junction, compatible with membr...

Gripset BRW PF Tape

A self-adhesive butyl tape that seals wall-floor junctions and penetrations instantly, thin enough to tile over. 70% elongation with over 80N peel adhesion, sticking to concrete, timber, and metal.

Vendor: Gripset
SKU: GRIPBRWPF/80/10MT
Availability: In Stock
$33.69
$33.69
Prices do not include GST
Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Download Product Data

Download TDS Download SDS
Description

Gripset BRW PF Tape is a self-adhesive butyl-rubber waterproofing and flashing tape with a fabric face that accepts compatible membranes, tile adhesives, mortars and renders. It makes an immediate seal at prepared junctions, penetrations and flashings without waiting for a liquid sealant to cure.

Where BRW PF Tape fits

  • Wall-to-floor junctions: form a bond-breaker and waterproof transition before covering with a compatible Gripset membrane.
  • Puddle flanges and pipe penetrations: detail waste outlets, PVC pipes, waterstops and other changes of plane.
  • Gutters and metal flashing: seal suitable roofing details, pinholes and pitted metal areas that will receive a specified finish.

Why choose self-adhesive tape?

The high-tack butyl backing seals on contact, while the fabric facing provides a surface for compatible finishes. It is particularly useful for detailing work with awkward shapes or multiple substrate changes. Unlike Elastoproof B10/B50, which is an elastic joint band embedded in a compatible liquid membrane, BRW PF Tape is applied directly to a suitable prepared surface. For full-area floor waterproofing, compare Gripset BRW PFN sheet membrane.

Sizes and finish

Available in 80 mm × 10 m and 150 mm × 10 m rolls, with a white fabric face and grey butyl backing.

Preparation and limitations

Apply to sound, clean, dry substrates, using a compatible primer where surface condition requires it. Press the tape into full contact without wrinkles or voids, and complete the detail with the specified finish. It is a covered waterproofing component, not a substitute for the complete membrane system or a permanently exposed roof repair. Check the complete system for movement-joint, immersion and water-pressure requirements before installation.

Common Questions

What is BRW PF Tape used for?
Waterproofing junctions, penetrations, puddle flanges, flashings and local joint details.

How thick is the tape?
0.8mm in the current product evidence.

Can finishes be applied immediately?
Yes, once the tape is firmly bonded and correctly detailed.

Can it be used over negative hydrostatic pressure?
No.

Uses & Benefits
Self-adhesive butyl rubber waterproofing tape with a fleece-textured fabric face. Used at wall-floor junctions, puddle flanges, penetrations, roof flashings and local waterproofing details. Current product evidence states 0.8mm thickness, 70% elongation and peel adhesion greater than 80N. The fabric face accepts compatible Gripset membranes, cement-based tile adhesives, renders and screeds. Provides an immediate seal without waiting for a liquid joint sealant to cure.
How To Apply
Prepare the substrate so it is clean, dry, stable and free from dust. Prime porous, dusty or damp substrates with the Gripset primer specified for the condition. Measure and cut the tape to length. Remove the release liner and press the butyl backing firmly into place with the fabric face outward. Roll or smooth the tape to remove air pockets and creases. Apply compatible membranes, adhesives, renders or screeds over the fabric face after the tape is fully bonded.
Limitations and Safety Info
Do not apply over damp substrates without the specified Gripset E60 moisture-barrier treatment. Do not use solvent-based materials directly over the tape. Do not use against negative hydrostatic pressure. Do not leave exposed externally. Do not use over structural expansion joints. Do not install below 5°C or above 30°C.
Suitable Substrates
  • Concrete and masonry.
  • Compressed fibre-cement sheet and plasterboard.
  • Timber.
  • PVC and compatible plastics.
  • Galvanised iron, copper, aluminium, zincalume and Colorbond.
  • Glazed ceramic, granite and marble surfaces.

Gripset BRW PF Tape Physical Properties

Gripset BRW PF Tape Physical Properties
Property Value
Thickness 0.8 mm
Solid Content 100%
Specific Gravity 1.45 g/cm³
Tensile Strength >100N longitudinal & transverse directions
Elongation 70% longitudinal and transverse directions
Peel Strength >80N
Tack >70N
Sag / Slump <10mm
Service Temperature -30ºC to 80ºC

Gripset BRW PF Tape - Use Cases

Here are some common examples on where Gripset BRW PF Tape used by our customers.

Plumbing

Puddle Flange Sealing

Sealing around pipe penetrations, puddle flanges, or waterstops where a fast, watertight detail is critical on PVC or metals.

Delivers an instant, primer-less watertight seal around penetrations, eliminating drying time for liquid sealants on non-porous surfaces.

  • Instant sealing properties
  • Primer-less on PVC
  • >80N peel adhesion
  • 100% solids

Roofing

Metal Roofing Patching

Repairing pinholes, pitted areas, or small leaks on galvanised iron, Colorbond, or other metal roofing surfaces.

Offers an instant, weather-resistant patch over metal surfaces without drying or curing, suitable for covering with future finishes.

  • Instant sealing properties
  • Primer-less on metals
  • Service temperature -30°C to 80°C
  • >100N tensile strength

Waterproofing

Instant Waterproofing Penetration Seal

Sealing around pipe penetrations, puddle flanges, or flashings where immediate waterproofing and finishing are required.

Provides an instant, self-adhesive waterproof barrier without drying or curing delays, allowing immediate application of finishes.

  • Instant sealing properties
  • Primer-less on PVC plastics
  • >80N Peel adhesion (ASTM D1000)
  • 0.8mm thickness

Waterproofing

Wall/Floor Junction Bondbreaker

When detailing internal wet areas or waterproofing transitions requiring an immediate bondbreaker system over clean, dry surfaces.

Provides an instant, flexible bondbreaker and seal for critical junctions, compatible with subsequent liquid membranes and cement-based finishes.

  • Peel and stick application
  • 0.8mm thickness
  • 70% elongation at break
  • Compatible with liquid membranes

Roofing

Rapid Metal Pinhole Patching

Patching pinholes or pitted areas on metal roofing, gutters, or flashings requiring immediate sealing and covering.

Offers an instant, primer-less adhesion to various metals, providing a quick, durable, and coverable repair solution.

  • Primer-less on galvanised iron
  • Compatible with Colorbond
  • Instant sealing properties
  • -30°C to 80°C service temperature
