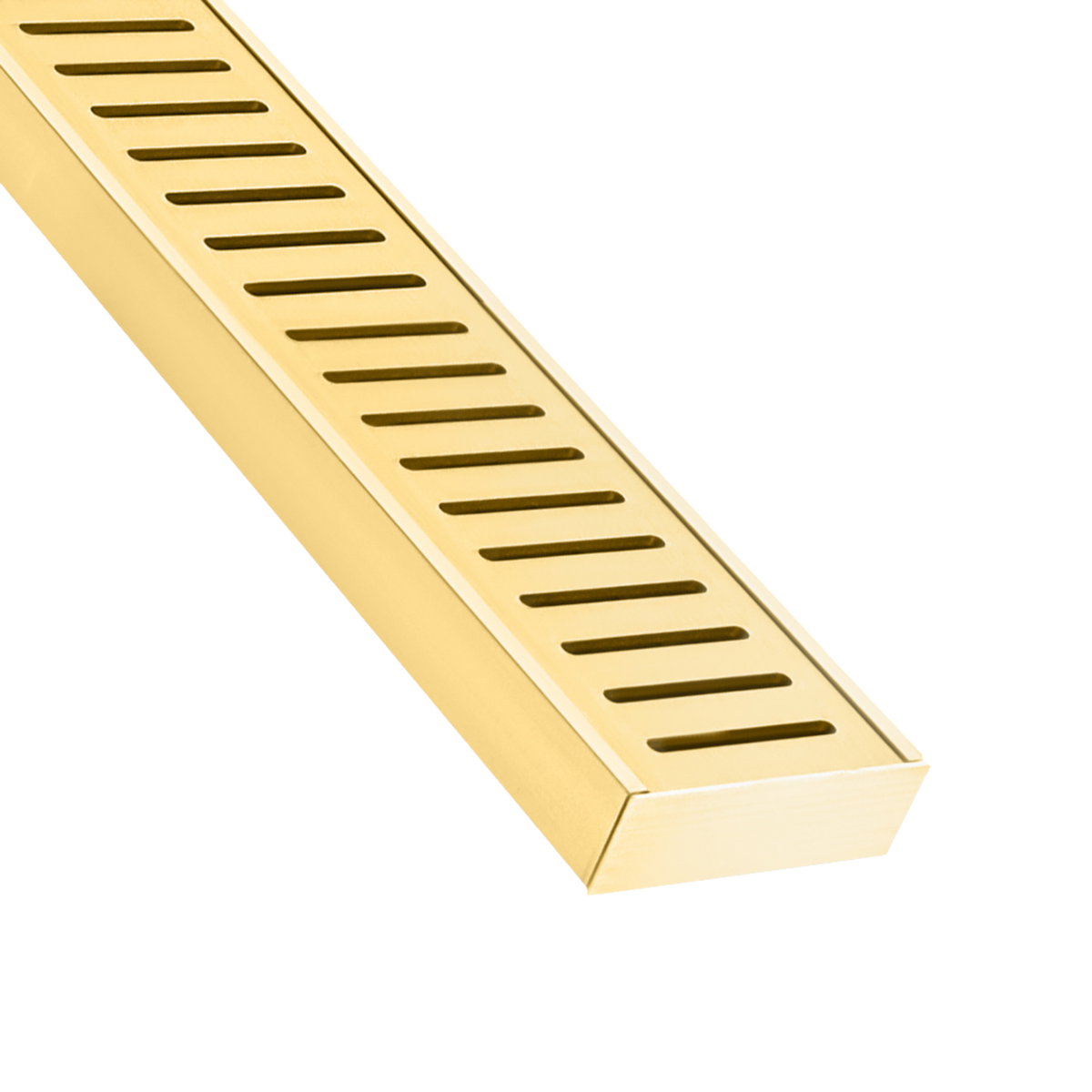

The original Lauxes Standard Floor Grate combines clean architectural styling with dependable drainage performance. Finished in Gold anodised aluminium, it adds warmth and sophistication while providing reliable drainage for bathrooms, balconies, patios, pool surrounds and other indoor or outdoor applications. Designed for both residential and light commercial projects, it's built to withstand Australia's harsh conditions while delivering a premium architectural finish.
Why choose the Lauxes Standard Floor Grate?
The Gold anodised finish is the perfect choice for projects featuring brushed gold tapware, brass fixtures and luxury interior finishes. Its warm metallic appearance creates a striking design feature while maintaining the clean, minimalist profile that has made the Lauxes Standard Floor Grate a favourite among builders, designers and homeowners.
Manufactured from anodised aluminium, the grate is 100% UV stabilised and carries a minimum 25-year guarantee against discolouration, helping preserve its beautiful finish for years to come. Backed by Lauxes' Lifetime Rustproof Warranty, it delivers dependable long-term performance with minimal maintenance.
Key features
- The original Lauxes Standard Floor Grate design
- Gold anodised aluminium finish
- Suitable for indoor and outdoor applications
- 100% UV stabilised
- Minimum 25-year guarantee against discolouration
- Lifetime Rustproof Warranty
- Trafficable up to 10.2 tonnes (Class B Load Rating)
- WaterMark Certified
- Easy to cut onsite using a suitable compound mitre saw
- Waste outlet can be positioned almost anywhere along the bottom tray
- Suitable for 40mm and 50mm waste outlets
- Joiners available for extending grate lengths
Length options
Available in the following standard lengths:
- 1 metre
- 1.6 metres
- 2 metres
- 3 metre full length
- 5.6 metre full length
Need a custom size? We can pre-cut your grate to your required length before dispatch, reducing installation time and minimising onsite cutting. For longer continuous drainage runs, genuine Lauxes Joiners allow multiple grates to be connected seamlessly.
Ideal applications
- Luxury walk-in showers
- Bathrooms
- Laundries
- Balconies
- Patios
- Pool surrounds
- Outdoor entertaining areas
- Residential developments
- Hotels and apartments
- Light commercial projects
Technical specifications
- Material: Anodised Aluminium
- Finish: Gold
- Width: 70mm
- Depth: 23mm
- Available Lengths: 1m, 1.6m, 2m, 3m and 5.6m
- Waste Compatibility: 40mm & 50mm outlets
- Applications: Indoor & Outdoor
- Load Rating: Class B (Trafficable up to 10.2 tonnes)
- UV Stability: 100% UV Stabilised
- Warranty: Lifetime Rustproof Warranty
Installation
Installation should be completed by a licensed plumber in accordance with AS/NZS 3500.2. The bottom tray can be cut to the required length while the waste outlet can be positioned almost anywhere along the tray, providing greater flexibility during installation. The grate is easily trimmed using a suitable compound mitre saw fitted with a multi-material blade, allowing a clean, professional finish on site.
Easy cleaning & maintenance
The removable grate allows quick access for cleaning, making routine maintenance simple. To preserve the Gold anodised finish, clean periodically using warm soapy water and a soft cloth. Avoid abrasive pads or acidic cleaning products that may damage the anodised surface.
Why buy from Adheseal?
- Authorised supplier of genuine Lauxes products
- Australia-wide shipping
- Custom pre-cut service available
- Expert technical support
- Trade pricing available
Frequently asked questions
Can I cut the Lauxes Grates Standard Floor Grate on site?
Yes, the Standard Floor Grate is designed for onsite cutting. Use a standard aluminium cutting saw to adjust lengths for custom fits or last-minute job changes.
Does this grate require special plumbing for installation?
No major plumbing is required for the Standard Floor Grate. The waste outlet can be positioned anywhere along the base tray, which offers installation flexibility.
Is the Standard Floor Grate suitable for outdoor use?
Yes, it is suitable for exposed outdoor areas like balconies and pool surrounds. The grate is 100% UV stabilised and comes with a Lifetime Rustproof Warranty.
How do I clean the Lauxes Grates Standard Floor Grate?
The top grate is easily removable for cleaning. This allows for fast and simple maintenance of both the grate and the waste channel using standard household tools or a pressure hose.
Can multiple grates be joined together for longer runs?
Yes, the system supports seamless extension beyond 5.6 metres. Use Lauxes joiners to create custom lengths without compromising aesthetics or performance.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Balcony drainage | Rustproof performance with a Lifetime Warranty and no visible staining in exposed areas. | Builders, Landscapers |
| Shower and bathroom floors | Flexible waste outlet placement simplifies plumbing, offering a sleek, modern drainage solution. | Plumbers, Tilers |
| Commercial wet areas | Durable, easy-to-clean design supports hygiene standards and withstands frequent use. | Builders, Commercial Fit-out Contractors |
| Outdoor kitchens and entertainment areas | UV stabilised and rustproof material ensures longevity and aesthetic retention in direct sunlight and weather. | Landscapers, Outdoor Builders |
How to apply Lauxes Grates Standard Floor Grate:
- Measure the area and cut the grate to size using a mitre saw or aluminium blade.
- Dry-fit the grate into the recess or trench to ensure accurate placement and outlet alignment.
- Position the waste outlet along the base tray where needed and secure it to drainage pipework.
- Seal ends with silicone if required, and ensure a slight fall for effective water flow.
- Snap the top grate into place after verifying drainage performance and alignment.
Product limitations
- Not for: Heavy vehicle traffic. This grate is designed for pedestrian and light commercial use; reinforced steel grates are required for driveways or industrial zones.
- Installation note: May require bedding mortar for uneven surfaces to ensure proper levelling and optimal drainage performance.
Safety and handling
Personal protective equipment
When cutting aluminium on site, wear safety glasses to protect eyes from debris and gloves to prevent cuts or abrasions.
Ventilation
No special ventilation is required as this product does not involve chemicals or adhesives during installation.
First aid
- Cuts/Abrasions: In case of cuts or abrasions during onsite cutting, follow standard wound care procedures as advised by Safe Work Australia.
Storage and disposal
Store grates flat to prevent denting or edge damage. Handle with care during transport and installation. Aluminium is recyclable; dispose of offcuts in accordance with local recycling guidelines.
Substrate guide
Proper surface preparation ensures optimal performance and fit for your Lauxes Grate.
Concrete
Surface prep: Ensure the surface is level and clean. For uneven concrete, bedding mortar may be required to achieve optimal grate performance.
Primer: Not required.
Tile
Surface prep: Prepare the tiling substrate as per standard tiling practices, ensuring adequate fall to the grate. Levelling beneath the grate is critical.
Primer: Not required.
Vinyl
Surface prep: The surface must be clean and level. Compatible with vinyl flooring when using appropriate edge trims for a neat finish.
Primer: Not required.
Stone
Surface prep: Ensure the stone installation is level with appropriate fall. Bedding mortar may be needed for levelling on uneven surfaces.
Primer: Not required.
Lauxes Standard Floor Grate 70mm x 23mm – Gold Physical Properties
| Property | Value |
|---|---|
| Product Name | Standard Floor Grate (SFG) |
| Dimensions | 5600mm X 70mm x 23 mm |
| Available Lengths | 1000 mm, 1600mm, 3000 mm, 5600 mm, Custom Length |
| Colour | Gold |
| Material Properties | Rustproof, UV Stabilised |
| UV Stability | 100% UV Stabilised |
| Rust Resistance | Lifetime Rustproof Warranty |
| Customisation | Can be cut onsite or custom ordered to size |
| Weight | Lightweight |
| Cleaning | Top grate easily removed for cleaning |
| Installation Flexibility | Waste outlet can be positioned anywhere along the tray, no major plumbing required |
| Extension Capability | Extendable beyond 5.6 m using Lauxes joiners |
| Coverage Rate | Extendable with joiners |
