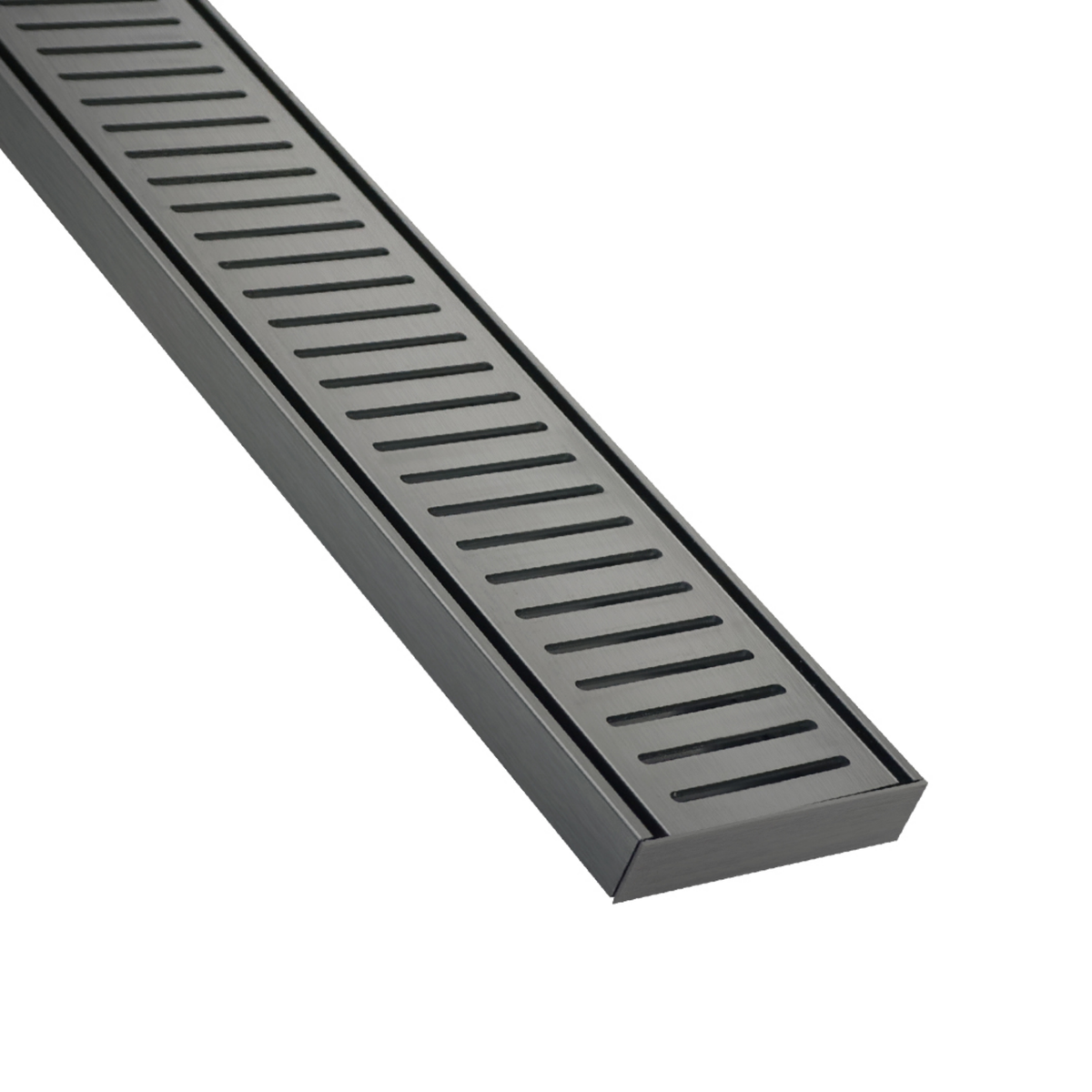

For indoor and outdoor drainage installations requiring a low-profile, high-capacity drainage channel, the Lauxes NeXT Generation 21 NXT21 Linear Drain Kit offers a highly customizable anodised aluminium system. This shallow 21mm deep drain integrates an anti-water tracking design to manage surface run-off efficiently, making it suitable for wet areas, patios, and driveways where height clearance is limited.
What it does
The NXT21 drainage system provides a modular, customizable channel drainage path. Water is captured through a sleek, roll-out top grate designed for fast removal during regular cleaning and maintenance. Engineered with an anti-water tracking design, the anodised aluminium tray channels water directly to the waste outlet without tracking along the underside of the grate. The system is UV stable to prevent degradation in outdoor service conditions and is backed by a lifetime rustproof warranty.
Numbers that matter
- 21mm depth: Extremely shallow profile for installation in screeds or suspended slabs where slab depth is restricted.
- 100mm width: Standard architectural width for seamless integration with floor tiles in indoor bathrooms or outdoor paved areas.
- Class B load rating: Rated for a maximum load of 10.2 tonnes, making it suitable for pedestrian areas and light vehicle traffic.
- DN90 40mm, 50mm, 72mm, and 80mm: Highly customizable waste outlet options to match common residential and commercial drainage pipe sizes.
Installation
The linear drain must be installed by a licensed plumber in accordance with AS/NZS 3500.2. All Lauxes grates and accessories are WaterMark Certified to WMTS-040.
For precise preparation, cut the bottom tray 3mm shorter than your final installation space to accommodate the end caps. The top grate should be cut 1mm shorter than the bottom tray to ensure a clean, drop-in fit. Use a compound mitre saw with a multi-material cutting blade (80 teeth or more) to ensure clean cuts, and drill the waste outlet with a Lauxes TCT hole saw. Secure the end caps and the pop waste to the tray using a trade-grade silicone bead.
Limitations
- Cement-based contact: Always use a template during installation to ensure the anodised aluminium grate does not come into contact with wet cement-based products, which can damage the anodised finish.
- Anodising wastage: For the 3.0m kit (total length 3.2m) and 5.6m kit (total length 5.8m), the total usable length is 3.0m and 5.6m respectively to allow for anodising process wastage.
- Maintenance restrictions: Do not use abrasive cloths, scouring pads, or acidic chemicals on the anodised grates during cleaning.
Frequently Asked Questions About Gun Metal NeXT Generation 21 (NXT21)
Q: Can the NXT21 be used on balconies or outdoor patios?
A: Yes, it’s fully UV stable and rustproof, making it ideal for any outdoor applications including balconies, alfresco areas, and even pool surrounds.
Q: How do I clean the grate?
A: The roll-out feature allows for easy access to internal drainage. Simply roll the grate up and clean with a soft brush and hose.
Q: Can it be cut on-site?
A: Absolutely. It is designed for easy onsite cutting using a drop saw or hacksaw. Always deburr edges after cutting.
Q: Will it rust over time in coastal areas?
A: No. It carries a Lifetime Rustproof Warranty and is manufactured from anodised aluminium, ideal for salt air environments.
Use Gun Metal Midnight Black NeXT Generation 21 (NXT21) for:
- Indoor linear shower drains
- Outdoor patios and pool edges
- Balcony drainage
- Commercial bathrooms and wet zones
Why Use NeXT Generation 21 (NXT21):
- Rust-free for life – ideal for high-moisture zones
- 25-year fade warranty – great for exposed installations
- Faster onsite adjustments – cut, connect and drain with ease
How to apply Gun Metal NeXT Generation 21 (NXT21):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
Gun Metal NeXT Generation 21 (NXT21) limitations:
- Minimum installation depth is 21mm – unsuitable for ultra-slimline floor designs
- May require tray packing for uneven screeds – always check with a level before installation
Safety precautions when using NeXT Generation 21 (NXT21):
- Personal Protective Equipment: Gloves, safety glasses when cutting aluminium
- Ventilation: Not required for product, but adhesive use may require ventilation
- Handling: Handle with care when cut to avoid sharp aluminium edges
- First Aid: Rinse eyes immediately if debris enters during cutting; seek medical attention if needed
Gun Metal NeXT Generation 21 (NXT21) can be used on the following substrates:
- concrete – for recessed tray installation in wet areas
- tile – suitable for flush finish in indoor bathrooms
- timber – can be mounted with waterproofing underlay
- pavers – ideal for outdoor or landscaping applications
- waterproofing membranes – compatible with bonded waterproofing systems
Product documents
Lauxes NeXT Generation 21 NXT21 Linear Drain Kit - Gun Metal Physical Properties
| Property | Value |
|---|---|
| Product Name | Gun Metal NeXT Generation 21 (NXT21) |
| Dimensions | 5600mm x 100mm x 21mm |
| Material | Anodised Aluminium |
| Available Colours | Midnight Black |
| Finish | UV Stable Anodised |
| Length Options | 1m, 3m and 5.6m, Custom lengths on request |
| Grate Depth | 21mm |
| Grate Width | 100mm |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Cutting Capability | Easily cut onsite to desired length |
| Joiner Compatibility | Compatible with Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Cleaning Access | Easy roll-out feature for cleaning and maintenance |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
