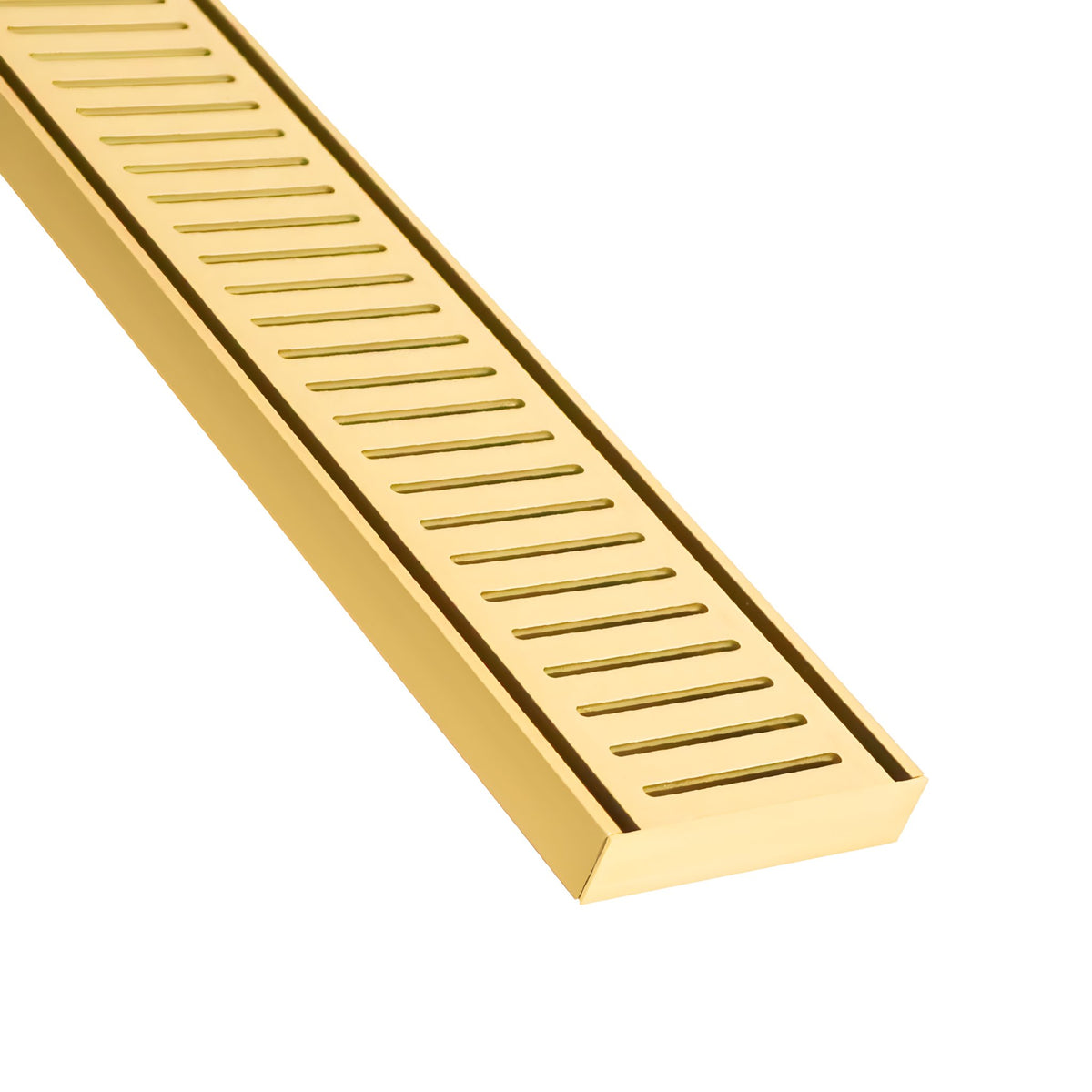

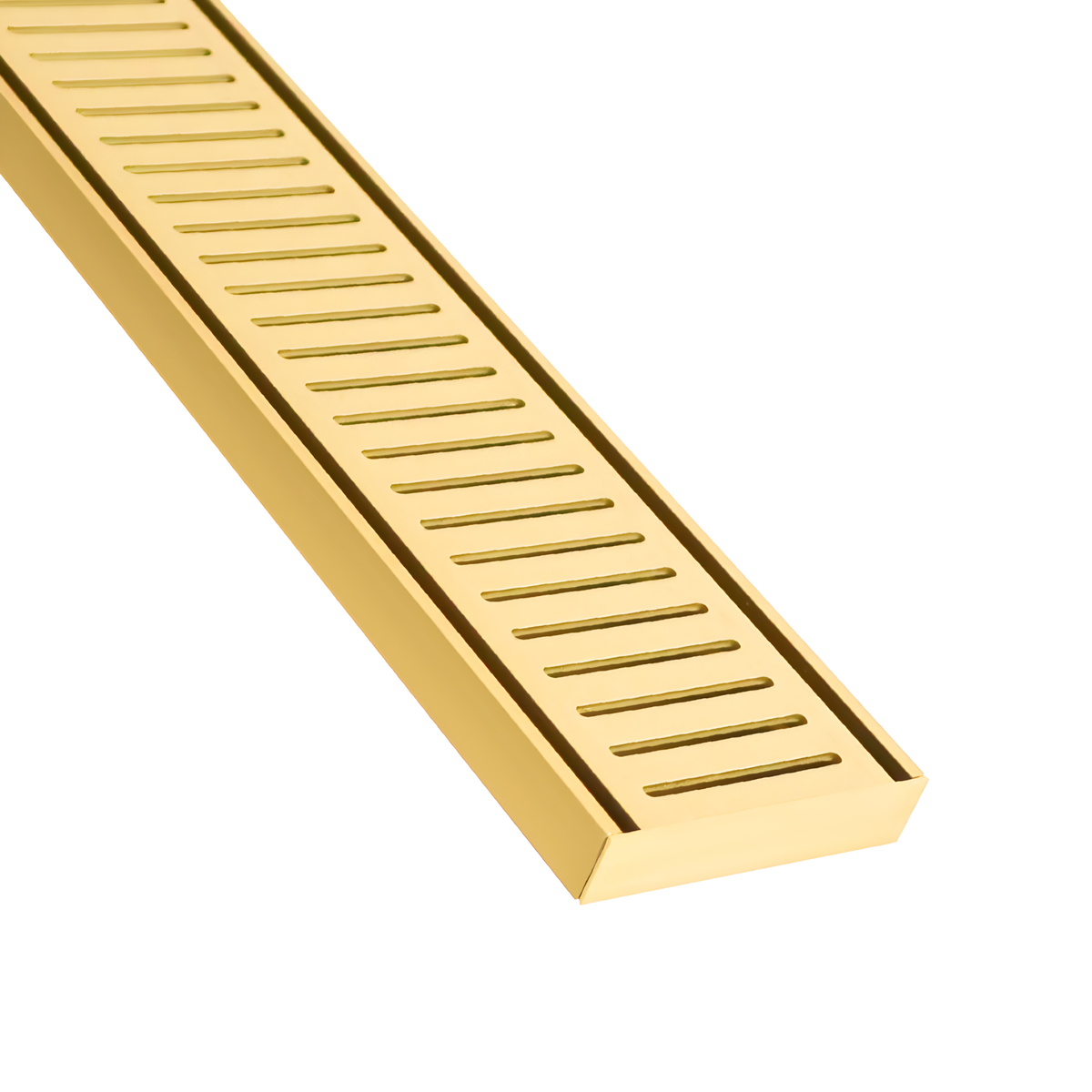

For indoor and outdoor drainage installations requiring a shallow profile, the Gold NeXT Generation 21 NXT21 Linear Drain Kit provides a 21 mm deep anodised aluminium channel. This low-clearance design is suitable for screed-restricted areas, balconies, and bathrooms, offering built-in UV stability and a lifetime rustproof warranty.
Water tracking and maintenance
The linear drain is structured with an anti-water tracking design to prevent moisture from escaping the channel boundaries. For post-handover maintenance, the top grate features an easy roll-out design, allowing tiles or surrounding surfaces to remain undisturbed during regular cleaning. The anodised aluminium construction provides corrosion resistance across both internal wet areas and external drainage configurations.
Numbers that matter
- 21 mm depth: Low-profile clearance dimension for shallow screed depths and tight installation zones.
- Class B load rating: Rated for a maximum load of 10.2 tons, making it suitable for pedestrian traffic and light vehicular areas.
- DN90 scope of use: Compatible with 40 mm, 50 mm, 72 mm, and 80 mm waste outlets to match standard plumbing connections.
- 100 mm width: Fixed channel width across all length options.
Installation
The channel and grate can be cut to length on-site. For clean cuts, use a compound mitre saw fitted with a multi-material cutting blade with 80 teeth or more. Drill the waste outlet using a Lauxes TCT hole saw to match the pop waste size.
Cut the bottom tray 3 mm shorter than the target length to fit the end caps. Cut the top grate 1 mm shorter than the bottom tray to ensure an easy roll-in fit. Seal the end caps and the underside lip of the pop waste to the bottom tray using a bead of silicone.
Limitations
- Do not allow wet cement-based products to touch the anodised grate during installation; use a template to protect the finish.
- Do not use acidic chemicals or abrasive cloths on the anodised aluminium surfaces.
- Installation must be completed by a licensed plumber in accordance with AS/NZS 3500.2.
- For the 3.0 m kit, the total usable length is 3.0 m (from a 3.2 m full grate) to account for anodising process wastage.
- For the 5.6 m kit, the total usable length is 5.6 m (from a 5.8 m full grate) to account for anodising process wastage.
Frequently Asked Questions About Gold NeXT Generation 21 (NXT21)
Q: Can the NXT21 be used on balconies or outdoor patios?
A: Yes, it’s fully UV stable and rustproof, making it ideal for any outdoor applications including balconies, alfresco areas, and even pool surrounds.
Q: How do I clean the grate?
A: The roll-out feature allows for easy access to internal drainage. Simply roll the grate up and clean with a soft brush and hose.
Q: Can it be cut on-site?
A: Absolutely. It is designed for easy onsite cutting using a drop saw or hacksaw. Always deburr edges after cutting.
Q: Will it rust over time in coastal areas?
A: No. It carries a Lifetime Rustproof Warranty and is manufactured from anodised aluminium, ideal for salt air environments.
Use Gold NeXT Generation 21 (NXT21) for:
- Indoor linear shower drains
- Outdoor patios and pool edges
- Balcony drainage
- Commercial bathrooms and wet zones
Why Use NeXT Generation 21 (NXT21):
- Rust-free for life – ideal for high-moisture zones
- 25-year fade warranty – great for exposed installations
- Faster onsite adjustments – cut, connect and drain with ease
How to apply Gold NeXT Generation 21 (NXT21):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
Gold NeXT Generation 21 (NXT21) limitations:
- Minimum installation depth is 21mm – unsuitable for ultra-slimline floor designs
- May require tray packing for uneven screeds – always check with a level before installation
Safety precautions when using NeXT Generation 21 (NXT21):
- Personal Protective Equipment: Gloves, safety glasses when cutting aluminium
- Ventilation: Not required for product, but adhesive use may require ventilation
- Handling: Handle with care when cut to avoid sharp aluminium edges
- First Aid: Rinse eyes immediately if debris enters during cutting; seek medical attention if needed
Gold NeXT Generation 21 (NXT21) can be used on the following substrates:
- concrete – for recessed tray installation in wet areas
- tile – suitable for flush finish in indoor bathrooms
- timber – can be mounted with waterproofing underlay
- pavers – ideal for outdoor or landscaping applications
- waterproofing membranes – compatible with bonded waterproofing systems
Product documents
Lauxes NeXT Generation 21 NXT21 Linear Drain Kit - Gold Physical Properties
| Property | Value |
|---|---|
| Product Name | Gold NeXT Generation 21 (NXT21) |
| Dimensions | 5600mm x 100mm x 21mm |
| Material | Anodised Aluminium |
| Available Colours | Gold |
| Finish | UV Stable Anodised |
| Length Options | 1m, 3m and 5.6m, Custom lengths on request |
| Grate Depth | 21mm |
| Grate Width | 100mm |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Cutting Capability | Easily cut onsite to desired length |
| Joiner Compatibility | Compatible with Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Cleaning Access | Easy roll-out feature for cleaning and maintenance |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
