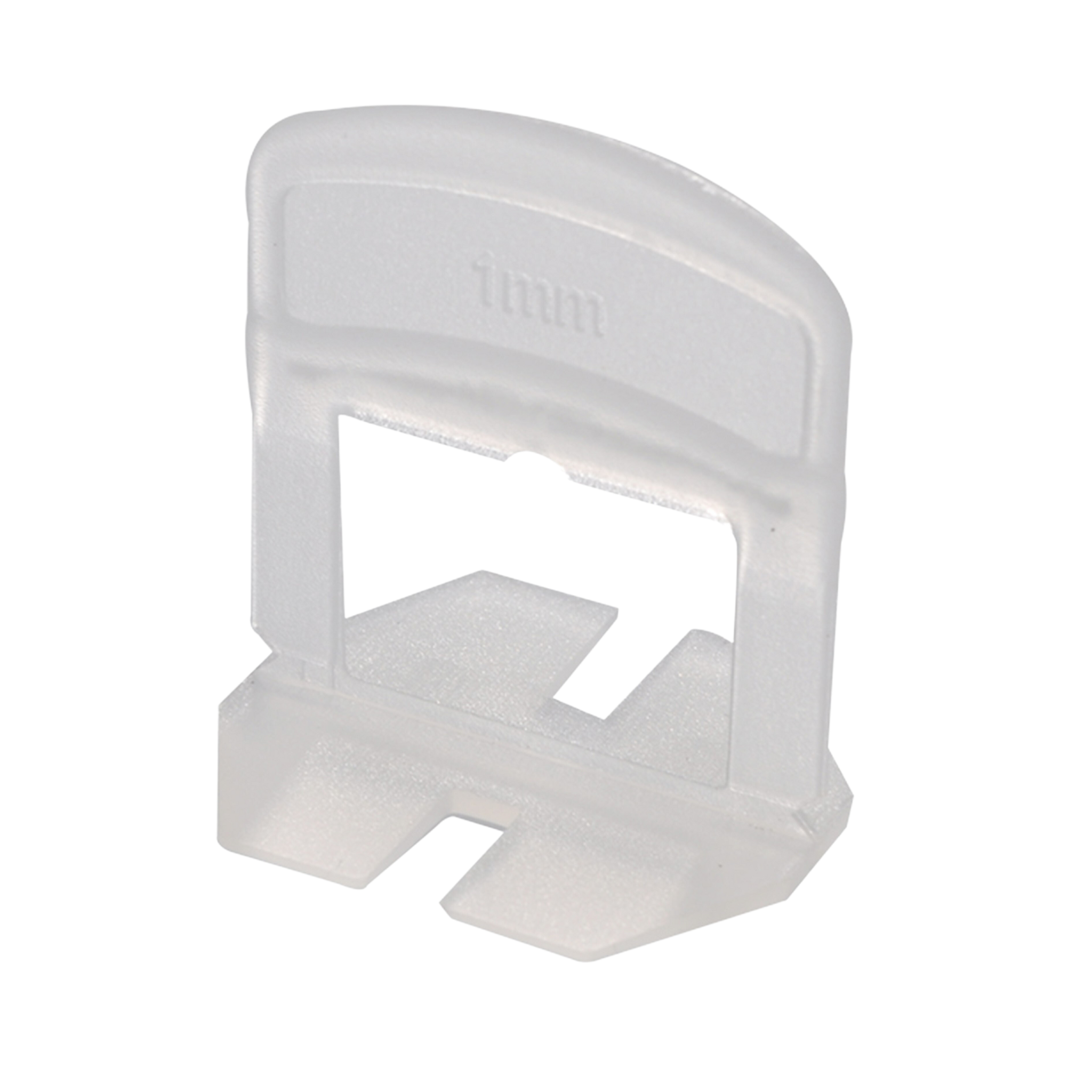

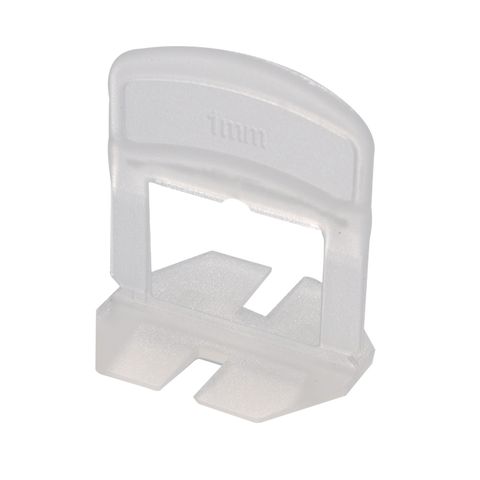

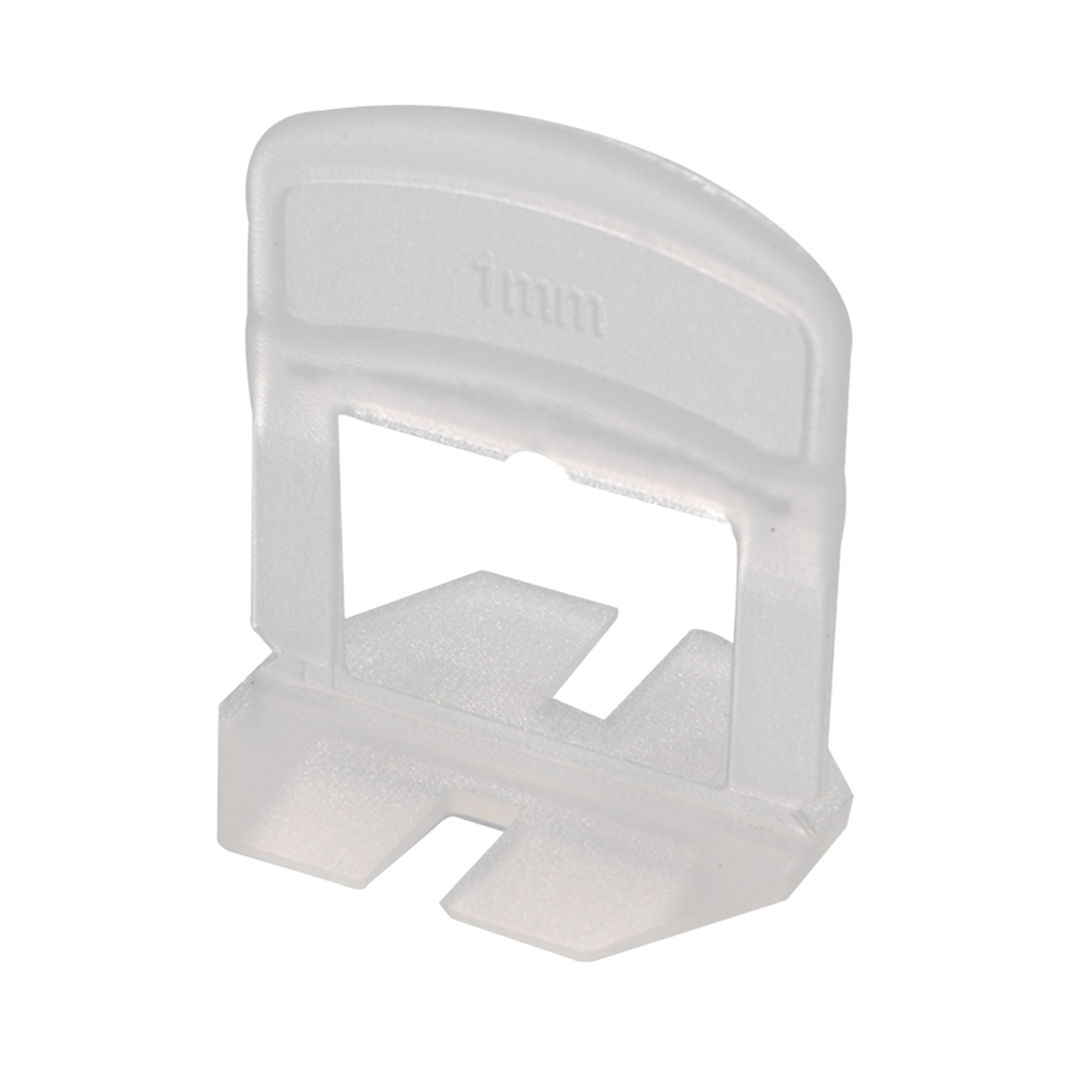

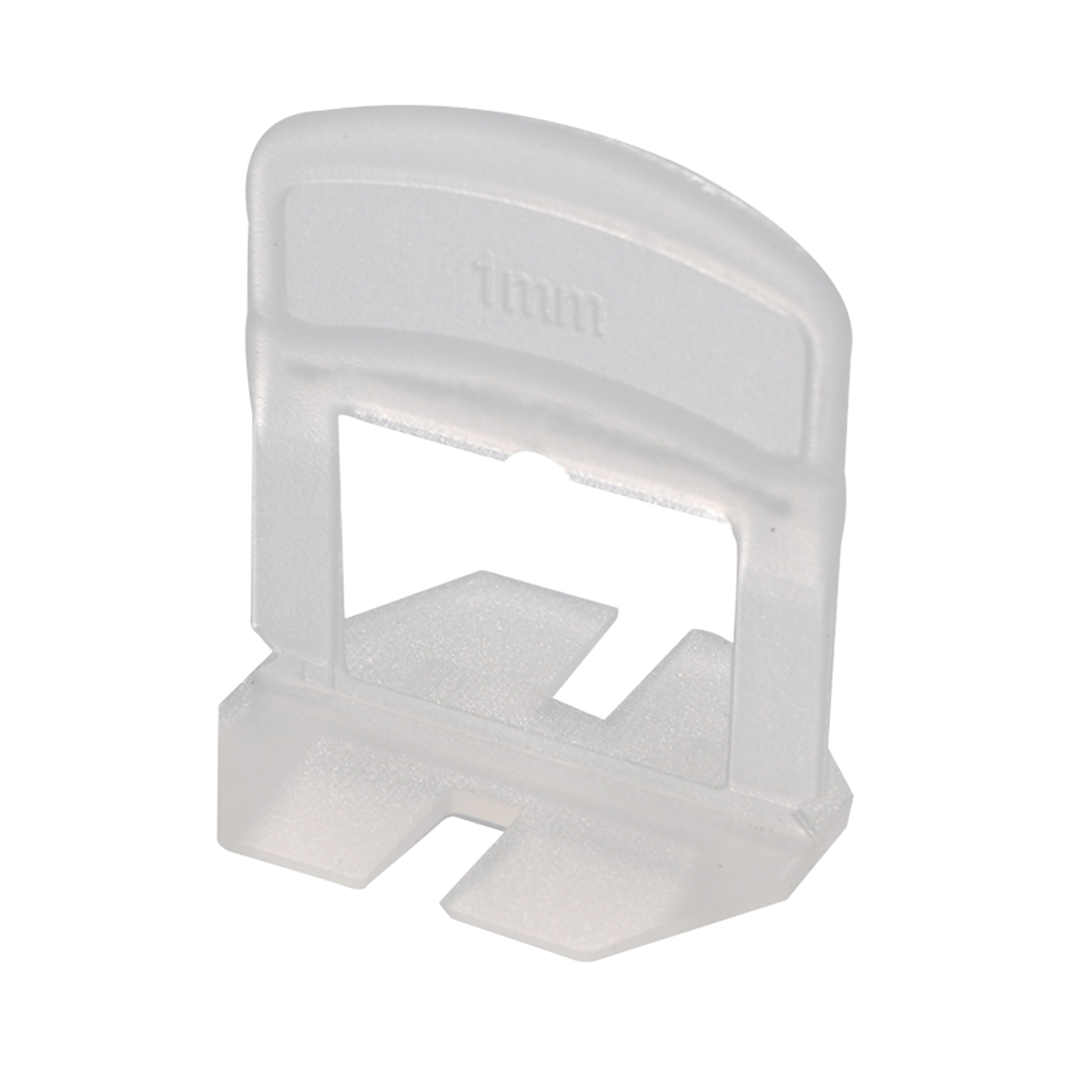

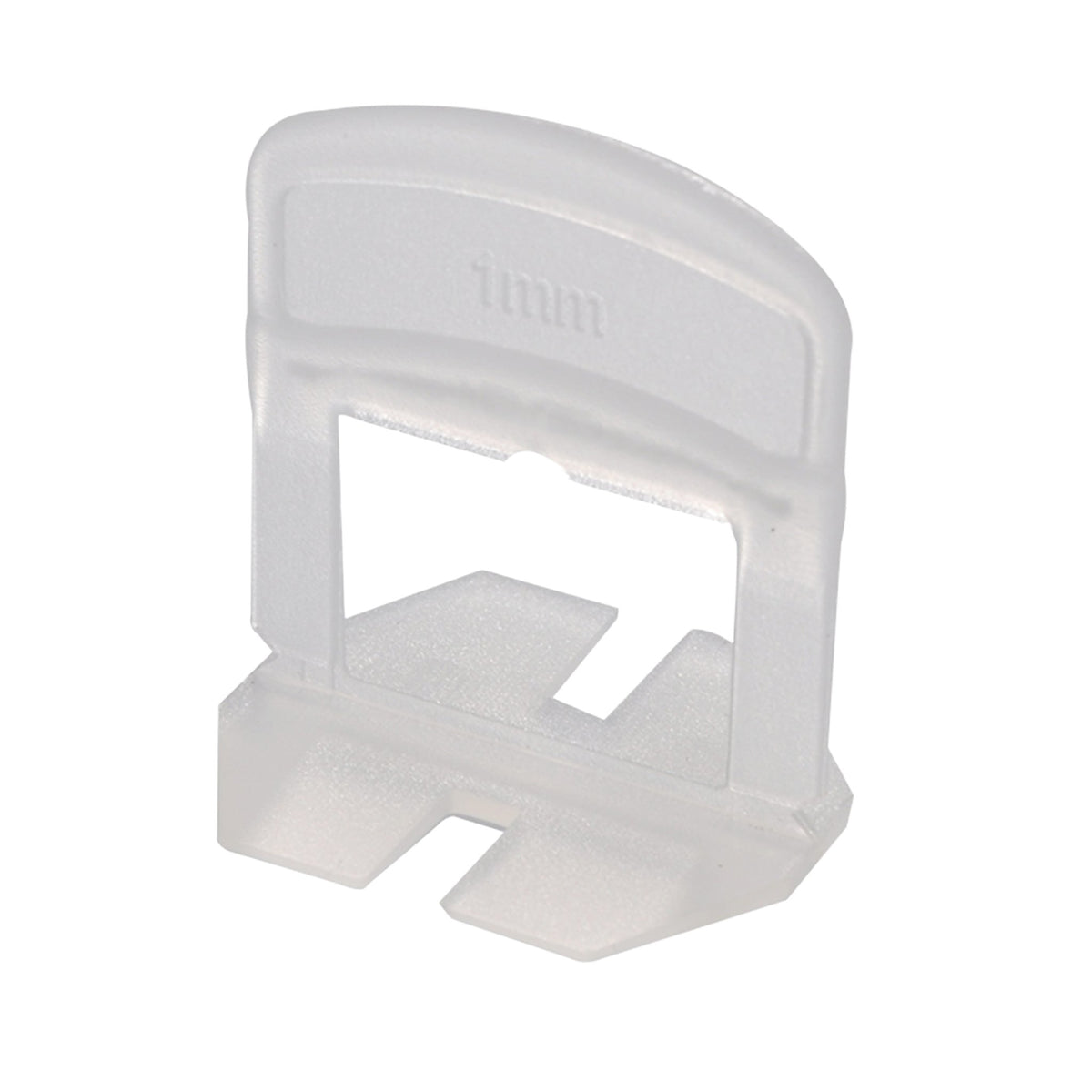

Levelling clips stop tile lippage. Slot the clip base under two adjoining tiles, insert the Flat Out wedge with the pliers, and the clip pulls the tiles level while the adhesive cures. Break the stem off along the scored line next day and reuse the wedges.
The clip base sets a 1.5mm grout line at the same time. Suits tiles 2mm to 12mm thick on floors or walls: porcelain, ceramic, stone.
Frequently Asked Questions About DTA Flat Out Levelling System Tile Clips 1.5mm
Q: How do I install DTA Flat Out Levelling System Tile Clips 1.5mm?
A: Slide the base of the 1.5mm clip under the tile edge after adhesive is applied. Place the adjacent tile, insert a wedge into the clip, and tighten using levelling pliers for consistent pressure and alignment.
Q: Can I use these clips with large format tiles?
A: Yes. These clips are ideal for large format tiles, helping to maintain even spacing and eliminate lippage across wider surfaces where tile warping is more likely.
Q: Are DTA Flat Out Tile Clips 1.5mm reusable?
A: The clips are single-use and should be removed after the adhesive has cured. However, the accompanying wedges are reusable, offering cost-efficiency over multiple projects.
Q: What do I do if a clip doesn’t snap off cleanly?
A: Ensure you're removing clips by kicking or tapping parallel to the grout line. If part remains, gently tap with a rubber mallet or use pliers to twist off any excess.
Q: What tiles are compatible with the 1.5mm Flat Out clips?
A: These clips are compatible with ceramic, porcelain, and natural stone tiles ranging from 2mm to 12mm in thickness, offering great versatility across indoor and outdoor applications.
DTA Flat Out Levelling System Tile Clips 1.5mm can be used on the following substrates:
- Concrete slabs – Ensure flatness and structural integrity
- Fibre cement sheeting – Common for bathroom and wet area walls
- Existing tiled surfaces – When correctly primed and bonded
- Render or screed – Allow to fully cure before tiling
DTA Flat Out Levelling System Tile Clips 1.5mm Physical Properties
| Property | Value |
|---|---|
| Material Type | High-Strength Polymer |
| Colour | White |
| Application Temperature | 5°C to 40°C (5°C to 40°C) |
| Storage Temperature | 5°C to 35°C (5°C to 35°C) |
| Bed Thickness | 2mm to 12mm |
| Joint Width | 1.5mm Grout Joint |
| Certifications | ISO 9001 Manufacturing, Australian Tiling Standards |
| Standards | Wedges Only |
| Packaging | 500 Clips Per Bag |
| Shelf Life | Indefinite under dry storage conditions |
