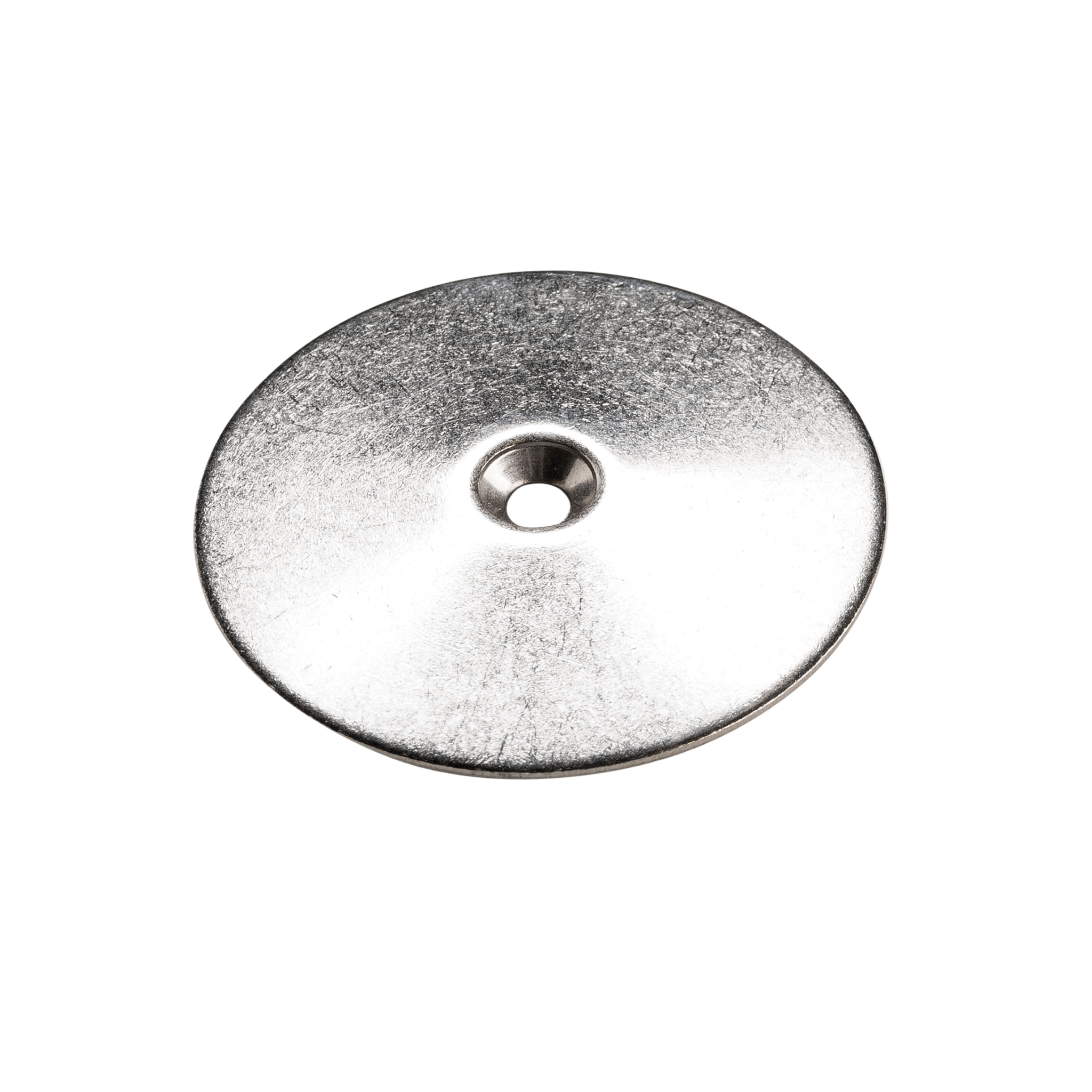

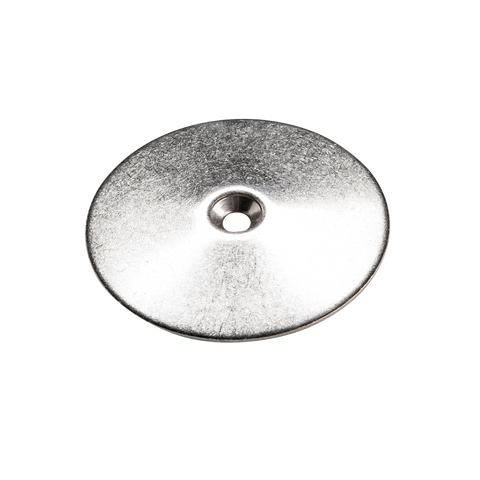

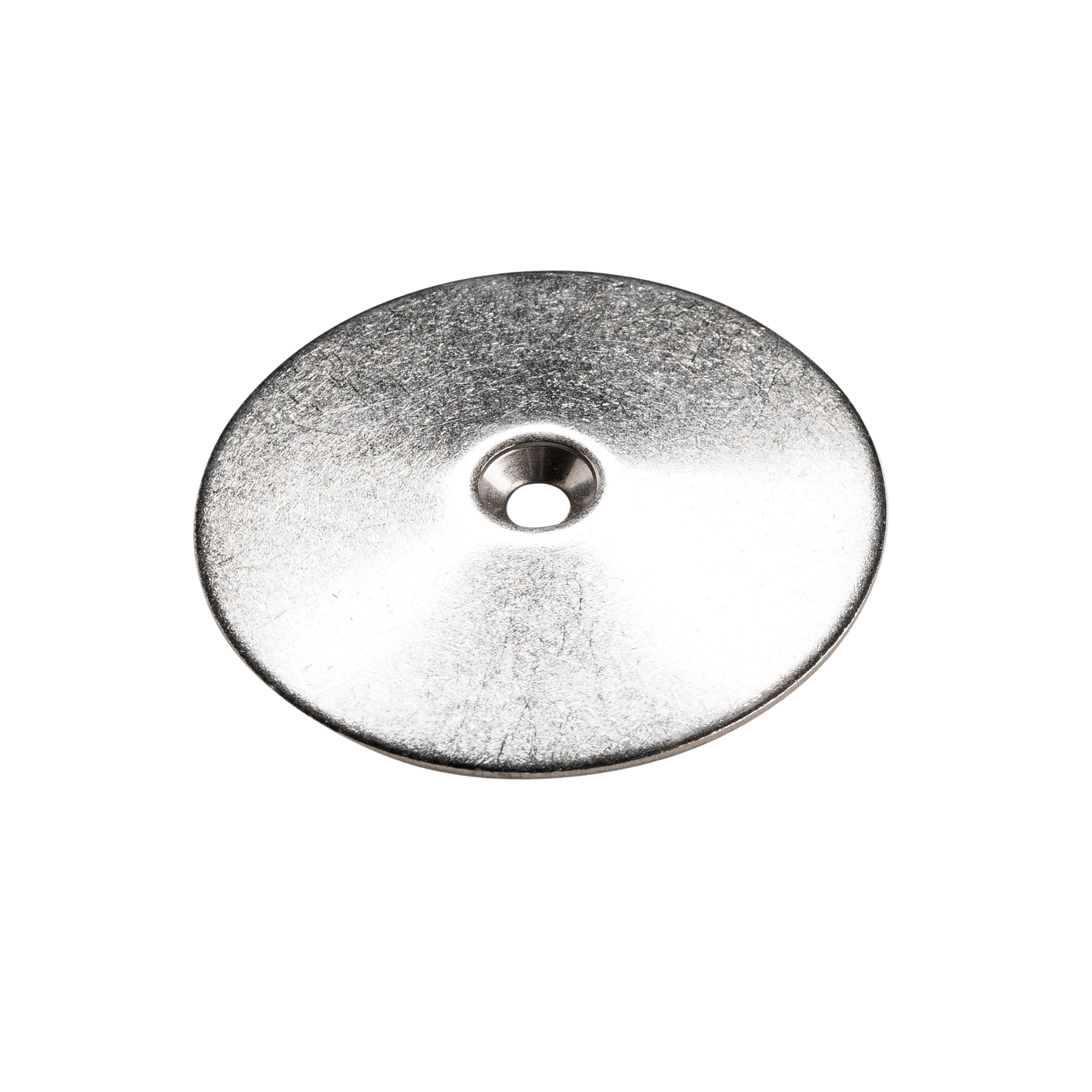

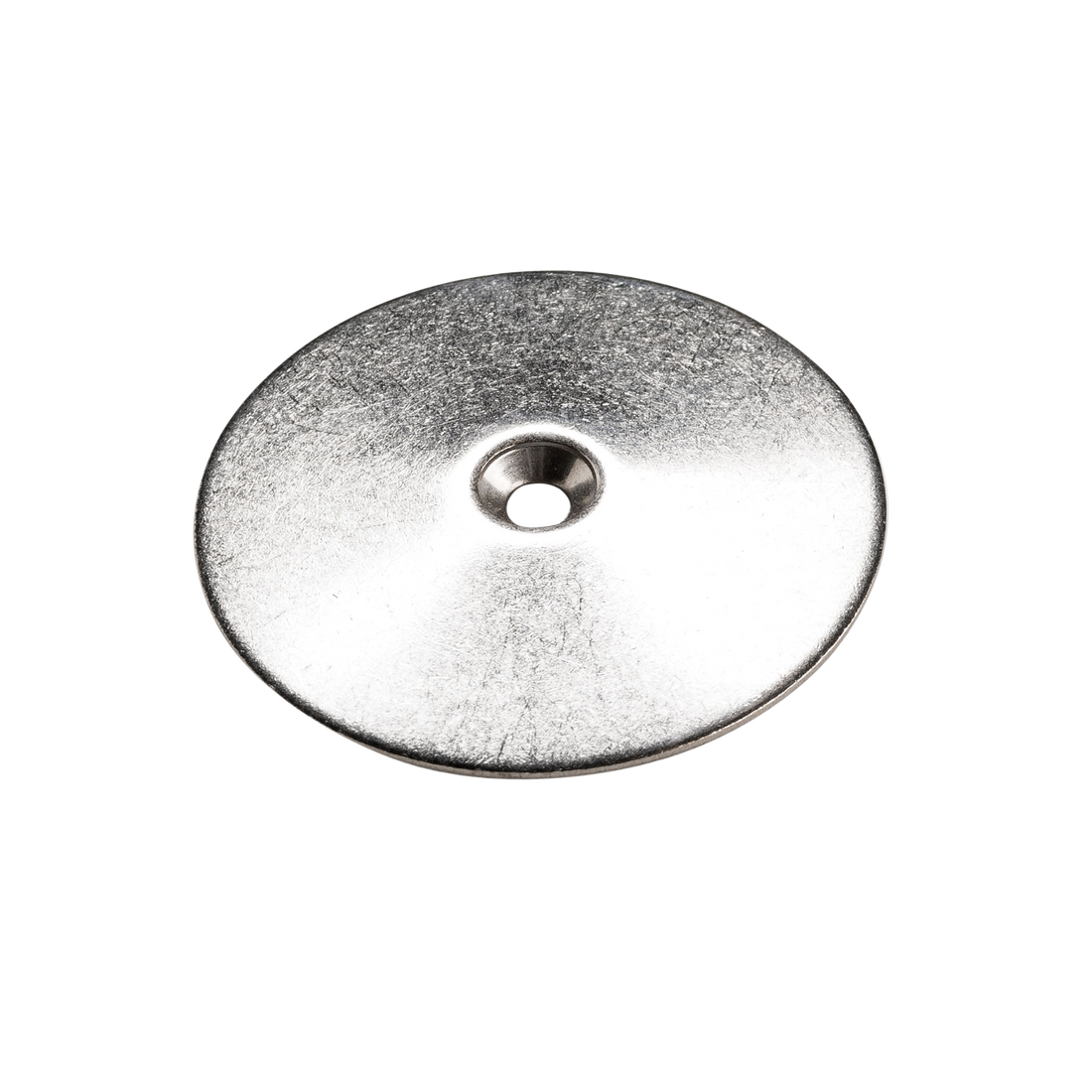

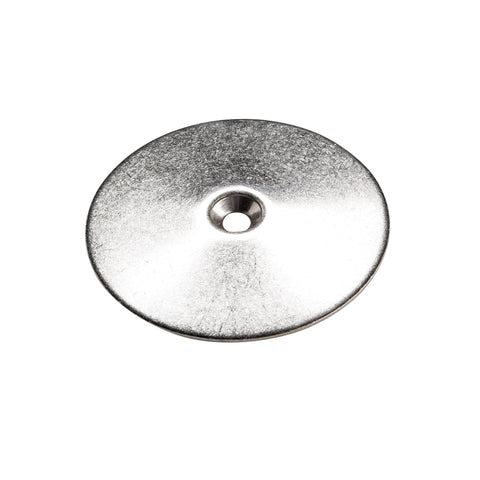

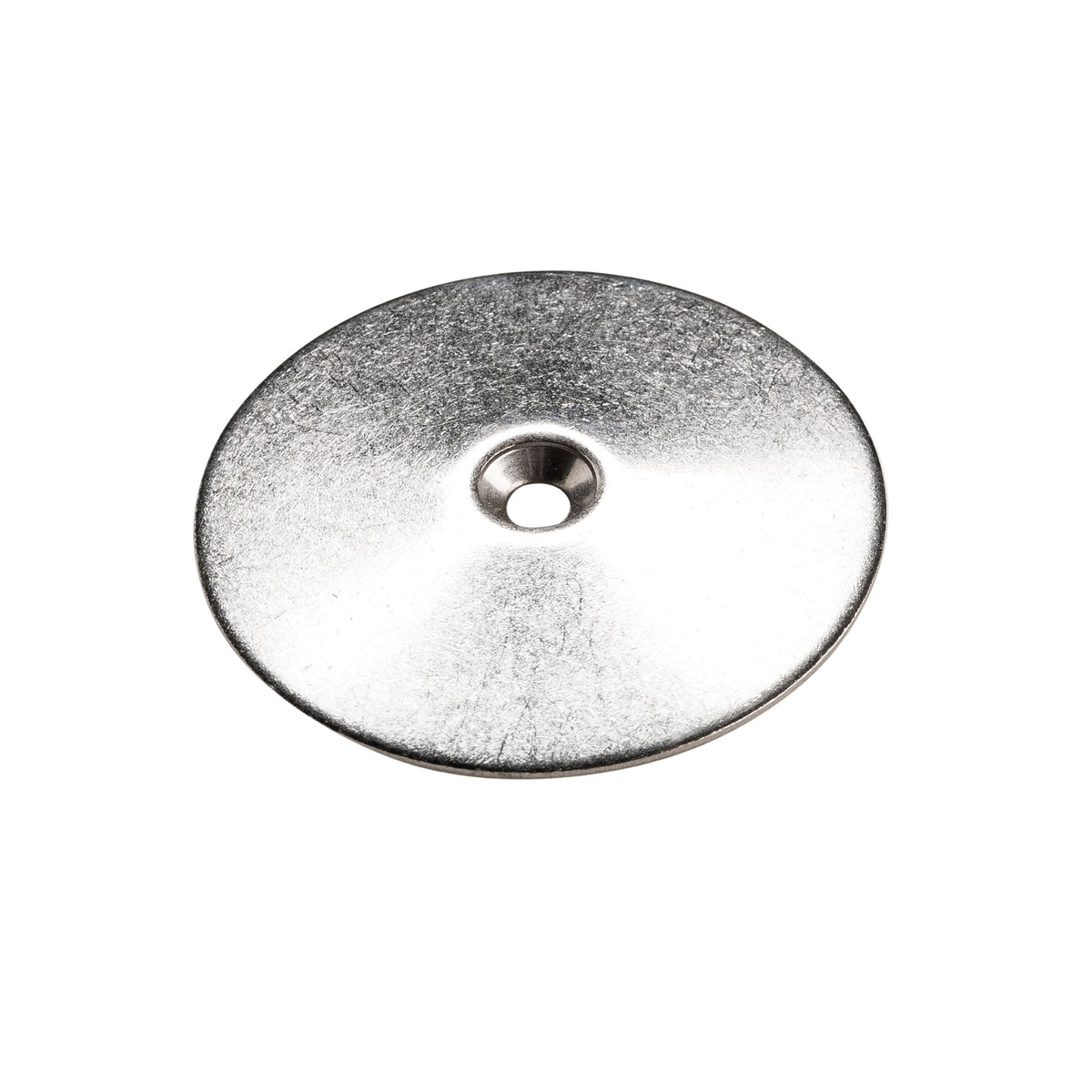

Buzon U-WASHER Anti-Lifting Kit is a mechanical locking component designed to secure raised pavers against catastrophic wind uplift in high-exposure commercial rooftop and balcony environments. Fabricated from Stainless Steel 316 (V4A), it provides an E-Modul of 180,000 N/mm2 and an expansion coefficient of 16×10⁻⁶ 1/K to maintain structural rigidity and thermal stability under extreme temperature fluctuations.
This precision-engineered system integrates seamlessly with Buzon PB, DPH, and BC pedestal series through specific fixation kits, eliminating the risk of paver displacement or lifting during storm events while offering optional powder-coated finishes for a discreet architectural aesthetic.
Frequently asked questions
Is the U-WASHER compatible with Buzon pedestal systems?
Yes, the U-WASHER is designed for Buzon PB, DPH, and BC pedestal series. It requires specific U-WASHER vis and fixation tabs for secure mechanical locking against uplift.
Will the U-WASHER resist corrosion in outdoor conditions?
Yes, it is manufactured from Stainless Steel 316 (V4A) for exceptional corrosion resistance. This makes it suitable for coastal and high-moisture environments typical across Australia.
How many U-Washers are supplied per carton?
Each carton contains 240 pieces. The total carton weight is 1.85 kg for efficient site management and transport.
Can the U-WASHER be used for vehicle traffic areas?
No, the Buzon U-WASHER system is engineered exclusively for pedestrian traffic. It is not designed to withstand vehicle loads, heavy moving equipment, or high vibration levels.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|

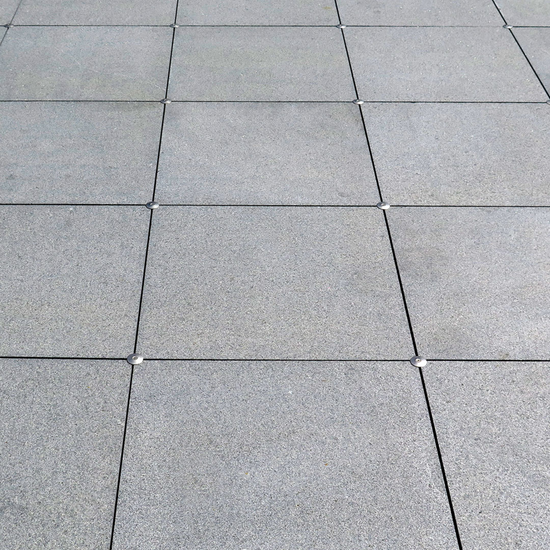

| Raised paver systems on Buzon PB-Series pedestals | Locks pavers against wind uplift, maintaining alignment and preventing dislodgement in exposed areas. | Builders, Landscapers |
| DPH-Series raised flooring installations | Provides reliable wind resistance and load stability, crucial for safety and system integrity. | Waterproofers, Builders |
| Terrace and balcony installations with BC-Series pedestals | Ensures long-term durability and safety for outdoor pedestrian surfaces under varying weather conditions. | Installers, Builders |
Applying Buzon U-WASHER: Enhanced Protocols & Best Practices
-
Step 1: Surface Preparation
Ensure pedestal heads and paver undersides are clean, dry, and level.
Pro Tip: Use a spirit level across paver edges to check alignment before locking with U-WASHER. -
Step 2: Fixation
Insert the U-WASHER vis and required fixation tabs according to pedestal series (PB, DPH, or BC).
Pro Tip: Always match the correct fixation kit to the pedestal series for reliable lock-in. -
Step 3: Secure Pavers
Tighten screws to lock pavers firmly in place. Do not overtighten.
Pro Tip: Check every corner for flush alignment to prevent rocking or uneven loads.
Product limitations
- Not for: Vehicle traffic, moving equipment, or heavy vibration loads. The system is engineered solely for pedestrian use.
Safety and handling
Personal protective equipment
Wear safety gloves and eye protection during installation. This protects against potential injury from sharp edges or flying debris.
Handling precautions
Do not modify U-WASHER components. For guaranteed performance and system integrity, use only original Buzon fixations.
Substrate guide
Proper preparation and using the correct fixation ensure the U-WASHER performs as intended, preventing paver uplift.
Buzon PB-Series Pedestals
Surface prep: Ensure pedestal heads and pavers are clean and free of dust and debris before assembly.
Primer: Not required. Install using U-WASHER vis, PB-kit 1, and PB-Tabs 4.5 mm.
Buzon DPH-Series Pedestals
Surface prep: Confirm paver joint alignment and ensure pedestal caps are stable.
Primer: Not required. Install using U-WASHER vis and DPH-Tabs 4.5 mm POM WR.
Buzon BC-Series Pedestals
Surface prep: Clean pedestal tops. Verify paver seating points are level before securing components.
Primer: Not required. Install using U-WASHER vis, PB-Kit 1, and BC-Tabs 4.5 mm.
Buzon U-WASHER Anti-Lifting Kit Physical Properties
| Property | Value |
|---|---|
| Material | Stainless Steel 316 (V4A) |
| Finish | Powder Coated, RAL 9005 Black |
| Diameter | 35 mm |
| Weight Per Piece | 0.007 kg |
| E-Modul | 180,000 N/mm2 |
| Expansion Coefficient | 16x10⁻6 1/K |
| Compatibility | PB, DPH, BC pedestal series |
| Packaging | 240 pcs per carton |
| Carton Weight | 1.85 kg |
