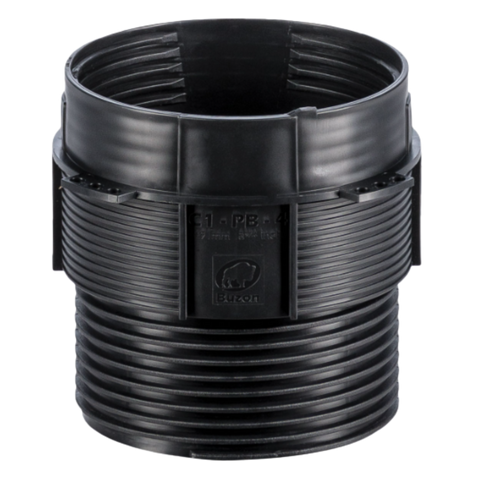

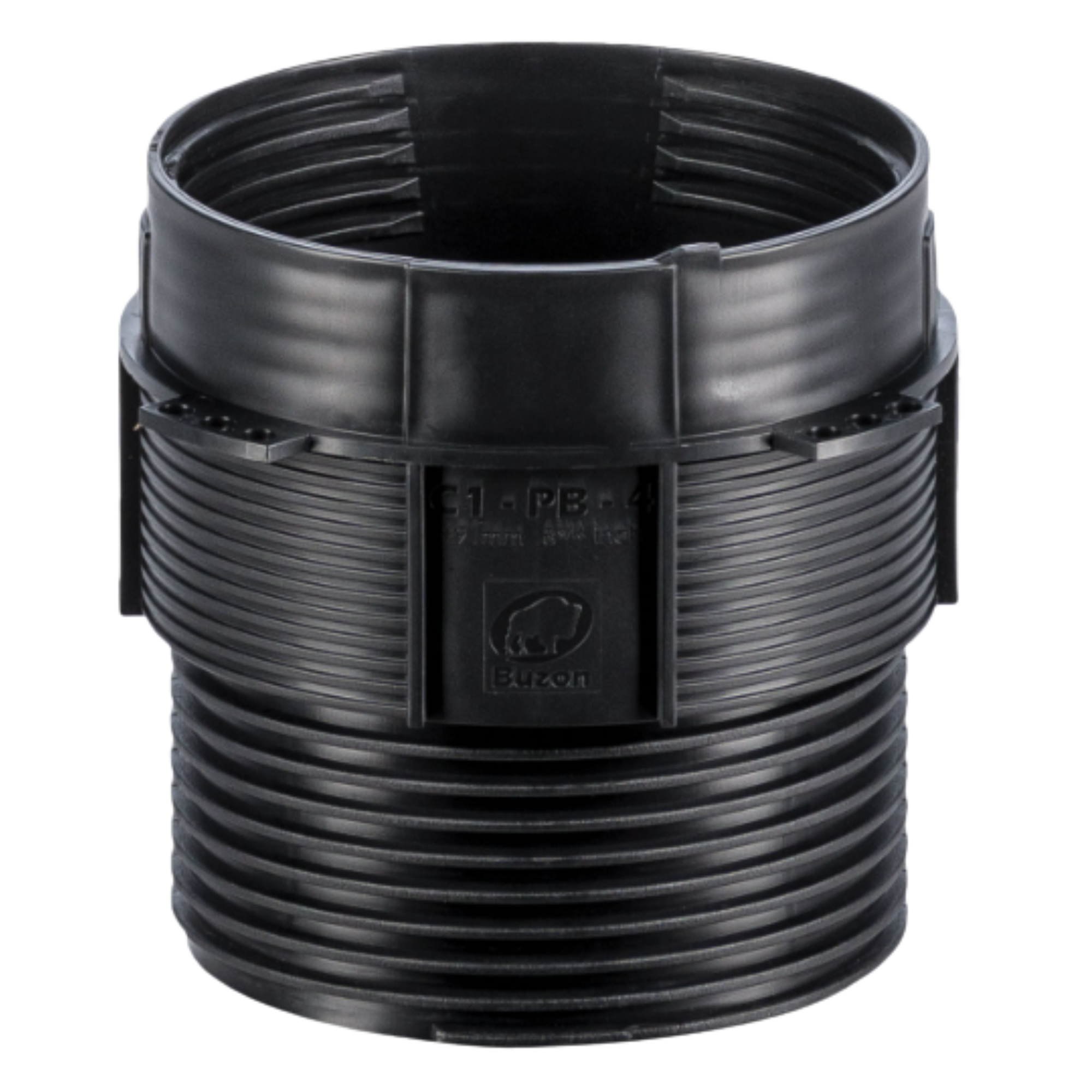

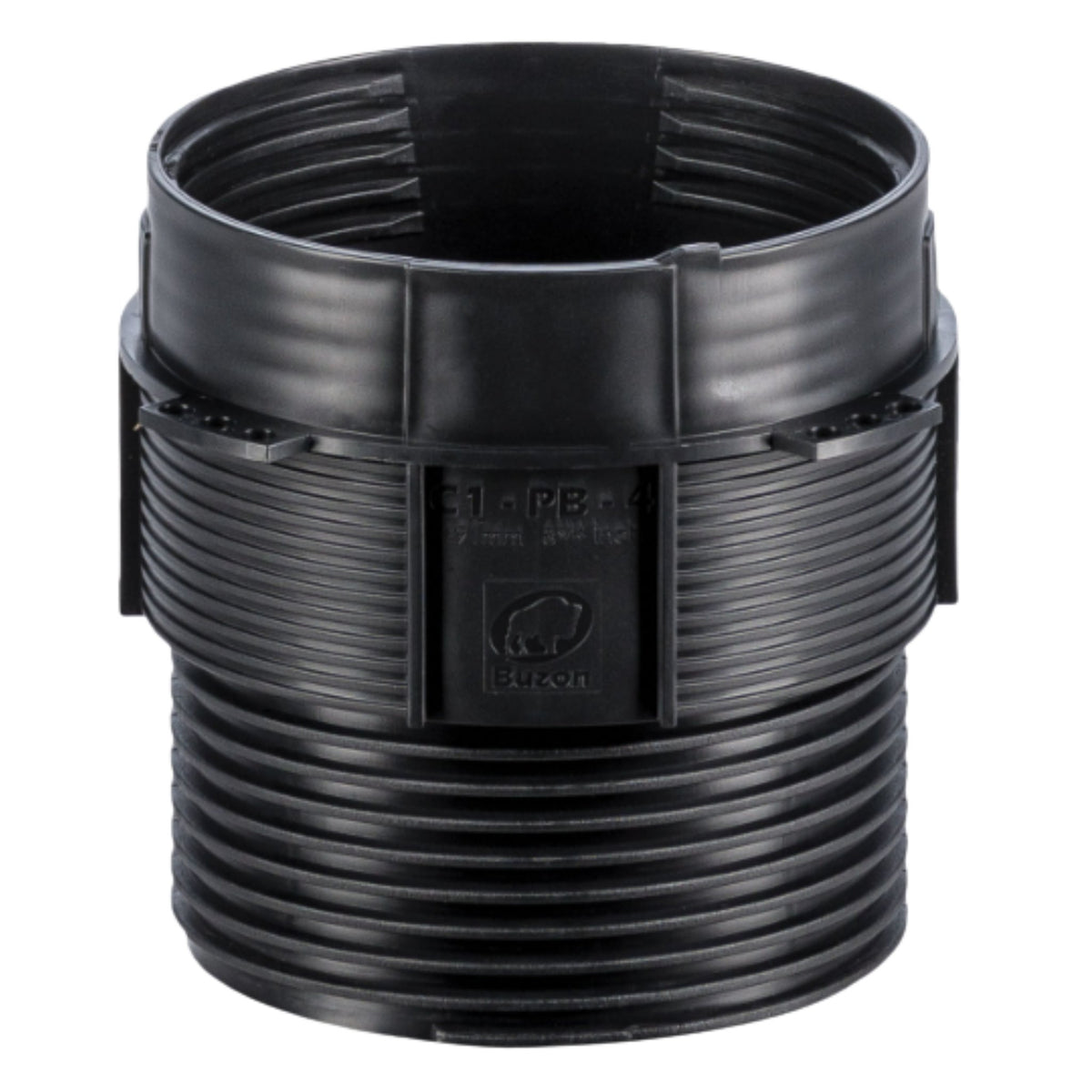

Buzon PB-C1 Coupler (Extender) is an industrial-grade vertical extension component for the PB-5 to PB-11 pedestal range in professional raised flooring applications. Engineered from Copolymer Polypropylene (CPP), it delivers 85mm to 120mm of height adjustment per unit with high resistance to sea salts and extreme temperatures ranging from -30°C to +80°C.
This stackable, tool-free solution ensures structural stability for pedestrian walkways while supporting sustainable building certifications through its 80% pre-selected recycled PPC construction.
Frequently asked questions
What is the Buzon PB-C1 Coupler used for?
The PB-C1 Coupler extends the height of Buzon PB pedestals, specifically models PB-5 to PB-11. It adds an additional 85 mm to 120 mm to the total pedestal height, suitable for raised flooring projects supporting pedestrian traffic.
Can the PB-C1 Coupler be used for vehicle traffic?
No, the PB-C1 Coupler and the broader PB pedestal system are designed for pedestrian traffic only. It is not rated for or designed to withstand vehicle or heavy machinery loads.
Which Buzon pedestals are compatible with the PB-C1 Coupler?
The PB-C1 Coupler is specifically designed for use with Buzon PB pedestals from PB-5 up to PB-11. For further height adjustments beyond the PB-C1's range, the PB-C2 Coupler can be used in sequence.
How durable is the PB-C1 Coupler in outdoor conditions?
The PB-C1 Coupler is made from copolymer polypropylene (CPP), which offers high durability and weather resistance. It maintains performance across a temperature range of -30°C to +80°C and is chemical resistant, ensuring longevity in varied outdoor environments.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Extending Buzon PB-5 to PB-11 pedestals | Achieves specific raised floor heights from 85 mm to 120 mm for a level platform without custom fabrication. | Landscapers, Tilers, Builders |
| Supporting timber or composite decking | Provides consistent height adjustment and a stable base for decking, managing drainage and ventilation underneath. | Decking installers, Landscapers |
| Creating elevated floors with stone pavers or ceramic tiles | Enables precise levelling of pavers and tiles, accommodating variations in the substrate and allowing for hidden services. | Tilers, Stone Masons, Landscapers |
| Raised floors for outdoor areas or rooftops | Delivers robust, weather-resistant height extension critical for long-term outdoor performance, preventing water pooling. | Waterproofers, Builders, Architects |
Application Guide
- Ensure the PB pedestal base is securely placed.
- Screw the PB-C1 Coupler between the pedestal base and head.
- Adjust to the required height for proper alignment.
- Install the chosen outdoor flooring material on top.
Product limitations
- Not for: Vehicle or heavy machinery loads. This coupler is designed for pedestrian traffic applications only.
- System integration: Must be used exclusively within the Buzon PB pedestal system to maintain structural integrity and warranty.
Safety and handling
Storage and disposal
Store in a dry, shaded area to protect material integrity. Dispose of product in accordance with local regulations for plastic materials.
Substrate guide
The Buzon PB-C1 Coupler extends the height of Buzon PB pedestals, forming part of a raised flooring system. The coupler itself does not directly contact the supporting substrate.
Supported finished surfaces
The Buzon pedestal system, when incorporating the PB-C1 Coupler, supports a range of finished surfaces. This includes granite stone pavers, composite and timber decking, ceramic tiles, and fibreglass or metal grating panels, provided the overall system design adheres to Buzon's guidelines for pedestrian loads.
Primer: Not applicable. The coupler is an intermediate component within the pedestal system.
Buzon PB-C1 Coupler (Extender) Physical Properties
| Property | Value |
|---|---|
| Product Name | PB-C1 Coupler (Extender) |
| Material | Copolymer Polypropylene (CPP) |
| Weight | 0.280 kg |
| Height Adjustment | 85 mm to 120 mm |
| Diameter | 124 mm - 131 mm |
| Temperature Range | -30°C to +80°C |
| Weather Resistance | Yes |
| Chemical Resistance | Yes |
| Recycled Content | 80% pre-selected recycled PPC, 20% Talc + Masterbatch Black |
| Manufactured In | Europe |
| Application | Height extension for PB pedestals (PB-5 to PB-11) |
| Additional Compatibility | PB-C2 Coupler for further height adjustments |
| Compliance | Manufactured in compliance with European quality standards |
| Recommended Usage | Pedestrian traffic applications only |
