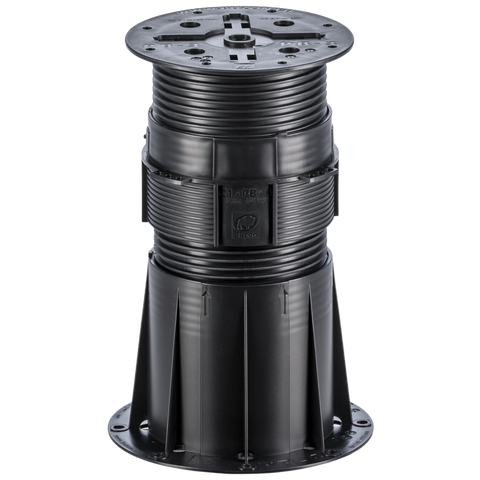

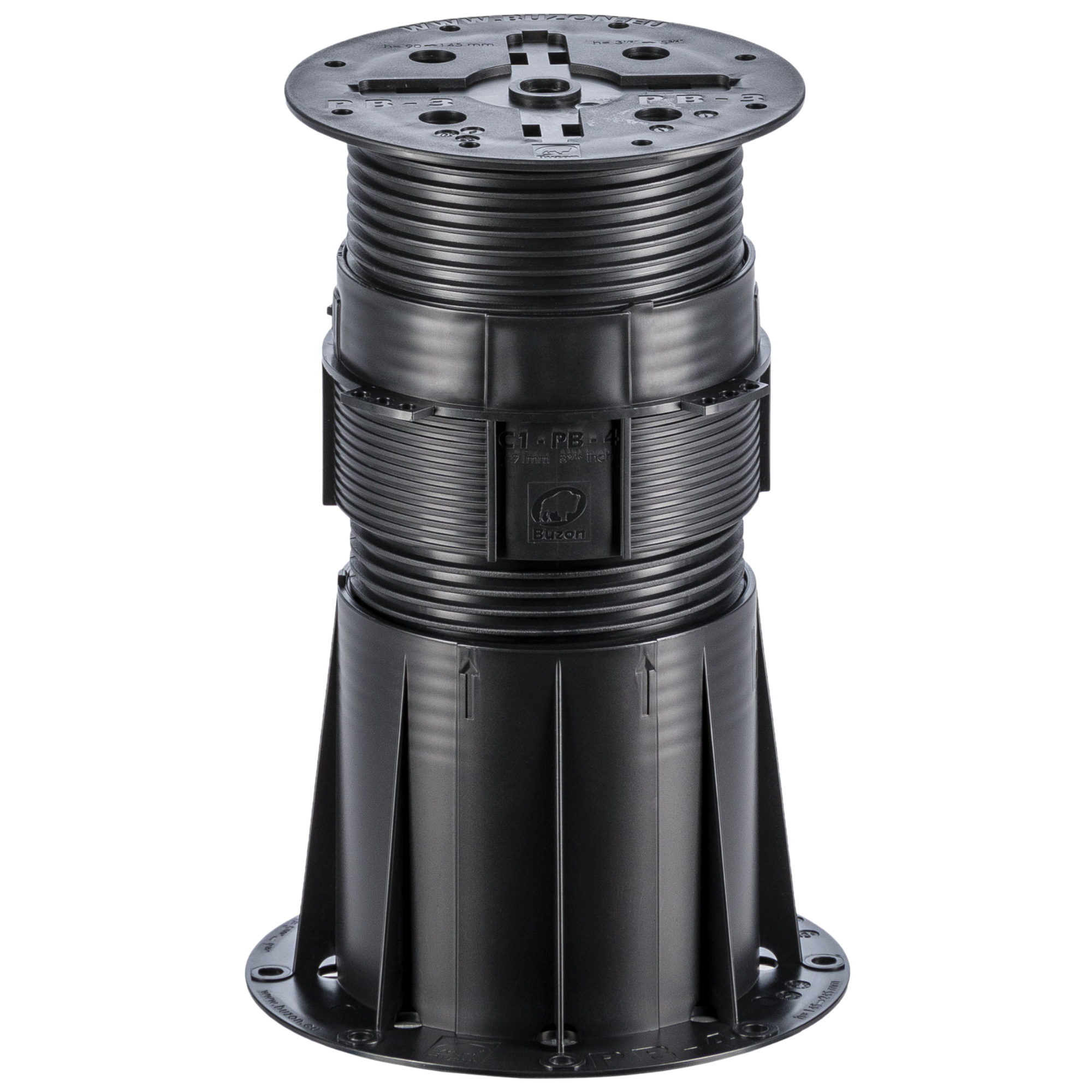

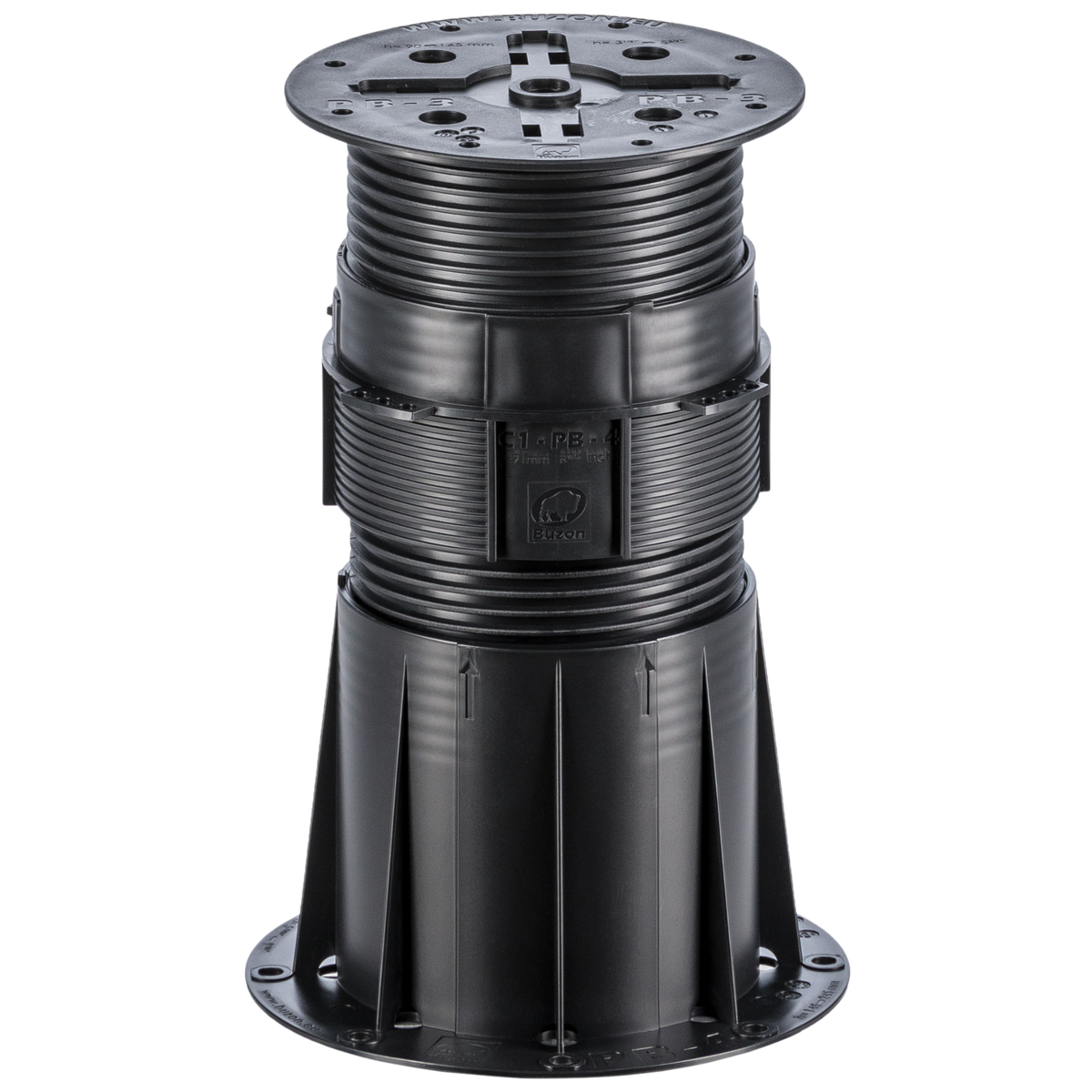

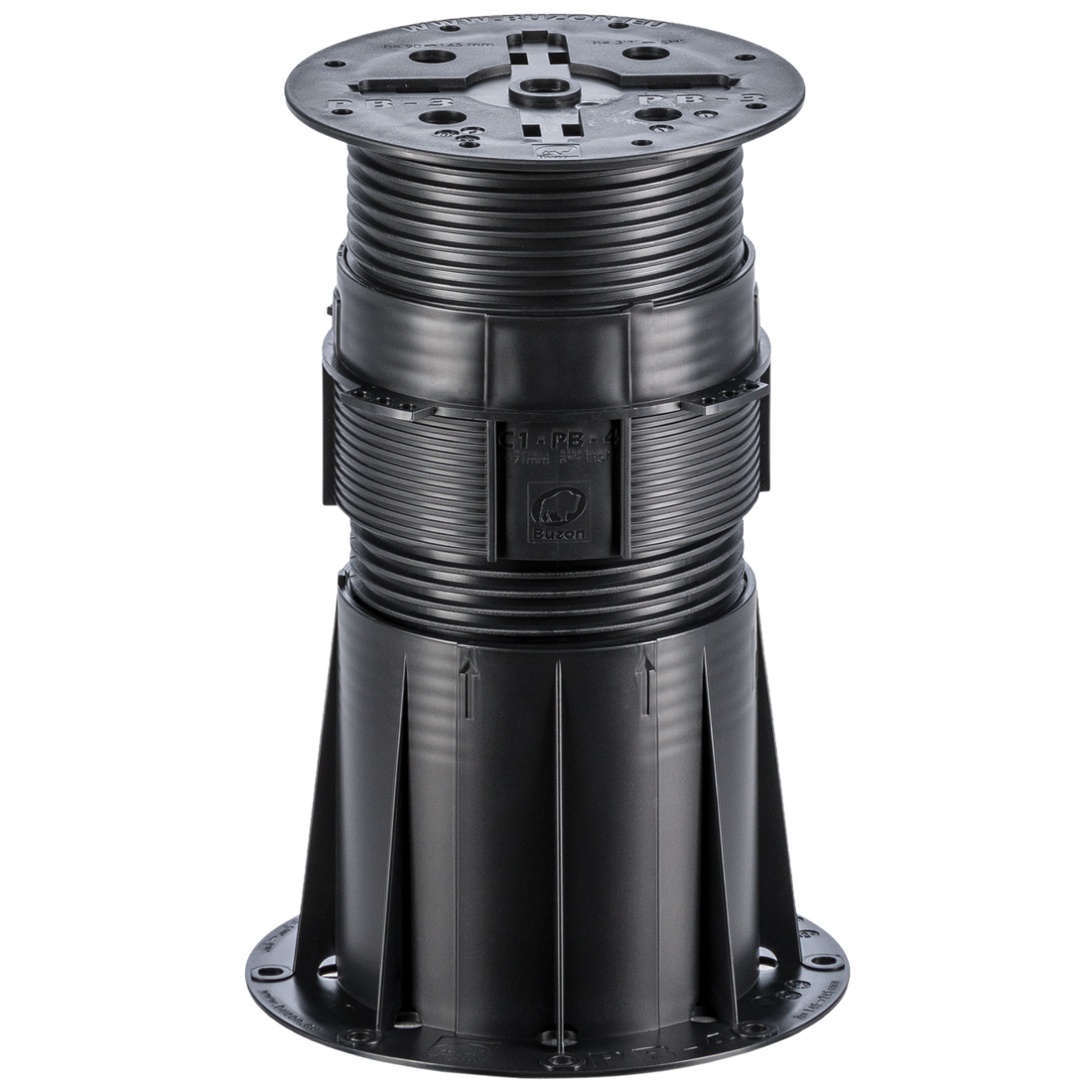

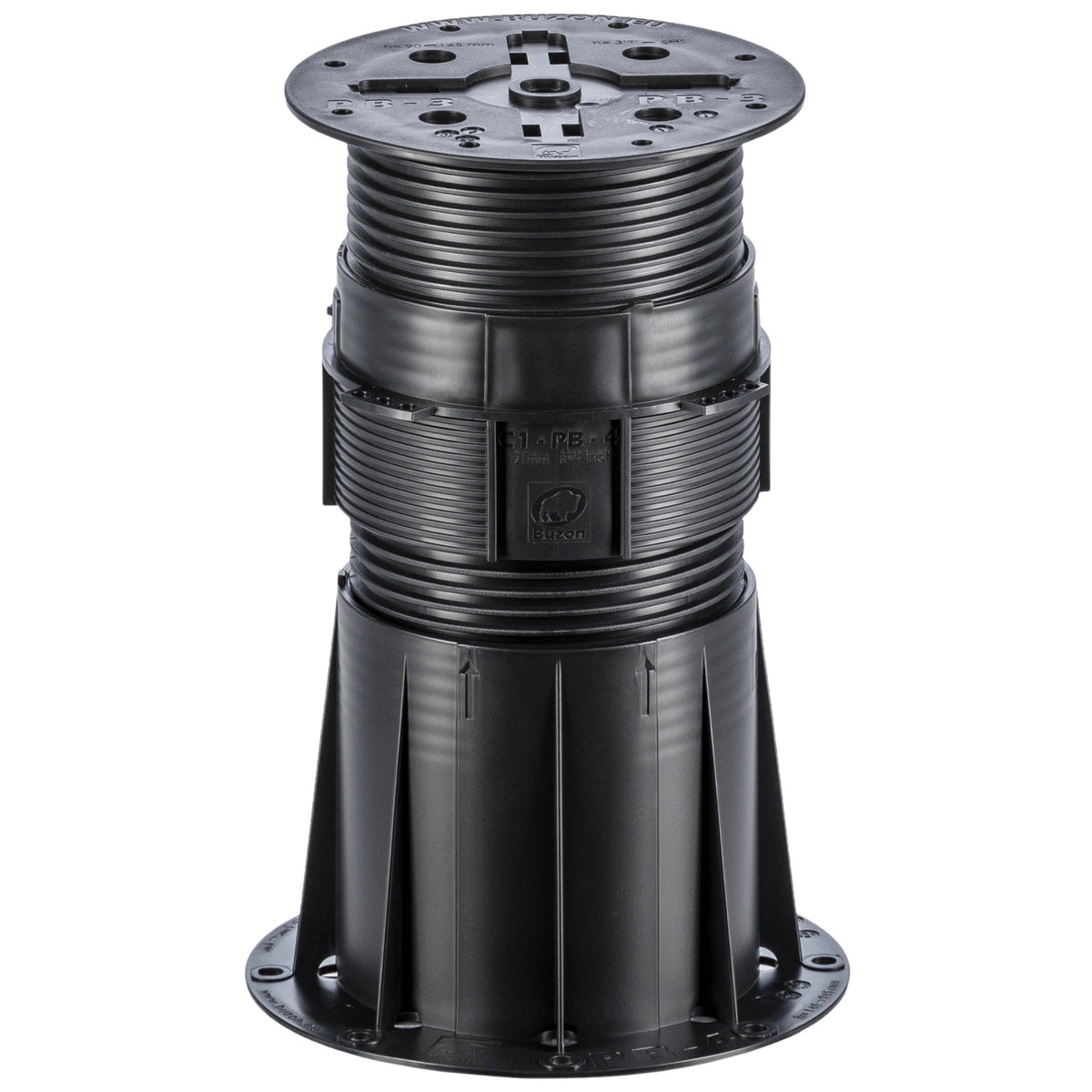

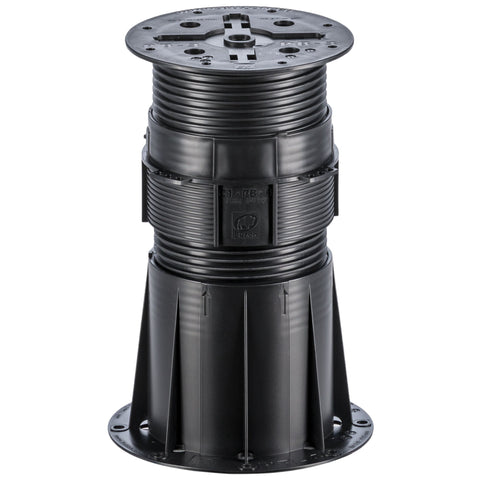

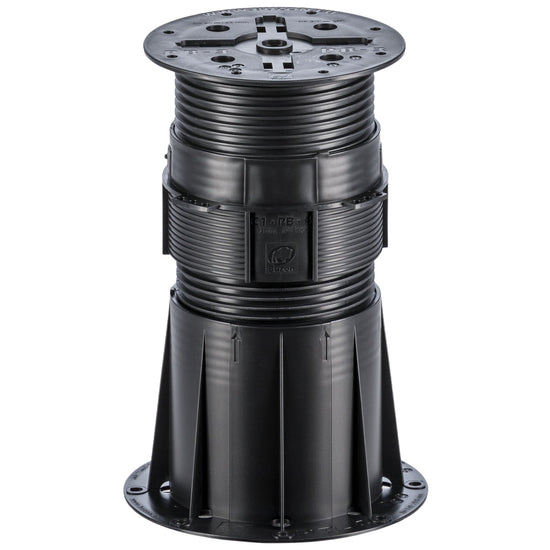

Buzon PB-5 Adjustable Pedestal (235-315mm) is an industrial-grade Copolymer Polypropylene (CPP) raised flooring system engineered for high-clearance commercial rooftops and podiums. This modular assembly provides 235mm to 315mm of vertical adjustment, enabling the concealment of bulky services and pipes while maintaining structural stability under compression loads up to 1,278kg.
When combined with the U-PH5 slope corrector, it compensates for gradients up to 5%, ensuring a perfectly level walking surface without compromising the integrity of underlying waterproof membranes or sensitive insulation. The salt- and chemical-resistant construction remains stable from -30°C to +80°C, providing a durable, weather-proof solution for exposed coastal environments and high-traffic pedestrian zones.
Uses
- Raised flooring systems for terraces and rooftop decks
- Support for composite and timber decking
- Installation of ceramic tiles and granite pavers
- Raised floor installations over waterproof membranes
- Floating floor applications in commercial and residential settings
Benefits
- Adjustable height accommodates a variety of applications
- Highly durable and weather-resistant
- Made from 95% recycled materials for eco-friendly applications
- Compatible with a wide range of substrate surfaces
- Ensures structural stability and load-bearing support
Application Guide
- Ensure the substrate is stable and clean.
- Position the PB-5 pedestal at regular intervals based on the selected surface material.
- Adjust the height to achieve a level surface.
- Install the selected pavers, tiles, or decking onto the pedestals.
- Check for evenness and make final height adjustments if needed.
For detailed manual instructions, please download the Installation Manual PB-5.
Limitations
- Not designed for vehicle or machinery loads
- Should not be used for moving or vibrating equipment support
- Pedestal load capacities should be divided for safety margins based on application
Suitable Substrates
- Concrete slabs
- Cement screeds
- Waterproof membranes
- Insulation panels
Buzon PB-5 Adjustable Pedestal (235-315mm) Physical Properties
| Property | Value |
|---|---|
| Material | Copolymer Polypropylene (CPP) |
| Colour | Black |
| Weight | 892 g |
| Height Adjustable | 235 mm - 315 mm |
| Temperature Range | -30°C to +80°C |
| Compression Load Full | 1,278 kg |
| Compression Load Half | 1,265 kg |
| Compression Load Quarter | 952 kg |
| Slope Correction (U-PH5) | 0° to 5° |
| Recycled Content | 95% |
| Storage Temperature | -30°C to +80°C |
| Shelf Life | Indefinite under proper storage |
