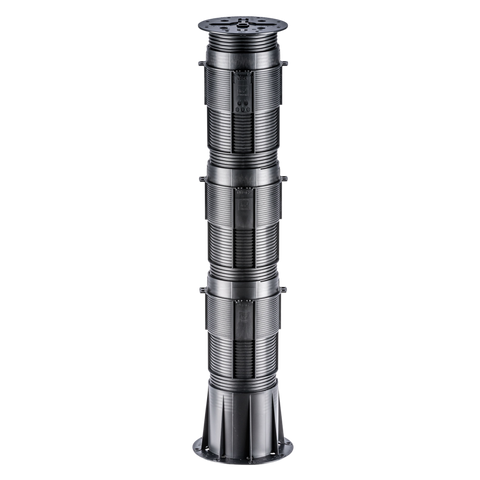

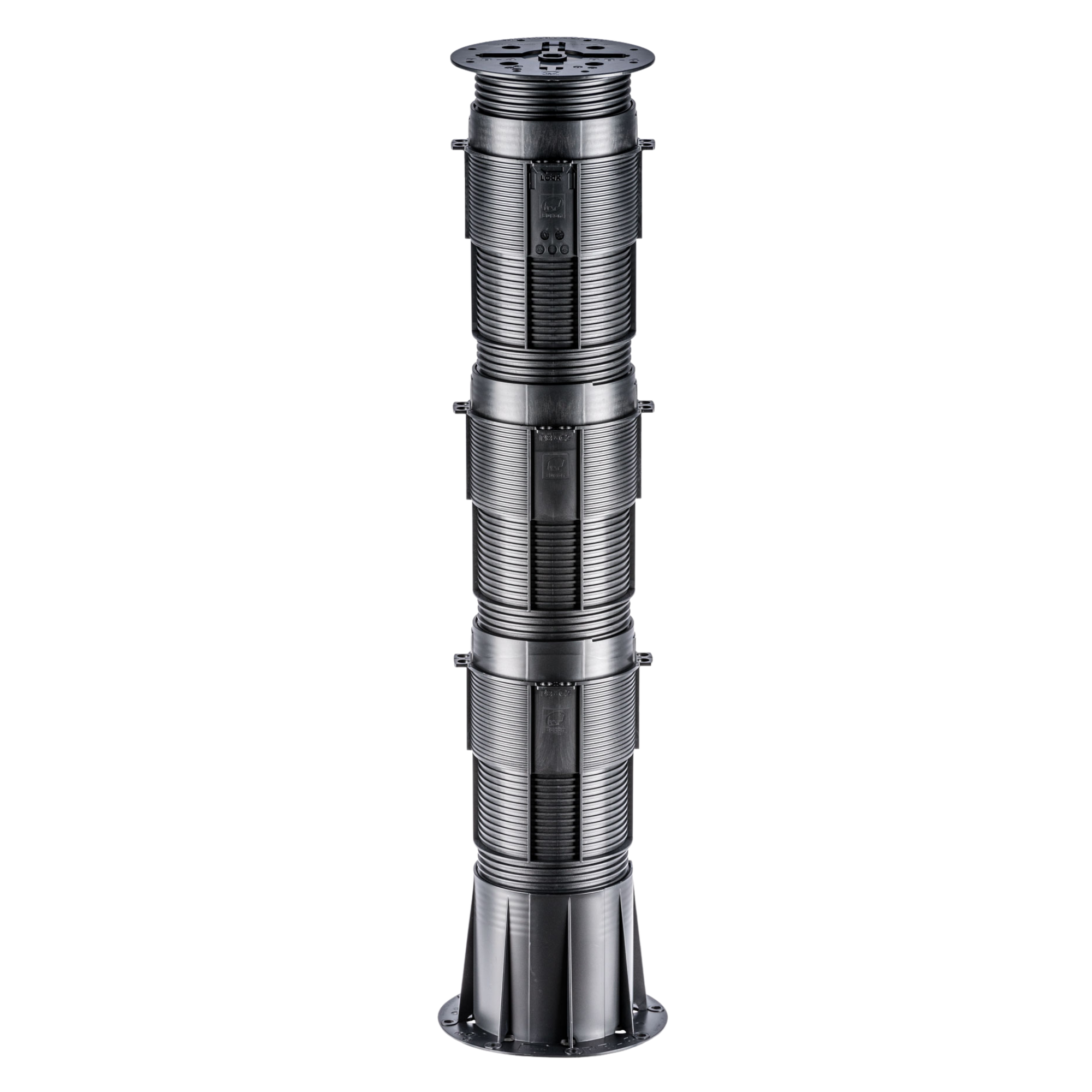

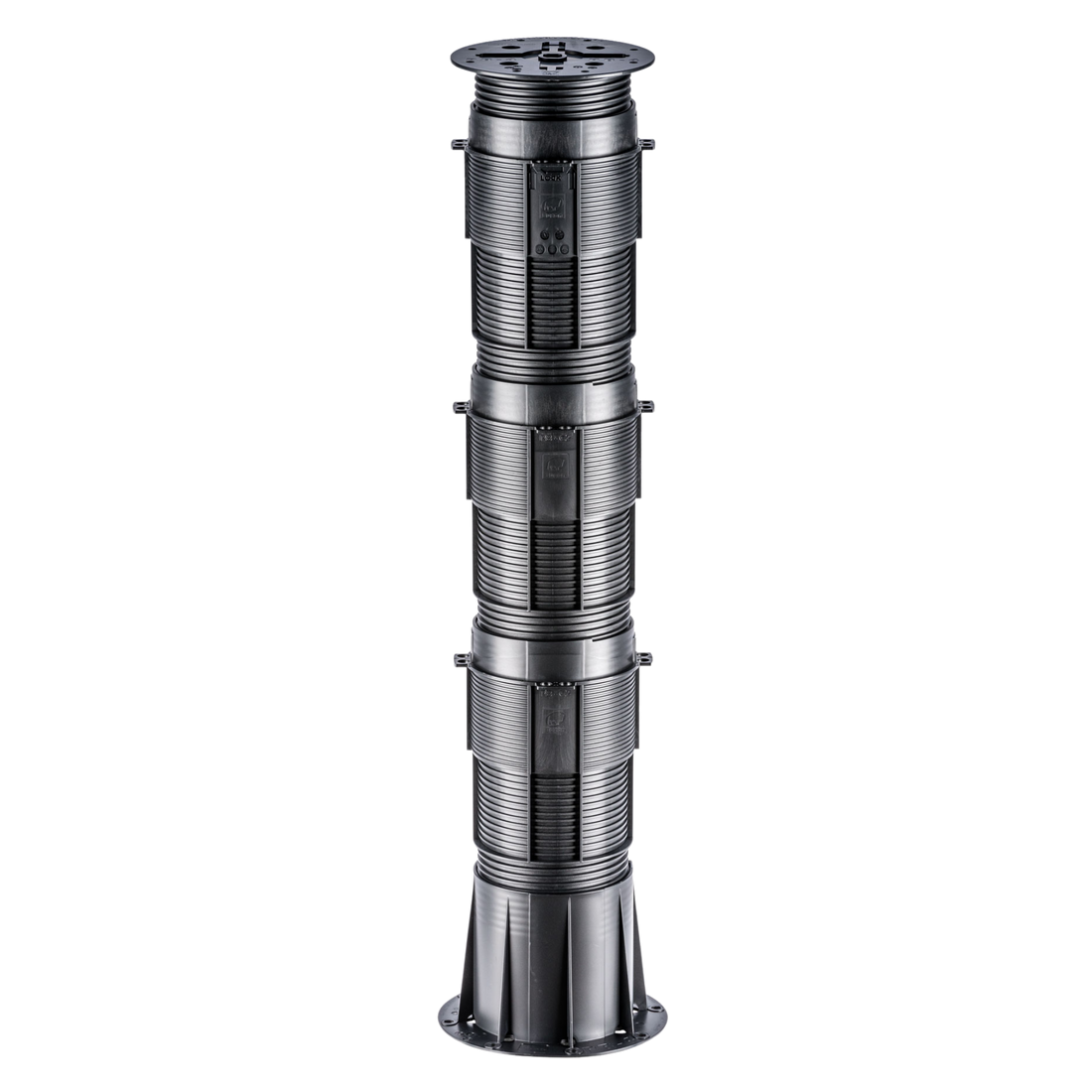

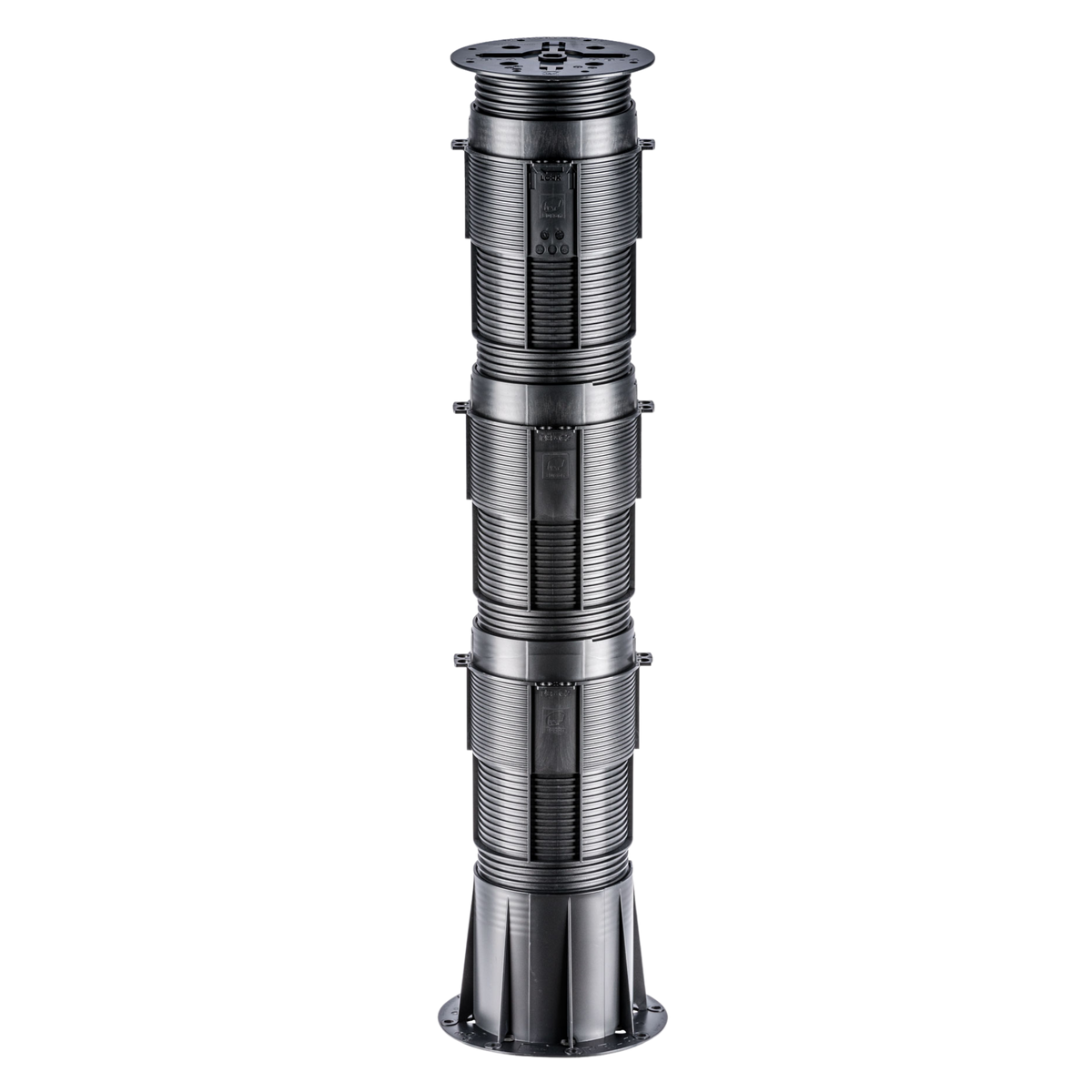

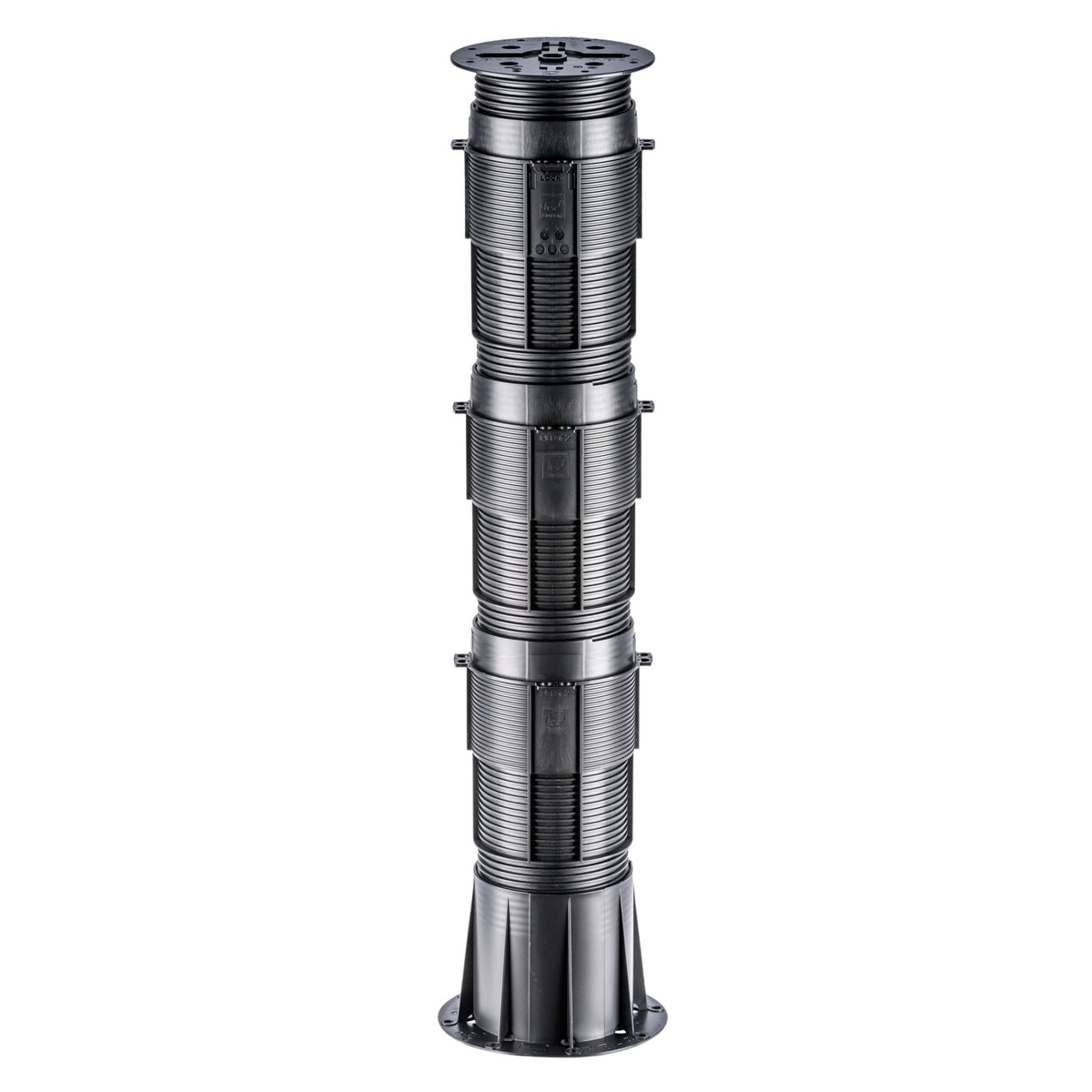

Buzon PB-11 is an adjustable pedestal for raised paver floors or timber and composite decks from 755 mm to 955 mm. Use it on balconies, terraces, and roofs. It leaves a void below the finish for drainage and services.
Use PB Spacer Tabs for pavers. Use PB-KIT-5 for a compatible deck joist. PB-11 is for external pedestrian floors. Do not use it for vehicles or vibrating machinery.
Frequently asked questions
Can this pedestal support heavy paver systems at its maximum height?
Yes, the PB-11 pedestal supports up to 1095 kg at full load compression across its 755 to 955 mm adjustable range. This rating ensures stability for common paver and decking systems.
What surfaces are suitable for installing the Buzon PB-11 pedestal?
The PB-11 is designed for installation on concrete, compacted soil, and waterproof membranes. The surface must be stable and compacted to ensure the pedestal performs as rated.
Is the Buzon PB-11 suitable for driveways or areas with vehicle traffic?
No, this pedestal is rated for pedestrian use only. It is not designed to withstand vehicular traffic or loads from vibrating machinery.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Outdoor raised flooring on terraces and balconies | Creates a stable, level deck over uneven surfaces or to hide services, with a 1095 kg compression strength. | Landscapers, builders, waterproofing contractors |
| Rooftop areas with deep voids (755-955 mm) | Provides necessary vertical height for drainage and insulation, resisting temperatures from -30°C to +80°C. | Architects, builders, roofing contractors |
| Support for ceramic tiles, stone pavers, timber, and composite decking | Offers a durable, adjustable foundation for various finishes, extending service life through robust Copolymer Polypropylene. | Tilers, landscapers, deck builders |
| Pool decks and landscape features | Manages slopes and levels, creating uniform surfaces around wet areas due to its resistance to weather and chemical exposure. | Pool builders, landscapers |
Application Guide
- Prepare the substrate, ensuring a stable base.
- Assemble the pedestal using PB-4-BASE, PB-C2, and PB-4-TOP components.
- Adjust the height according to the flooring requirements.
- Place the surface material on top and secure as needed.
For detailed manual instructions, please download the Installation Manual PB-11.
Product limitations
- Not for: Extremely heavy structural loads beyond its rated capacity of 1095 kg. This can lead to system failure.
- Not for: Vehicular traffic or areas exposed to vibrating machinery. Such applications exceed the design limits for pedestrian-rated pedestals.
- Requires: Installation on a stable and compacted surface. Failure to do so will compromise the stability and load-bearing capacity of the entire raised floor system.
Safety and handling
Storage and disposal
Store pedestals in a cool, dry place, away from direct sunlight and extreme temperatures, to maintain material integrity. Dispose of waste material according to local environmental regulations.
Substrate guide
Proper substrate preparation is critical for the long-term stability and performance of any raised flooring system.
Concrete
Surface prep: Ensure the concrete surface is clean, level, and free from loose debris, oils, or contaminants. Repair any significant cracks or unevenness. Must be fully cured and stable.
Primer: Not required. The pedestal rests directly on the prepared concrete surface.
Compacted soil
Surface prep: The soil must be thoroughly compacted and stable, free from organic matter and loose fill. A suitable sub-base (e.g., crushed rock) may be required depending on soil type and expected loads to ensure adequate bearing capacity.
Primer: Not required. Ensure the compacted surface provides a firm, unyielding base.
Waterproof membranes
Surface prep: The membrane must be fully installed, cured, and watertight. Ensure the surface is clean and free from sharp objects that could damage the membrane. A protection layer may be advisable between the pedestal base and the membrane, as per membrane manufacturer's specifications.
Primer: Not required. The pedestal base sits on the membrane or protection layer.
Buzon PB-11 Adjustable Pedestal (755 - 955mm) Physical Properties
| Property | Value |
|---|---|
| Product | PB-11 Adjustable Pedestal |
| Material | Copolymer Polypropylene (CPP) |
| Composition | 80% First-Grade Pre-Selected Recycled PPC, 20% Talc + Masterbatch Black |
| Components | 1 PB-4 BASE, 3 PB-C2 couplers, 1 PB-4 TOP |
| Weight | 2.97 kg |
| Adjustable Height | 755 mm to 955 mm |
| Top Diameter | 170 mm |
| Top Surface Area | 227 cm² |
| Base Diameter | 197 mm |
| Base Surface Area | 305 cm² |
| Temperature Resistance | -30°C to +80°C |
| Compression Strength Full Load | 1095 kg |
| Compression Strength Half Load | 818 kg |
| Compression Strength Quarter Load | 815 kg |
| Recycled Content | 50% (overall product) |
| Certifications | Manufactured in Europe |
| Applications | Terraces, Balconies, Pool Decks, Rooftops, Garden Installations |
