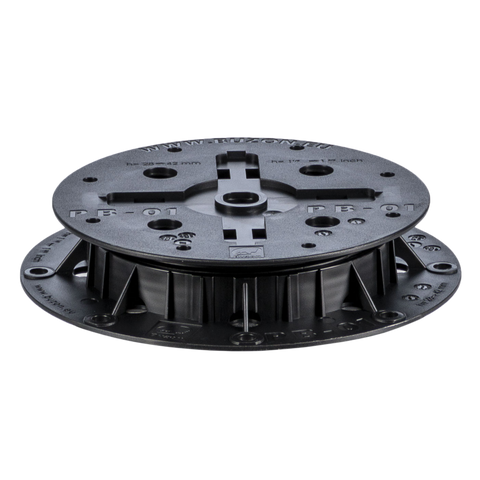

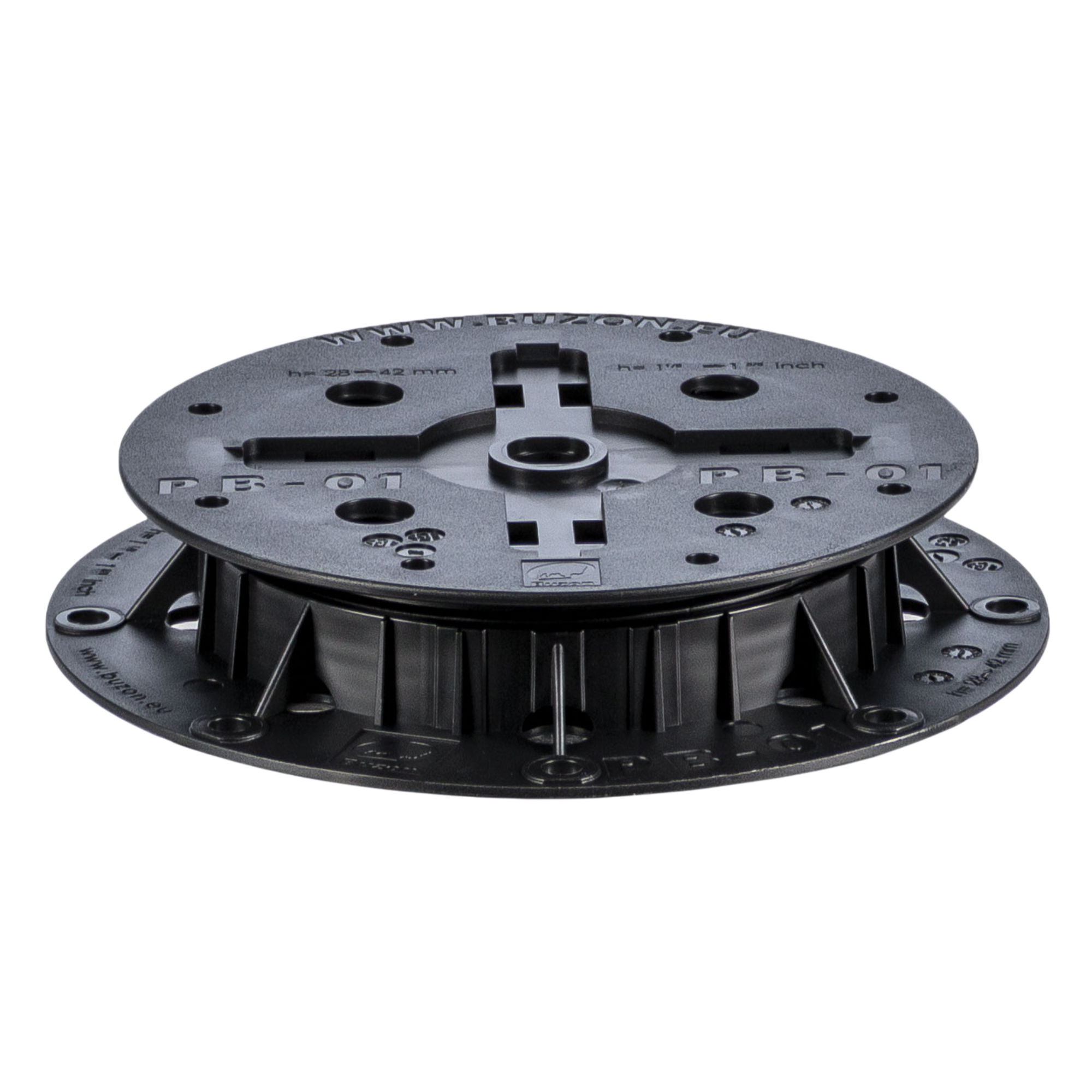

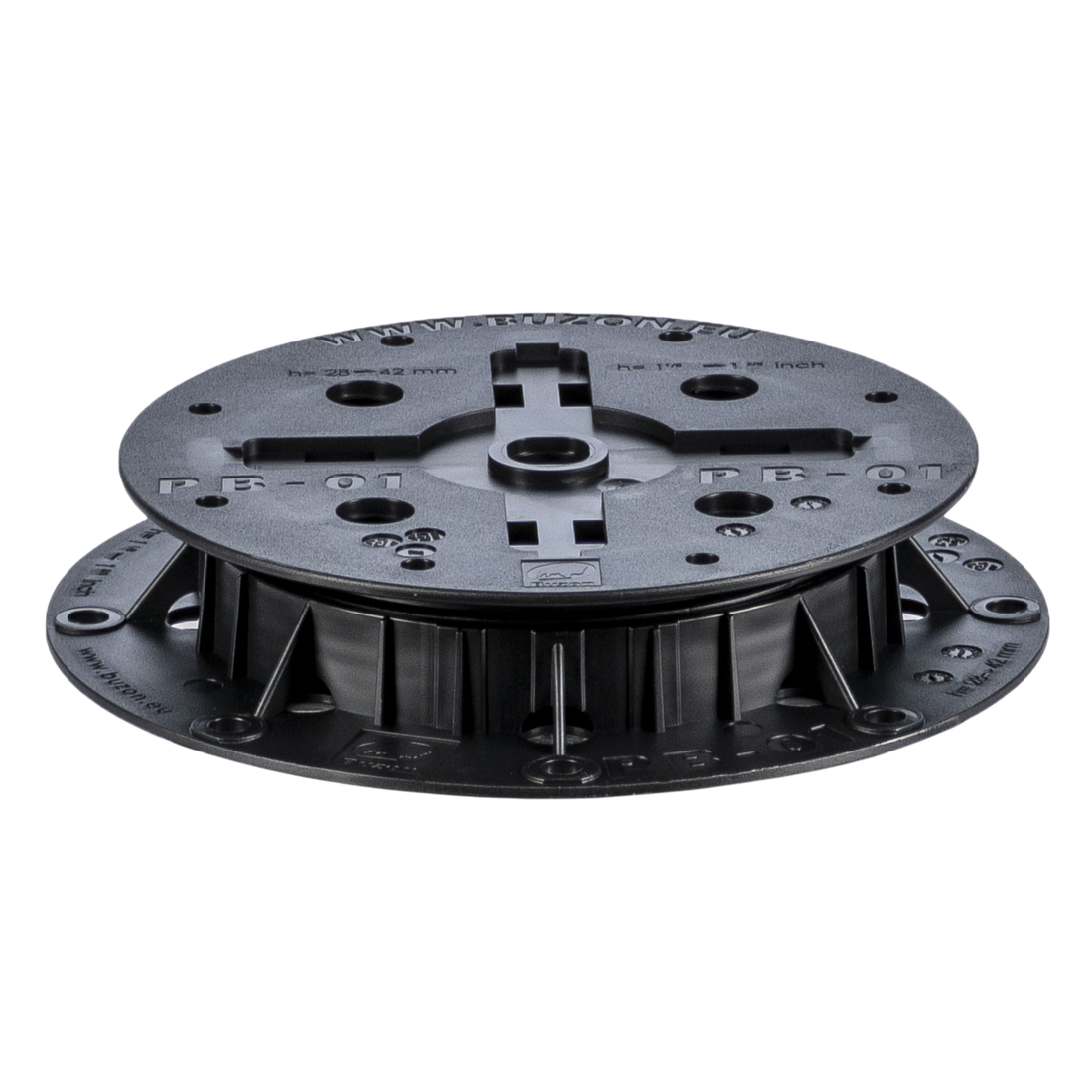

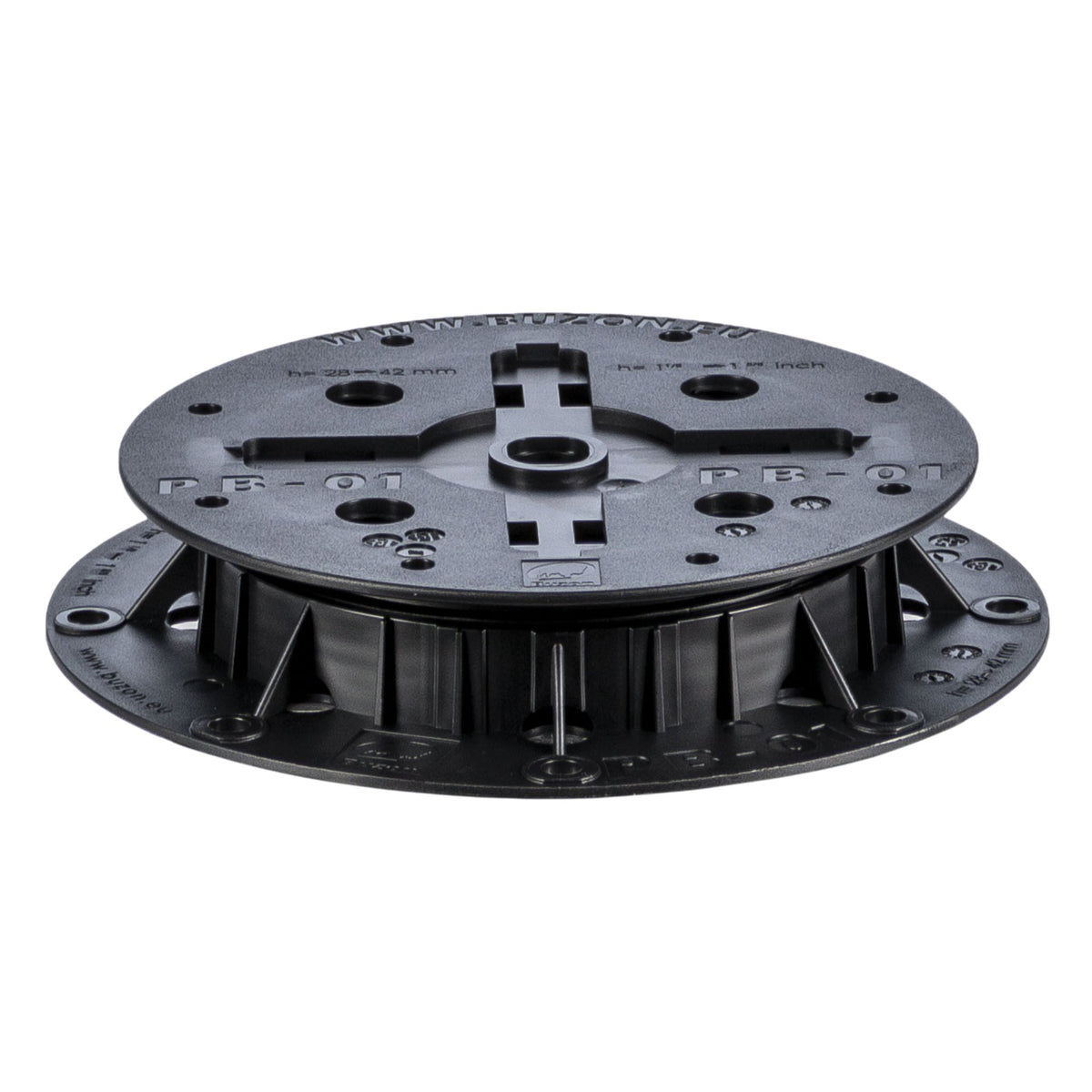

Buzon PB-01 Adjustable Pedestal (28-42mm) is a structural support system for raised outdoor flooring on rooftop terraces, pool decks, and pedestrian walkways. Engineered from Copolymer Polypropylene (CPP) with Talc, this screw-jack system provides a precise 28mm to 42mm height adjustment to ensure level finishes and rapid drainage over uneven substrates.
The large 197mm base protects critical waterproof membranes by reducing point-load pressure, while the ISO472:2013 compliant construction maintains a 974kg compression strength across extreme temperatures from -30°C to +80°C.
Frequently asked questions
Can I use the PB-01 pedestal for vehicle traffic areas?
No, the PB-01 pedestal is not designed for vehicle loads or areas subject to vibrating machinery. Using it in such conditions will compromise stability and performance, potentially leading to system failure.
What is the maximum weight the PB-01 can support?
The Buzon PB-01 pedestal supports up to 974 kg of compression strength when the load is applied evenly across its full surface. This ensures robust support for typical outdoor raised flooring systems.
How much height adjustment does the PB-01 offer?
The PB-01 provides an adjustable height range from 28 mm to 42 mm. For additional height or to correct slopes up to 5%, the U-PH5 slope corrector accessory can extend the range to 56 mm.
Is this pedestal suitable for protecting waterproof membranes?
Yes, the PB-01 design reduces direct stress on underlying waterproof membranes. It creates a ventilated cavity that promotes drainage and airflow, helping to extend membrane life and prevent ponding.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Outdoor raised flooring systems | Creates a stable, level surface over uneven ground while allowing for services and drainage underneath. | Landscapers, Builders |
| Terraces and patios | Ensures precise levelling of pavers or decking, promoting effective water run-off and preventing pooling. | Tilers, Landscapers |
| Rooftop installations | Elevates finished surfaces to protect underlying waterproof membranes and facilitate drainage. | Waterproofers, Builders |
| Pool decks and water features | Provides consistent support and ventilation for surfacing materials in wet environments, resisting corrosion. | Pool builders, Landscapers |
Application Guide
- Prepare a stable and solid substrate.
- Place the Buzon PB-01 pedestal at designated support points.
- Adjust the height to the required level (28-42mm) or add U-PH5 for extra height.
- Position surface materials such as pavers or decking securely on top.
- Ensure even spacing and alignment for a professional finish.
- Perform load testing if necessary before full installation.
For the installation guide on height adjustment from PB-0-S18 to PB-4 or from PB-3 to PB-4, please download the Installation Manual Height Adjustment.
Product limitations
- Not for: Vehicle loads or areas with vibrating machinery. The pedestal is designed for pedestrian loads only; exceeding this will compromise system integrity.
- Substrate: Requires a stable and structurally sound substrate for proper installation. Movement in the base will affect the entire flooring system.
- Adjustability: The standard adjustability is limited to 42 mm. For heights up to 56 mm or slope correction, the U-PH5 accessory is required.
Safety and handling
Storage and disposal
Store in a cool, dry place away from direct sunlight to maintain material integrity. Dispose of in accordance with local regulations for plastic materials.
Substrate guide
Proper substrate preparation is critical for the long-term stability and performance of any raised flooring system. Ensure the surface is solid and level before installation.
Concrete slabs
Surface prep: Ensure the slab is clean, dry, and free from loose debris or contaminants. Any significant unevenness must be addressed prior to pedestal placement.
Primer: Not required.
Cement screeds
Surface prep: Verify the screed is fully cured, clean, and structurally sound. Remove any laitance or weak surface layers.
Primer: Not required.
Waterproof membranes
Surface prep: The membrane must be fully bonded, intact, and free from punctures or damage. Pedestals distribute load to protect the membrane, but existing damage needs repair.
Primer: Not required.
Insulation panels
Surface prep: Panels must be stable, correctly installed, and able to withstand the distributed load of the pedestal and flooring system without significant compression or deformation.
Primer: Not required.
Buzon PB-01 Adjustable Pedestal (28-42mm) Physical Properties
| Property | Value |
|---|---|
| Material | Copolymer Polypropylene (CPP), 80% recycled PPC, 20% Talc |
| Top Diameter | 170 mm |
| Base Diameter | 197 mm |
| Weight | 232 g |
| Adjustable Height | 28 mm to 42 mm (Extendable to 56 mm with U-PH5) |
| Compression Strength | 974 kg (Full surface) |
| Temperature Range | -30 °C to +80 °C |
| Certification | ISO472:2013 |
| Recycled Content | Minimum 50% |
| Storage | Cool, dry place, avoid direct sunlight |
