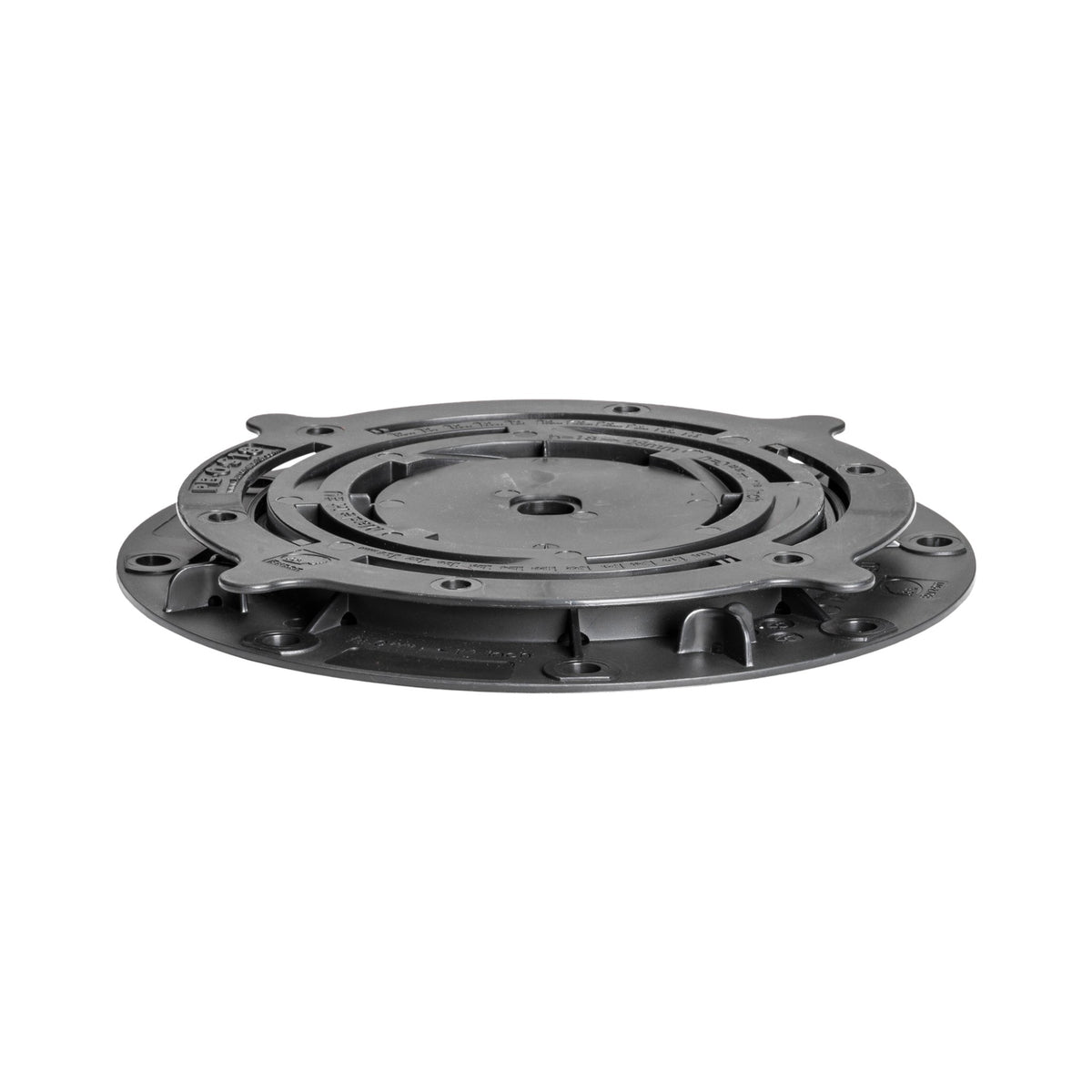

Buzon PB-0-S18 Adjustable Pedestal (18-28mm) is a specialized support system for achieving precise levels in ultra-low clearance zones on rooftop terraces and balconies. Engineered from weather-proof copolymer polypropylene (CPP), this pedestal provides an industrial-strength 27.30 kN breaking load that eliminates floor bounce and supports heavy stone pavers or timber joists without risking membrane puncture.
The non-penetrative wide-base design allows Rooftop Decking & Paving Specialists to maintain structural integrity and essential sub-surface drainage in extreme environments ranging from -30°C to +80°C.
For projects involving sloped substrates up to 5%, integrate the U-PH5 slope corrector to ensure a perfectly level finish while preventing perimeter failure by adhering to the specific 420kg to 967kg breaking load limits for quarter and half-head sections.
What height range does the Buzon PB-0-S18 cover?
PB-0-S18 adjusts from 18 to 28 mm. The current Buzon PB catalogue lists it as delivered assembled.
Buzon PB-0-S18 Adjustable Pedestal (18-28mm) Physical Properties
| Property | Value |
|---|---|
| Adjustment Range | 18-28 mm |
| Adjustment Range (with U-PH5) | 26 to 32 mm |
| Material | Copolymer polypropylene (CPP) |
| Composition | Approx. 80% recycled PPC, 20% Talc + Masterbatch black |
| Top Diameter | 170 mm |
| Top Surface Area | 227 cm² |
| Base Diameter | 197 mm |
| Base Surface Area | 305 cm² |
| Weight | 180 gr |
| Service Temperature | -30°C to +80°C |
| Breaking Load (Full Surface) | 27.30 kN (2730 kg) |
| Breaking Load (Half Surface) | 9.67 kN (967 kg) |
| Breaking Load (Quarter Surface) | 4.20 kN (420 kg) |
| Country of Origin | Europe |
| Recycled Content | Approx. 80% |
| Resistances | Weathering, sea salts, algae, various chemicals |
| Slope Correction | 0-5% |
| Breaking Load | 27.30 kN |
