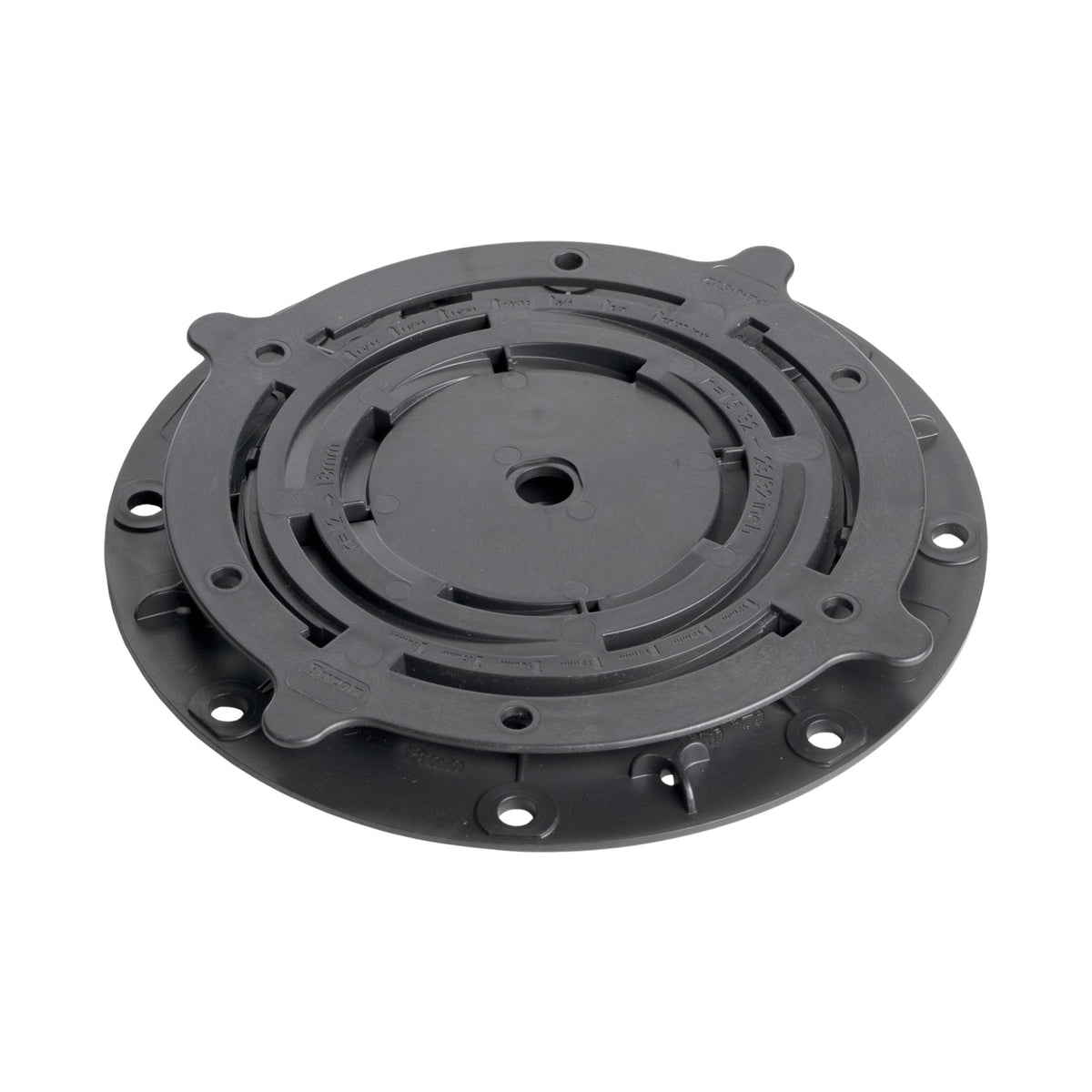

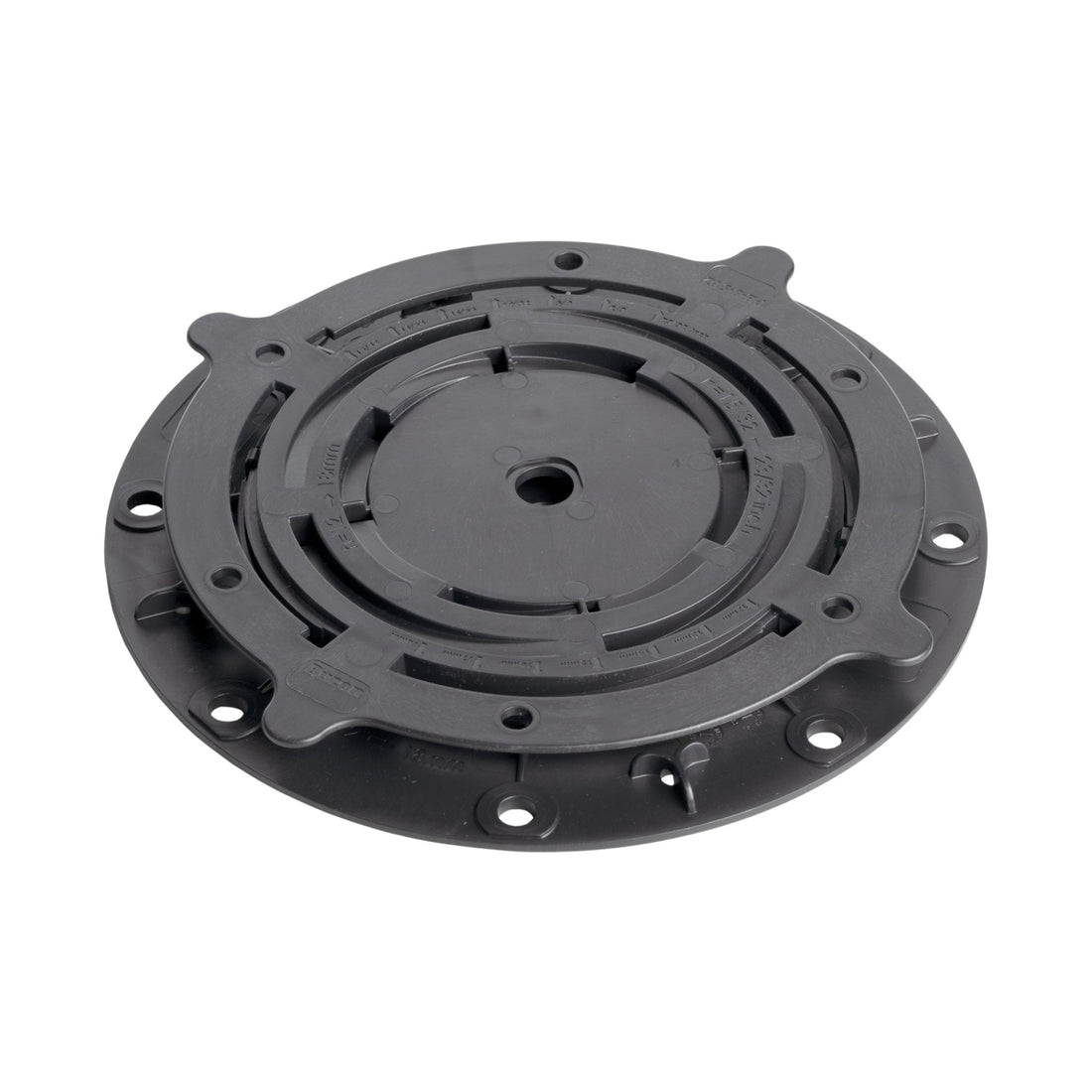

Buzon PB-0-S12 Adjustable Pedestal (12-18mm) is an ultra-low profile raised flooring support engineered from Copolymer Polypropylene (CPP) for balconies and rooftop terraces. It provides a non-penetrative leveling solution that protects the underlying waterproof membrane from mechanical punctures while facilitating rapid water runoff and evaporation through its 12mm to 18mm micro-adjustment range.
Supporting a full-load compression strength of 27.3 kN, this system maintains structural integrity across temperatures from -30°C to +80°C and resists degradation from sea salts or pool chemicals. Specialists must account for load distribution across the 170mm head, as compression strength reduces from 27.3 kN at full load to 4.2 kN at quarter-load corner placements.
The system is designed strictly for pedestrian traffic and must not be used to support moving or vibrating machinery.
What height range does the Buzon PB-0-S12 cover?
PB-0-S12 adjusts from 12 to 18 mm. The current Buzon PB catalogue lists it as delivered assembled.
Buzon PB-0-S12 Adjustable Pedestal (12-18mm) Physical Properties
| Property | Value |
|---|---|
| Product Name | Buzon PB-0-S12 Adjustable Pedestal |
| Material | Copolymer Polypropylene (CPP) |
| Recycled Content | 80% first-grade recycled PPC, 20% Talc + Masterbatch black |
| Adjustment Range | 12 - 18 mm |
| Adjustment Range (with U-PH5) | 26 - 32 mm |
| Base Diameter | 197 mm |
| Top Diameter | 170 mm |
| Weight | 180 g |
| Temperature Resistance | -30°C to +80°C |
| Load Capacity (Full Surface) | 27.3 kN (2730 kg) |
| Load Capacity (Half Surface) | 9.67 kN (967 kg) |
| Load Capacity (Quarter Surface) | 4.2 kN (420 kg) |
