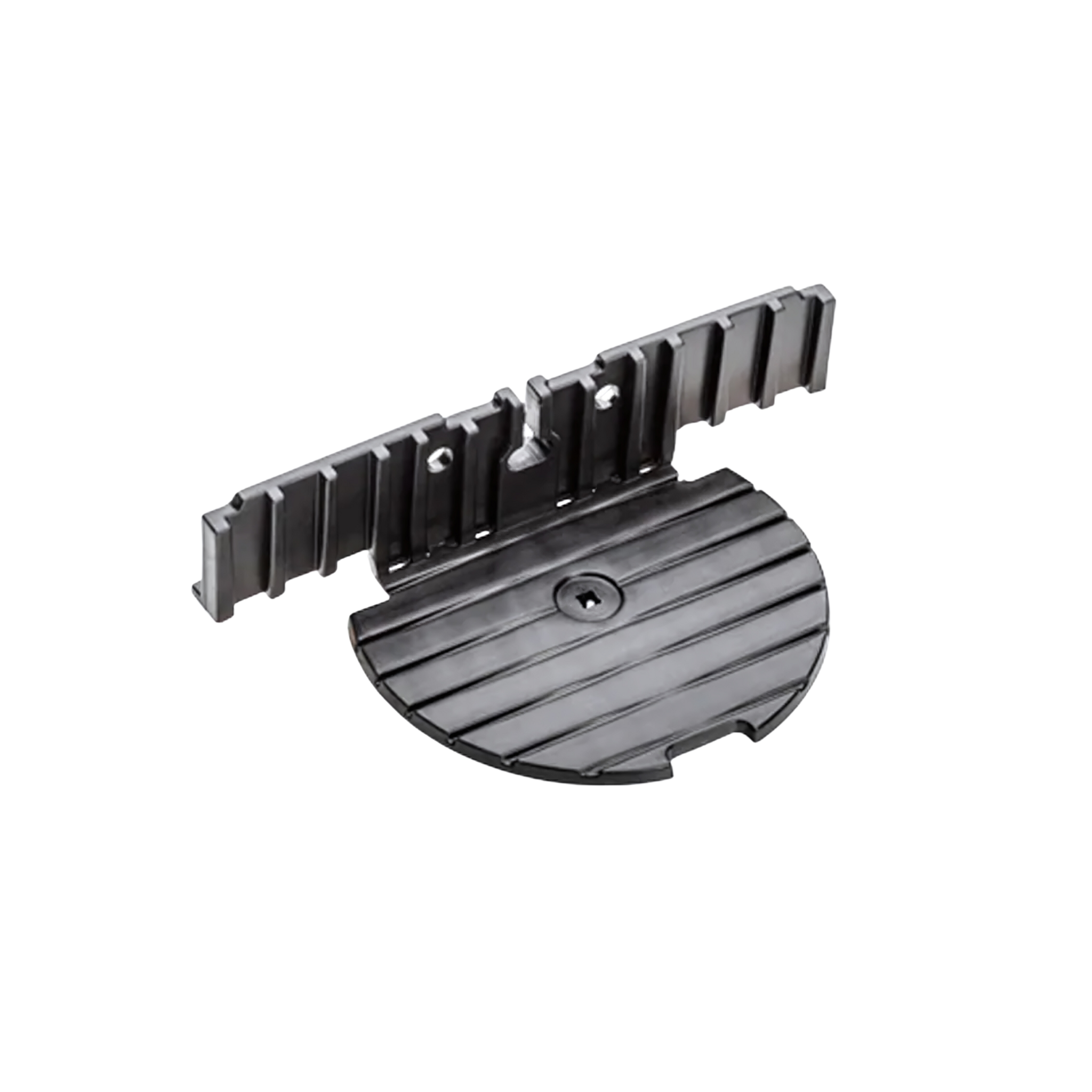

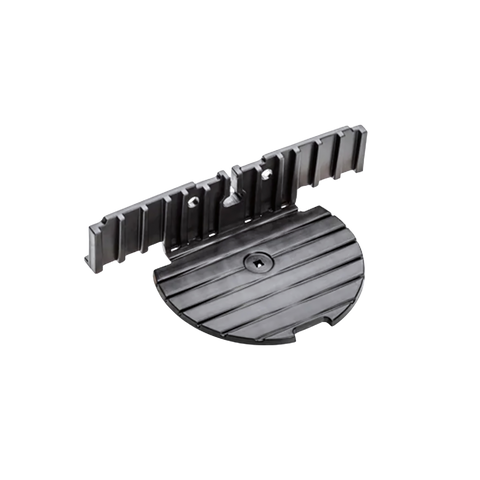

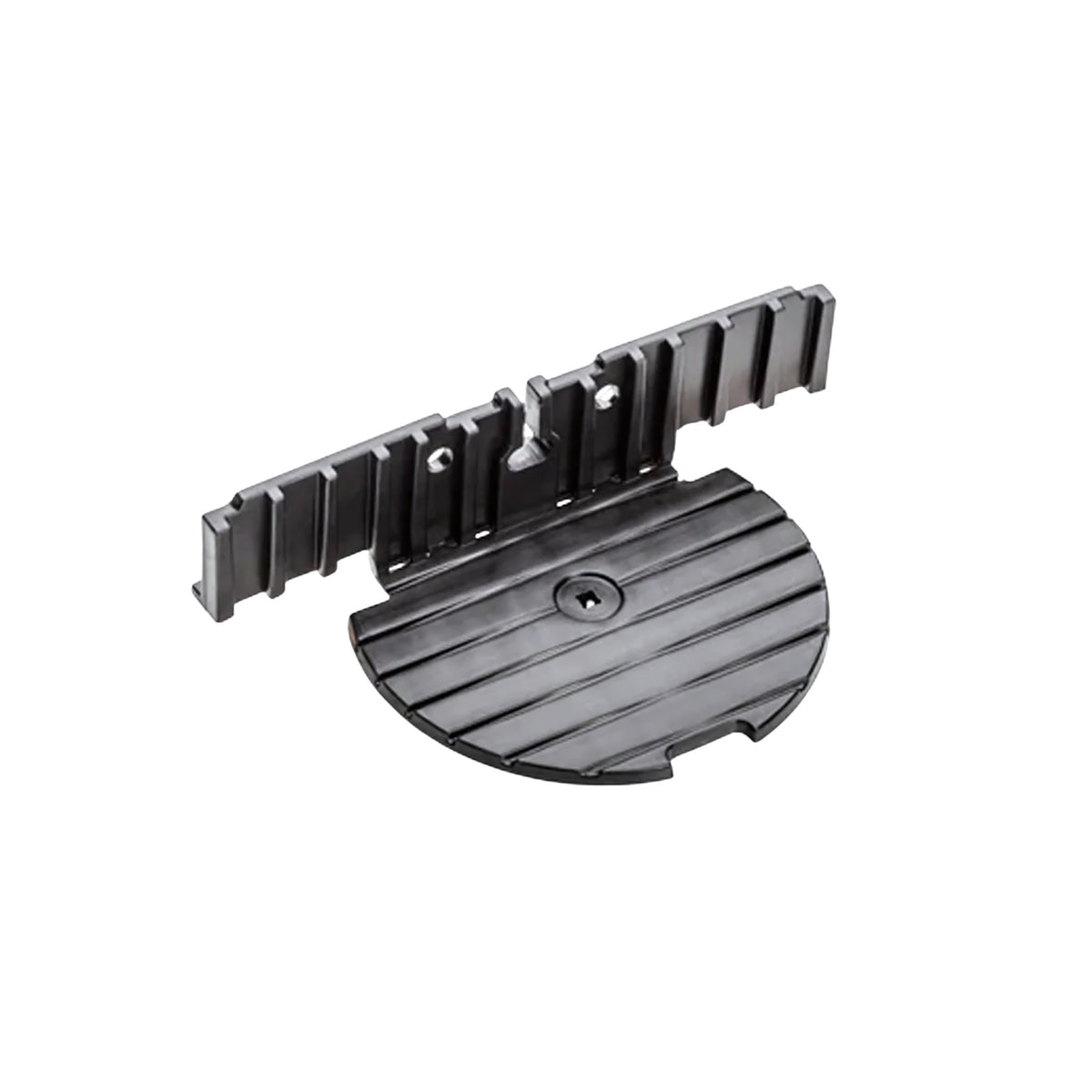

Buzon Joist Holder DPH-KIT-5 is a technical joist management component designed for the secure installation of timber and composite terraces on DPH and PB-0-S18 pedestal systems. Manufactured from 80% recycled copolymer polypropylene, this press-fit holder prevents structural instability by accommodating joists up to 90mm wide while maintaining performance across extreme temperature ranges from -30°C to +80°C.
The integrated 360° rotating mechanism allows specialists to achieve perfect alignment after leveling the deck, mitigating the risk of project delays caused by repetitive height adjustments on complex architectural layouts.
Uses
- Installing timber and composite decking on raised terraces
- Securing joists firmly onto Buzon DPH range pedestals
- Providing adjustable support for outdoor decking structures
Benefits
- Ensures a secure and stable deck structure
- Allows easy joist alignment with adjustable rotation
- Withstands harsh outdoor environments, including temperature fluctuations from -30°C to +80°C
- Facilitates efficient and time-saving installations for trade professionals
Application Guide
- Attach the DPH-KIT-5 to the Buzon pedestal by pressing it firmly into place.
- Position the joist onto the holder, ensuring it fits securely within the specified dimensions.
- Adjust the height of the pedestal as required and rotate the holder to align the joist perfectly.
- Proceed with the installation of the decking boards over the secured joists.
Limitations
- Not suitable for use with moving or vibrating equipment
- Intended for pedestrian traffic applications only
Buzon Joist Holder DPH-KIT-5 Physical Properties
| Property | Value |
|---|---|
| Weight | 0.025 kg |
| Joist Dimensions | 30 mm min. depth, 90 mm max. width |
| Material | Copolymer polypropylene (CPP), 80% recycled EU origin PPC, 20% Talc + Masterbatch black |
| Temperature Range | -30°C to +80°C |
