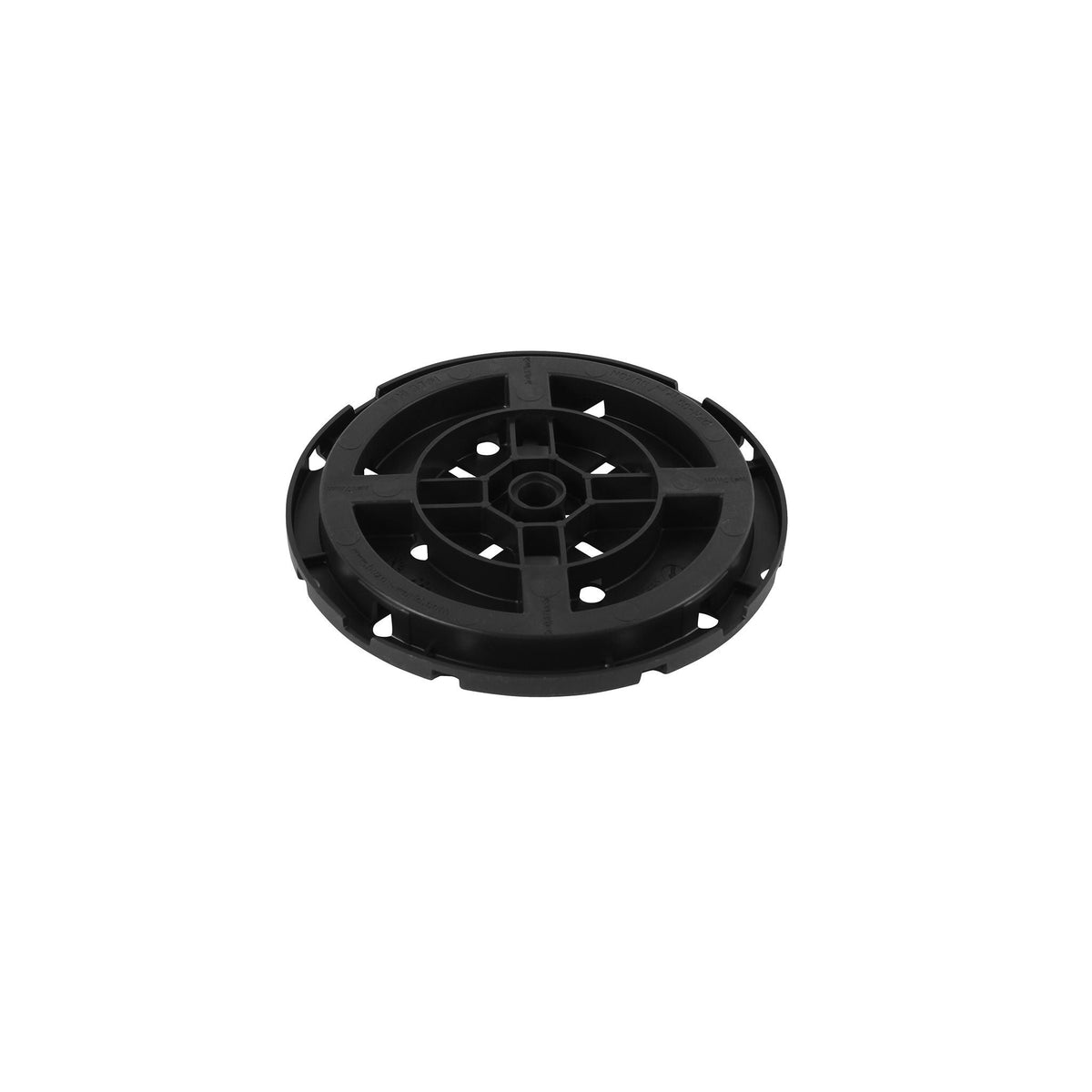

Buzon DPH-0 is a fixed 17 mm pedestal for raised paver floors. Use it on terraces, balconies, and roofs where the available height is limited. It leaves a drainage void below the pavers.
DPH-0 is part of the DPH raised-floor system for external pedestrian areas. Do not use it for vehicles or vibrating machinery.
Can DPH-0 be height-adjusted?
No. Buzon specifies DPH-F17 as a non-adjustable pedestal with a fixed height of 17 mm.
Fixed 17 mm pedestal for low-build raised paver and terrace systems.
Buzon specifies a 170 mm top, 145 mm base and eight drainage holes in the base.
Manufacturer breaking load: 5,537 kg.
Place the DPH-F17 on the prepared support surface at the pedestal layout required by the raised-floor design.
Fit the compatible head accessory or spacer for the selected finish, then place the supported paver or deck element.
Level must come from the support surface or system design because the pedestal height cannot be adjusted.
Height is fixed at 17 mm; DPH-F17 is not adjustable.
The published 5,537 kg figure is the pedestal breaking load, not a project floor load rating.
Confirm pedestal spacing, paver support and substrate capacity for the finished system.
Buzon DPH-0 (17mm Non Adjustable Pedestal) Physical Properties
| Property | Value |
|---|---|
| Adjustment Range | 17 mm (fixed) |
| Substrate Compatibility | Raised paver floors |
