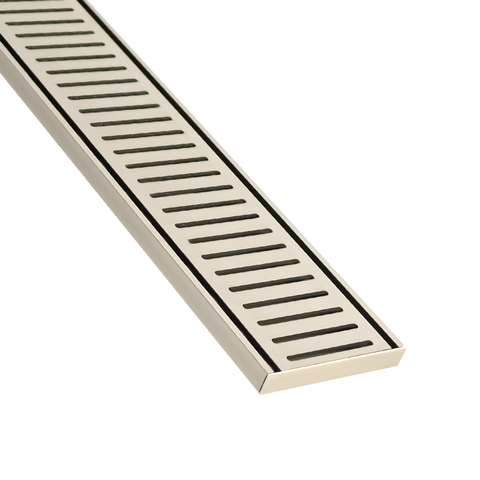

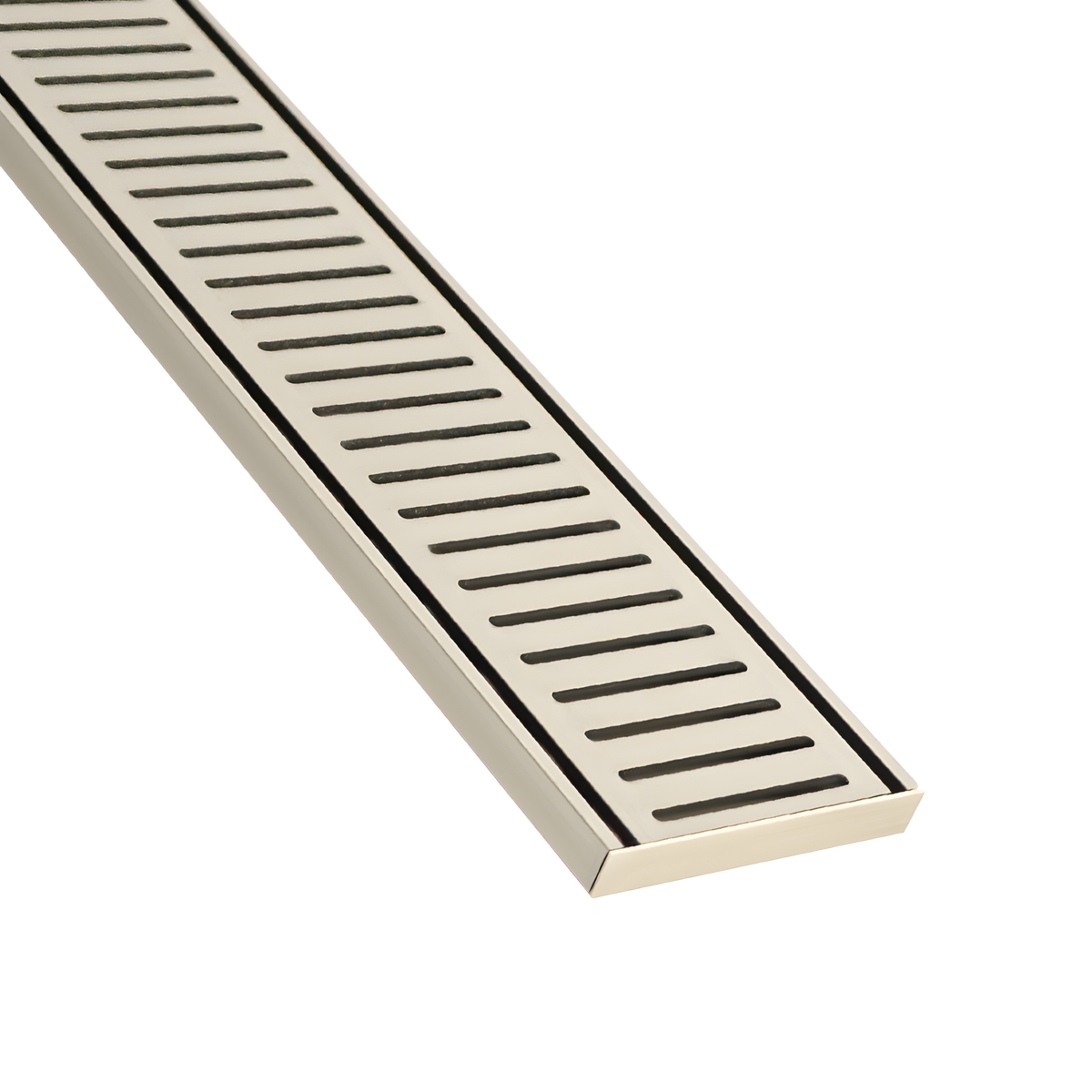

Lauxes Grates NXT 14 – Brushed Nickel is a 100mm wide, 14mm deep anodised aluminium linear drain for indoor and outdoor drainage. The Brushed Nickel finish gives the NXT roll-out grate a clean architectural look for bathrooms, balconies, pool areas and other drainage runs.
The anti-water-tracking profile helps direct water through the channel, while the removable roll-out grate makes cleaning straightforward. The channel can be cut to length on site and the waste outlet positioned to suit the plumbing layout.
Key features
- 100mm wide x 14mm deep profile
- Brushed Nickel anodised aluminium finish
- Anti-water-tracking design
- Easy roll-out grate for cleaning
- 40mm, 50mm, 72mm and 80mm waste outlet options
- Suitable for indoor and outdoor use
- Trafficable up to 10.2 tonnes
- Lifetime rustproof warranty and UV-stable finish
Can NXT 14 be cut to length onsite? Yes. Lauxes states its grates can be cut, joined and adjusted onsite.
What waste outlet sizes suit NXT 14? 40mm, 50mm, 72mm and 80mm.
Does NXT 14 need fall built into the grate? No. The floor must be graded toward the drain; the grate itself does not require built-in fall.
What is the load rating? Lauxes rates NXT 14 as Class B with a stated maximum load of 10.2 tons.
NXT 14 is a 100mm wide, 14mm deep anodised aluminium slotted linear drain with an easy roll-out top for cleaning and maintenance. Lauxes rates NXT 14 as Class B with a stated maximum load of 10.2 tons and lists 40mm, 50mm, 72mm and 80mm outlet options.
Use NXT 14 for indoor or outdoor linear drainage, including bathrooms, balconies and pool surrounds. Form the recess with a template 10 to 20mm wider than the grate, then cut the channel to length, drill the waste opening where required and fit the outlet and end caps with neutral-cure silicone. Install the grate level as the final flooring step.
The grate does not form part of the waterproofing system and must not contact wet cement or screed. Install it after waterproofing, tiling and grouting using neutral-cure silicone, and grade the floor toward the drain because the grate does not provide built-in fall. Do not use abrasive or acidic cleaners on the anodised finish.
Tiled floor systems over concrete or screed with a separate waterproofing membrane; fibre-cement sheet floor systems; waterproofing foam-board systems. The grate sits in the prepared recess and is fixed with neutral-cure silicone.
Lauxes Grates NXT 14 Linear Drain Kit – Brushed Nickel Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Grates NXT 14 – Brushed Nickel |
| Manufacturer Full Lengths | 3000mm, 5600mm |
| Adheseal Sell Lengths | 1000mm, 3000mm, 5600mm |
| Profile Width | 100mm |
| Profile Depth | 14mm |
| Material | Anodised Aluminium |
| Colour | Brushed Nickel |
| Applications | Indoor, Outdoor |
| Outlet Sizes | 40mm, 50mm, 72mm, 80mm |
| Cutting Capability | Can be cut on site to suit the installation |
| Waste Outlet Positioning | Waste outlet can be positioned to suit the plumbing layout |
| Cleaning Access | Easy roll-out grate |
| Warranty | Lifetime rustproof warranty; 25-year UV stability warranty |
