Download Product Data

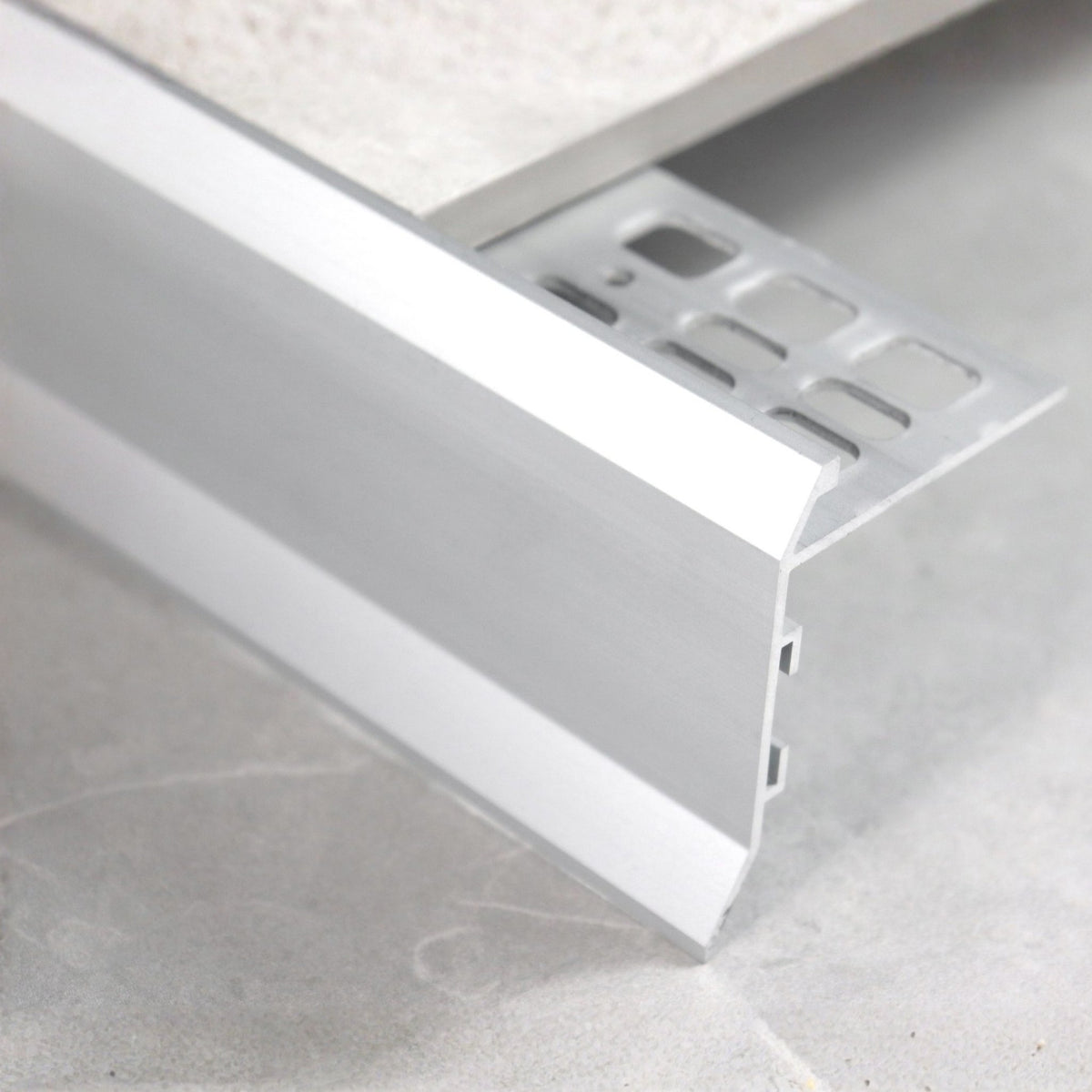

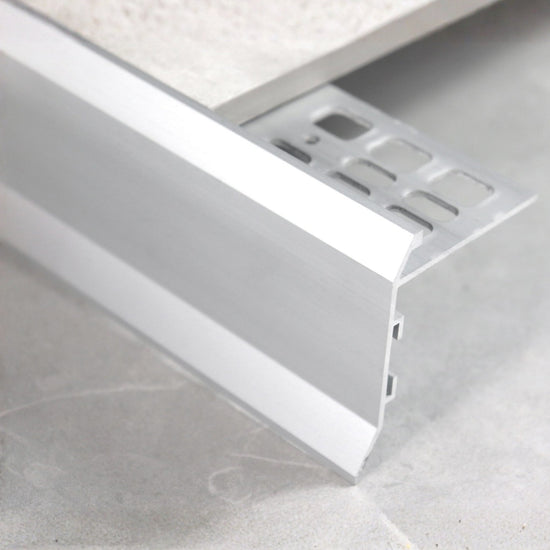

B.A.T 12 mm Anodised Aluminium Balcony Drip Angle is a 3 m balcony drip edge for tiled or rendered balcony perimeters. The projecting drip lip directs runoff clear of the fascia, cladding or render below instead of allowing water to track back underneath the edge. The profile also creates a clean finished perimeter line.
| Material | Anodised aluminium |
|---|---|

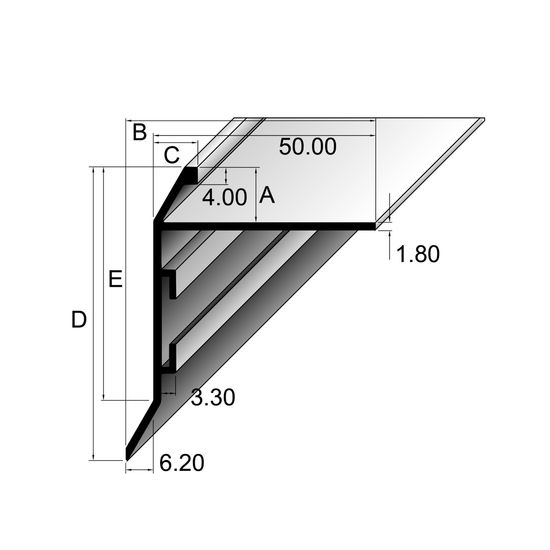

| Profile | 12 mm drip angle |
| Length | 3 m |
| Matching corners | 90° internal and external corner options |
Install the balcony drip angle at the perimeter before the final tile or render finish, keeping the drip lip facing outward and downward. Maintain the waterproofing and floor-fall detail specified for the balcony system and keep the drip path unobstructed.
What does the 12 mm drip lip do?
It projects runoff away from the balcony edge so water drops clear rather than tracking back underneath the slab, fascia or finish.
12 mm × 3 m anodised aluminium drip-angle profile for tiled or rendered balcony edges.
Projects runoff clear of the fascia or slab edge rather than allowing water to track underneath the finish.
Provides a straight finished perimeter edge while forming the drip detail.
Set the profile at the balcony edge before the final tile or render finish so the 12 mm drip projects outward and downward.
Integrate the trim with the project waterproofing and edge-detail specification without obstructing the drip path.
Cut aluminium with a suitable non-ferrous blade and protect the finished face during installation.
Non-structural finishing/drainage profile; do not use it as a load-bearing angle.
The drip lip must remain clear below the finished edge to shed water correctly.
Confirm the anodised finish is suitable for the project's exposure conditions, particularly aggressive coastal environments.
- Prepared concrete or screed balcony edges
- Waterproofed balcony edge systems
- Tile adhesive beds where the project detail embeds the profile
Anodized Aluminum Balcony Drip Angle (12mm x 3m) Physical Properties
| Property | Value |
|---|---|
| Material Type | Anodised Aluminium |
| Finish Options | Anodised |
| Dimensions | 12mm profile, 3.0m and 5.0m lengths |

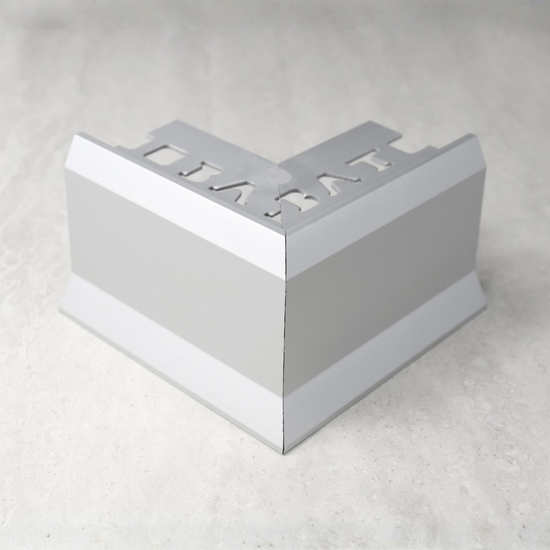

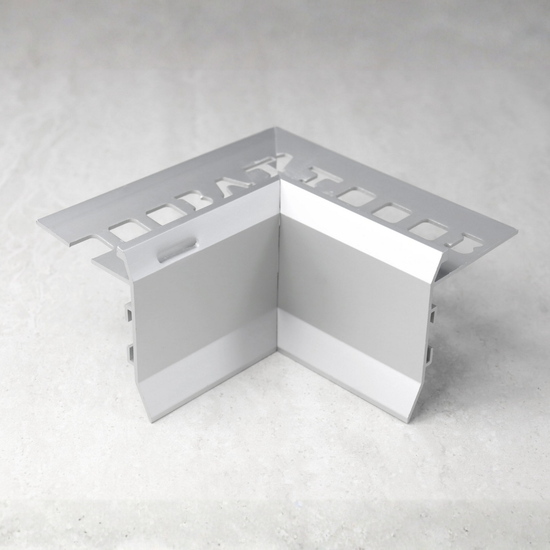

| Corner Profiles | Internal 90° (155mm x 155mm), External 90° (155mm x 155mm) |
| Installation Method | Mechanical fixing, Embedded in tile adhesive |
| Substrate Compatibility | Concrete screeds, Waterproof membranes, Tile beds |
| Shelf Life | Indefinite |
| Storage Conditions | Store flat, dry, away from corrosive chemicals |
