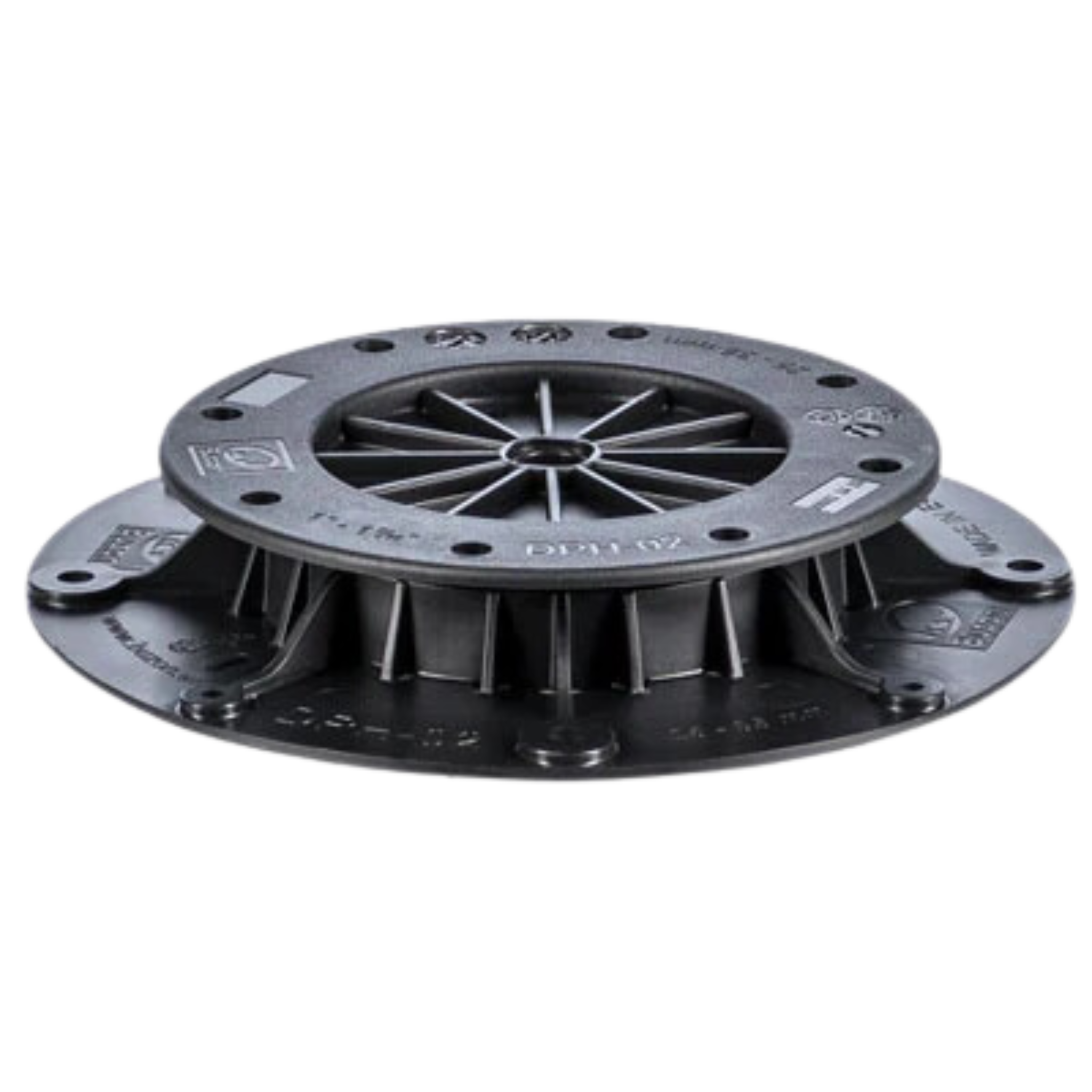

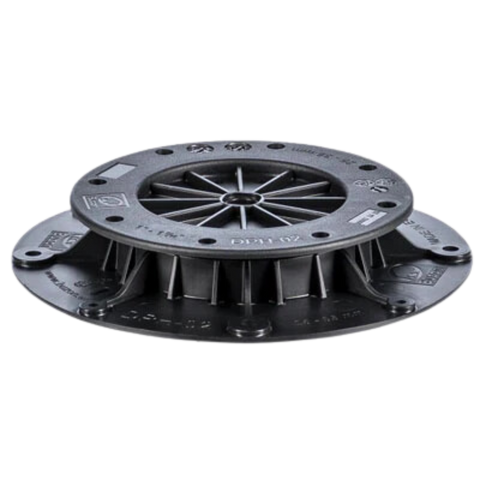

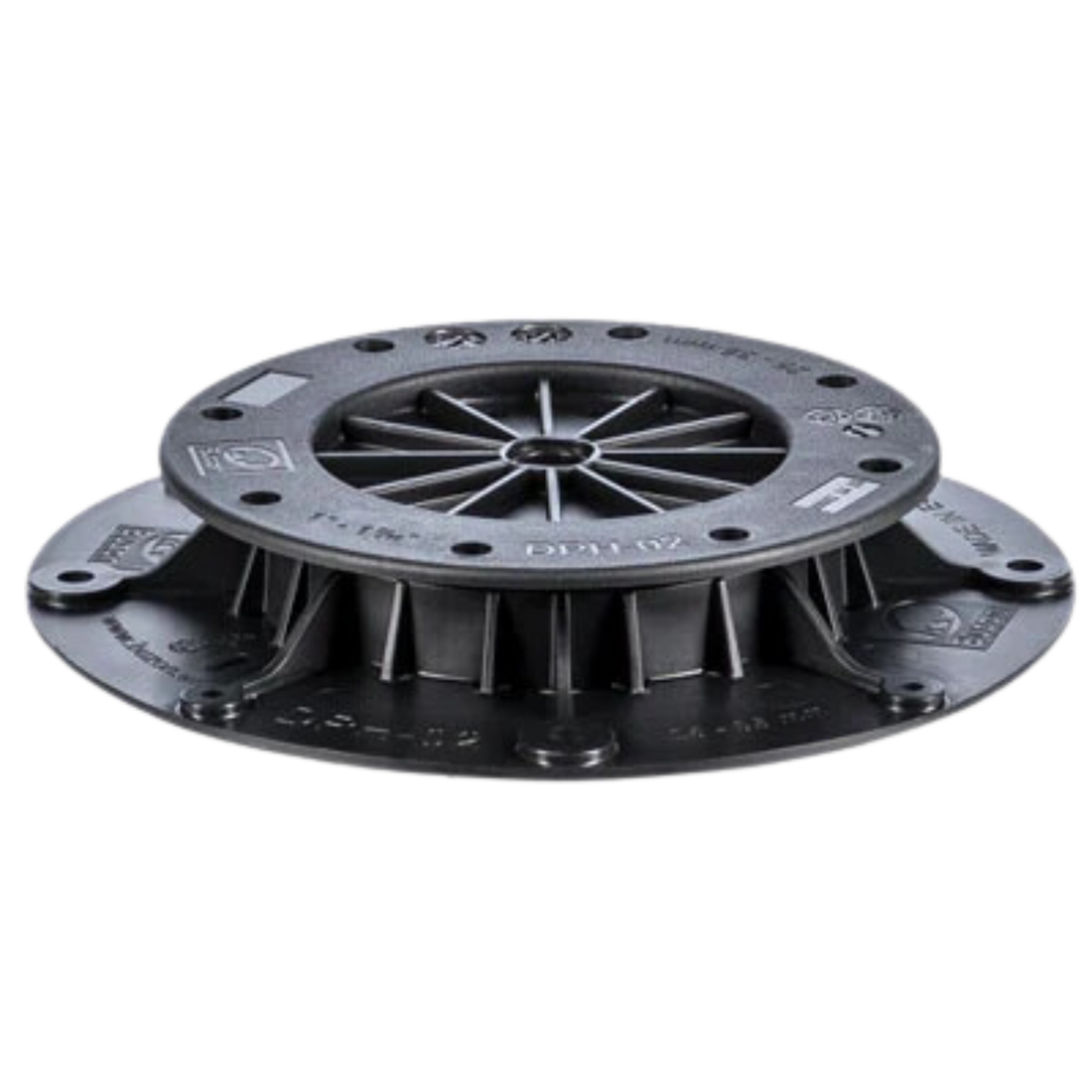

Buzon DPH-02 is an adjustable pedestal for raised paver floors from 25 mm to 36 mm. Use it on terraces, balconies, and roofs where the available height is limited. It leaves a drainage void below the finish.
DPH-02 is part of the DPH raised-floor system for external pedestrian areas. Do not use it for vehicles or vibrating machinery.
Uses
- Terraces and pool decks.
- Rooftop landscaping projects.
- Elevated water features.
- Outdoor applications requiring solid and stable substrates such as concrete slabs or insulation panels.
Benefits
- Provides precise height and slope adjustments for professional results.
- Easy installation for various outdoor finishes and substrates.
- Eco-friendly construction using recycled European materials.
- Resistant to environmental and chemical degradation.
- Optimised for long-lasting durability in harsh conditions.
Application Guide
- Prepare a stable and solid substrate such as a concrete slab or waterproof membrane.
- Adjust the pedestal height and slope using the integrated mechanism or the optional DPH-PH5 slope corrector.
- Secure the chosen outdoor finish (e.g., pavers, tiles) onto the pedestal.
- Ensure proper spacing using the integrated spacer tabs for consistent alignment.
Limitations
- Not suitable for supporting moving or vibrating machinery.
- Designed for pedestrian traffic only; avoid use with vehicles or heavy equipment.
Buzon DPH-02 (25-36mm Screwjack Pedestal) Physical Properties
| Property | Value |
|---|---|
| Product_Name | DPH-02 Adjustable Pedestal |
| Height_Range | 25-36mm |
| Top_Diameter | 150mm |
| Base_Diameter | 200mm |
| Material | Copolymer polypropylene |
| Composition | 80% recycled CCP, 20% Talc + UV Masterbatch black |
| Temperature_Resistance | -30°C to +80°C |
| Recyclability | 100% |
