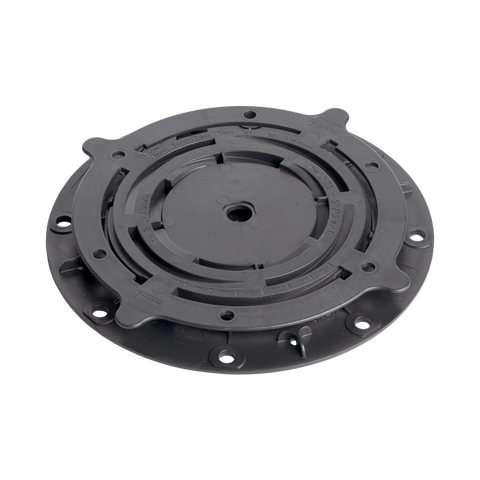

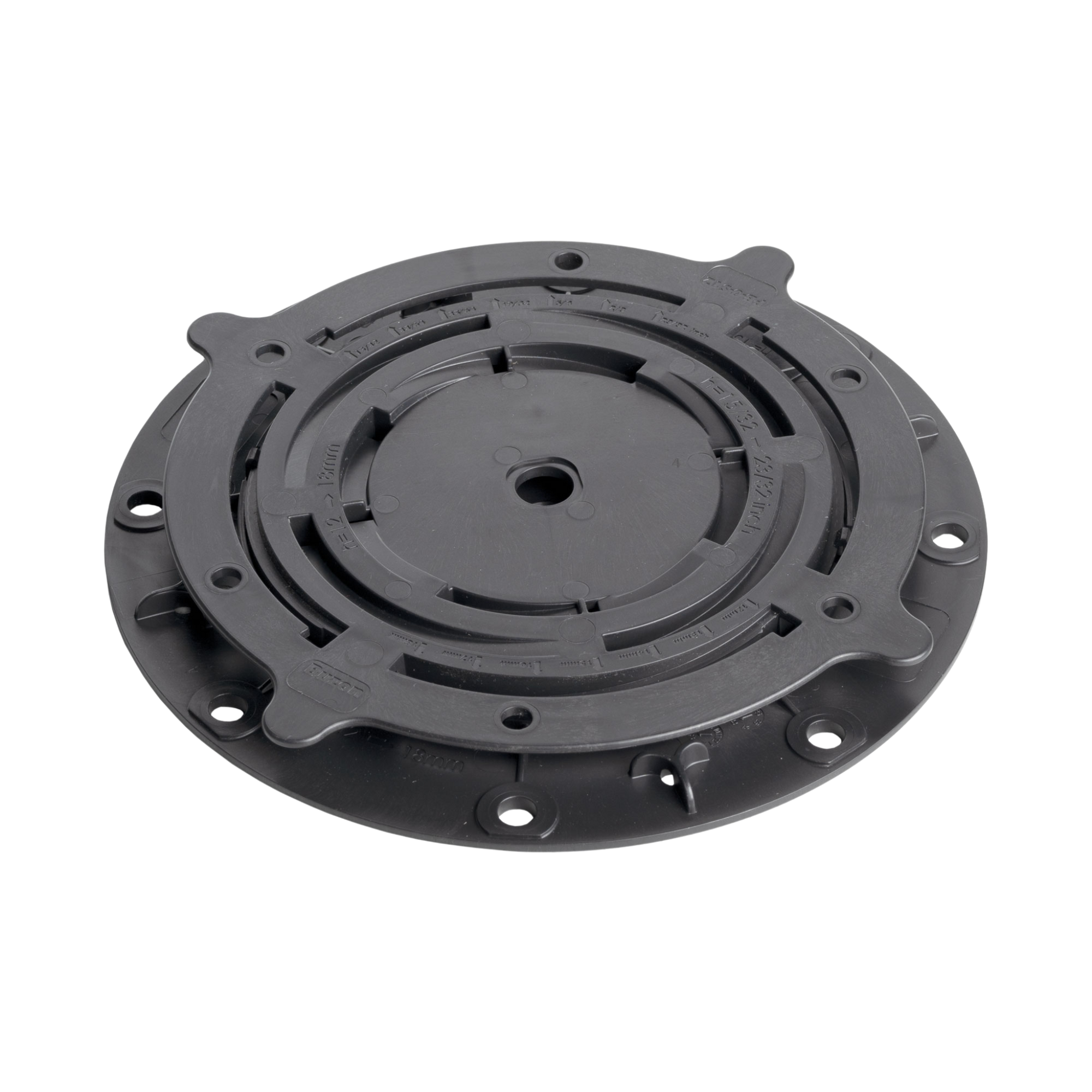

Buzon PB-0-S12 Adjustable Pedestal (12-18mm) is an ultra-low profile raised flooring support engineered from Copolymer Polypropylene (CPP) for balconies and rooftop terraces. It provides a non-penetrative leveling solution that protects the underlying waterproof membrane from mechanical punctures while facilitating rapid water runoff and evaporation through its 12mm to 18mm micro-adjustment range.
Supporting a full-load compression strength of 27.3 kN, this system maintains structural integrity across temperatures from -30°C to +80°C and resists degradation from sea salts or pool chemicals. Specialists must account for load distribution across the 170mm head, as compression strength reduces from 27.3 kN at full load to 4.2 kN at quarter-load corner placements.
The system is designed strictly for pedestrian traffic and must not be used to support moving or vibrating machinery.
Frequently asked questions
What is the height range of the Buzon PB-0-S12 pedestal?
The Buzon PB-0-S12 pedestal adjusts from 12 mm to 18 mm. This low-profile range is designed for installations where minimal height build-up is critical, such as low-threshold balconies or over existing structures.
What load can the Buzon PB-0-S12 pedestal support?
The PB-0-S12 pedestal can support a full load compression strength of 27.3 kN (2730 kg). This capacity ensures robust stability for outdoor surfaces such as stone pavers, timber decking, or ceramic tiles.
Is the PB-0-S12 suitable for areas with vehicle traffic?
No, the Buzon PB-0-S12 is not designed for use under heavy vehicle traffic. Its application is limited to pedestrian areas, terraces, balconies, and rooftop landscapes where vehicle access is restricted.
Does this pedestal protect underlying waterproof membranes?
Yes, the pedestal's design lifts the finished surface off the membrane, promoting drainage and airflow. This prevents water accumulation and protects the integrity of the waterproof layer, reducing long-term membrane degradation.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Outdoor terraces and balconies | Achieves precise levelling on uneven sub-bases within a tight 12-18mm height. Ensures a stable surface for pavers, timber, or tiles. | Landscapers, Tilers, Builders |
| Pool decks and water feature areas | Facilitates rapid water drainage beneath the surface, preventing ponding and protecting substrates from prolonged moisture exposure. | Pool builders, Landscapers |
| Rooftop landscapes and green spaces | Creates a vented cavity, protecting underlying waterproof membranes from thermal shock and mechanical damage. Provides easy access for inspection. | Waterproofers, Builders, Landscapers |
Application Guide
- Prepare the substrate by ensuring it is solid and stable.
- Place pedestals in the desired grid pattern.
- Adjust the height using the pedestal’s built-in mechanism.
- Lay the chosen finishing material (tiles, decking, etc.) onto the pedestals.
- Ensure proper alignment and make final height adjustments if needed.
For detailed manual instructions, please download the Buzon PB-0-S12 Installation Manual.
Product limitations
- Not for: Supporting moving or vibrating machinery. The pedestal system is designed for static loads only.
- Not for: Use with heavy vehicle traffic. The compression strength is suitable for pedestrian loads and occasional light maintenance traffic, not for regular vehicle movement.
Substrate guide
Proper substrate preparation is essential for a stable and long-lasting raised flooring system. Ensure the underlying surface provides a solid foundation for the pedestals.
Concrete slabs
Surface prep: Ensure the concrete slab is clean, free of loose debris, oil, and grease. The surface must be cured and stable, with adequate fall for drainage where applicable. Minor undulations can be compensated by the pedestal's adjustment range.
Primer: Not required. The pedestal rests directly on the prepared concrete surface.
Cement screeds
Surface prep: Screeds must be fully cured, dry, and structurally sound. Remove any laitance or loose material. Ensure appropriate falls for water run-off beneath the raised surface.
Primer: Not required. The pedestal rests directly on the prepared screed.
Waterproof membranes
Surface prep: Verify the membrane is fully installed, cured, and tested for integrity. Ensure the membrane is clean and free from punctures or damage. The pedestals distribute load, protecting the membrane from direct contact with pavers or decking.
Primer: Not required. The pedestal is designed to sit on top of the waterproof membrane without adhesion, allowing for inspection and repair.
Insulation panels
Surface prep: Confirm insulation panels are securely laid and capable of bearing the load of the pedestal system and finished surface. Pedestals distribute load over a wider area, reducing point pressure on insulation.
Primer: Not required. The pedestal rests directly on the stable insulation panel.
Buzon PB-0-S12 Adjustable Pedestal (12-18mm) Physical Properties
| Property | Value |
|---|---|
| Product Name | Buzon PB-0-S12 Adjustable Pedestal |
| Material | Copolymer Polypropylene (CPP) |
| Recycled Content | 80% first-grade recycled PPC, 20% Talc + Masterbatch black |
| Adjustable Height | 12 - 18 mm |
| Adjustable Height with U-PH5 | 26 - 32 mm |
| Base Diameter | 197 mm |
| Head Diameter | 170 mm |
| Weight | 180 g |
| Temperature Resistance | -30°C to +80°C |
| Compression Strength (Full Load) | 27.3 kN (2730 kg) |
| Compression Strength (Half Load) | 9.67 kN (967 kg) |
| Compression Strength (Quarter Load) | 4.2 kN (420 kg) |
