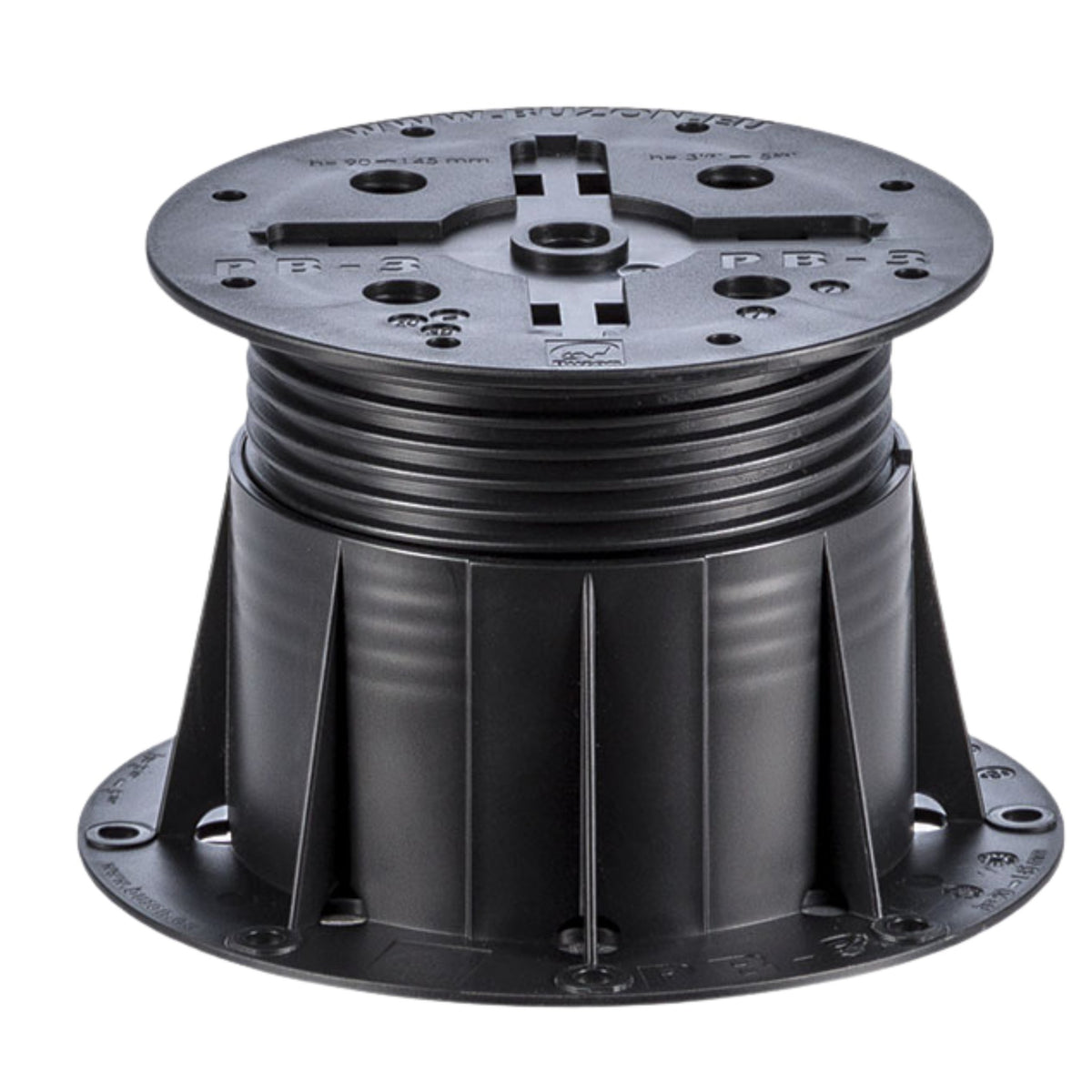

Buzon PB-3 is an adjustable pedestal for timber or composite deck joists from 90 mm to 145 mm. Use it for raised external decks on balconies, terraces, and roofs. It leaves a void for drainage and services.
Use PB-KIT-5 to fix a compatible joist to the pedestal. Use a U-PH5 only where the site needs slope correction. PB-3 is for external pedestrian floors. Do not use it for vehicles or vibrating machinery.
What height range does the Buzon PB-3 cover?
PB-3 adjusts from 90 to 145 mm. The current Buzon PB catalogue lists it as delivered assembled.
Buzon PB-3 adjustable pedestal for raised external paver and terrace systems.
Height range: 90–145 mm.
The current Buzon PB catalogue lists this model as delivered assembled.
Place the pedestal on a solid, stable support surface at the spacing required by the raised-floor design.
Adjust to the required height within 90–145 mm, fit the compatible spacer tab or support accessory, then check level and support before placing the finished paver or decking system.
Use only within the published 90–145 mm height range.
Pedestal spacing, finish type, supporting substrate, perimeter restraint and wind/load requirements must be determined for the project; do not treat a pedestal test load as the finished floor design capacity.
Use compatible Buzon PB heads and accessories for the selected finish.
Buzon PB-3 Adjustable Pedestal (90-145mm) Physical Properties
| Property | Value |
|---|---|
| Material | Copolymer Polypropylene (CPP), 80% Recycled |
| Temperature Resistance | -30°C to +80°C |
| Weight | 492 g |
| Top Diameter | 170 mm (227 cm²) |
| Base Diameter | 197 mm (305 cm²) |
| Adjustment Range | 90 mm - 145 mm |
| Slope Correction | 0° to 5° with U-PH5 |
| Load Capacity | Full Surface - Yield Strength: 15.83 kN (1583 kg), Breaking Load: 7.6 kN (760 kg); Half Surface - Yield Strength: 11.19 kN (1119 kg), Breaking Load: 5.7 kN (570 kg); Quarter Surface - Yield Strength: 5.92 kN (592 kg), Breaking Load: 2.9 kN (290 kg) |
| Certifications | Manufactured in compliance with European sustainability standards; Made from EU-sourced recycled materials; Tested for load-bearing capacity and durability |
| Substrate Compatibility | Timber or composite deck joists; Raised external decks |
