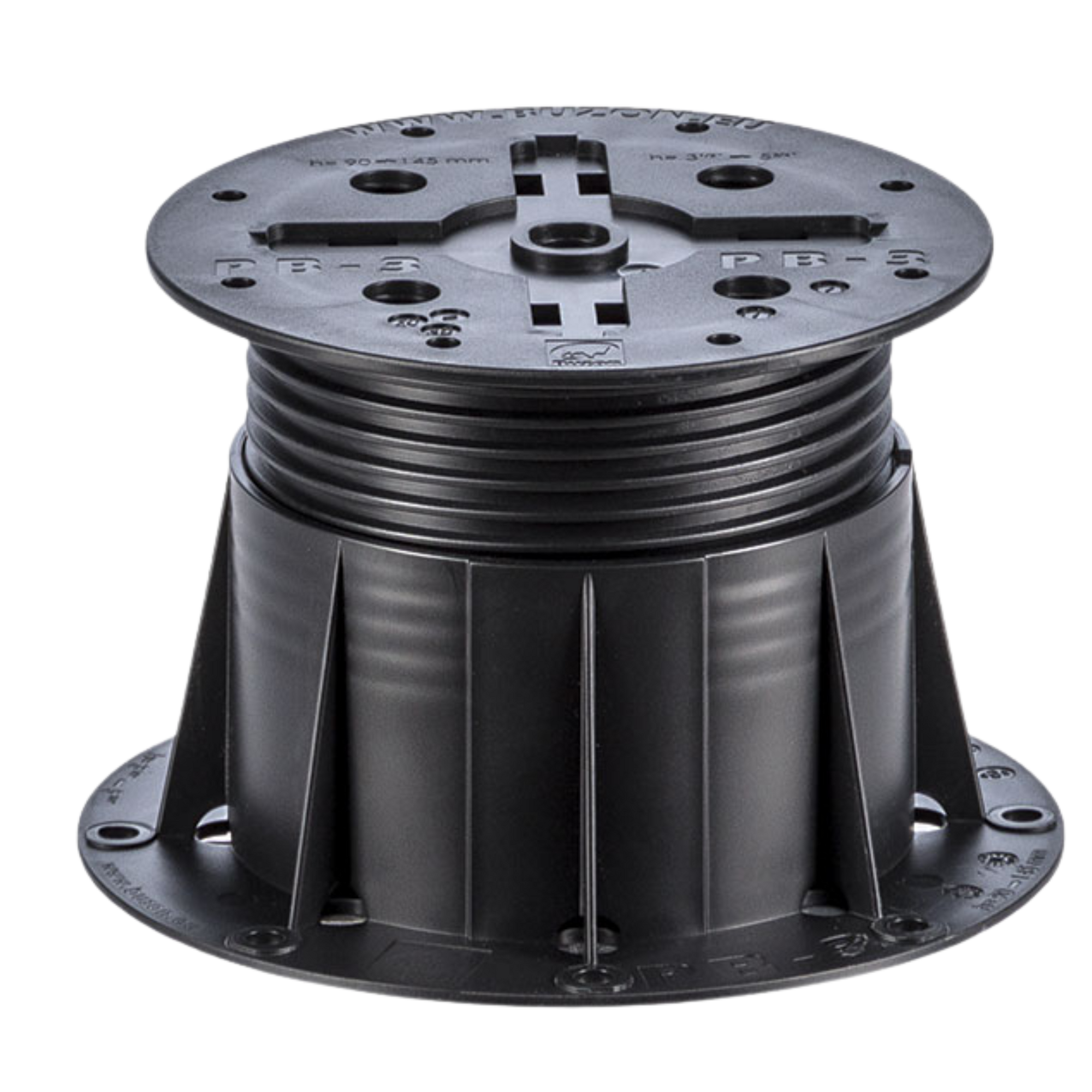

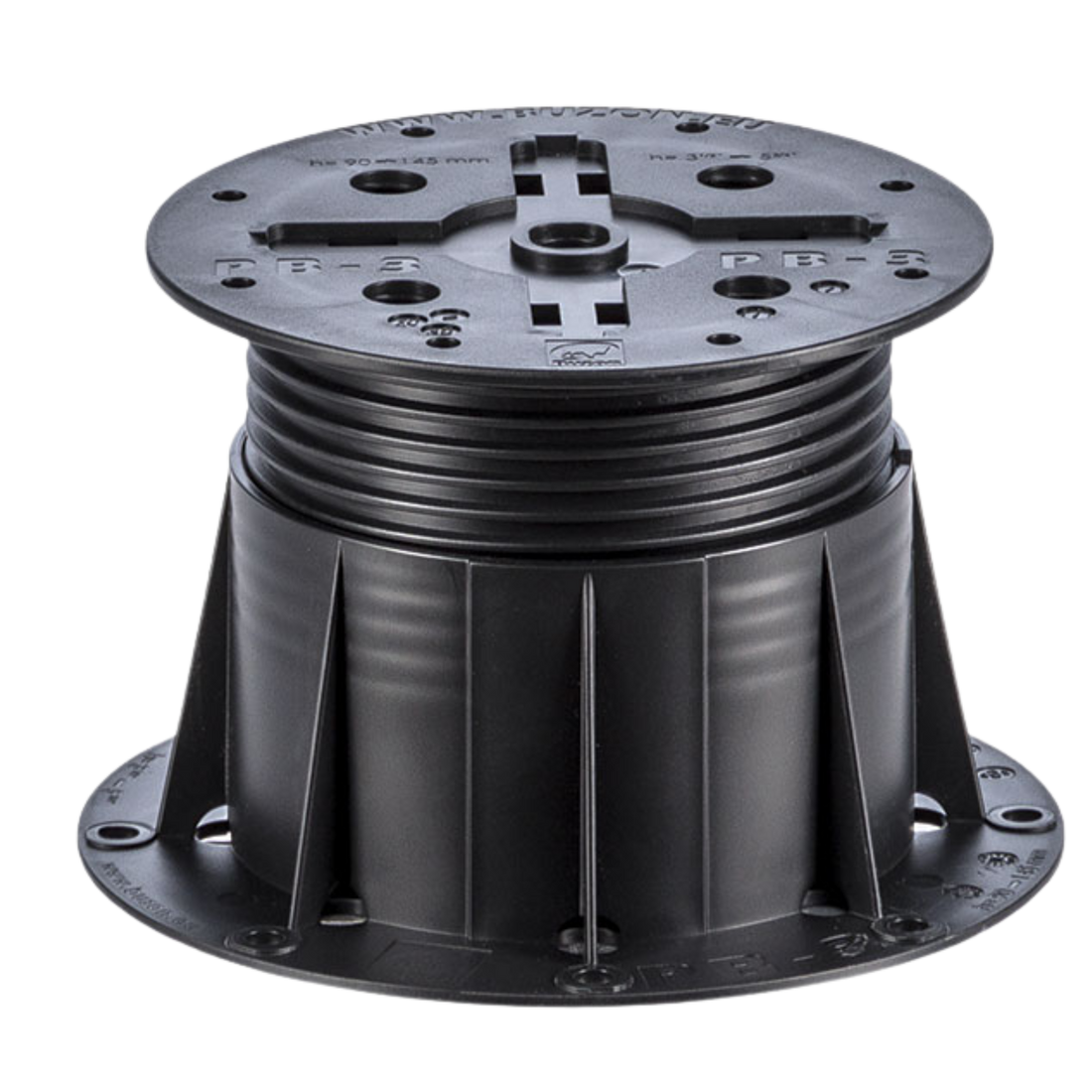

Buzon PB-3 Adjustable Pedestal (90-145mm) is a professional-grade raised flooring support system engineered for high-performance outdoor terraces and commercial rooftops. Constructed from 80% recycled Copolymer Polypropylene (CPP), this system provides a compression yield strength of 1583kg while maintaining structural integrity across extreme temperatures ranging from -30°C to +80°C.
For the Landscape Architect or Commercial Paving Contractor, the design ensures watertight integrity by creating a void for rapid water runoff, preventing the risk of lateral instability and point-loading failure on sensitive membranes.
The system helps precise slope correction up to 5° when paired with the U-PH5 corrector, allowing for level finishes over complex drainage falls without compromising the underlying waterproof barrier.
Frequently asked questions
What is the load capacity of the Buzon PB-3 pedestal?
The PB-3 pedestal can support significant loads, with a full surface yield strength of 15.83 kN (1583 kg). This capacity is certified through compression testing, ensuring stable support for pedestrian traffic on raised outdoor surfaces.
Can the PB-3 pedestal be used on a waterproof membrane?
Yes, the PB-3 is suitable for installation directly over waterproof membranes. Its design distributes weight effectively, protecting the membrane from damage while creating a stable base for the raised flooring system.
Is the PB-3 pedestal designed for vehicle traffic?
No, the PB-3 pedestal is designed exclusively for pedestrian foot traffic. It is not suitable for supporting moving or vibrating machinery, or any areas subjected to vehicle loads.
How does the PB-3 pedestal help with drainage?
The raised flooring system created by the PB-3 enhances drainage and ventilation beneath the surface. This prevents water pooling, reduces the risk of material warping due to moisture, and contributes to the longevity of the installation.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Terraces and balconies | Creates level, stable surfaces over uneven substrates; enables easy access for drainage and maintenance of underlying services. | Landscapers, Tilers, Builders |
| Pool decks and landscaped areas | Ensures robust support and levelling for pavers or decking, facilitating efficient water runoff away from the pool area. | Landscapers, Pool Builders |
| Rooftop installations | Protects waterproof membranes by distributing load without puncturing; allows for ventilation and inspection of the roof structure. | Waterproofers, Builders, Landscapers |
| Stone, tile, or decking applications | Provides adjustable height (90-145mm) and optional slope correction (0-5°) for precise alignment and a professional finish. | Tilers, Decking Installers, Stone Masons |
| Commercial and residential outdoor flooring | Constructed from 80% recycled Copolymer Polypropylene for durability, UV, and temperature resistance (-30°C to +80°C). | Builders, Architects, Landscapers |
Application Guide
- Ensure the installation area is clean, dry, and stable.
- Position the pedestals according to the grid layout for flooring material.
- Adjust the pedestal height using the built-in leveling mechanism.
- Securely place pavers, decking, or tiles on top of the pedestals.
- Check for level accuracy and adjust where necessary.
For the installation guide on height adjustment from PB-0-S18 to PB-4 or from PB-3 to PB-4, please download the Installation Manual Height Adjustment.
Product limitations
- Not for: Supporting moving or vibrating machinery. This pedestal is rated for pedestrian foot traffic loads only, not dynamic industrial or vehicular forces.
- Not for: Areas subjected to vehicle traffic. Its design and load rating are specific to foot traffic applications, such as balconies, terraces, and rooftops.
Substrate guide
The Buzon PB-3 pedestal requires a stable, prepared substrate to ensure long-term performance and load-bearing capacity for raised outdoor flooring systems.
Concrete slabs
Surface prep: Ensure the concrete surface is clean, dry, and free from loose debris, oils, or any contaminants that could compromise stability. The slab must be structurally sound and capable of bearing the combined weight of the pedestal, flooring, and pedestrian traffic.
Primer: Not required. Ensure the concrete provides a level and stable base for the pedestal.
Cement screeds
Surface prep: The screed must be fully cured, dry, and stable. Remove any efflorescence, dust, or unsound material. Address any significant cracks or delaminations before installation to prevent future movement.
Primer: Not required. A well-prepared screed offers a solid foundation.
Waterproof membranes
Surface prep: Ensure the waterproof membrane is fully installed, cured, and tested for integrity. The membrane must be clean and free from any sharp objects or debris that could puncture it. The pedestal's broad base helps distribute load, protecting the membrane.
Primer: Not required. The pedestal is designed to sit directly on the membrane without a primer.
Insulation panels
Surface prep: Insulation panels must be rigid and securely fixed to the underlying structure. Ensure the panels are clean, dry, and free from damage. Verify the insulation's compressive strength is adequate to support the pedestal's load without crushing.
Primer: Not required. Stability relies on the integrity and strength of the insulation panel itself.
Buzon PB-3 Adjustable Pedestal (90-145mm) Physical Properties
| Property | Value |
|---|---|
| Material | Copolymer Polypropylene (CPP), 80% Recycled |
| Temperature Resistance | -30°C to +80°C |
| Weight | 492 g |
| Top Diameter | 170 mm (227 cm²) |
| Base Diameter | 197 mm (305 cm²) |
| Height Adjustment Range | 90 mm - 145 mm |
| Slope Correction | 0° to 5° with U-PH5 |
| Compression Test | Full Surface - Yield Strength: 15.83 kN (1583 kg), Breaking Load: 7.6 kN (760 kg); Half Surface - Yield Strength: 11.19 kN (1119 kg), Breaking Load: 5.7 kN (570 kg); Quarter Surface - Yield Strength: 5.92 kN (592 kg), Breaking Load: 2.9 kN (290 kg) |
| Certifications | Manufactured in compliance with European sustainability standards; Made from EU-sourced recycled materials; Tested for load-bearing capacity and durability |
