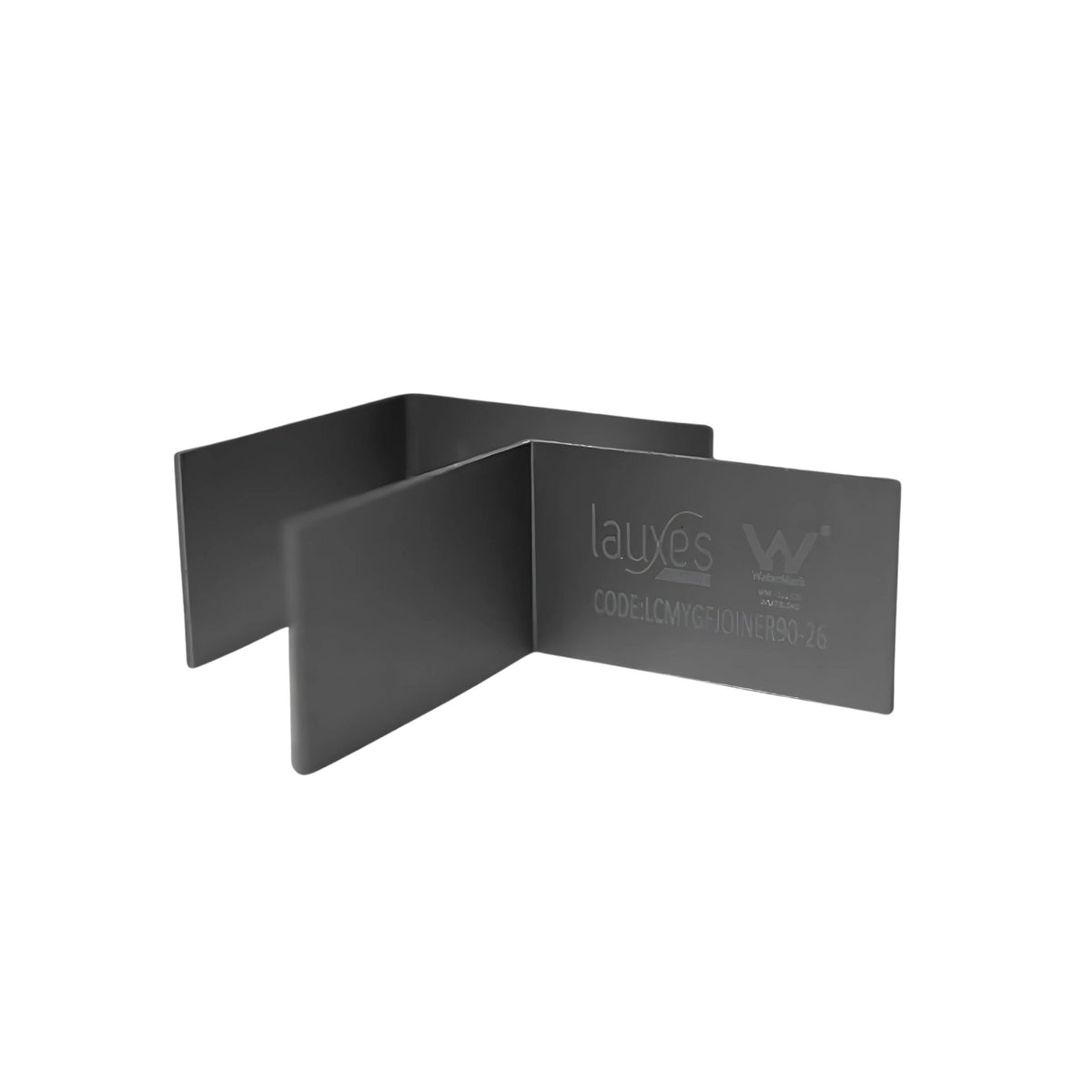

Lauxes Grates 90° Joiners connect compatible Lauxes linear grate profiles at a right-angle corner. They are supplied as a pair.
The 2026 Lauxes catalogue documents 90° joiners across the current grate profile family and colour range. Adheseal's selectable options on this listing are limited to the size and finish combinations we stock.
Select the profile depth and finish that correspond to the Lauxes grate being joined. The 22mm Silver joiner is a legacy size. It stays on sale as its own variant rather than being relabelled without supporting source data.
What does a 90 degree Joiner do? It connects compatible Lauxes grate sections through a right-angle corner.
Are the joiners supplied as a pair? Yes. The 2026 Lauxes catalogue lists 90 degree Joiners as pairs.
Lauxes 90 degree Joiners connect compatible linear grate profiles through a right-angle corner and are supplied as a pair. The 2026 catalogue documents 14mm, 21mm, 23mm, 26mm and 35mm joiner depths across the manufacturer range.
Use where a Lauxes linear grate run changes direction through a 90 degree corner. Cut and align the compatible grate sections, then assemble using neutral-cure silicone in accordance with Lauxes general assembly instructions.
Joiners must match the grate profile depth and finish; the 2026 catalogue lists 14mm, 21mm, 23mm, 26mm and 35mm options. They are joining accessories only and do not replace the end caps, waste outlet or drainage channel.
Compatible Lauxes anodised aluminium linear grate profiles.
Lauxes Grates 90° Joiners – Pair Physical Properties
| Property | Value |
|---|---|
| Product Type | 90° Joiners (Pair) |
| Material | Anodised aluminium |
| Angle | 90° |
| ERP Sell Depths | 14mm, 21mm, 22mm, 26mm, 35mm |
