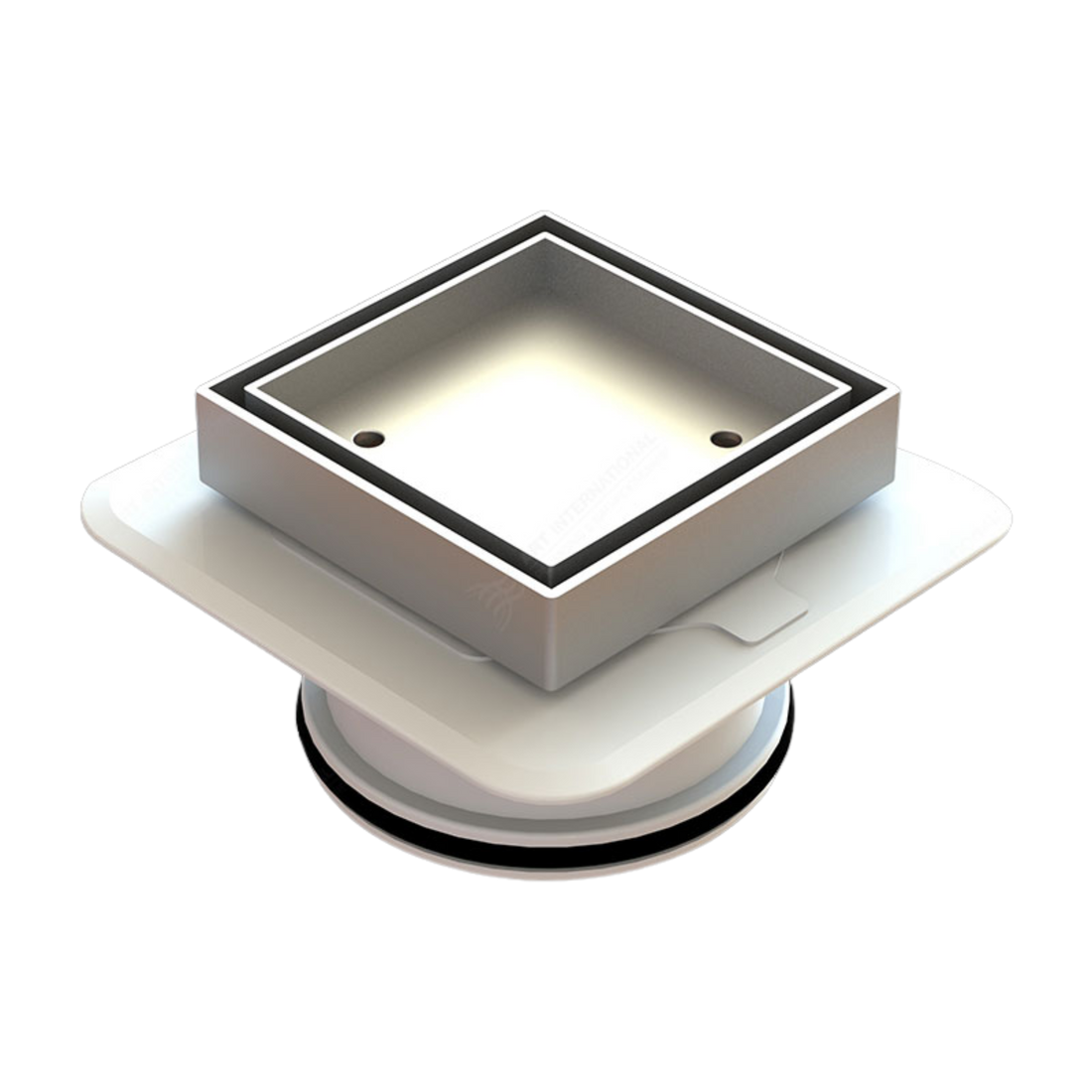

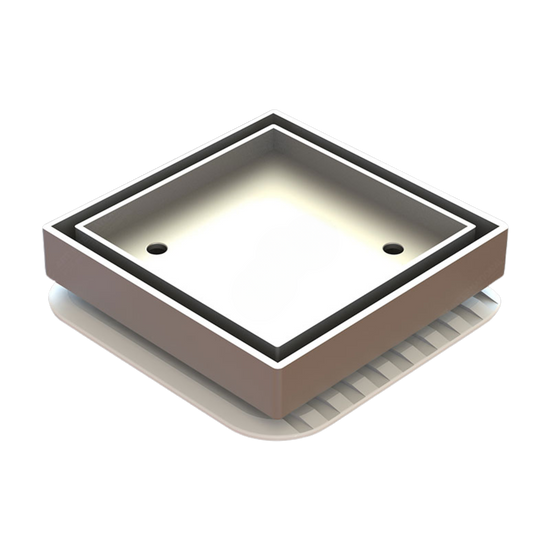

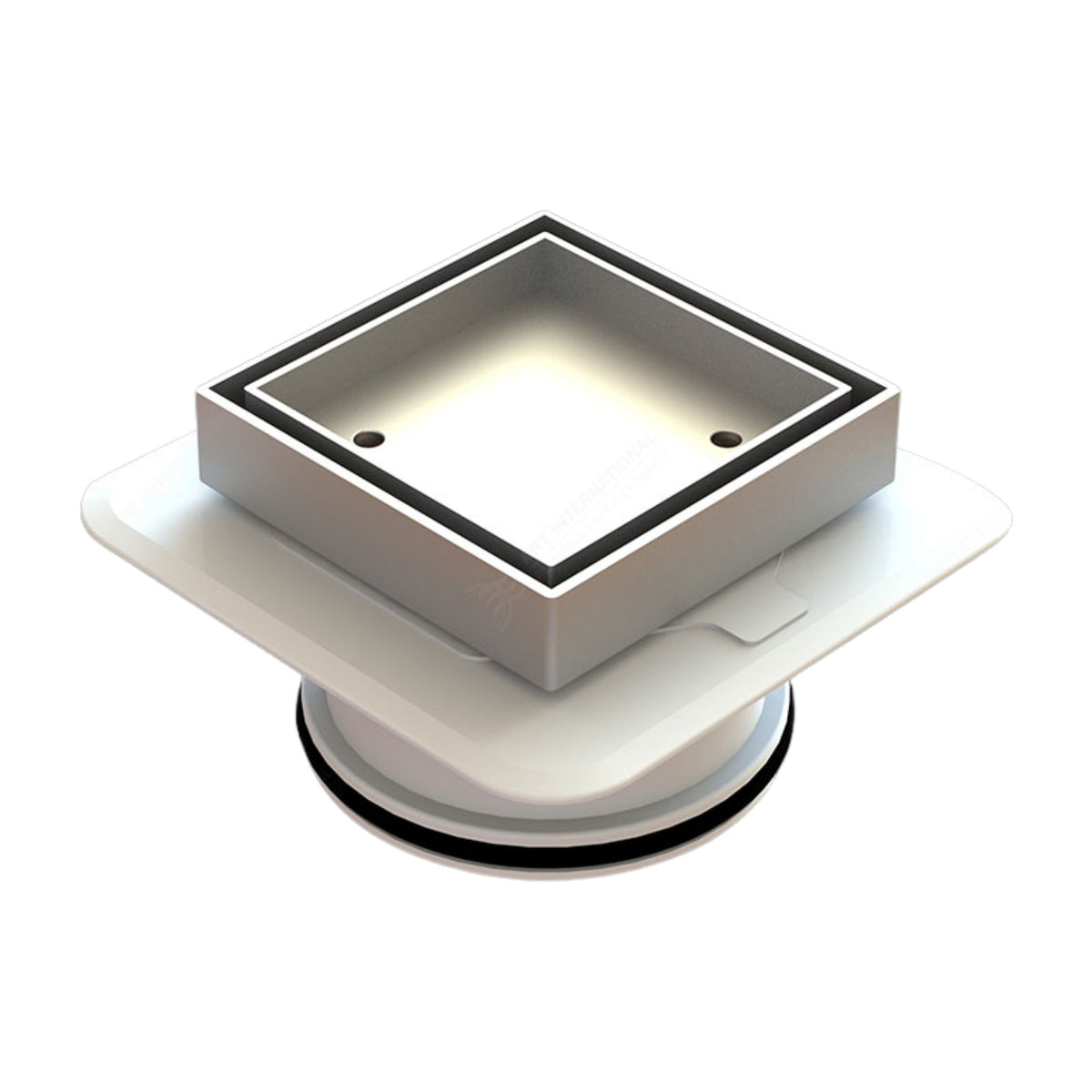

A 100 x 100mm square floor waste with a low-line base for screeds and slabs where height is tight. The solid brass grate takes a tile insert for a hidden finish, with a clear 95 x 95mm drainage opening underneath.

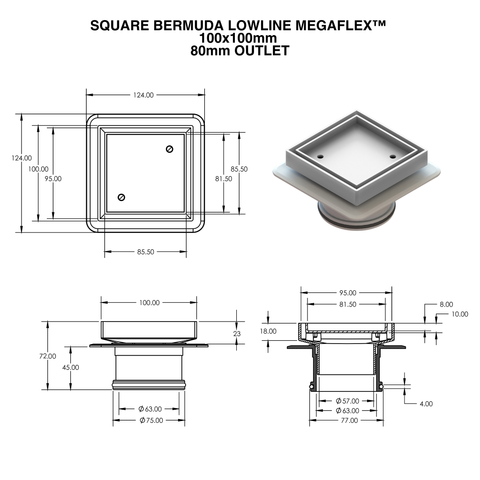

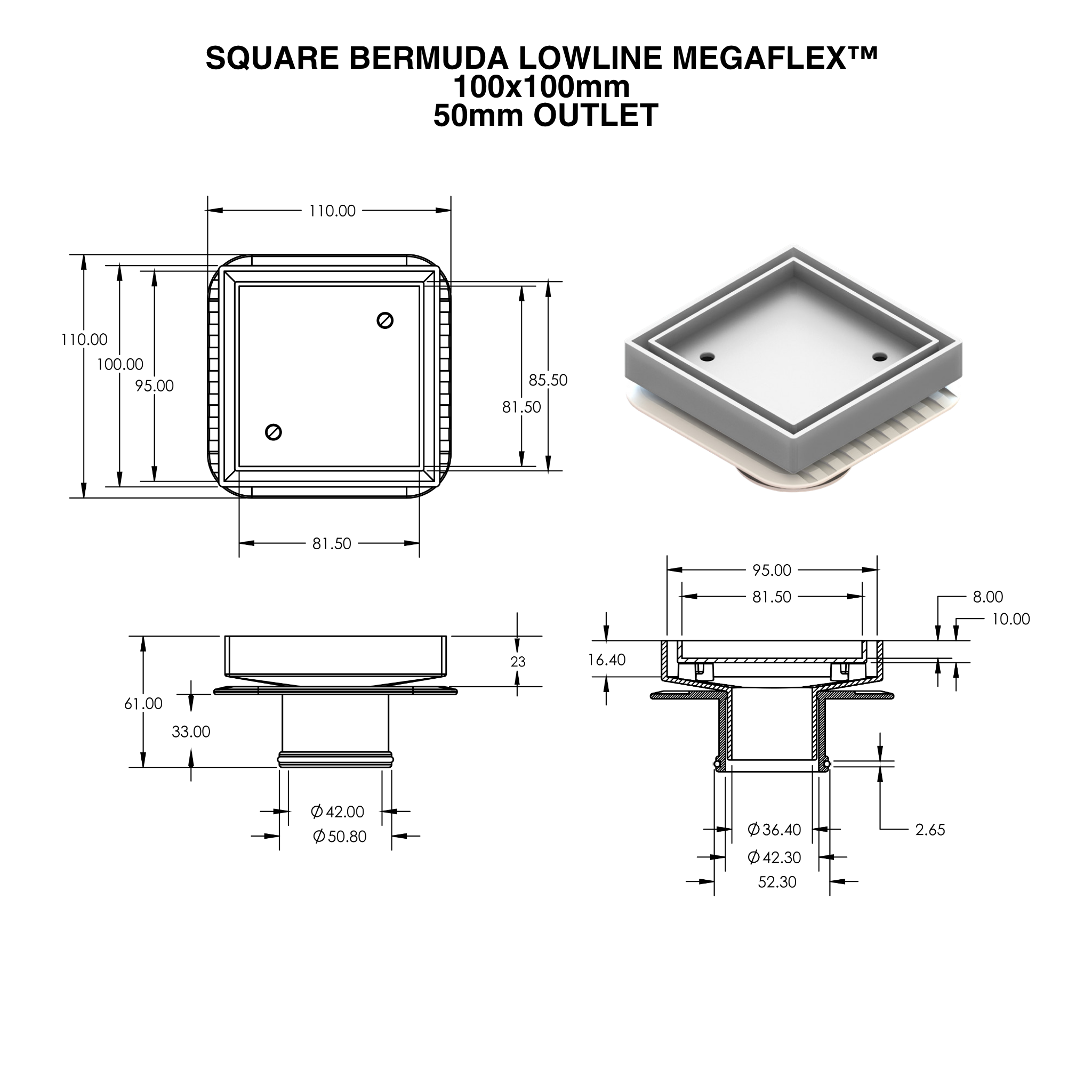

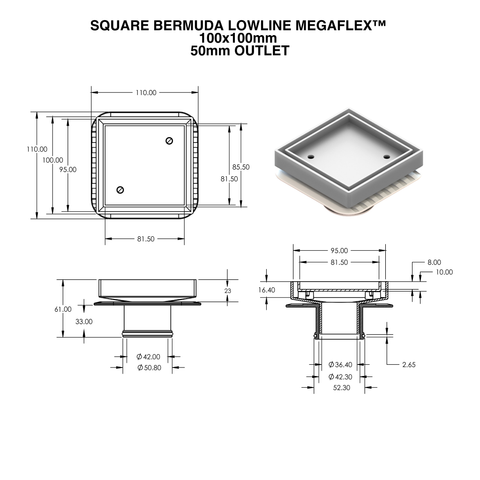

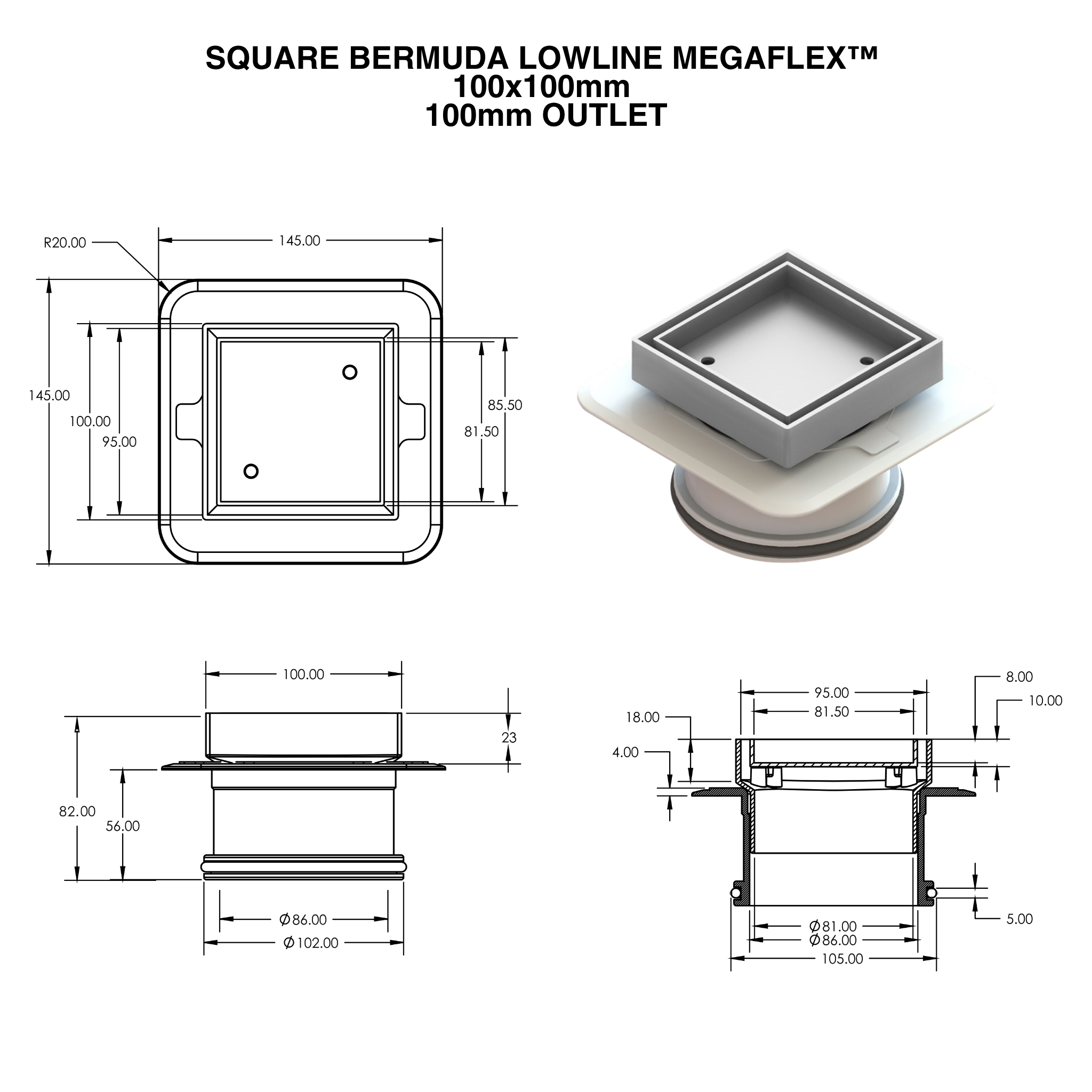

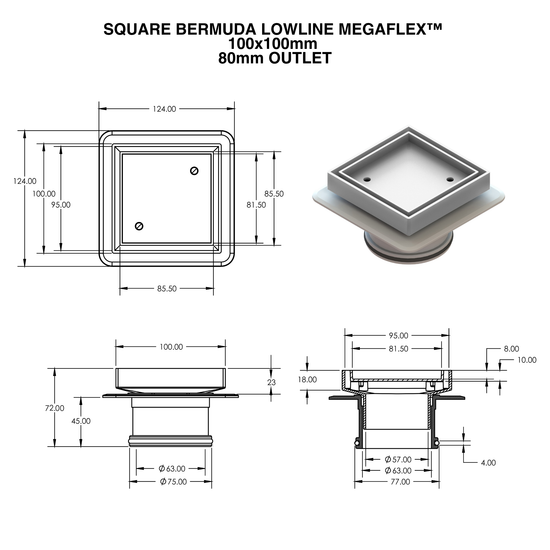

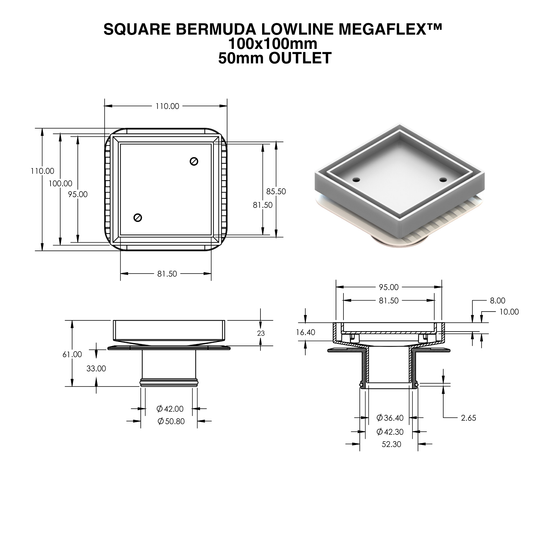

Three heights cover the build-up you have: 61mm overall on the 50mm model, 72mm on the 80mm, and 82mm on the 100mm. The ABS Megaflex base gives the membrane a bonded, flat landing, and the assembly is WaterMark certified.
Frequently asked questions
Can I install this floor waste in a screeded floor?
Yes, the Megaflex™ ABS base is designed for direct installation into screeded floors and slab systems. It allows for minor adjustment to accommodate pipe misalignment, which is crucial for achieving a flush finish in limited depth scenarios.
Is the Megaflex™ base compatible with solvent cement?
Yes, the Megaflex™ base is made from ABS plastic, ensuring compatibility with solvent-weld connections. Use an approved ABS solvent cement when bonding to ABS pipework, avoiding twisting the base during installation to maintain internal seals.
What outlet size should I select?
The Square Bermuda Lowline offers 50mm, 80mm, and 100mm outlet sizes to suit varying flow requirements. For residential bathrooms, 50mm or 80mm is typically sufficient. High-flow commercial or disabled-access wet areas often benefit from the increased capacity of the 100mm outlet.
Is the Polished Brass (Raw) finish suitable for all projects?
The Polished Brass (Raw) is a living finish that will naturally oxidise and patina over time. It is ideal for projects seeking an evolving, high-end aesthetic. It is not recommended for clients expecting a permanent high-gloss, static look.
Substrate guide
Proper preparation of the substrate and pipework ensures the waste performs as intended and avoids future failures.
Tile bed / screed
Surface prep: Ensure screed is fully cured and stable. Clean surfaces to remove laitance, dust, and debris. The drain flange must sit flush, requiring a flat surface.
Primer: Not required. For cementitious screeds in good condition, direct embedment is acceptable. Apply waterproofing as per system requirements before tiling.
PVC or ABS drainage systems
Surface prep: Cut and clean pipework for a square, true fit. Use a plastic primer or cleaner to remove manufacturing oils and ensure a secure solvent-weld bond.
Primer: Required. Use an approved PVC/ABS primer prior to solvent welding. Allow full cure time before backfilling or applying mechanical loads.
Waterproof membrane interface
Surface prep: Waterproof membranes must be fully cured and free from contaminants. Ensure the waste flange integrates securely into the membrane system, without pinholing or bridging.
Primer: Optional. For improved bonding with liquid membranes, prime the brass flange with a manufacturer-approved primer before membrane application.
Timber subfloors (with tile underlay)
Surface prep: Timber must be structurally sound and reinforced with fibre-cement underlay. Fasten securely to prevent movement and seal joints with approved tapes or waterproofing compounds.
Primer: Required. Use a moisture barrier primer on timber substrates before waterproofing membrane or flange installation.
Square Bermuda Lowline Megaflex™ Floor Waste – 100x100mm Physical Properties
| Property | Value |
|---|---|
| Product Name | Square Bermuda Lowline Megaflex™ Floor Waste – 100x100mm |
| Body Material | Solid Brass |
| Base Material | ABS (Megaflex™) |
| Outlet Sizes | 50mm, 80mm, 100mm |
| Grate Dimensions | 100mm x 100mm |
| Available Finishes | Chrome, Matt Black, Brushed Gold, Brushed Nickel, Polished Brass (Raw) |
| Installation Type | Screed or Slab Floor |
| Packaging | Single Buy, Box of 20 |
| Compatible Pipe Type | ABS Solvent Weld Only |
| Recommended Applications | Internal Tiled Wet Areas |
| Finish Notes | Polished Brass is a Living Finish and will Patina Over Time |
