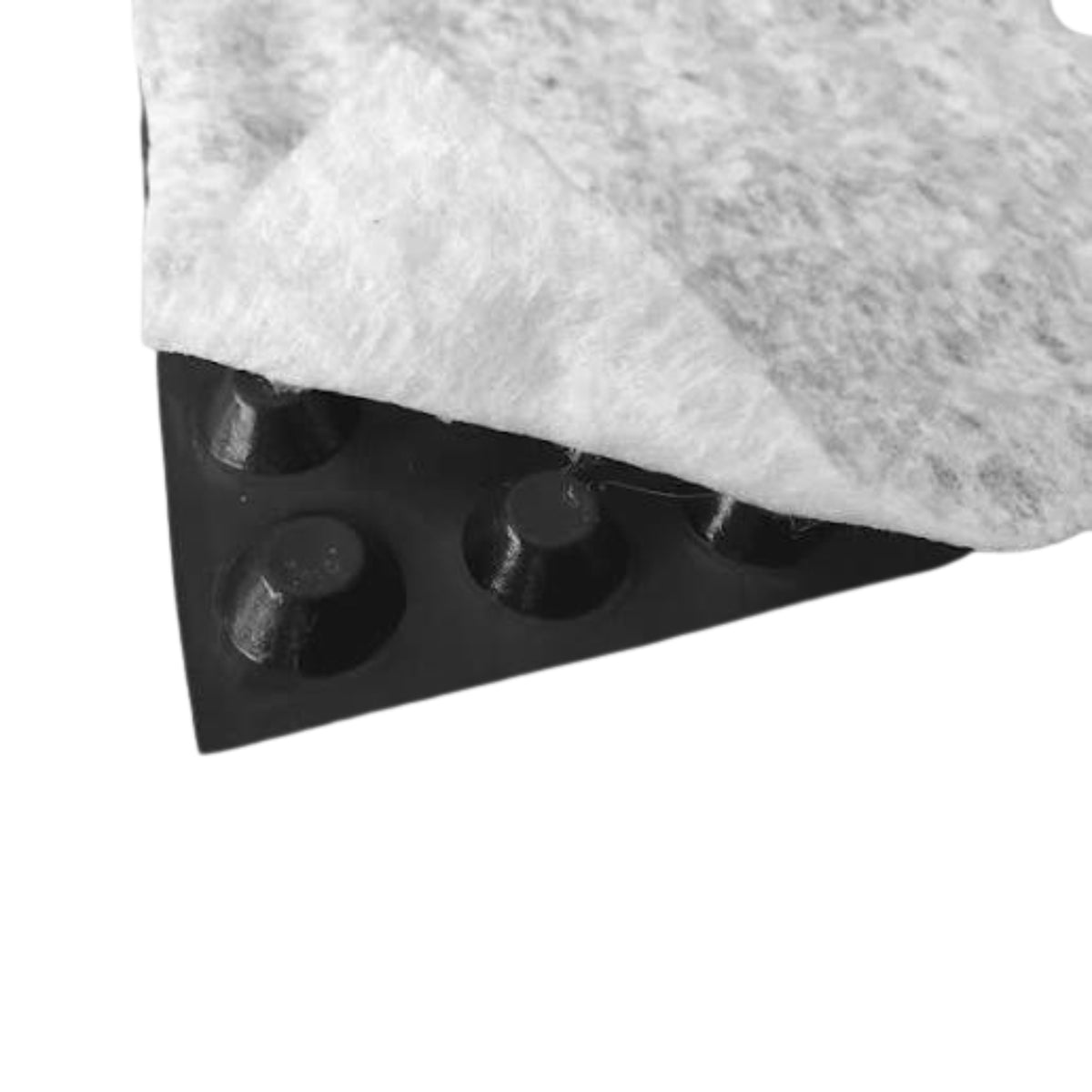

Drain water away from below-ground structures while protecting the waterproofing system. Sika® Drain-500 Geo is a dimpled HDPE drainage sheet with an integrated geotextile filter layer for use behind backfilled walls.
Key benefits
- Drainage pathway: the dimpled core provides space for water to move towards a suitable outlet.
- Filter protection: the geotextile helps prevent soil from blocking the drainage layer.
- Membrane protection: provides a separation and protection layer in compatible below-ground assemblies.
Typical applications
Basement walls and other below-ground structures where drainage and protection are required alongside a specified waterproofing system.
Important to know
Each roll measures 2.4 m × 20 m (48 m²). This is a drainage and protection sheet, not a standalone waterproofing membrane. Confirm installation-depth, fixing and membrane compatibility requirements before backfilling.
Creates a drainage space adjacent to specified below-ground waterproofing systems.
Integrated geotextile helps filter soil and reduce drainage blockage.
HDPE sheet provides an additional protective layer during backfilling.
Lay and mechanically fasten the sheet as directed by Sika's system installation manual, maintaining a continuous drainage path to the designated outlet. Include a separating geotextile when in contact with PVC waterproofing membranes; check fixing, termination and backfill protection.
Maximum installation depth 5 m. Not a standalone waterproofing membrane. Not resistant to permanent weathering or sunlight. A separation geotextile is required with PVC membranes. Correct drainage collection and outlet design are essential.
- Below-ground structural walls
- Compatible preformed waterproofing membranes
- Waterproofing mortars and coatings within a designed drainage system
Sika® Drain-500 Geo Physical Properties
| Property | Value |
|---|---|
| Materials | HDPE sheet with polypropylene geotextile |
| Roll size | 2.4 m × 20 m (48 m²) |
| Dimple thickness | 8.0 ± 0.8 mm |
| HDPE sheet mass | 500 ± 25 g/m² |
| Geotextile mass | 100 ± 15 g/m² |
| Compression resistance | 200 ± 40 kPa |
| Tensile Strength | 10 (−2) kN/m (EN 10319) |
| Drain flow, vertical at 20 kPa | 1.9 L/(m·s) ±20% (EN 12958) |
| Maximum installation depth | 5 m |
| Application air temperature | +5°C to +45°C |
