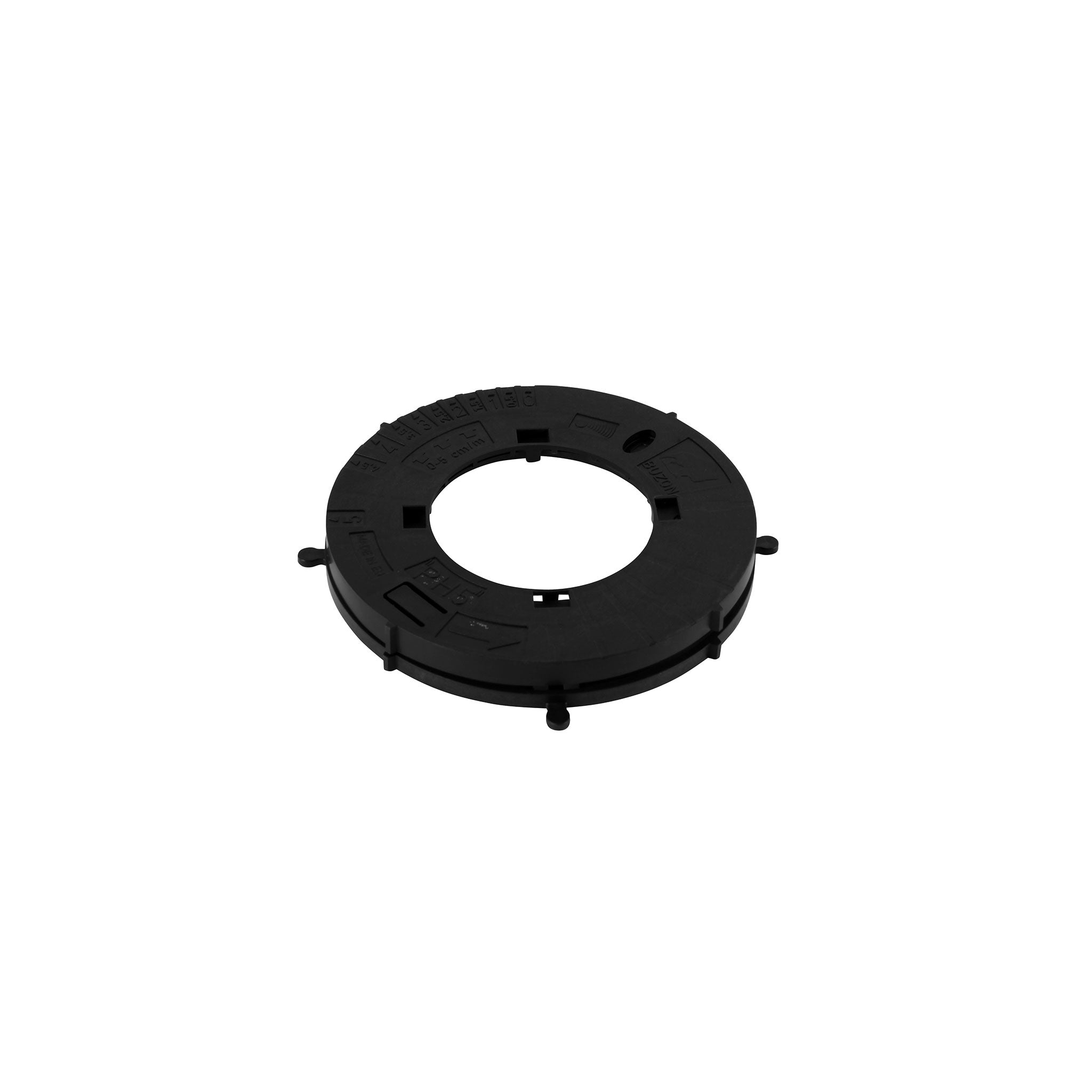

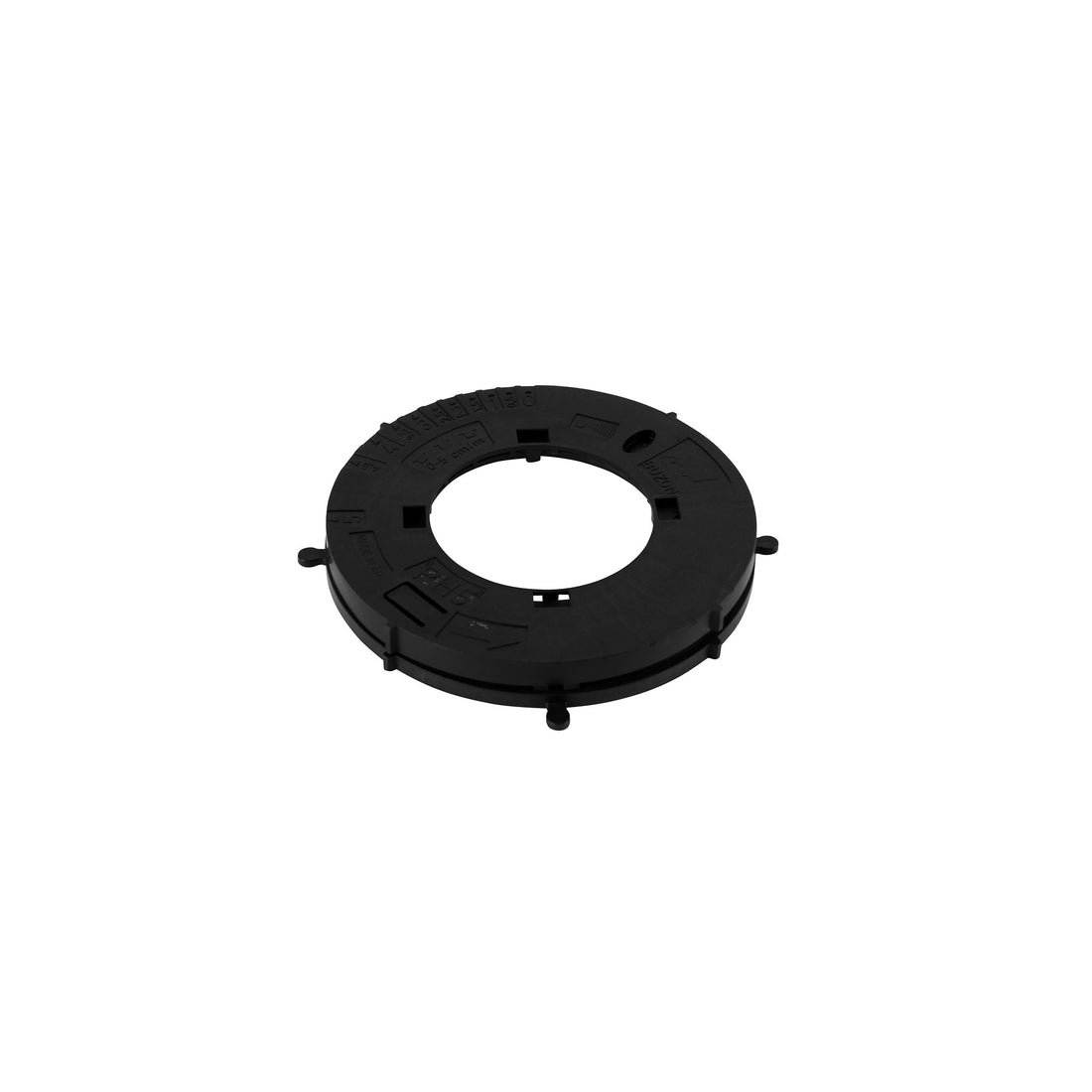

Buzon PH5 Slope Corrector is a structural base-attachment for the PB, DPH, and BC pedestal series engineered to resolve uneven drainage gradients on rooftop terraces and balconies. Constructed from durable copolymer polypropylene, this corrector enables precise 0.5% incremental adjustments to support a 16.38 kN breaking load for secure, high-capacity load distribution.
The system utilizes a proprietary locking key and is stackable to compensate for slopes up to 10%, ensuring a level and stable pedestrian surface that remains structurally sound in temperatures ranging from -30 °C to +80 °C.
Corrects drainage slopes below Buzon raised floors on balconies and rooftops.
Adjusts in 0.5% increments and stacks to correct slopes up to 10%.
Keeps the finished pedestrian surface level.
Fit the PH5 corrector below a compatible PB, DPH, or BC pedestal. Use the locking key to set the required slope correction, then complete the pedestal and paving system.
For compatible Buzon PB, DPH, and BC pedestal systems only. Do not use it to correct slopes greater than 10%. It is a base attachment, not a pedestal or paving support by itself.
Buzon PH5 Slope Corrector Physical Properties
| Property | Value |
|---|---|
| Weight | 0.192 kg |
| Height | 14 mm |
| Diameter | 240 mm |
| Surface Area | 452 cm2 |
| Material | Copolymer polypropylene (CPP) |
| Composition | +/- 80% first grade pre-selected recycled PPC, and +/- 20% Talc + Masterbatch black |
| Temperature Range | -30 °C to +80 °C |
| Pieces per Carton | 24 pcs |
| Carton Weight | 5.71 kg |
| Carton Dimensions | 495 x 305 x 250 mm |
| Cartons per Pallet | 64 pcs |
| Pieces per Pallet | 1536 pcs |
| Pallet Dimensions | 100 x 120 x 220 cm |
| Breaking Load (5% Slope) | 16.38 kN (1638 kg) / 3682 lbF |
