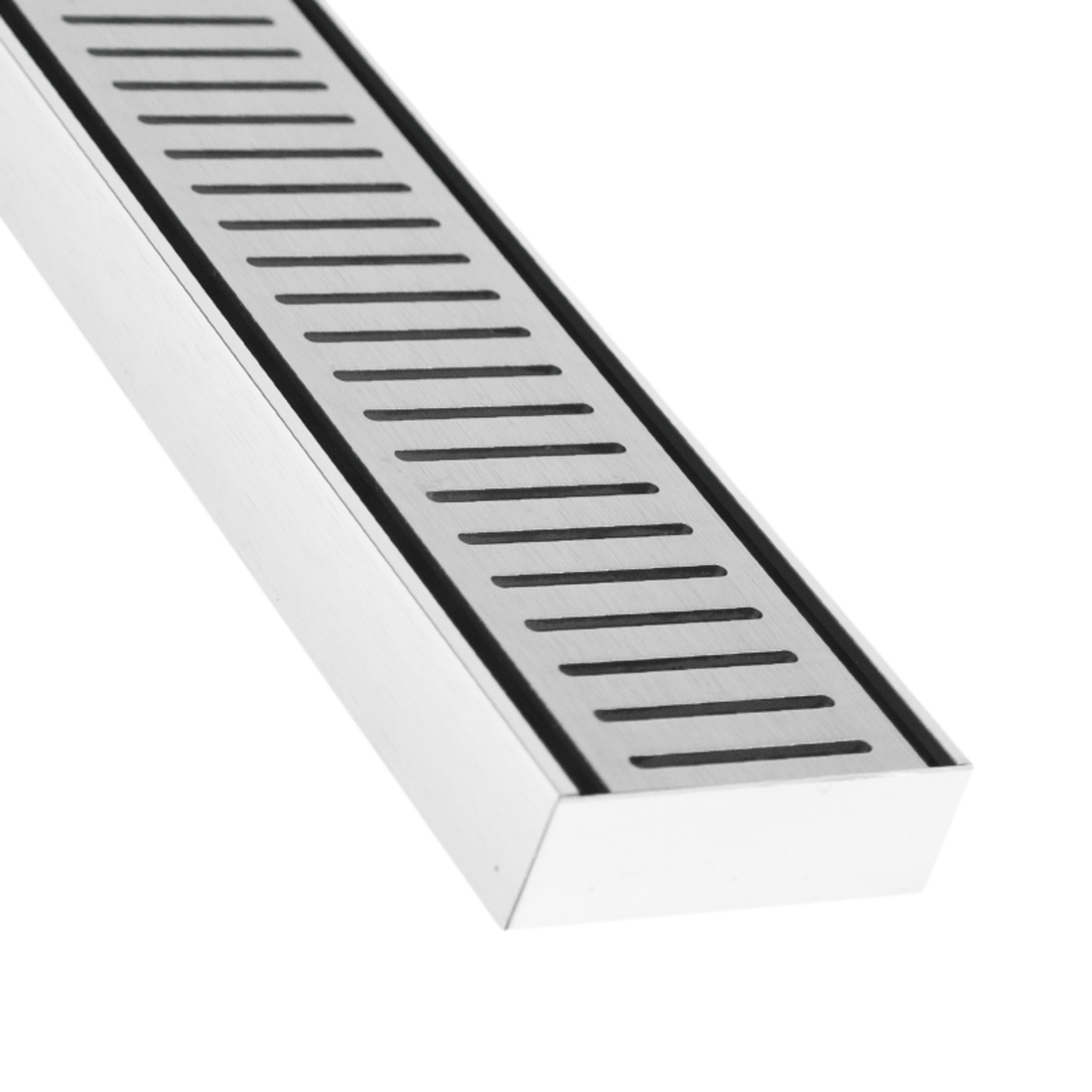

Lauxes Grates NeXT Generation NXT35 Linear Drain Kit is a heavy-duty anodised aluminium drainage system designed for high-traffic driveways, commercial entryways, and salt-exposed pool zones. Featuring a 10.3-tonne load rating and integrated anti-tracking technology, this modular kit prevents surface water runoff and structural subsidence while maintaining a corrosion-proof finish in harsh coastal environments.
The system complies with Australian Class B light traffic standards and includes UV-stable components to ensure long-term integrity under intense sun exposure without cracking or fading.
Frequently asked questions
Can I cut the NeXT Generation 35 grate to shorter lengths?
Yes, the NeXT Generation 35 grate is designed for custom fitting. It can be cut on-site using a mitre saw with a suitable blade.
Is this drain suitable for driveways with vehicle traffic?
Yes, the grate has a 10.3 tonne load rating. This supports regular vehicular traffic, including cars and light trucks, without structural failure.
Will the anodised aluminium rust in coastal environments?
No, this drain is made from anodised aluminium and includes a lifetime rustproof warranty. It is designed to resist corrosion in coastal or salt-exposed areas.
How do I clean the drain?
Cleaning is straightforward. The grate simply lifts out without tools, allowing access to flush or vacuum debris from the tray below.
Can this linear drain be used for indoor applications?
No, the NeXT Generation NXT35 is not designed for low-profile indoor use. Its 35mm depth is intended for outdoor drainage scenarios.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Pool surrounds | Fast drainage combined with lifetime corrosion resistance from anodised aluminium. | Landscapers, Pool builders |
| Driveways | Withstands vehicle loads up to 10.3 tonnes, preventing structural failure and ensuring long-term integrity. | Civil contractors, Builders |
| Patios and decks | Eliminates water pooling and surface tracking, keeping outdoor entertainment areas dry and clean. | Landscapers, Builders |
| Commercial entryways | Provides effective drainage with a clean finish and allows for simple, tool-free debris removal. | Builders, Maintenance contractors |
How to apply NeXT Generation 35 Aluminium Outdoor Drainage Grate:
- Measure and mark your desired drainage length on site
- Use a mitre saw to cut the aluminium grate to length if needed
- Position the tray over prepared bedding or drainage trench
- Install Lauxes joiners for multi-length assemblies
- Fix waste outlet at any point on the tray to suit your drainage plan
- Secure grate into tray and test flow with water
Product limitations
- Not for: Low-profile indoor applications due to its 35mm depth. This product is designed for external use.
- Not for: Decorative finishes where visual discretion or ultra-slim profiles are the primary requirement.
Safety and handling
Personal protective equipment
When cutting aluminium on-site, use protective gloves and eye protection.
Ventilation
Ventilation is not specifically required for mechanical installation of the grate system.
First aid
- Contact: In case of sharp edge contact, apply standard wound care. The anodised aluminium is non-toxic.
Storage and disposal
Avoid scratching the anodised surface during transport and handling. Dispose of aluminium off-cuts according to local waste regulations.
Substrate guide
Proper substrate preparation and installation are critical for the long-term performance of any linear drainage system.
Concrete
Surface prep: Secure with appropriate bedding material and ensure correct drainage outlet connection.
Primer: Not specified.
Asphalt
Surface prep: Embed the drain securely, using edge protection to maintain stability under heavy loads.
Primer: Not specified.
Pavers
Surface prep: Position accurately between modular stones and ensure secure anchoring to prevent movement.
Primer: Not specified.
Tiles
Surface prep: Install with tile adhesive or a screed base to achieve a clean, level finish.
Primer: Not specified.
Lauxes Grates NeXT Generation NXT35 Linear Drain Kit Physical Properties
| Property | Value |
|---|---|
| Dimensions | 5600 mm x 100 mm x 35 mm |

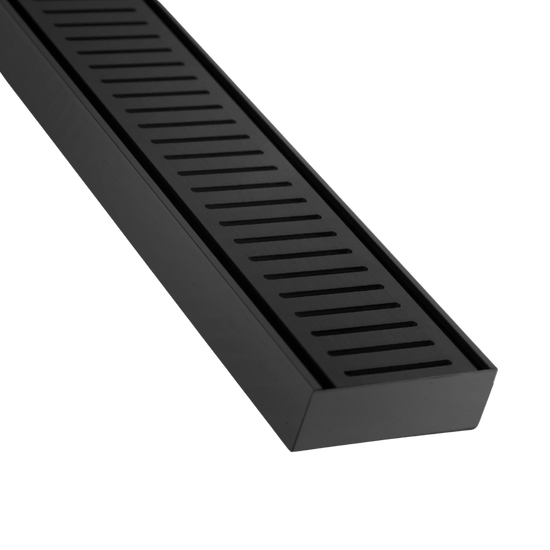

| Colour | Silk Silver, Midnight Black |
| Material | Anodised Aluminium |
| Load Rating | 10.3 tonnes |
| UV Resistance | 100% UV Stabilised |
| Rust Resistance | Lifetime Rustproof Warranty |
| Length Options | 1 m, 5.6 m |
| Installation Features | Easy to cut onsite, Extendable with Lauxes joiners |
| Waste Outlet | Positionable anywhere along the tray |
| Maintenance | Easy to remove for cleaning |
| Application Areas | Outdoor areas, pools, driveways, entertainment areas |
| Anti Tracking | Yes |
| Water Tracking | No |
