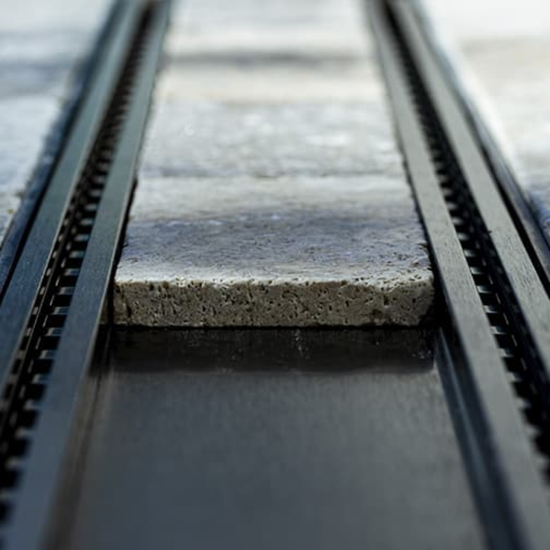

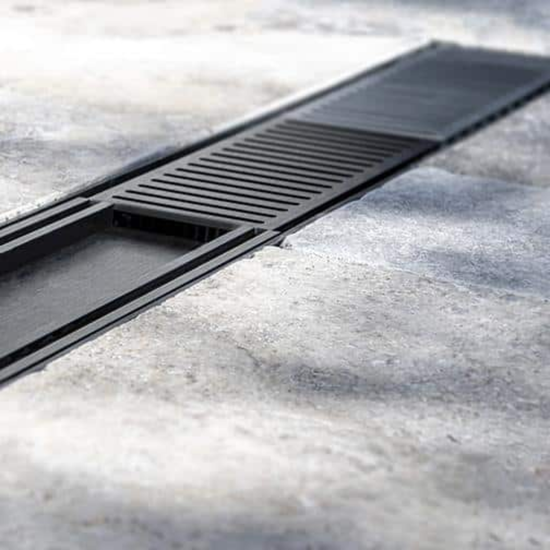

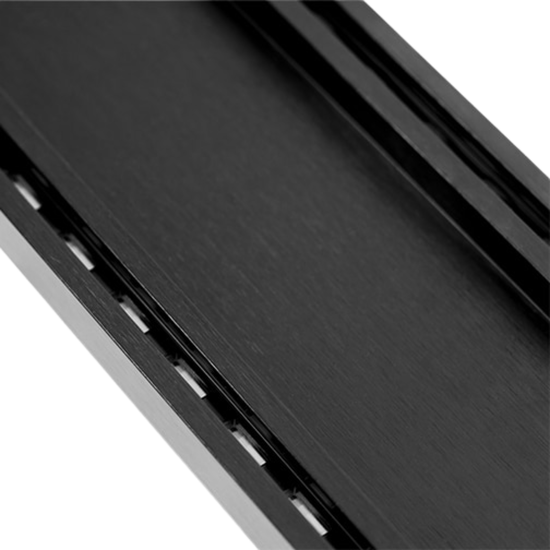

A 128mm wide tile insert stormwater grate for driveways and outdoor areas that take traffic. The tray takes tiles up to 13mm, so the grate disappears into the paving, and the extruded aluminium body is rated to 10.2 tonnes, so a car on the driveway does not deform it.
The Midnight Black finish carries a 25-year no-fade guarantee, and the non-corrosive build means no rust bleeding into the tiles around it.
Frequently asked questions
What tile thickness can the Tile Insert 128 accommodate?
The Tile Insert 128 is designed to hold tiles or pavers up to 13 mm thick. This ensures a consistent, flush surface where the grates integrate cleanly with surrounding finishes.
Can this grate be cut to custom lengths on site?
Yes, the aluminium profile can be cut on site. Use a fine-tooth non-ferrous metal blade for a clean cut. Always measure precisely and deburr any sharp edges before final installation.
Is this grate suitable for vehicle traffic?
Yes, the grate is rated for loads up to 10.2 tonnes. This makes it appropriate for driveways, carparks, and other high-traffic outdoor areas where vehicles are present.
Substrate guide
Proper preparation ensures optimal performance and longevity for the Lauxes Midnight Storm Water Tile Insert. This guide covers common substrates.
Concrete channels
Surface prep: Ensure the concrete channel is fully cured, clean, and dry. Remove all dust, laitance, loose material, or contaminants that could interfere with the grate's mechanical seating.
Primer: Not required. The grate system relies on a mechanical fit within the channel.

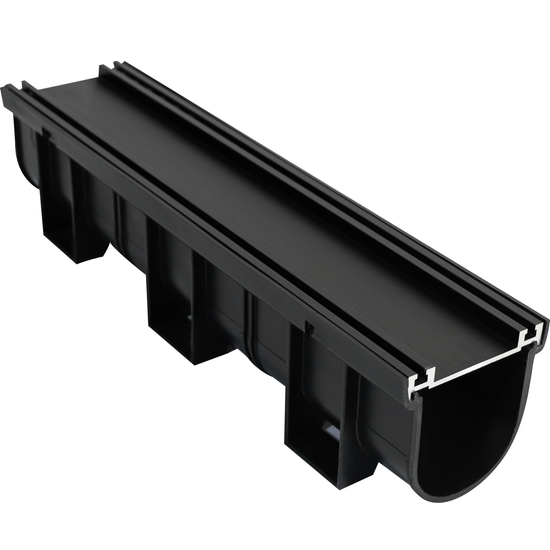

Plastic stormwater channels
Surface prep: Wipe down plastic edges with Adheseal Surface Prep or isopropyl alcohol. This removes residues and ensures clean contact points for any optional sealing. Verify all clips and fitment slots are intact.
Primer: Not required. The grate locks mechanically. If additional waterproofing or anti-rattle stability is needed, apply a small bead of Adheseal MS Construction Sealant along edge joints.

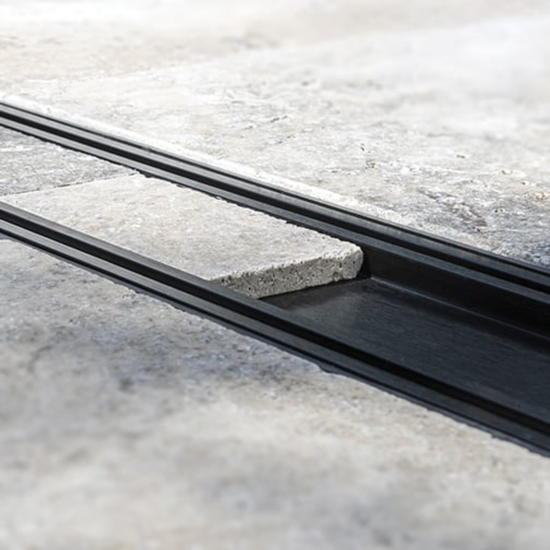

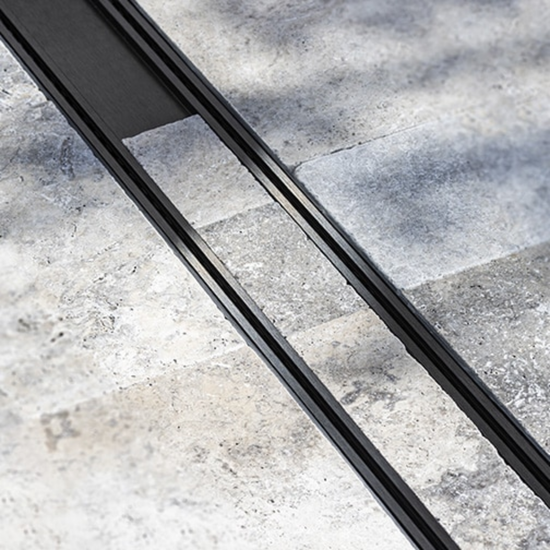

Tiled or paved surrounds
Surface prep: Pre-plan tile layout for alignment with the grate frame. Clean any adhesive or grout residue from tile edges to allow for proper seating of the tile insert.
Primer: Optional. For watertight joints that maintain flexibility, use Adheseal Non-Staining Tile Silicone when sealing tile edges. This prevents edge lifting or tracking.

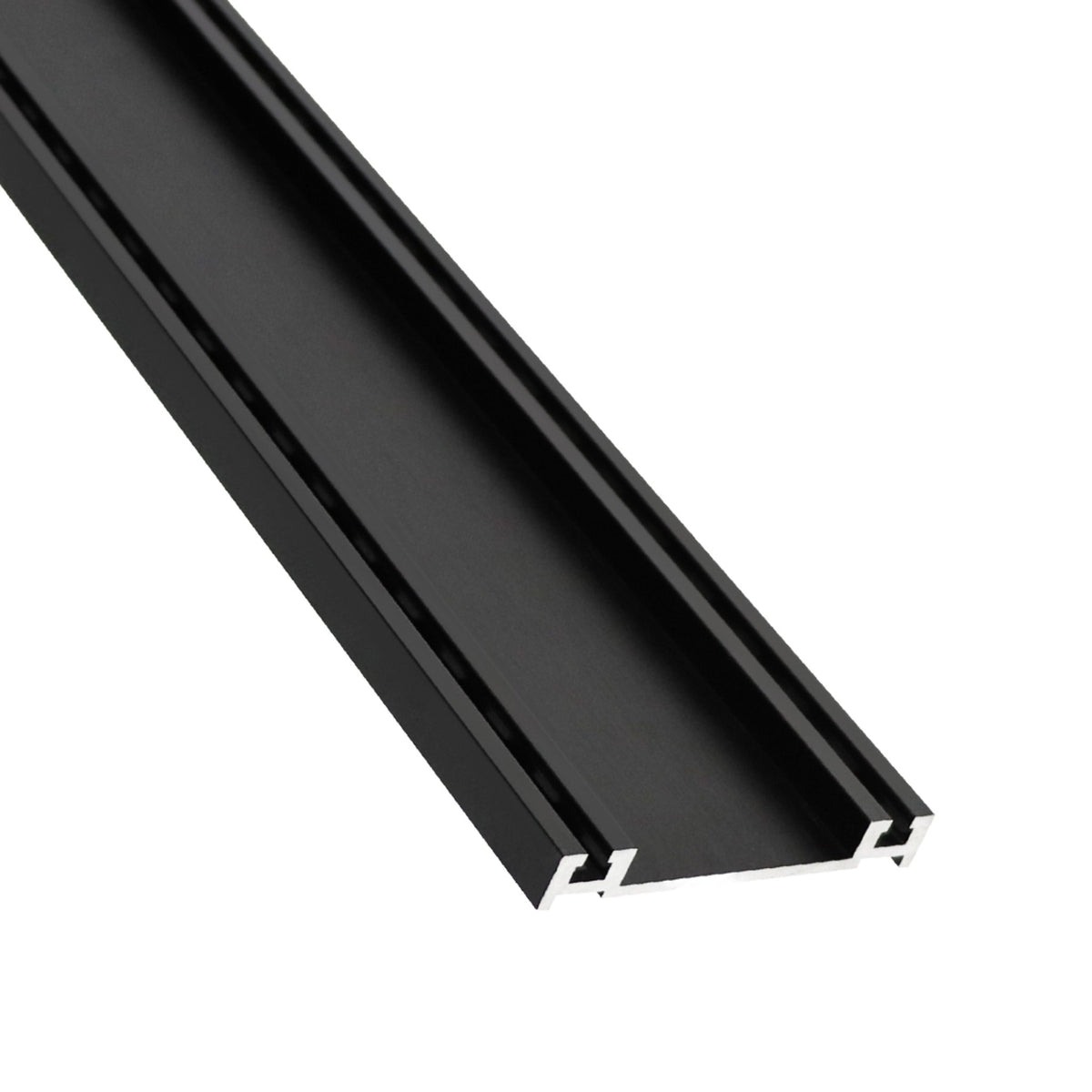

Midnight Storm Water Tile Insert 128 Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Grates Midnight Storm Water Tile Insert 128 |
| Material | UV-stabilised Aluminium |
| Top Tray Only | Yes |
| Depth | 19 mm |
| Width | 128 mm |
| Available Lengths | 3000 mm, 5600 mm, Custom |
| Load Rating | 10.2 tonnes |
| Tile Compatibility | Up to 13 mm thick |
| Colour | Midnight Black |
| Finish | Powder-coated |
| Warranty | Lifetime Rustproof |
| UV Guarantee | 25 Years No Discolouration |
| Cutting Method | Onsite with Aluminium Drop Saw |
| Country of Manufacture | Australia |
