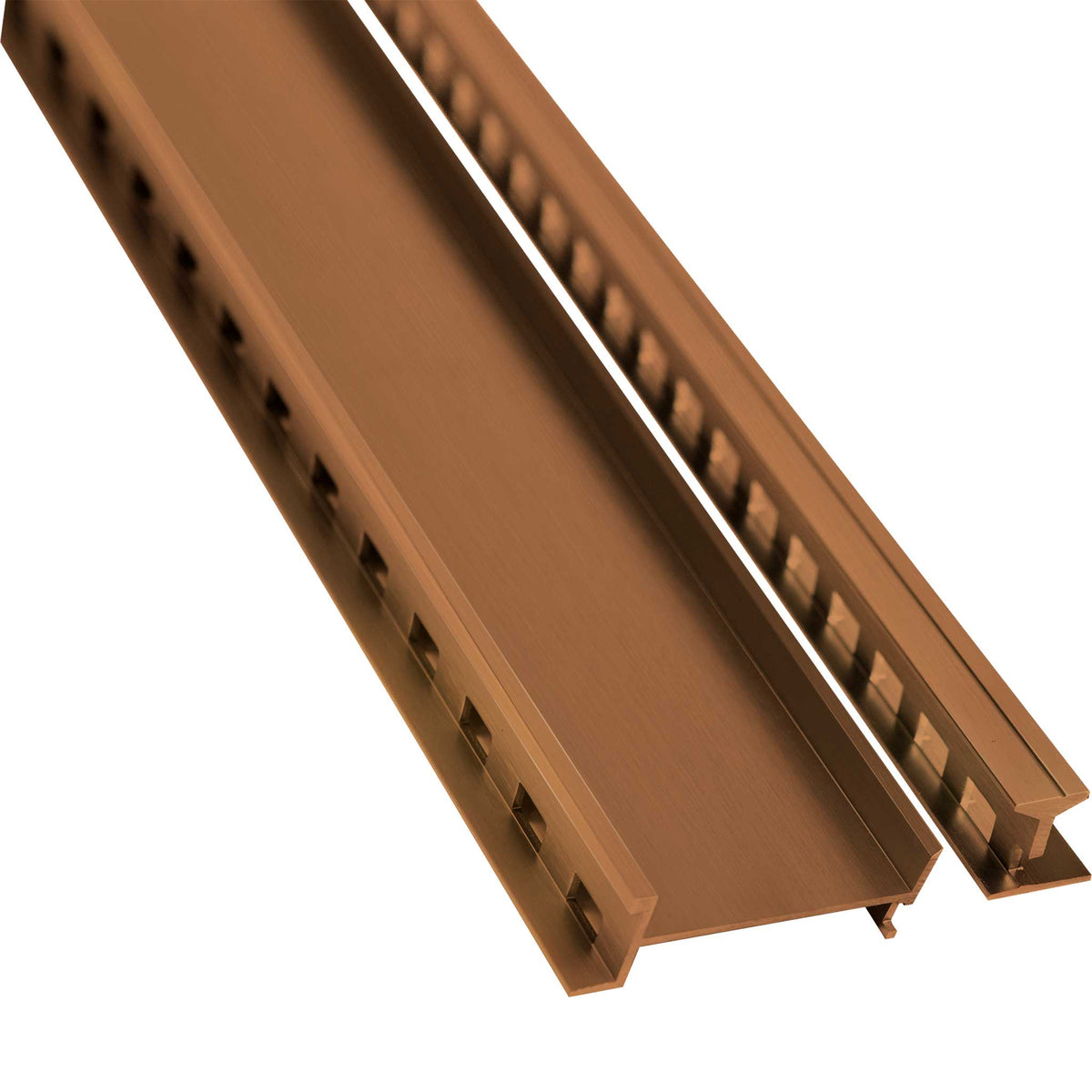

Lauxes Grates STI Shower Pack 26 in Copper anodised aluminium
Lauxes Grates STI Shower Pack 26 in Copper anodised aluminium
Lauxes Grates STI Shower Pack 26 in Copper anodised aluminium
Lauxes Grates STI Shower Pack 26 in Copper anodised aluminium

Lauxes Grates STI Shower Pack 26 – Copper

3m anodised aluminium add-on for Slimline Tile Insert 26 that supports fixed shower glass and allows drainage on both sides of the screen, for tile up to 11mm thick.

Vendor: Lauxes Grates
SKU: LUXSHOWER26COP/1000
Availability: Many In Stock
$103.33
$103.33
Prices do not include GST
Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Description

Lauxes Grates STI Shower Pack 26 – Copper is a shower-glass support accessory for the compatible Lauxes Slimline Tile Insert 26 linear drainage system. It helps create a clean fixed-glass shower threshold while allowing water to drain on both sides of the screen.

The 26mm anodised aluminium profile is designed for this specific tile-insert drainage system, rather than as a universal shower-glass channel. Select the required Copper length from the 1000mm, 2000mm and 3000mm options.

Compatibility and installation

Confirm that the installation uses the compatible STI26 grate system and that the fixed shower glass, floor falls, waterproofing and outlet layout have been coordinated before ordering. Follow Lauxes' installation guidance, including the specified neutral-cure silicone and installation sequence. The shower pack does not replace a waterproofing membrane or a complete shower drainage system.

Common Questions

Is Shower Pack 26 a complete standalone drain?
No. Lauxes specifies it as an add-on for Slimline Tile Insert 26.

Does it drain both sides of the shower glass?
Yes. The glass support is designed to allow drainage from both the shower side and bathroom side.

What tile thickness can it take?
Up to 11mm.

When should it be installed?
Install the grate and glass support only after tiling and grouting are complete.

Uses & Benefits
STI Shower Pack 26 is an anodised aluminium add-on for the Slimline Tile Insert 26 system that supports fixed shower glass while allowing drainage on both sides of the screen. The 3m profile accepts tile up to 11mm thick and uses a dedicated glass-support section within the drain assembly.
How To Apply
Install wall to wall across the shower and bathroom threshold. Fix the bottom tray into the recess with neutral-cure silicone, position the glass support with its drain slots at the bottom and the wider side against the tray edge, then install the fixed glass after the assembly has cured. Fit tiles into the insert trays and seal the grate perimeter with grout-coloured neutral-cure silicone.
Limitations and Safety Info
This is an add-on for Slimline Tile Insert 26, not a standalone drain. Install the grate and glass support only after tiling and grouting are complete, use neutral-cure silicone for all assembly and keep the grate out of wet cement or screed. The shower glass must not overhang the support because overhang can prevent removal of the tile inserts for cleaning.
Suitable Substrates
Slimline Tile Insert 26 drain assemblies installed in tiled shower or bathroom floors over a separate waterproofing system. The glass-support section is designed for fixed shower glass.

Lauxes Grates STI Shower Pack 26 – Copper Physical Properties

Lauxes Grates STI Shower Pack 26 – Copper Physical Properties
Property Value
System Slimline Tile Insert Shower Pack 26
Profile Depth 26 mm
Width 100 mm
Finish Copper
Available Lengths 1000 mm, 2000 mm, 3000 mm
Material Anodised aluminium
Primary Application Fixed-glass shower thresholds
Glass Support Drainage Drainage from shower side and bathroom side
Recommended Layout Wall-to-wall across the shower and bathroom threshold
Installation Sequence Install grate and glass support after tiling and grouting
Assembly Sealant Neutral-cure silicone
On-site Cutting Yes
Waterproofing Role Grate does not form part of the waterproofing system
