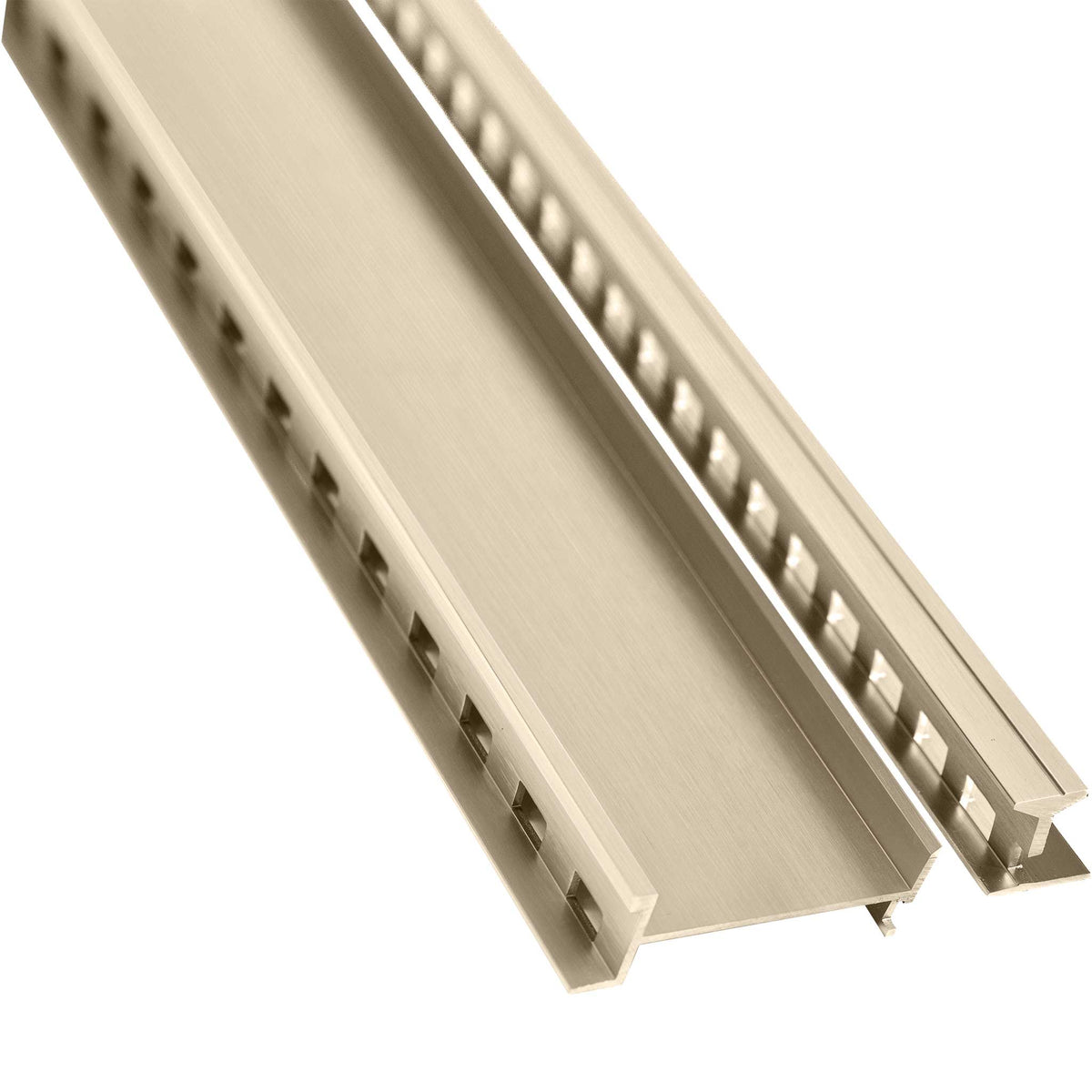

Lauxes Slimline Tile Insert Shower Pack 26 - Brushed Nickel is designed to integrate a fixed shower screen into the Lauxes Slimline Tile Insert 26 drainage line for a clean, wall-to-wall shower threshold. A dedicated glass support allows drainage from both the shower side and bathroom side while the tiled insert sections remain removable for cleaning. This Brushed Nickel version is available in 1000mm, 2000mm and 3000mm lengths for site cutting and installation.
Key Features
- Designed around the Lauxes Slimline Tile Insert 26 system
- Supports fixed shower glass within the drainage line
- Glass support is designed to allow drainage from both sides of the shower screen
- Wall-to-wall installation across the shower threshold is recommended for the best visual result
- Tile insert sections remain removable for cleaning when installed to Lauxes instructions
- Designed for installation after tiling and grouting are complete
- Neutral-cure silicone is required for assembly and glass contact
Technical Details
| System | Slimline Tile Insert Shower Pack 26 |
| Profile Depth | 26mm |
| Width | 100mm |
| Finish | Brushed Nickel |
| Available Lengths | 1000mm, 2000mm, 3000mm |
| Application | Shower thresholds and wet-area linear drainage |
| Compatible System | Lauxes Slimline Tile Insert 26 |
Installation Notes
Install the grate and glass support only after tiling and grouting are complete. Lauxes recommends a wall-to-wall installation across the shower and bathroom threshold. The grate does not form part of the waterproofing system and must not come into contact with wet cement or screed.
Frequently Asked Questions About Lauxes Slimline Tile Insert Shower Pack 26 - Brushed Nickel
Q: What is Shower Pack 26 designed for?
A: It is designed to integrate a fixed shower screen into the Lauxes Slimline Tile Insert 26 drainage line. The glass support carries the shower glass while allowing drainage from both the shower side and bathroom side.
Q: Should the Shower Pack 26 run wall to wall?
A: Lauxes recommends installing the system wall to wall across the threshold between the shower and bathroom for the best visual result.
Q: When should the grate and glass support be installed?
A: Install the grate and glass support only after tiling and grouting are complete. The grate must not come into contact with wet cement or screed.
Q: Can the Shower Pack 26 be cut onsite?
A: Yes. The grate can be cut to suit the installation. Lauxes specifies cutting the glass support and thinner tile-insert top tray to the shower-glass length, while maintaining clearance on the remaining tile insert so it can be removed for cleaning.
Q: What sealant should be used during installation?
A: Use neutral-cure silicone for assembly and for contact with the shower glass, following the Lauxes installation instructions.
Q: Does the grate form part of the waterproofing system?
A: No. Lauxes states that the grate does not form part of the waterproofing system. Waterproofing and the surrounding floor build-up should be completed before the grate is installed.
Lauxes Slimline Tile Insert Shower Pack 26 - Brushed Nickel Physical Properties
| Property | Value |
|---|---|
| System | Slimline Tile Insert Shower Pack 26 |
| Profile Depth | 26 mm |
| Width | 100 mm |
| Finish | Brushed Nickel |
| Available Lengths | 1000 mm, 2000 mm, 3000 mm |
| Material | Anodised aluminium |
| Primary Application | Fixed-glass shower thresholds |
| Glass Support Drainage | Drainage from shower side and bathroom side |
| Recommended Layout | Wall-to-wall across the shower and bathroom threshold |
| Installation Sequence | Install grate and glass support after tiling and grouting |
| Assembly Sealant | Neutral-cure silicone |
| On-site Cutting | Yes |
| Waterproofing Role | Grate does not form part of the waterproofing system |
