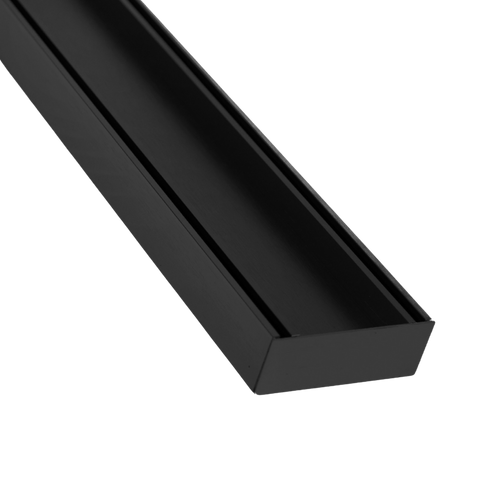

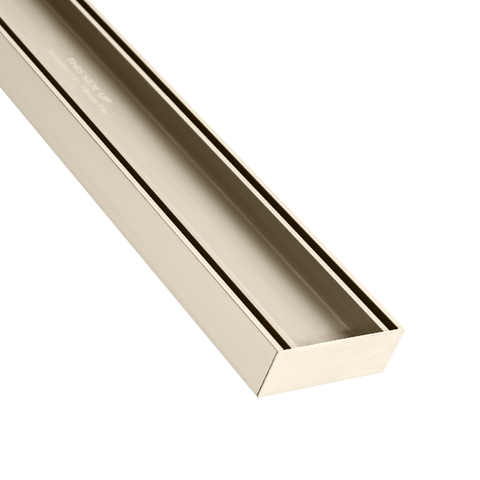

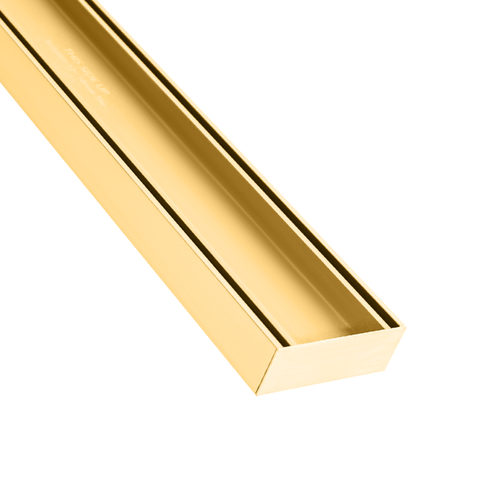

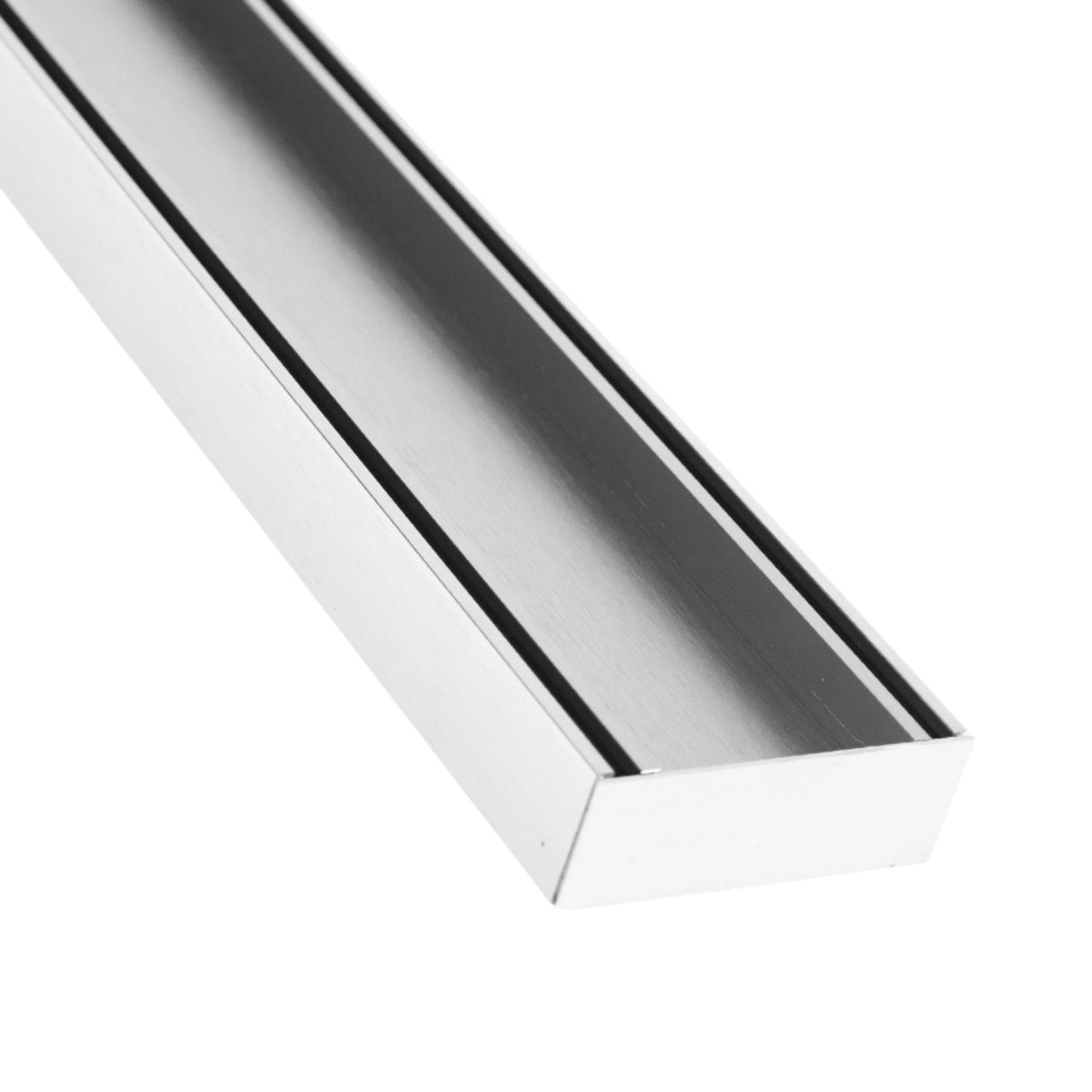

For outdoor drainage installations requiring thick bedding or heavy paving, the Tile Insert Plus 35 Grate Kit provides a deep 35mm profile to accommodate thick stone, travertine, and deep-bed external tiling. The anodised aluminium assembly sits flush with adjacent paving surfaces while concealing the waste drainage channel beneath the insert bed.
Outdoor depth and structural load path
The 35mm depth of the TIP35 profile provides the physical clearance required to lay deep-format pavers directly into the grate tray. Anodised aluminium construction protects against raw environmental exposure, while the built-in UV stability prevents surface degradation under constant sunlight. To allow for standard maintenance and clearing of organic outdoor debris, the grate uses an easy roll-out design that lifts clear of the channel without requiring specialised tools.
Numbers that matter
- 35mm depth: Clears deep-format outdoor paving materials, allowing for tiles up to 20mm thick, travertine, or natural stone to sit flush with the top edge.
- Class B load rating: Rated for a maximum load of 10.2 tonnes, supporting light vehicle traffic and residential driveway or pathway wheel loads.
- DN90 40mm, 50mm, 72mm, and 80mm: Versatile bottom-outlet waste connection scope to match standard drainage pipe dimensions.
- 5.6m maximum usable length: Available in pre-cut lengths from 1.0m to 5.6m (with 3.0m and 5.6m profiles extruded to 3.2m and 5.8m to allow for anodising clamp wastage at the ends).
Where to use it
The system is recommended for outdoor usage, including patios, pool surrounds, balconies, and external walkways. It is suitable for:
- Tiles up to 20mm thick
- Travertine pavers
- Natural stone slabs
Limitations
- Do not use abrasive cloths or acidic chemicals on the grates, as these will damage the protective anodised surface. Clean only with gentle soapy water.
- Anodising clamp marks may be present on the outer ends of the 3.0m and 5.6m lengths; trim these back to the usable 3.0m and 5.6m limits during installation.
Frequently asked questions
Can the Lauxes Tile Insert Plus Grate be cut onsite?
Yes, the anodised aluminium construction allows onsite cutting with a standard mitre saw. This ensures custom fitting and minimises material waste.
Does this grate system require fixed plumbing outlet positions?
No, the waste outlet can be positioned anywhere along the tray. This flexibility simplifies installation and avoids plumbing reconfigurations.
Is the grate suitable for outdoor use in coastal environments?
Yes, it is made from rustproof anodised aluminium and comes with a Lifetime Rustproof Warranty. This makes it suitable for salt air and harsh weather exposure.
Can this grate be used with tiles thicker than 18mm?
No, this model supports tiles up to 18mm thick. For thicker tiles, consider other Lauxes models designed for greater depths.
How is the grate cleaned after installation?
The tile insert tray rolls out easily, allowing for quick debris removal or inspection. No special tools are required for routine cleaning.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Balcony and patio drainage | Maintains tile finish continuity while providing UV stable and corrosion-resistant drainage. | Tiler, landscaper, builder |
| Commercial shower and wet areas | Provides high-capacity drainage with a 10.3-tonne load rating for heavy traffic. | Builder, plumber, tiler |
| Pool surrounds and external wet zones | Offers UV stability and resistance to salt air corrosion, backed by a Lifetime Rustproof Warranty. | Pool builder, landscaper |
| Interior wet rooms and accessible bathrooms | Delivers a seamless tiled finish with flexible waste positioning, supporting National Construction Code requirements. | Tiler, builder |
How to apply Lauxes Grates Tile Insert Plus Grate Kit:
- Measure your desired installation space and mark where the grate will be placed.
- Cut the grate onsite using a mitre or drop saw to fit the space as needed.
- Position the bottom tray on the substrate, adjusting waste outlet to desired location.
- Apply adhesive or silicone to secure the tray, ensuring it is level with tile surface.
- Install tiles into the removable tray insert, maintaining grout line alignment.
- Roll out the tray insert for cleaning or tile adjustments as needed post-installation.
Product limitations
- Not for: Tiles thicker than 18mm. Use alternative Lauxes models for larger profiles.
- Not for: High-acid industrial environments. Aluminium may corrode under extreme chemical exposure.
Safety and handling
Personal protective equipment
Wear safety glasses and gloves when cutting aluminium or handling edges.
Ventilation
Use in well-ventilated areas, particularly when applying adhesives or sealants during installation.
First aid
- Eyes: Rinse immediately with water if any adhesive or debris enters eyes. Seek medical attention if irritation persists.
Storage and disposal
Store in original packaging to protect surfaces. Avoid dragging on abrasive surfaces to prevent scratches. Dispose of cut-offs according to local waste regulations for aluminium.
Lauxes Grates Tile Insert Plus Grate Kit can be used on the following substrates:
- anodised aluminium – compatible with all standard tile adhesives used in construction
- tile – supports porcelain, ceramic, and natural stone tiles up to 18mm thick
- concrete – suitable for in-slab or floor set installations
- stone – works well in architectural finishes using natural or engineered stone
- porcelain – allows seamless insert flush to high-end tiles
Lauxes Grates Tile Insert Plus 35 Grate Kit Physical Properties
| Property | Value |
|---|---|
| Material | Anodised Aluminium |
| Colour | Silk Silver, Midnight Black |
| Dimensions | 5600 x 100 x 35 mm |
| Tile Compatibility | Up to 18mm thick |
| Load Rating | 10.3 tonnes |
| UV Resistance | UV Stable |
| Fade Warranty | 25 years |
| Rust Resistance | Lifetime Rustproof Warranty |
| Extendability | With joiners |
| Application Area | Indoor and Outdoor |
| Waste Outlet Position | Customisable along the tray |
| Cleaning Method | Roll-out system |
| Available Lengths | 1m, 5.6m |
| Cutting Capability | Onsite with mitre saw |
