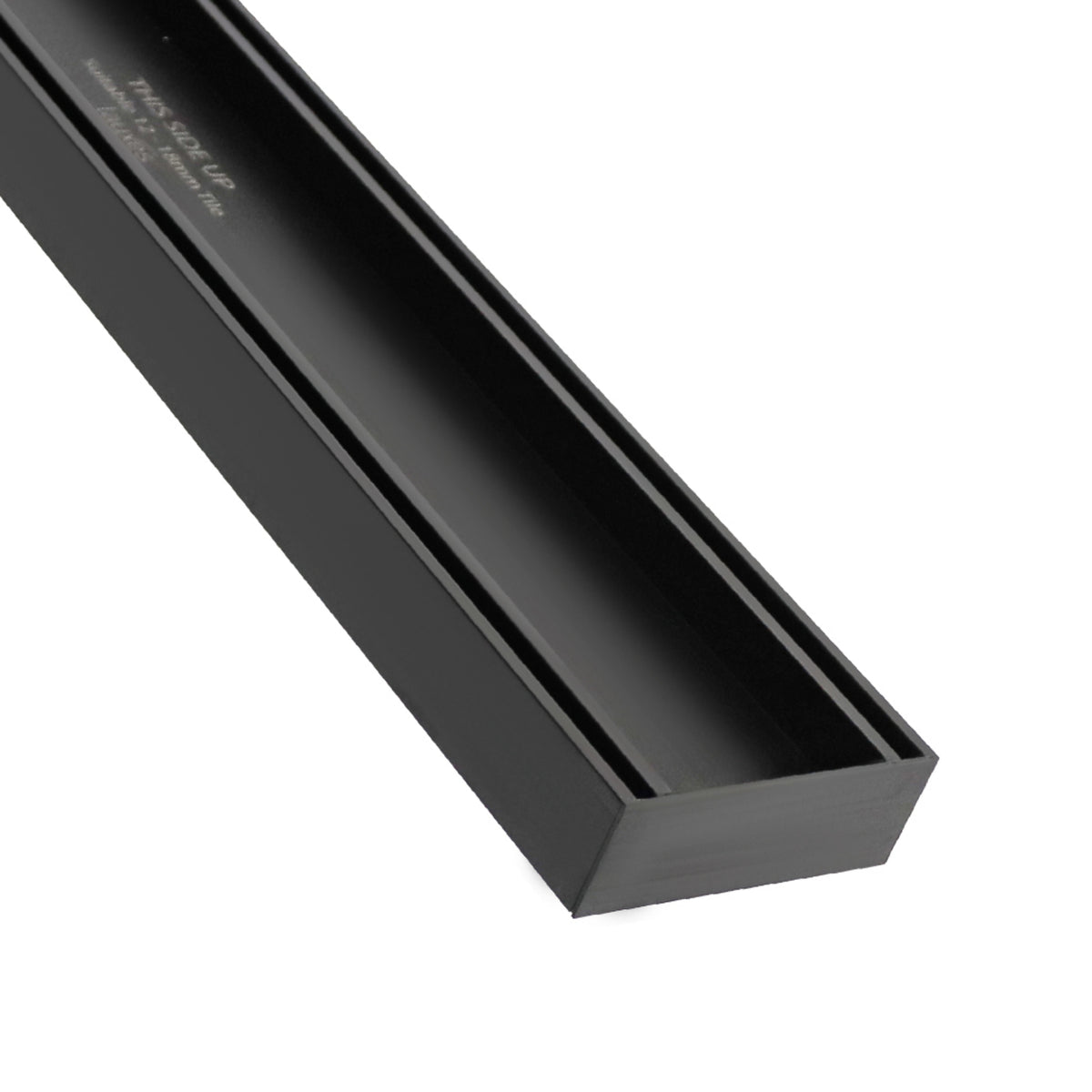

Lauxes Grates Tile Insert Plus 35 – Midnight is a 100mm wide, 35mm deep anodised aluminium tile-insert linear drain for indoor and outdoor tiled drainage. It is designed for tiles and stone finishes up to 20mm thick and supports 40mm, 50mm, 72mm and 80mm waste outlets.
Lauxes manufactures TIP35 Midnight in 3000mm and 5600mm full lengths. Adheseal currently offers 1000mm and 5600mm sell lengths. The channel can be cut on site to suit the finished installation and the waste outlet positioned to suit the plumbing layout.
Key features
- 100mm wide x 35mm deep tile-insert profile
- Suitable for tiles and stone finishes up to 20mm thick
- Anodised aluminium construction
- 40mm, 50mm, 72mm and 80mm waste outlet options
- Can be cut on site to suit the installation
- Waste outlet can be positioned along the bottom tray
- Suitable for indoor and outdoor applications
- UV-stable finish
- Lifetime rustproof guarantee
Frequently Asked Questions About Lauxes Tile Insert Plus 35 – Midnight
Q: What tile thickness suits TIP35?
A: Lauxes specifies tiles and stone finishes up to 20mm thick.
Q: Which waste outlet sizes are supported?
A: TIP35 supports 40mm, 50mm, 72mm and 80mm waste outlets.
Q: Can TIP35 be cut to length on site?
A: Yes. Lauxes designs the grate to be cut on site to suit the finished installation.
Q: What lengths are available in Midnight?
A: Lauxes manufactures 3000mm and 5600mm full lengths. Adheseal currently offers 1000mm, 5600mm for this colour.
Q: Does the grate form part of the waterproofing?
A: No. Lauxes states that its grates do not form part of the waterproofing process and should be installed as the final flooring step.
Installing Lauxes Tile Insert Plus 35 – Midnight
- Complete waterproofing, tiling and grouting before installing the grate. The grate does not form part of the waterproofing system.
- Use a template or spacer to form the grate provision during screeding or concreting. Do not allow the grate to contact wet cement or screed.
- Measure and cut the grate to the required finished length, then drill the waste opening at the required position using a suitable Lauxes hole saw.
- Fit the waste outlet and end caps using neutral-cure silicone.
- Install the grate as the final flooring step using neutral-cure silicone, ensure it is level and remove building residue before it dries.
Suitable installation backgrounds for Lauxes Tile Insert Plus 35 – Midnight
- Concrete floor constructions with a separately installed waterproofing system
- Screeded tiled wet-area floors with a separately installed waterproofing system
- Fibre-cement sheet floor constructions where the specified waterproofing and tiling system is suitable
The grate itself does not form part of the waterproofing system.
Lauxes Grates Tile Insert Plus 35 Linear Drain Kit – Midnight Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Grates Tile Insert Plus 35 – Midnight |
| Manufacturer Full Lengths | 3000mm, 5600mm |
| Adheseal Sell Lengths | 1000mm, 5600mm |
| Profile Width | 100mm |
| Profile Depth | 35mm |
| Material | Anodised Aluminium |
| Colour | Midnight |
| Applications | Indoor, Outdoor |
| Tile Thickness Capacity | Up to 20mm |
| Outlet Sizes | 40mm, 50mm, 72mm, 80mm |
| Cutting Capability | Can be cut on site to suit the installation |
| Waste Outlet Positioning | Waste outlet can be positioned along the bottom tray |
| UV Stability | Yes |
| Rustproof Guarantee | Lifetime |
