Lauxes Grates Tile Insert Plus 35 Brushed Nickel anodised aluminium linear drain
Lauxes Grates Tile Insert Plus 35 Brushed Nickel anodised aluminium linear drain

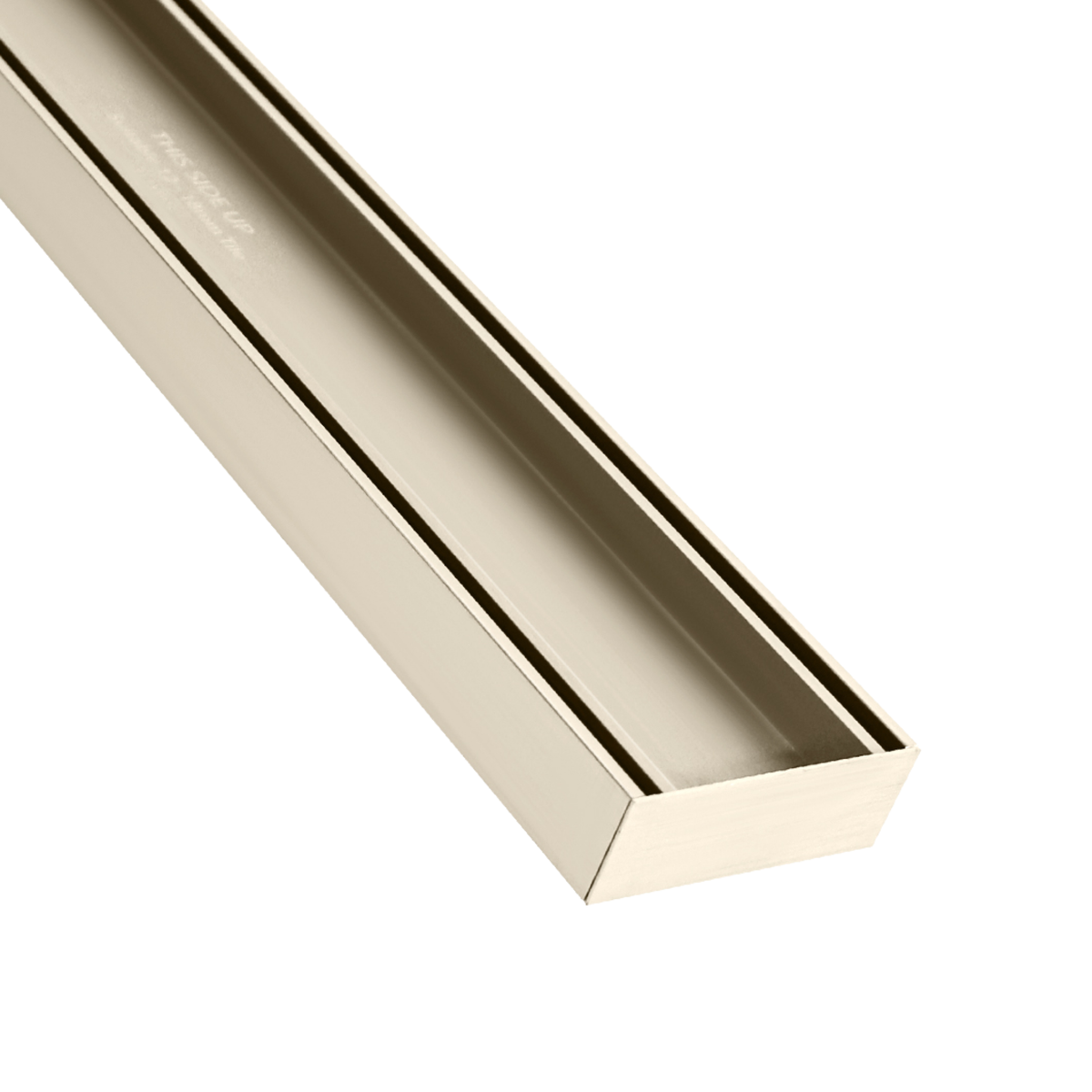

Lauxes Grates Tile Insert Plus 35 Linear Drain Kit – Brushed Nickel

100mm wide, 35mm deep anodised aluminium tile-insert linear drain for tile or stone finishes up to 20mm thick, with four waste outlet size options and a Class B load rating.

Vendor: Lauxes Grates
SKU: LUXTI35BN
Availability: In Stock
$186.24
$186.24
Prices do not include GST
Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Download Product Data

Download TDS
Description

Lauxes Grates Tile Insert Plus 35 – Brushed Nickel is a 100mm wide, 35mm deep anodised aluminium tile-insert linear drain for indoor and outdoor tiled drainage. It is designed for tiles and stone finishes up to 20mm thick and supports 40mm, 50mm, 72mm and 80mm waste outlets.

Lauxes manufactures TIP35 Brushed Nickel in 3000mm and 5600mm full lengths. Adheseal currently offers a 1000mm length. The channel can be cut on site to suit the finished installation and the waste outlet positioned to suit the plumbing layout.

Key features

  • 100mm wide x 35mm deep tile-insert profile
  • Suitable for tiles and stone finishes up to 20mm thick
  • Anodised aluminium construction
  • 40mm, 50mm, 72mm and 80mm waste outlet options
  • Can be cut on site to suit the installation
  • Waste outlet can be positioned along the bottom tray
  • Suitable for indoor and outdoor applications
  • UV-stable finish
  • Lifetime rustproof guarantee
Common Questions

What tile thickness suits TIP 35?
Lauxes specifies tile or stone finishes up to 20mm thick.

Which waste outlets suit TIP 35?
40mm, 50mm, 72mm and 80mm.

Can TIP 35 be used indoors and outdoors?
Yes. TIP 35 is suitable for both indoor and outdoor applications.

What is the load rating?
Lauxes technical data rates TIP 35 as Class B with a stated maximum load of 10.2 tons.

Uses & Benefits
Tile Insert Plus 35 is a 100mm wide, 35mm deep anodised aluminium tile-insert linear drain that accepts tile or stone finishes up to 20mm thick and has a roll-out insert for cleaning. Lauxes technical data lists 40mm, 50mm, 72mm and 80mm outlet options and a Class B load rating with a stated maximum load of 10.2 tons.
How To Apply
Use TIP 35 for outdoor tiled drainage where a 35mm-deep tile-insert profile is required for thicker finishes. Form the recess with a template 10 to 20mm wider than the grate, cut the channel to length, drill the outlet position to align with the waste pipe and fit the outlet and end caps with neutral-cure silicone. Install the grate level as the final flooring step, then place the tiled insert.
Limitations and Safety Info
Do not use tile or stone thicker than 20mm. The grate does not form part of the waterproofing system and must not contact wet cement or screed. TIP 35 is suitable for both indoor and outdoor applications.
Suitable Substrates
Tiled floor systems over concrete or screed with a separate waterproofing membrane; fibre-cement sheet floor systems; waterproofing foam-board systems. The grate sits in the prepared recess and is fixed with neutral-cure silicone.

Lauxes Grates Tile Insert Plus 35 Linear Drain Kit – Brushed Nickel Physical Properties

Lauxes Grates Tile Insert Plus 35 Linear Drain Kit – Brushed Nickel Physical Properties
Property Value
Product Name Lauxes Grates Tile Insert Plus 35 – Brushed Nickel
Manufacturer Full Lengths 3000mm, 5600mm
Adheseal Sell Lengths 1000mm
Profile Width 100mm
Profile Depth 35mm
Material Anodised Aluminium
Colour Brushed Nickel
Applications Indoor, Outdoor
Tile Thickness Capacity Up to 20mm
Outlet Sizes 40mm, 50mm, 72mm, 80mm
Cutting Capability Can be cut on site to suit the installation
Waste Outlet Positioning Waste outlet can be positioned along the bottom tray
UV Stability Yes
Rustproof Guarantee Lifetime
