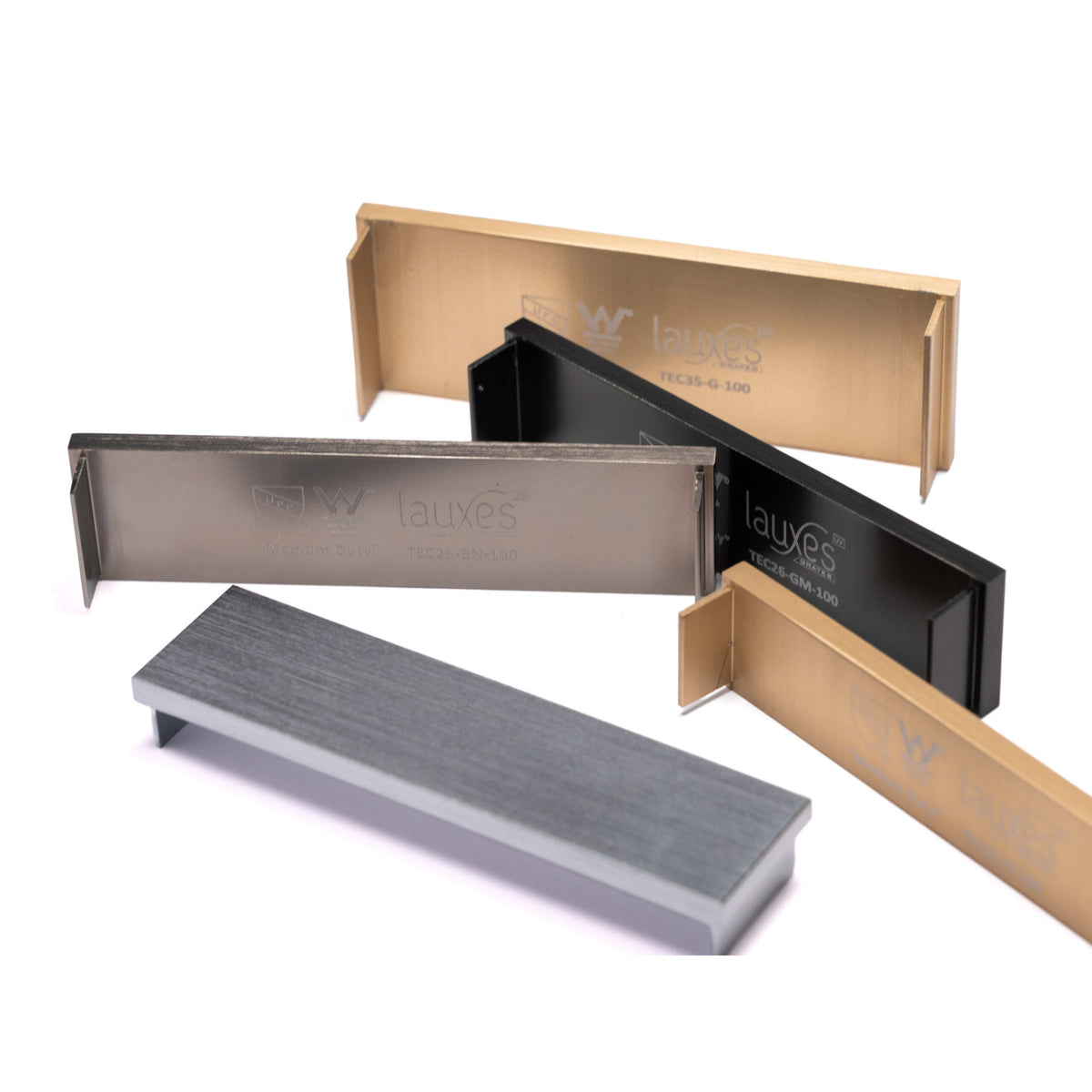

Lauxes Grates Thick End Caps are colour-matched anodised aluminium end caps for compatible Lauxes grate profiles. They are supplied as a pair.
The 2026 Lauxes catalogue includes Thick End Caps across multiple profile depths and finishes. Adheseal currently ranges the 26mm sizes, so this listing is limited to those combinations.
Are Thick End Caps supplied as a pair? Yes. The Lauxes catalogue lists Thick End Caps as pairs.
How much shorter should the tray be cut for Thick End Caps? Lauxes instructs the bottom tray to be cut 10mm shorter than the desired finished length.
Thick End Caps provide a thicker end finish for compatible 100mm-wide Lauxes linear grate profiles and are supplied as a pair. The 2026 catalogue lists 14mm, 21mm, 26mm and 35mm depths in the thick-cap range.
When using Thick End Caps, cut the bottom tray 10mm shorter than the desired finished grate length. Apply neutral-cure silicone to the grate end, insert the caps and seal the outside of the tray, removing excess silicone.
Thick End Caps are not listed for the 70mm-wide Standard Floor Grate. They are finishing components only and must be matched to the compatible grate depth and finish.
Compatible 100mm-wide Lauxes anodised aluminium grate and tile-insert channels.
Lauxes Grates Thick End Caps Physical Properties
| Property | Value |
|---|---|
| Product Type | Thick End Caps (Pair) |
| Material | Anodised aluminium |
| Profile Depth | 26mm |
| ERP-backed Finishes | Silk Silver, Midnight, Gold, Brushed Nickel |
