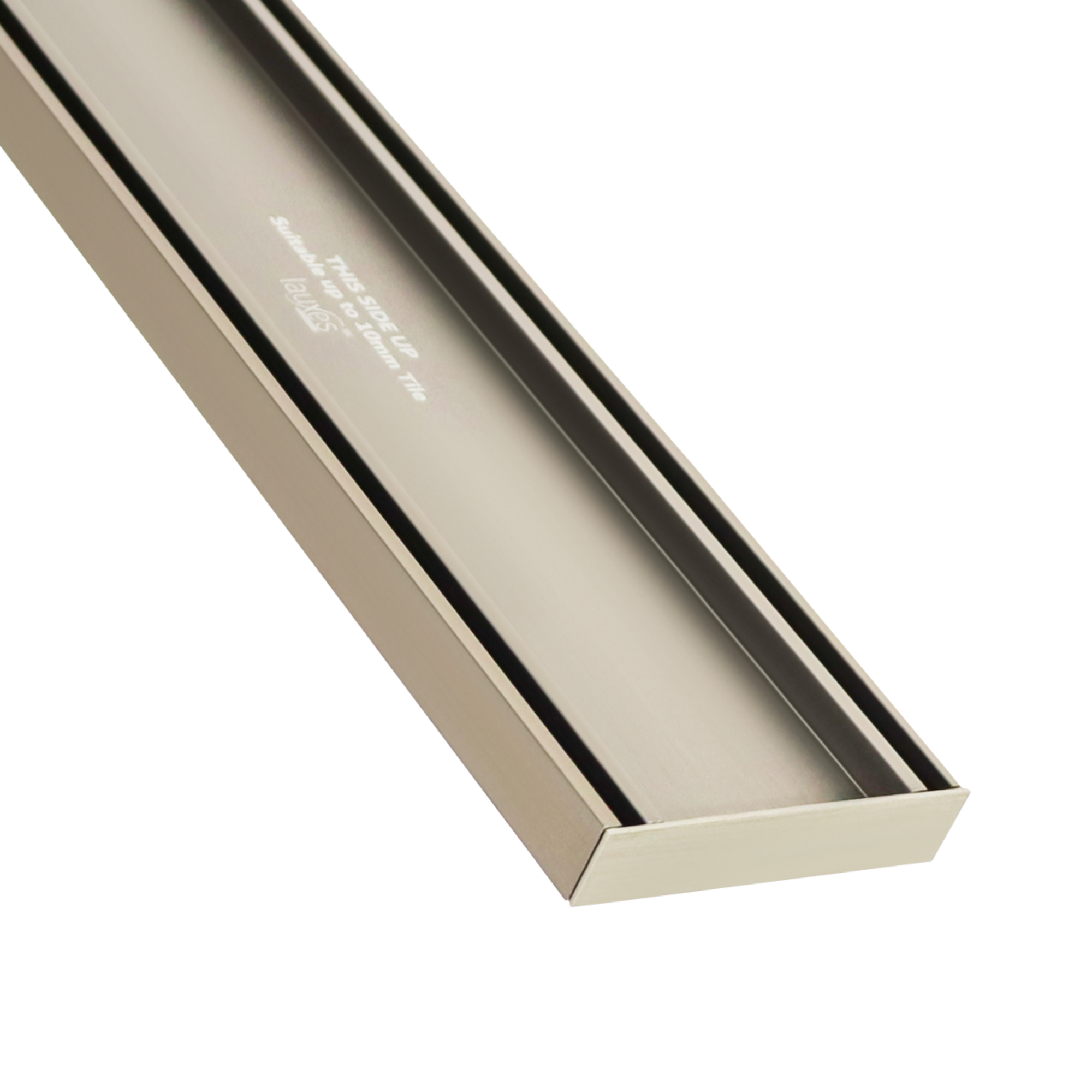

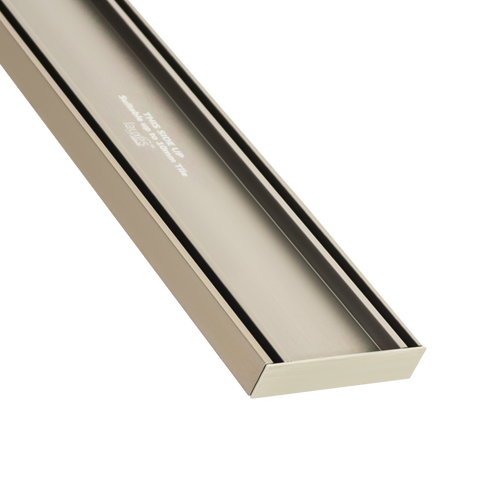

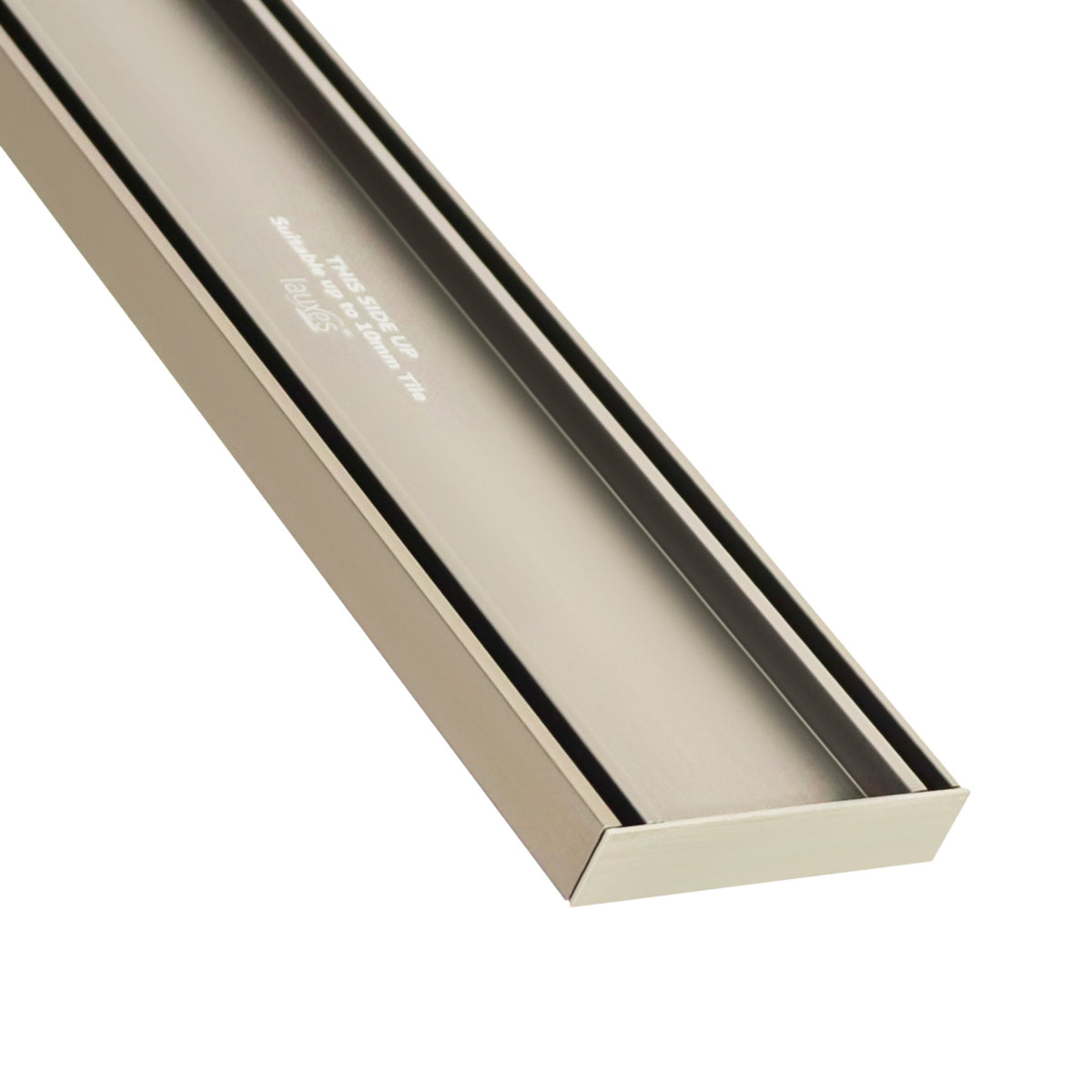

Lauxes Grates Slimline Tile Insert 26 Grate Kit is a professional-grade linear drainage system engineered for anodised aluminium substrate compatibility in waterproofing specialist workflows. This 26mm deep tray accommodates tiles up to 11mm, featuring a roll-out cleaning mechanism and a flexible waste outlet to ensure NCC drainage compliance without relocating existing plumbing.
The UV-stable construction eliminates water tracking beneath the tile bed to prevent hydrostatic pressure and long-term waterproofing membrane failure in high-exposure coastal zones.
Frequently Asked Questions About Lauxes Grate Slimline Tile Insert 26 Grate Kit - 5600mm
Q: Can I cut the Lauxes Tile Insert Grate to fit a custom shower or balcony length?
A: Yes, the grate can be easily trimmed onsite using standard tools such as a mitre saw or multi-tool with a metal blade. This allows exact customisation to suit unique project dimensions with minimal waste.
Q: Will the grate rust or corrode over time in coastal areas?
A: No, the grate is constructed from anodised aluminium with a rustproof finish and is backed by a lifetime rustproof warranty. It’s suitable for use in salt-laden air environments and marine applications.
Q: How do I clean the grate once it's installed?
A: The Lauxes grate features an easy roll-out design. Simply lift or slide out the insert section for full access to the drainage channel, allowing quick and tool-free cleaning.
Q: Can this grate be used with all types of waterproofing membranes?
A: Yes, the anodised aluminium base tray is compatible with most common waterproofing systems. Always consult your membrane supplier for specific sealing requirements around the perimeter.
Q: Is it suitable for outdoor use in full sun exposure?
A: Absolutely. The UV-stabilised colour finish protects against fading and damage, even in harsh Australian sun conditions. It carries a 25-year fade warranty for peace of mind.
UseLauxes Grates Slimline Tile Insert 26 Grate Kit for:
- Flush-floor drainage in tiled showers and wet rooms
- Outdoor patios, balconies, and alfresco areas with weather exposure
- Poolside or spa areas where corrosion and slip resistance are important
- Commercial bathrooms and hotel fitouts requiring visual consistency and durability
Why Use Lauxes Grates Slimline Tile Insert 26 Grate Kit:
- Eliminates water tracking beneath tiles — protects membranes and prevents failures
- Custom outlet placement reduces plumbing rework — perfect for renovations
- Fade and corrosion resistant — perfect for Australia’s harsh UV and salt conditions
- Tool-free maintenance — fast roll-out access keeps cleaning time low
How to apply Lauxes Grates Slimline Tile Insert 26 Grate Kit:
- Measure and mark the desired length of the grate using a tape measure.
- Cut to size onsite with a mitre saw or oscillating multi-tool fitted with a metal blade. Use masking tape to protect the finish.
- Place grate into tile bed or pre-leveled channel. Ensure it sits flush with tile height for seamless drainage.
- Install waste outlet anywhere along the base tray, aligning with existing plumbing and securing per plumber’s instructions.
- If sealing is required, apply compatible silicone sealant around perimeter edges and allow to cure as per manufacturer’s specs.
- After tiling, lift the insert section to clean any construction debris. Reseat insert when complete.
Lauxes Grates Slimline Tile Insert 26 Grate Kit limitations:
- Not suitable for vinyl, timber, or epoxy-coated floors without tiles
- Requires appropriate support under tiled surfaces to maintain flush installation
- May require plumber coordination for outlet positioning in tight or slab-restricted spaces
Safety precautions when usingLauxes Grates Slimline Tile Insert 26 Grate Kit:
- Personal Protective Equipment: Wear gloves and safety goggles when cutting aluminium components
- Ventilation: Ensure proper ventilation if using adhesives or sealants during installation
- Handling: Avoid dropping or bending the grate—anodised coating can be scratched with sharp impacts
- First Aid: Treat cuts from sharp aluminium edges promptly; rinse with clean water and apply dressing
Lauxes Grates Slimline Tile Insert 26 Grate Kit can be used on the following substrates:
- tiles (ceramic, porcelain, natural stone)
- concrete screeds and preformed shower bases
- waterproofing membranes
- adhesive beds and thinset mortars
- grout and joint fillers
Lauxes Grates Slimline Tile Insert 26 Grate Kit Physical Properties
| Property | Value |
|---|---|
| Measurements | 5600 mm x 100 mm x 26 mm (220.47 in x 3.94 in x 1.02 in) |
| Tile Thickness Compatibility | Up to 11 mm (0.43 in) |

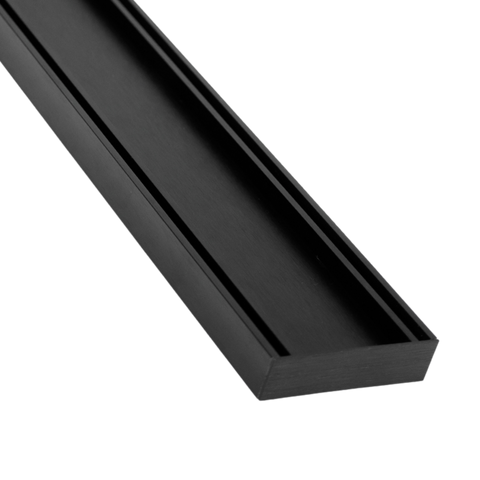

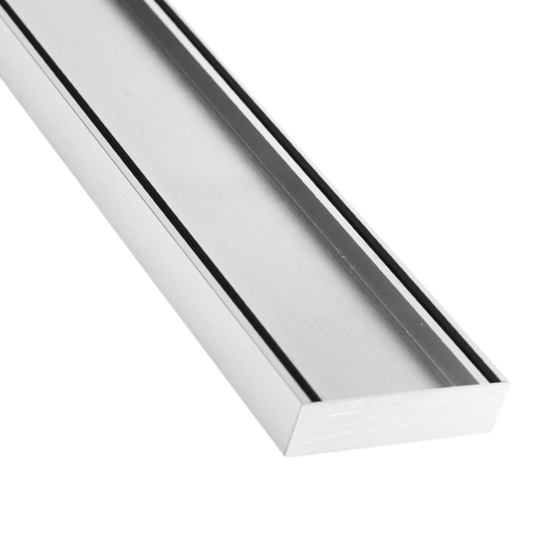

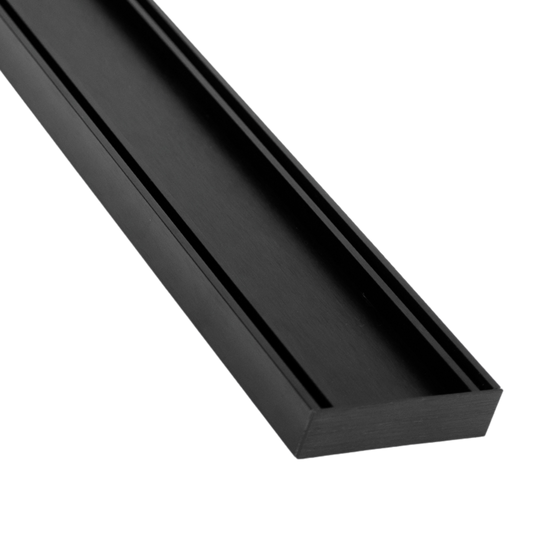

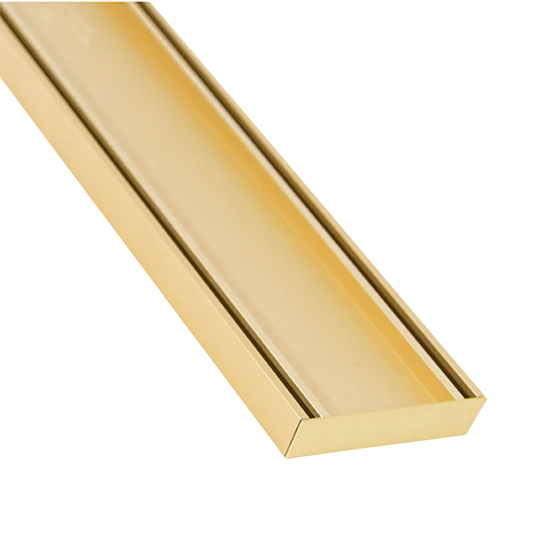

| Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| UV Stability | Yes |
| Rustproof Warranty | Lifetime |
| Fade Warranty | 25 Years |
| Material Joinability | Extendable using Lauxes joiners |
| Cleaning System | Easy roll out system |
| Water Tracking | None |
| Cutting Capability | Can be cut onsite |
| Outlet Placement | Waste outlet can be positioned anywhere along the bottom tray |
| Coverage Rate | Supplied in standard 1 metre and 5.6 metre lengths; extendable |
