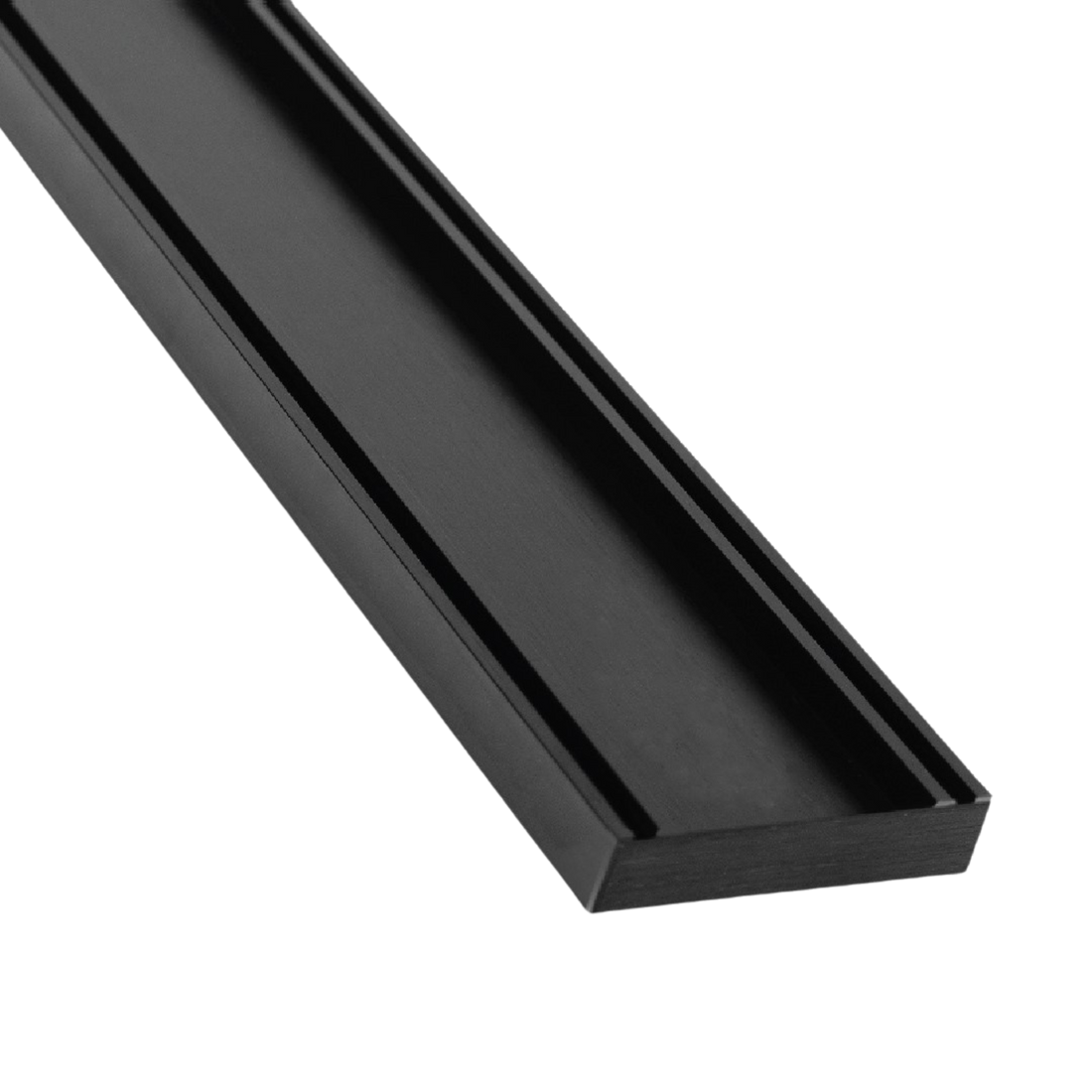

Lauxes Grates Slimline Tile Insert 21 Midnight anodised aluminium linear drain
Lauxes Grates Slimline Tile Insert 21 Midnight anodised aluminium linear drain

Lauxes Grates Slimline Tile Insert 21 Linear Drain Kit – Midnight

100mm wide, 21mm deep anodised aluminium tile-insert linear drain for tiles up to 10mm thick, with 72mm or 80mm waste outlet options and a Class B load rating.

Vendor: Lauxes Grates
SKU: LUXTI21MB/1000
Availability: Out Of Stock
$374.30
$374.30
Prices do not include GST
Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Description

Lauxes Grates Slimline Tile Insert 21 – Midnight is a 100mm wide, 21mm deep anodised aluminium tile-insert linear drain designed to create a discreet tiled finish in indoor and outdoor wet areas. It accepts tiles up to 10mm thick and uses 72mm or 80mm waste outlets.

Lauxes manufactures STI21 in 3000mm and 5600mm full lengths for Midnight. Adheseal currently offers 1000mm and 3000mm sell lengths, with the grate cuttable on site to suit the finished installation and the waste outlet positioned to suit the plumbing layout.

Key features

  • 100mm wide x 21mm deep slimline tile-insert profile
  • Suitable for tiles up to 10mm thick
  • Anodised aluminium construction
  • 72mm and 80mm waste outlet options
  • Can be cut on site to suit the installation
  • Waste outlet can be positioned along the bottom tray
  • Suitable for indoor and outdoor applications
  • Lifetime rustproof warranty
Common Questions

What tile thickness suits STI 21?
Lauxes specifies tiles up to 10mm thick.

Which waste outlets suit STI 21?
72mm and 80mm.

Can STI 21 be cut to length onsite?
Yes. Lauxes states its grates can be cut, joined and adjusted onsite.

What is the load rating?
Lauxes rates STI 21 as Class B with a stated maximum load of 10.2 tons.

Uses & Benefits
Slimline Tile Insert 21 is a 100mm wide, 21mm deep anodised aluminium tile-insert linear drain that accepts tiles up to 10mm thick and has a roll-out insert for cleaning. Lauxes rates STI 21 as Class B with a stated maximum load of 10.2 tons and specifies 72mm and 80mm waste outlets.
How To Apply
Use STI 21 for indoor or outdoor tiled drainage where a 21mm-deep tile-insert profile is required. Form the recess with a template 10 to 20mm wider than the grate, cut the channel to length, drill the outlet position to align with the waste pipe and fit the outlet and end caps with neutral-cure silicone. Install the grate level as the final flooring step, then place the tiled insert.
Limitations and Safety Info
Do not use tile thicker than 10mm, and do not use 40mm or 50mm waste outlets with STI 21; Lauxes specifies 72mm and 80mm outlets. The grate does not form part of the waterproofing system and must not contact wet cement or screed. Install after waterproofing, tiling and grouting with neutral-cure silicone.
Suitable Substrates
Tiled floor systems over concrete or screed with a separate waterproofing membrane; fibre-cement sheet floor systems; waterproofing foam-board systems. The grate sits in the prepared recess and is fixed with neutral-cure silicone.

Lauxes Grates Slimline Tile Insert 21 Linear Drain Kit – Midnight Physical Properties

Lauxes Grates Slimline Tile Insert 21 Linear Drain Kit – Midnight Physical Properties
Property Value
Product Name Lauxes Grates Slimline Tile Insert 21 – Midnight
Manufacturer Full Lengths 3000mm, 5600mm
Adheseal Sell Lengths 1000mm, 3000mm
Profile Width 100mm
Profile Depth 21mm
Material Anodised Aluminium
Colour Midnight
Applications Indoor, Outdoor
Tile Thickness Capacity Up to 10mm
Outlet Sizes 72mm, 80mm
Cutting Capability Can be cut on site to suit the installation
Waste Outlet Positioning Waste outlet can be positioned along the bottom tray
Cleaning Access Tile-insert top can be removed for cleaning
Warranty Lifetime rustproof warranty; 25-year UV stability warranty
