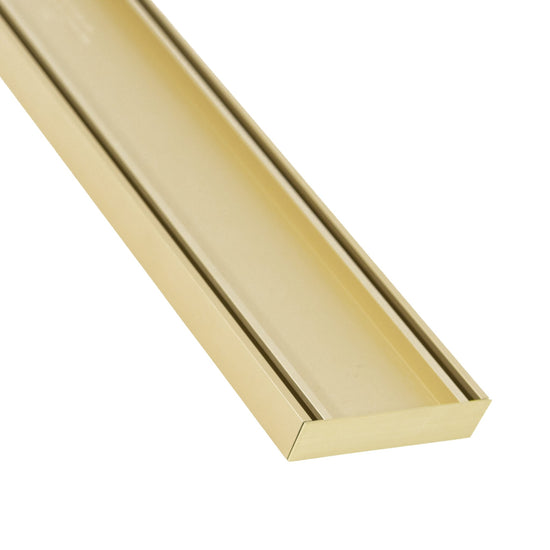

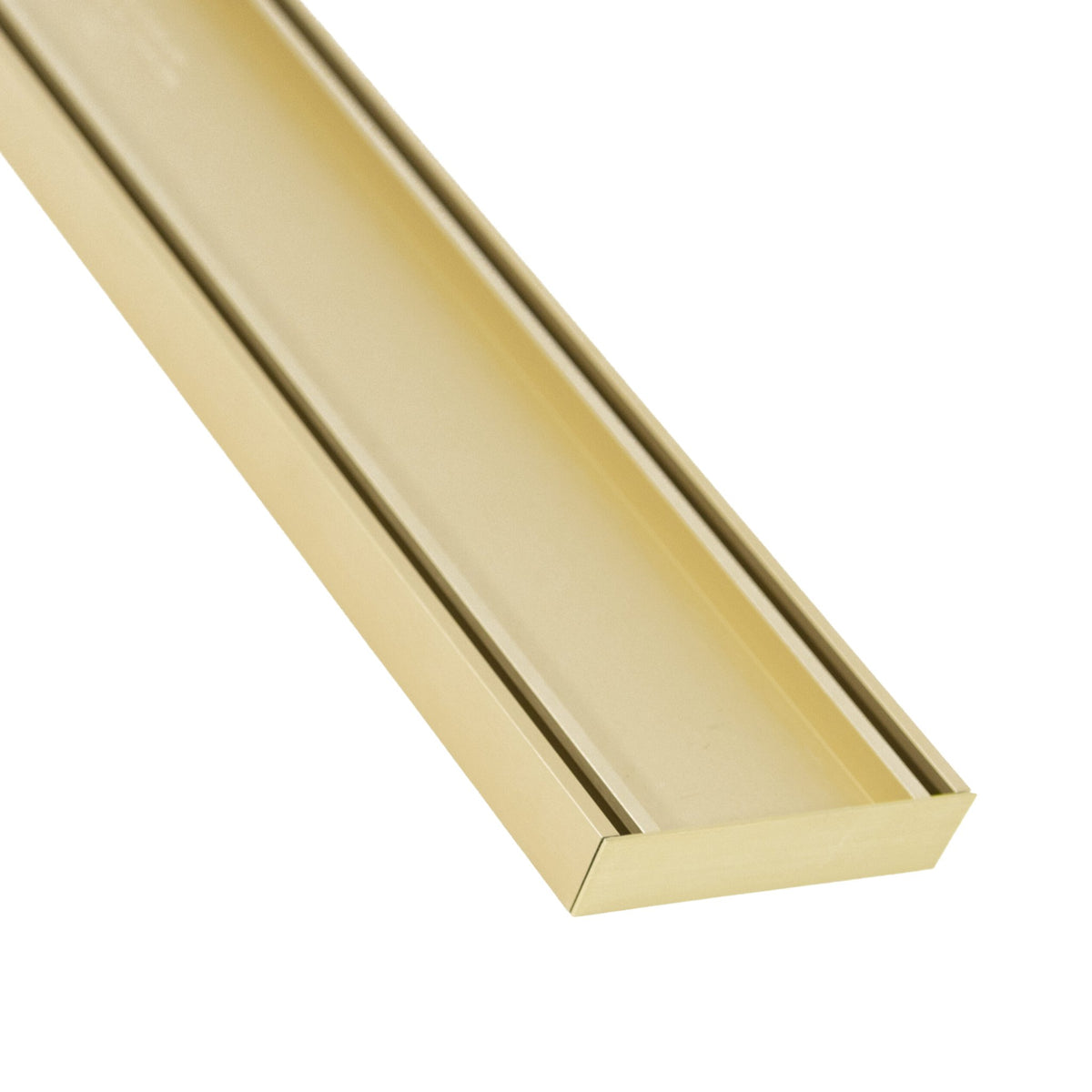

Lauxes Grates Slimline Tile Insert 21 – Gold is a 100mm wide, 21mm deep anodised aluminium tile-insert linear drain designed to create a discreet tiled finish in indoor and outdoor wet areas. It accepts tiles up to 10mm thick and uses 72mm or 80mm waste outlets.
Lauxes manufactures STI21 in 3000mm and 5600mm full lengths for Gold. Adheseal currently offers 1000mm and 3000mm sell lengths, with the grate cuttable on site to suit the finished installation and the waste outlet positioned to suit the plumbing layout.
Key features
- 100mm wide x 21mm deep slimline tile-insert profile
- Suitable for tiles up to 10mm thick
- Anodised aluminium construction
- 72mm and 80mm waste outlet options
- Can be cut on site to suit the installation
- Waste outlet can be positioned along the bottom tray
- Suitable for indoor and outdoor applications
- Lifetime rustproof warranty
Frequently Asked Questions About Lauxes Slimline Tile Insert 21 – Gold
Q: What tile thickness suits STI21?
A: Lauxes specifies tiles up to 10mm thick for Slimline Tile Insert 21.
Q: Which waste outlet sizes are supported?
A: The current STI21 specification supports 72mm and 80mm waste outlets.
Q: Can the grate be cut to length on site?
A: Yes. Lauxes designs the grate to be cut on site to suit the finished installation.
Q: What lengths are available in Gold?
A: Lauxes manufactures 3000mm and 5600mm full lengths. Adheseal currently offers 1000mm, 3000mm for this colour.
Q: Does the grate form part of the waterproofing?
A: No. Lauxes states that the grate does not form part of the waterproofing system and should be installed after waterproofing, tiling and grouting.
Installing Lauxes Slimline Tile Insert 21 – Gold
- Complete the waterproofing, tiling and grouting before installing the grate. The grate does not form part of the waterproofing system.
- Use a template or spacer to form the provision during screeding or concreting. Do not allow the grate to contact wet cement or screed.
- Measure and cut the grate to the required finished length, then drill the waste opening at the required position using a suitable Lauxes hole saw.
- Fit the waste outlet and end caps using neutral-cure silicone.
- Install the grate as the final flooring step using neutral-cure silicone, ensure it is level and clean any building material from the anodised surface before it dries.
Suitable installation backgrounds for Lauxes Slimline Tile Insert 21 – Gold
- Concrete floor constructions with a separately installed waterproofing system
- Screeded tiled wet-area floors with a separately installed waterproofing system
- Fibre-cement sheet floor constructions where the specified waterproofing and tiling system is suitable
The grate itself does not form part of the waterproofing system.
Lauxes Grates Slimline Tile Insert 21 Linear Drain Kit – Gold Physical Properties
| Property | Value |
|---|---|
| Product Name | Lauxes Grates Slimline Tile Insert 21 – Gold |
| Manufacturer Full Lengths | 3000mm, 5600mm |
| Adheseal Sell Lengths | 1000mm, 3000mm |
| Profile Width | 100mm |
| Profile Depth | 21mm |
| Material | Anodised Aluminium |
| Colour | Gold |
| Applications | Indoor, Outdoor |
| Tile Thickness Capacity | Up to 10mm |
| Outlet Sizes | 72mm, 80mm |
| Cutting Capability | Can be cut on site to suit the installation |
| Waste Outlet Positioning | Waste outlet can be positioned along the bottom tray |
| Cleaning Access | Tile-insert top can be removed for cleaning |
| Warranty | Lifetime rustproof warranty; 25-year UV stability warranty |
