Attention: This product is special order only, delivery of product can take an estimated 1 week or more. Please contact us directly for more information.
Use Lauxes Grates Slimline Tile Insert 21 Grate Kit for: Low-clearance bathroom builds, seamless indoor/outdoor transitions, and custom tile drainage solutions.

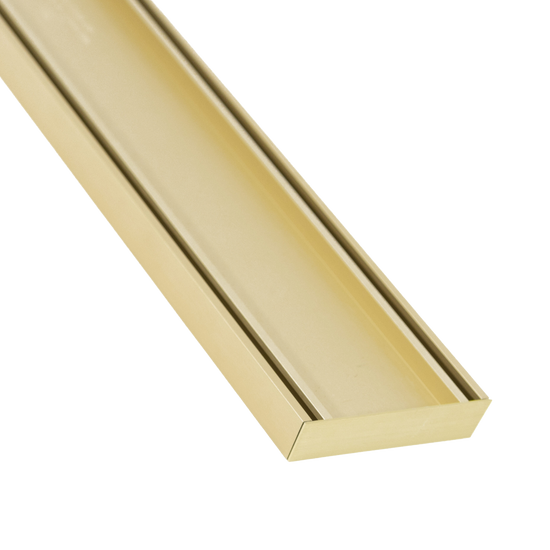

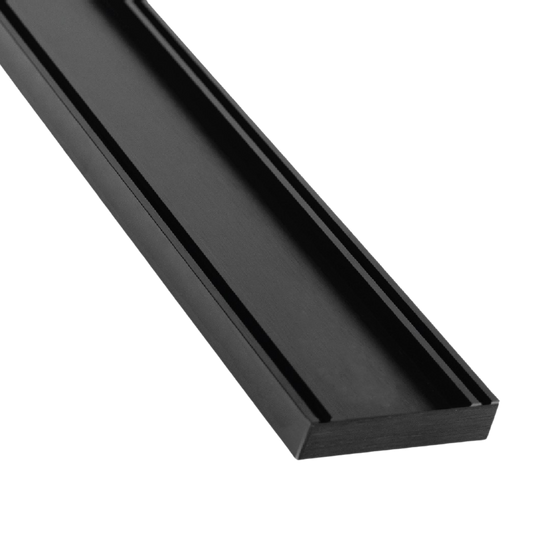

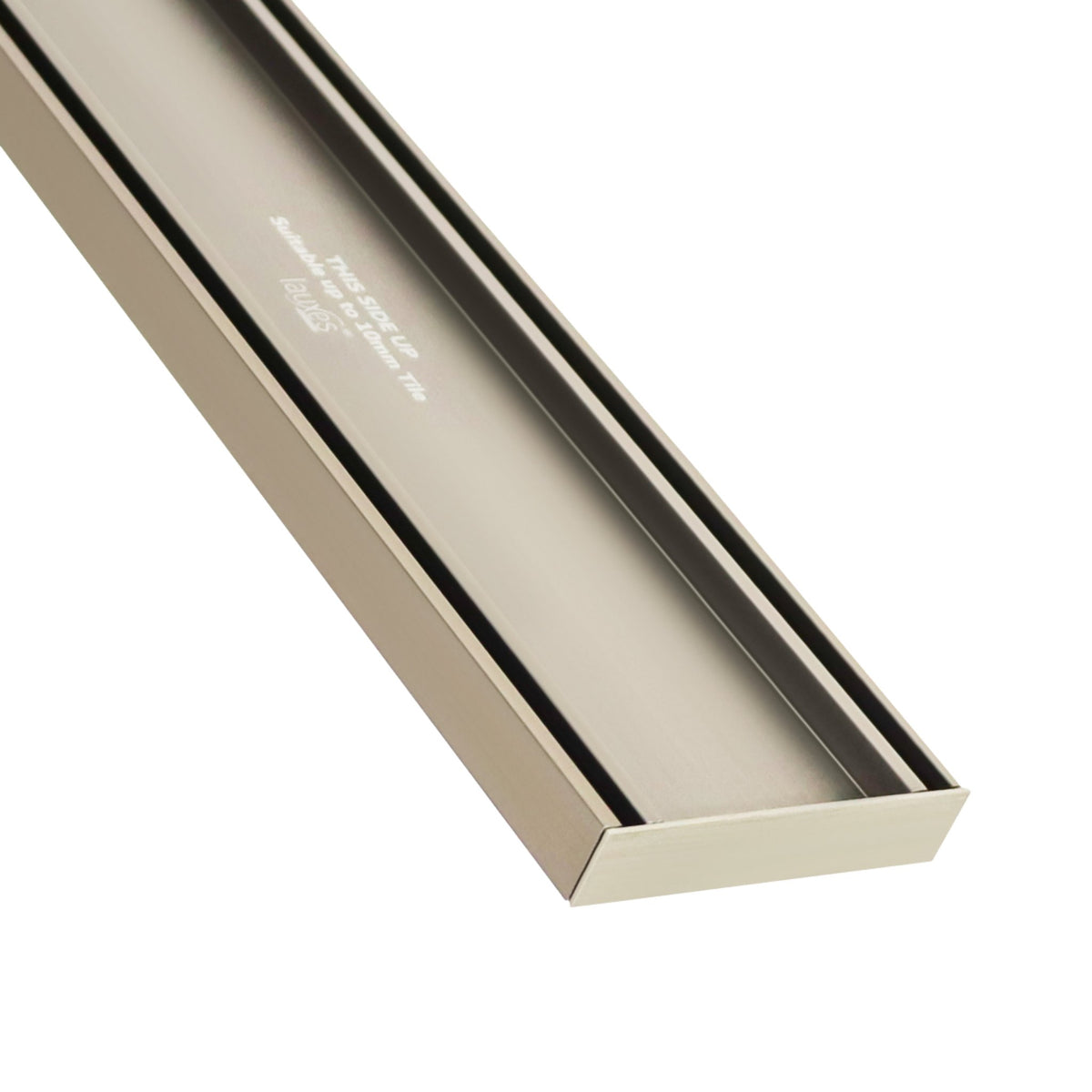

Engineered as the world’s thinnest tile insert grate at just 21mm in height, the Lauxes Slimline Tile Insert 21 Grate Kit is a precision drainage solution ideal for renovations and builds with minimal floor depth. Made from durable anodised aluminium and backed by a lifetime rustproof warranty, it offers exceptional corrosion and UV resistance for indoor and outdoor use. The grate holds tiles up to 10mm thick and features an easy roll out cleaning system, making it practical and user-friendly for installers and property owners alike.
Primer Information: Not applicable – mechanical installation with tile compatibility eliminates need for chemical priming.
Cure Time: N/A – mechanical installation (not a sealant).
Coverage Rate: Supplied in 1m or 3m lengths. Can be extended using Lauxes joiners or easily cut onsite to minimise waste and suit custom dimensions.
Application Temperature Range: Suitable for use in all Australian climate zones including tropical, coastal, and arid conditions.
Chemical Properties: Anodised aluminium with UV stable coating – corrosion resistant, suitable for use near saltwater environments.
Key Features of Lauxes Grates Slimline Tile Insert 21 Grate Kit
- Ultra-thin 21mm height – perfect for builds with limited floor depth or fall requirements
- Easy onsite customisation – cuts cleanly to size and allows repositioning of waste outlet anywhere along the tray
- UV stable and rustproof – designed for Australian indoor and outdoor environments
- Includes 1 pop wastes and 2 end caps Per 1000mm– saves time sourcing compatible fittings
Why Choose Lauxes Grates Slimline Tile Insert 21 Grate Kit:
- Optimised for renovations and floor height constraints
- Australian-designed with superior resistance to UV and corrosion

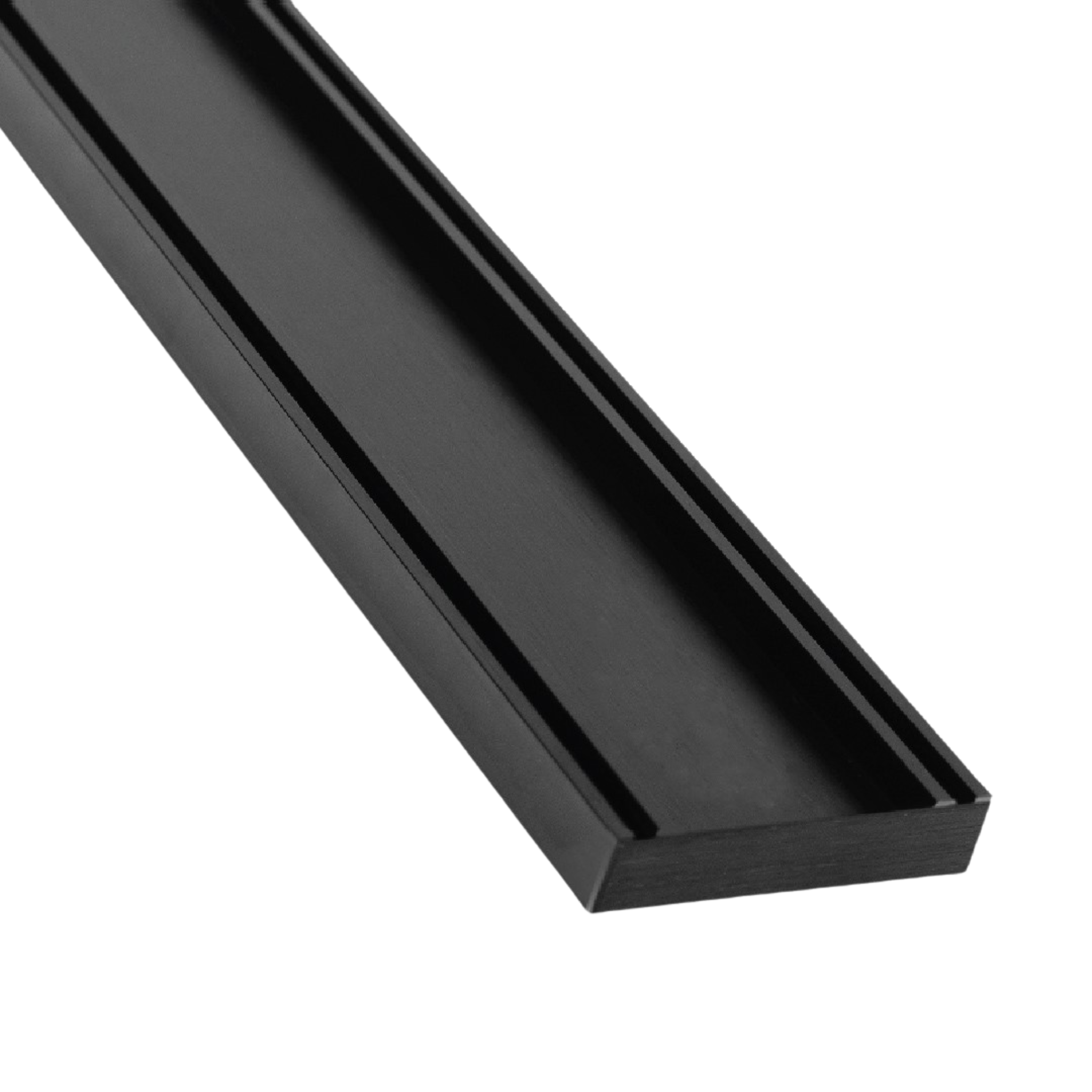

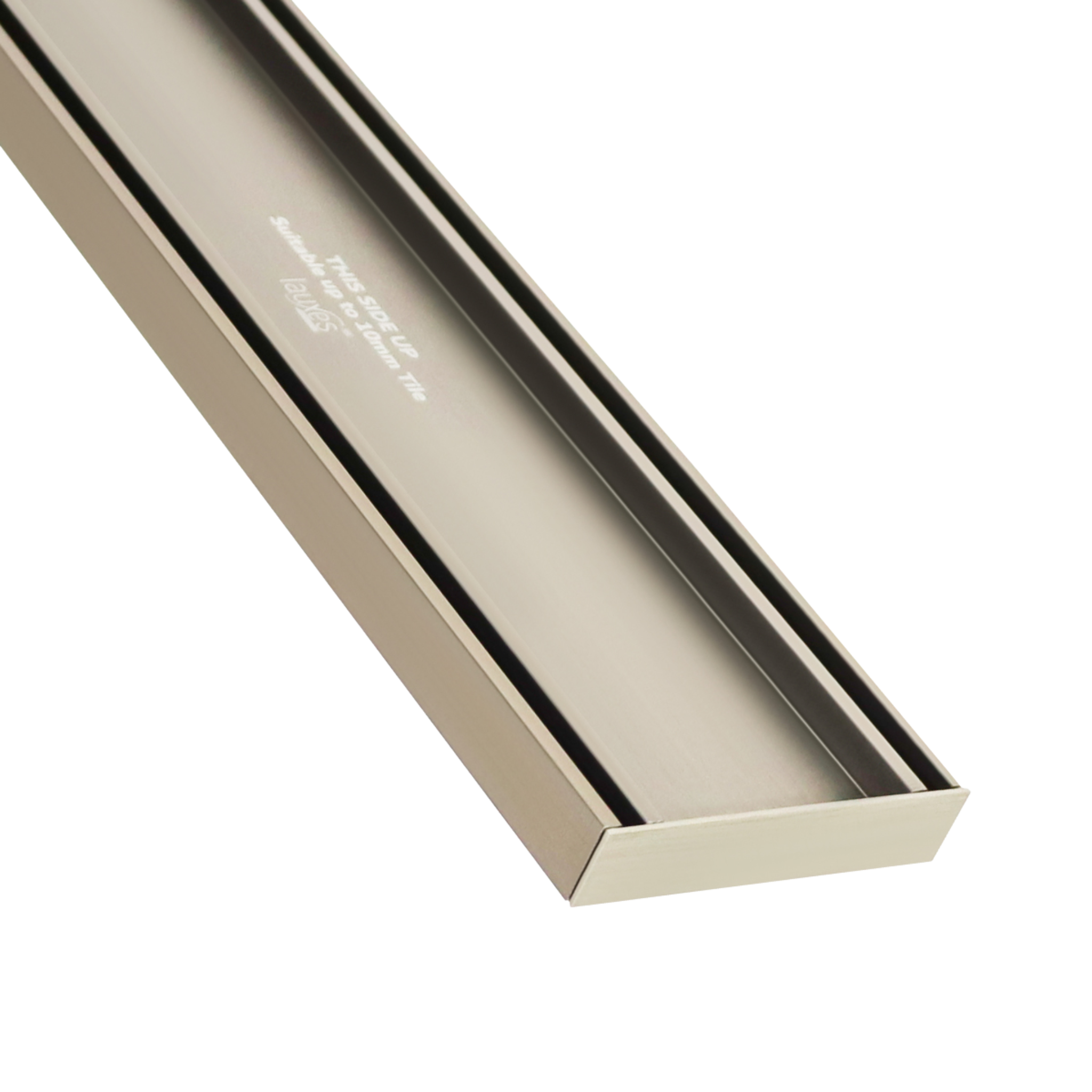

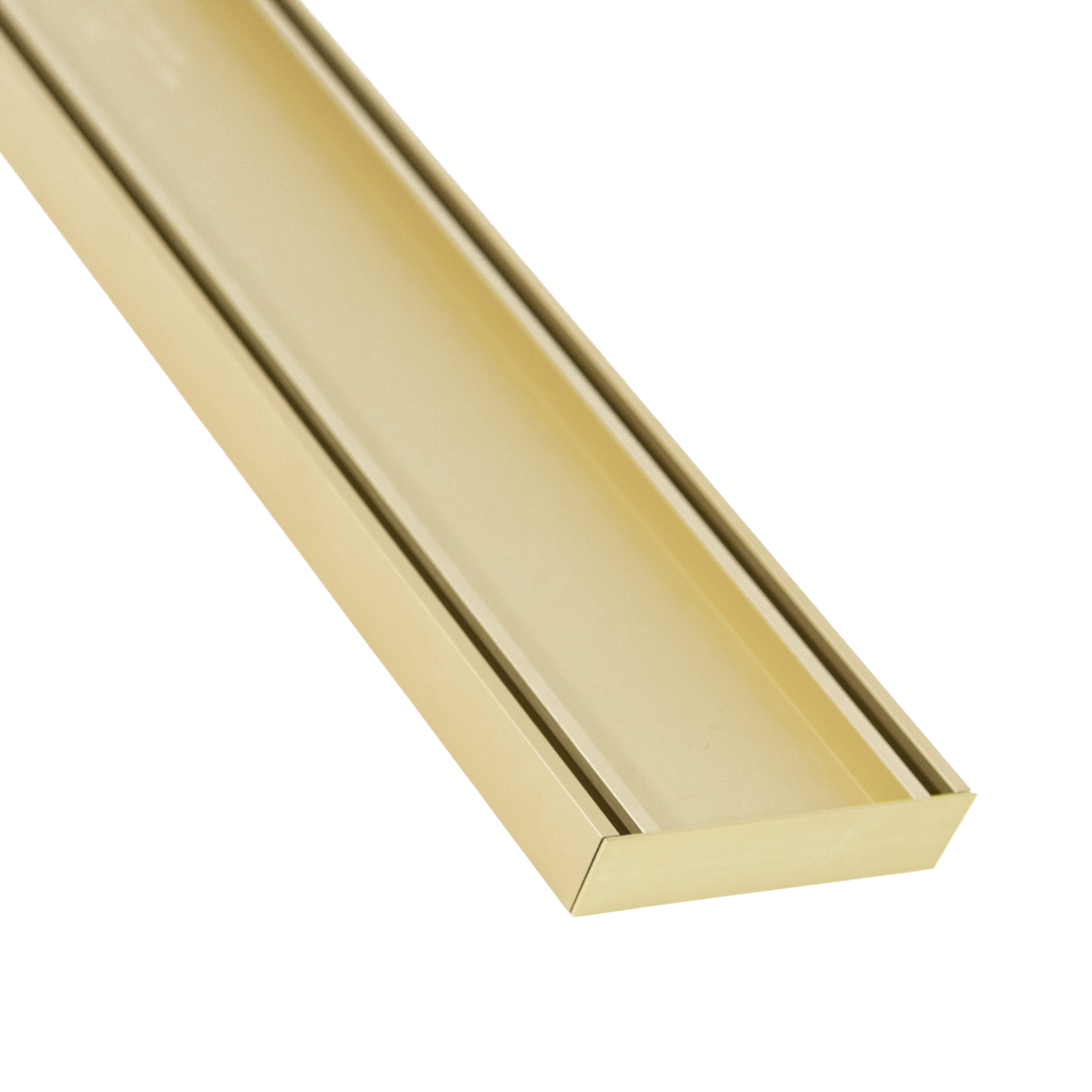

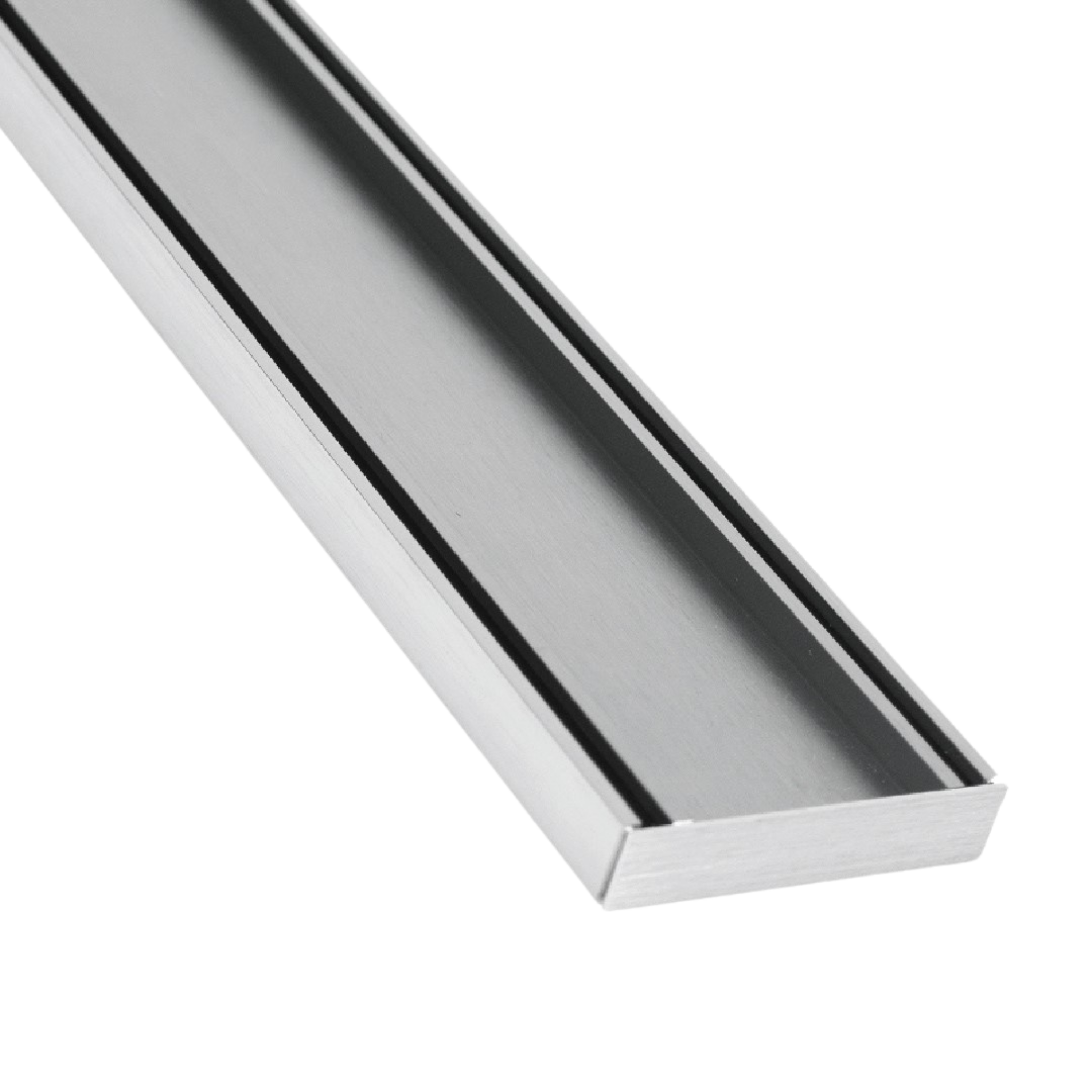

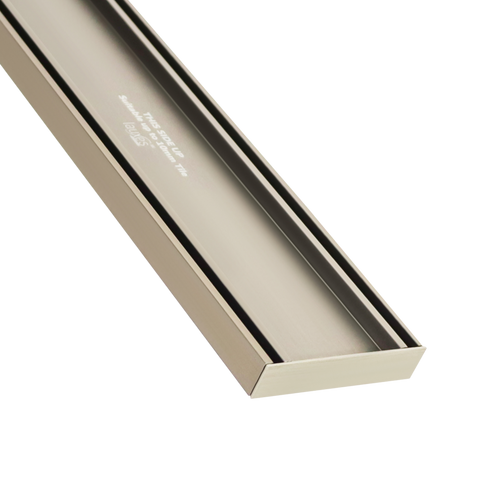

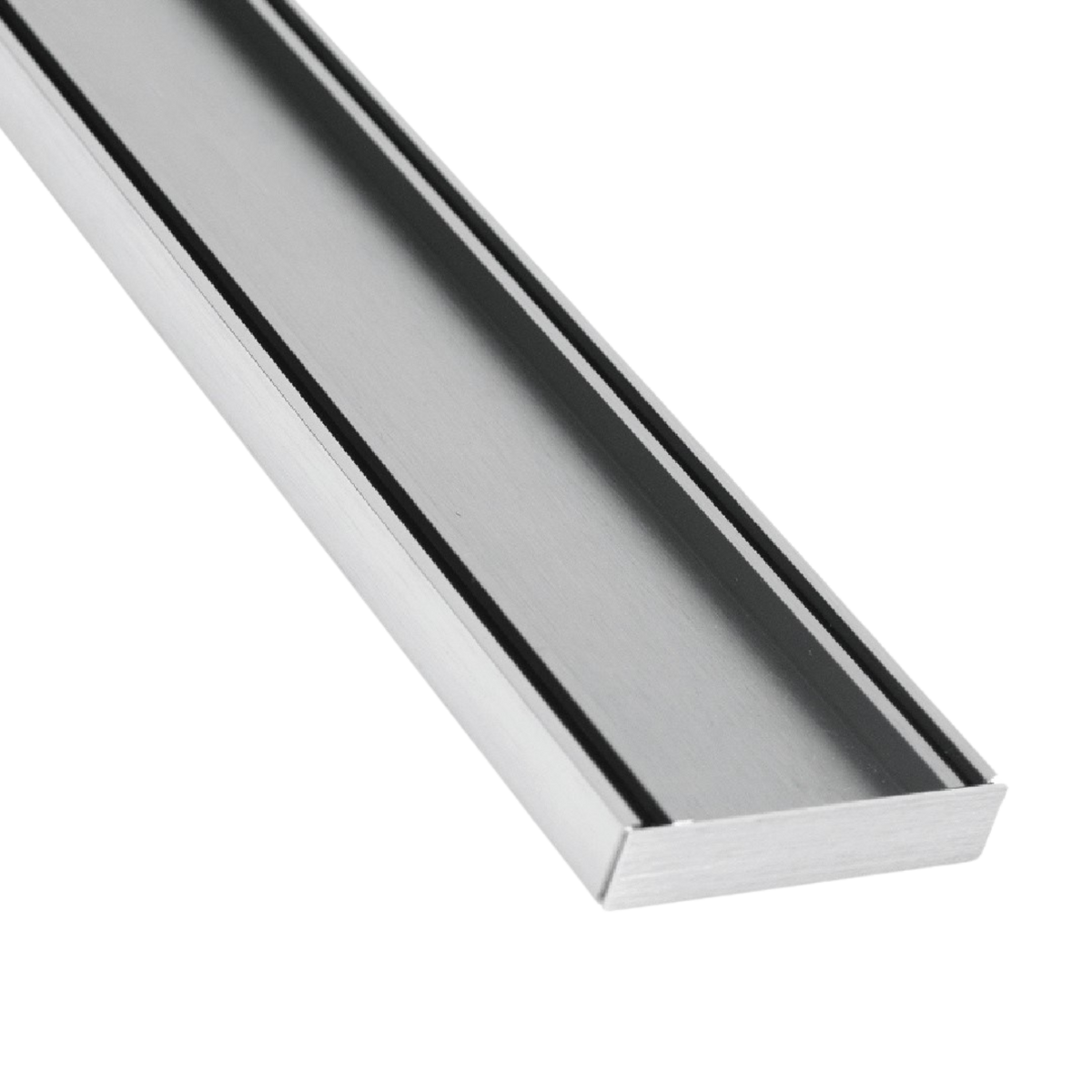

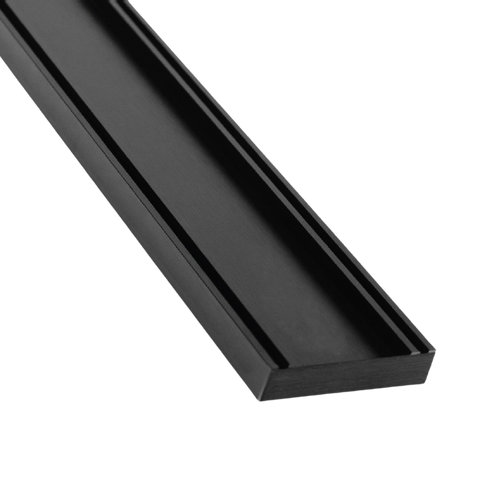

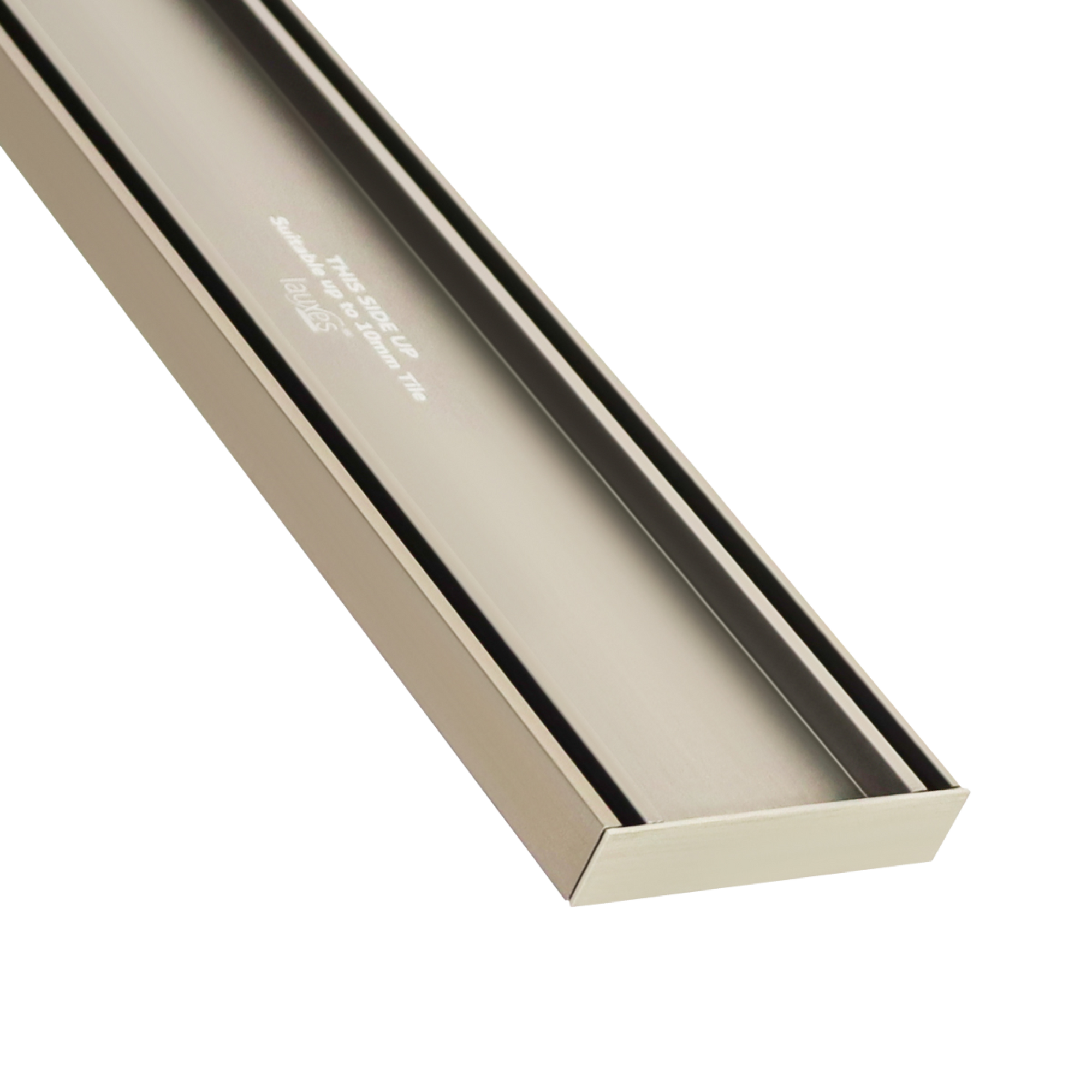

- Supports seamless aesthetic finish with four finish options
- Flexible drainage layout – no fixed outlet limitations
When to Choose Lauxes Grates Slimline Tile Insert 21 Grate Kit versus Alternatives:
- Choose Lauxes Slimline Tile Insert 21 over standard grates when: Floor height is limited and a flush tile insert appearance is required.
- Consider other options when: Tiles exceed 10mm in thickness or in industrial heavy-duty traffic areas where reinforced options are needed.
Trade-Specific Applications for Lauxes Grates Slimline Tile Insert 21 Grate Kit:
For Builders and Carpenters:
- Achieve fall requirements in shallow slab or renovation conditions
- Quick cut-to-length customisation onsite saves time during fit-off
- Provides sleek flush finish for high-end residential and commercial builds
For Tilers and Waterproofers:
- Accepts tile inlays up to 10mm for continuity of floor design
- Compatible with waterproofing membranes under tiled floors
- UV resistance prevents long-term discoloration near shower or wet zones
Application Information
- Required Tools: Aluminium cutting saw, screwdrivers, silicone for sealing ends if needed
- Trade-Specific Tips: Place pop waste close to fall point for optimal drainage. Dry-fit with tile samples to check compatibility
- Common Issues and Solutions: If water pooling occurs, verify level installation and adequate fall toward the outlet
Storage and Shelf Life
- Storage Requirements: Store in dry, covered location away from corrosive materials
- Shelf Life Information: Indefinite under dry storage
- Temperature Considerations: No sensitivity to temperature – suitable for all Australian regions
Certifications and Compliance
- Complies with Australian drainage code requirements
- UV tested for long-term exposure stability
- Backed by Lifetime Rustproof Warranty
Frequently Asked Questions About Lauxes Grates Slimline Tile Insert 21 Grate Kit
Q: Can I cut this grate to a custom length onsite?
A: Yes. The grate is designed to be easily cut onsite using an aluminium saw, allowing custom lengths with minimal wastage—ideal for bathrooms and balconies.
Q: What thickness tile can fit into the insert?
A: The Slimline Tile Insert 21 Grate is suitable for tiles up to 10mm thick, making it compatible with most standard ceramic, porcelain, and stone tiles.
Q: Is this product suitable for outdoor use in coastal areas?
A: Absolutely. Made from anodised aluminium and UV stable, it is corrosion-resistant and ideal for salt-exposed environments like coastal homes and resorts.
Q: Where can the waste outlet be placed?
A: You can position the waste outlet anywhere along the bottom tray for ultimate flexibility during installation—perfect for retrofits or precise layouts.
Q: Do I need to buy accessories separately?
A: No. Each kit includes 1 pop wastes and 2 end caps Per 1000mm, saving you time and hassle during installation.
Use Lauxes Grates Slimline Tile Insert 21 Grate Kit for:
- Bathroom renovations with minimal screed depth and precise tile matching
- Balcony and patio drainage in apartments, townhouses, and mixed-use buildings
- Showers and wet areas where a sleek, concealed drainage finish is desired
- Outdoor kitchens and alfresco areas requiring UV and corrosion-resistant drainage
- Pool surrounds where water runoff must be managed without visible grates
- Seamless indoor-to-outdoor tile continuation with integrated drainage
Why Use Lauxes Grates Slimline Tile Insert 21 Grate Kit for:
- Low-height installs: At just 21mm thick, it’s ideal for tight slab pours and retrofits
- Custom layouts: Cut onsite and reposition waste outlets for exact layout fit
- Durability in harsh climates: UV stable and corrosion-resistant aluminium performs in hot, coastal, or humid regions
- Faster installs: Kit includes 2 pop wastes and 3 end caps—no extra parts sourcing needed
- Improved aesthetics: Tile insert allows seamless integration for a luxury finish
- Trade flexibility: Suitable for plumbers, tilers, builders and waterproofers across residential and commercial jobs
How to apply Lauxes Grates Slimline Tile Insert 21 Grate Kit:
- Measure required length and cut grate using aluminium saw
- Insert pop waste fitting in desired tray location
- Position grate tray over fall area in screed or slab
- Install waterproof membrane ensuring coverage beneath grate
- Lay tiles into insert tray with adhesive; allow curing before water exposure
Lauxes Grates Slimline Tile Insert 21 Grate Kit limitations:
- Not suitable for tile inserts over 10mm thick – consider alternative grates
- Not designed for heavy vehicular or industrial load-bearing areas
Safety precautions when using Lauxes Grates Slimline Tile Insert 21 Grate Kit:
- Personal Protective Equipment: Wear safety goggles and gloves when cutting aluminium
- Ventilation: Use dust extraction or work outdoors when cutting
- Handling: Avoid sharp edges on freshly cut sections
- First Aid: Treat any cuts from edges with antiseptic and bandage; seek medical attention if needed
Lauxes Grates Slimline Tile Insert 21 Grate Kit can be used on the following substrates:
- tile – up to 10mm, ideal for ceramic and porcelain tiles
- concrete – typically under screed in wet areas
- screed – compatible for fall formation below tiled surfaces
- waterproofing membrane – ensure membrane runs up edge before tile is installed
- cement board – common in balcony or bathroom builds
- stone – ensure 10mm or less thickness
