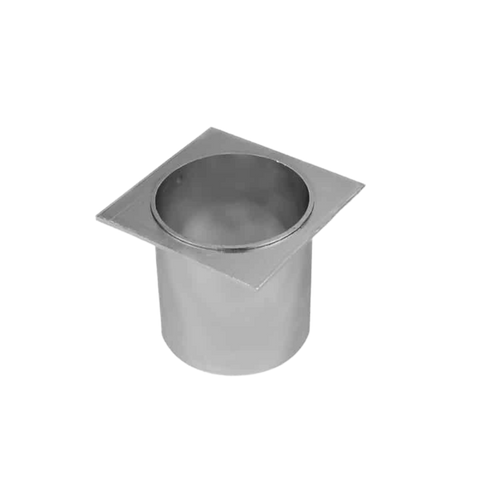

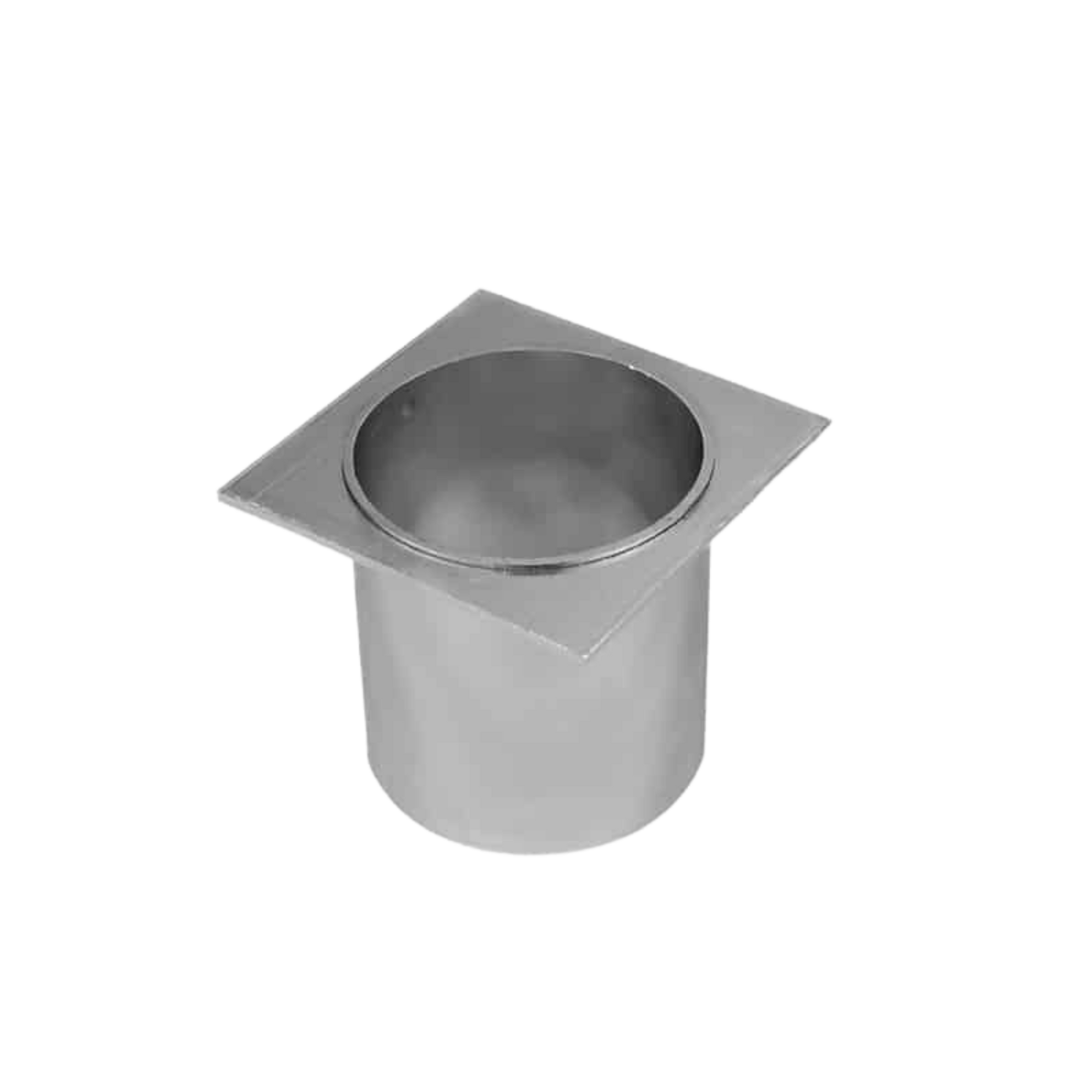

Lauxes Grates anodised aluminium pop waste outlet

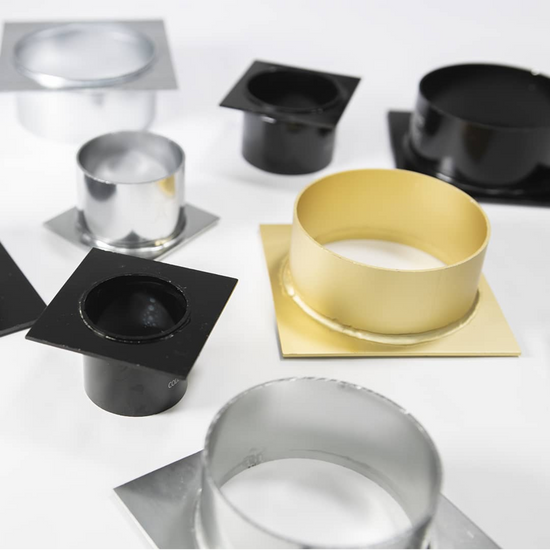

Lauxes Grates pop waste outlets in anodised aluminium finishes
Lauxes Grates anodised aluminium pop waste outlet
Lauxes Grates pop waste outlets in anodised aluminium finishes

Lauxes Grates Waste Outlets

Anodised aluminium Lauxes waste outlets in 40mm, 50mm, 72mm and 80mm sizes for connecting compatible grate trays to drainage pipework.

Vendor: Lauxes Grates
SKU: LUXOUT80SIL
Availability: In Stock
$11.67
$11.67
Prices do not include GST
Guaranteed safe checkout
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Secure SSL encrypted checkout
  • Fast, tracked shipping
  • Easy returns & support
Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Description

Lauxes Grates Waste Outlets are colour-matched outlet fittings for Lauxes linear drainage systems.

The current Lauxes catalogue lists waste outlets in 40mm, 50mm, 72mm and 80mm sizes, with Silver, Midnight, Gold, Brushed Nickel, Gunmetal and Copper manufacturer finish options. Adheseal's selectable variants are the sizes and finishes currently ranged.

Outlet sizes

  • 40mm
  • 50mm
  • 72mm
  • 80mm

Choose the outlet size required for the drainage installation and match the finish to the grate where available.

Common Questions

What waste outlet sizes are available?
40mm, 50mm, 72mm and 80mm.

Can the outlet position be moved along the grate?
Yes. Lauxes instructs installers to drill the waste opening at the position required to align with the floor waste pipe.

Which outlets suit STI 21?
Lauxes specifies 72mm and 80mm outlets.

Which outlets suit the 70mm Standard Floor Grate?
Lauxes specifies 40mm and 50mm outlets.

Uses & Benefits
Lauxes Waste Outlets connect the underside of a compatible grate tray to the drainage pipe and are available in 40mm, 50mm, 72mm and 80mm sizes. The outlets are anodised aluminium and are specified for indoor and outdoor applications.
How To Apply
Use a matching Lauxes hole saw to drill the waste opening in the tray at the position required to align with the drain pipe. Apply neutral-cure silicone around the outlet lip and secure the outlet to the underside of the bottom tray.
Limitations and Safety Info
Select an outlet size that suits both the grate profile and local plumbing requirements; Lauxes states the outlet size must meet state or territory regulations. STI 21 is specified for 72mm and 80mm outlets, while the 70mm Standard Floor Grate is specified for 40mm and 50mm outlets.
Suitable Substrates
Underside of compatible Lauxes anodised aluminium grate trays, aligned to the project drain pipe or puddle flange.

Lauxes Grates Waste Outlets Physical Properties

Lauxes Grates Waste Outlets Physical Properties
Property Value
Product Type Waste Outlet
Material Anodised aluminium
Outlet Sizes 40mm, 50mm, 72mm, 80mm
Sellable Options ERP-backed size/finish combinations only
