Lauxes Grates Waste Outlets are colour-matched outlet fittings for Lauxes linear drainage systems.

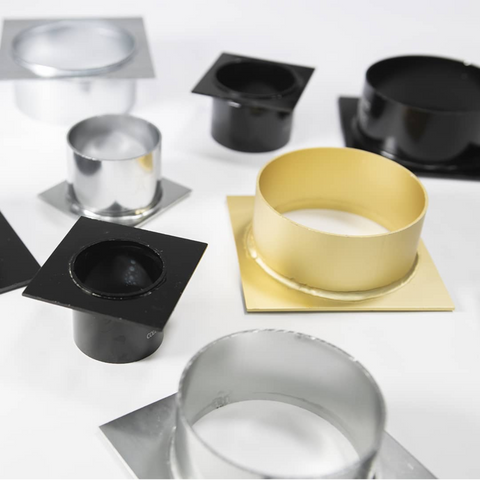

The current Lauxes catalogue lists waste outlets in 40mm, 50mm, 72mm and 80mm sizes, with Silver, Midnight, Gold, Brushed Nickel, Gunmetal and Copper manufacturer finish options. Adheseal's selectable variants are the sizes and finishes currently ranged.
Outlet sizes
- 40mm
- 50mm
- 72mm
- 80mm
Choose the outlet size required for the drainage installation and match the finish to the grate where available.
What waste outlet sizes are available? 40mm, 50mm, 72mm and 80mm.
Can the outlet position be moved along the grate? Yes. Lauxes instructs installers to drill the waste opening at the position required to align with the floor waste pipe.
Which outlets suit STI 21? Lauxes specifies 72mm and 80mm outlets.
Which outlets suit the 70mm Standard Floor Grate? Lauxes specifies 40mm and 50mm outlets.

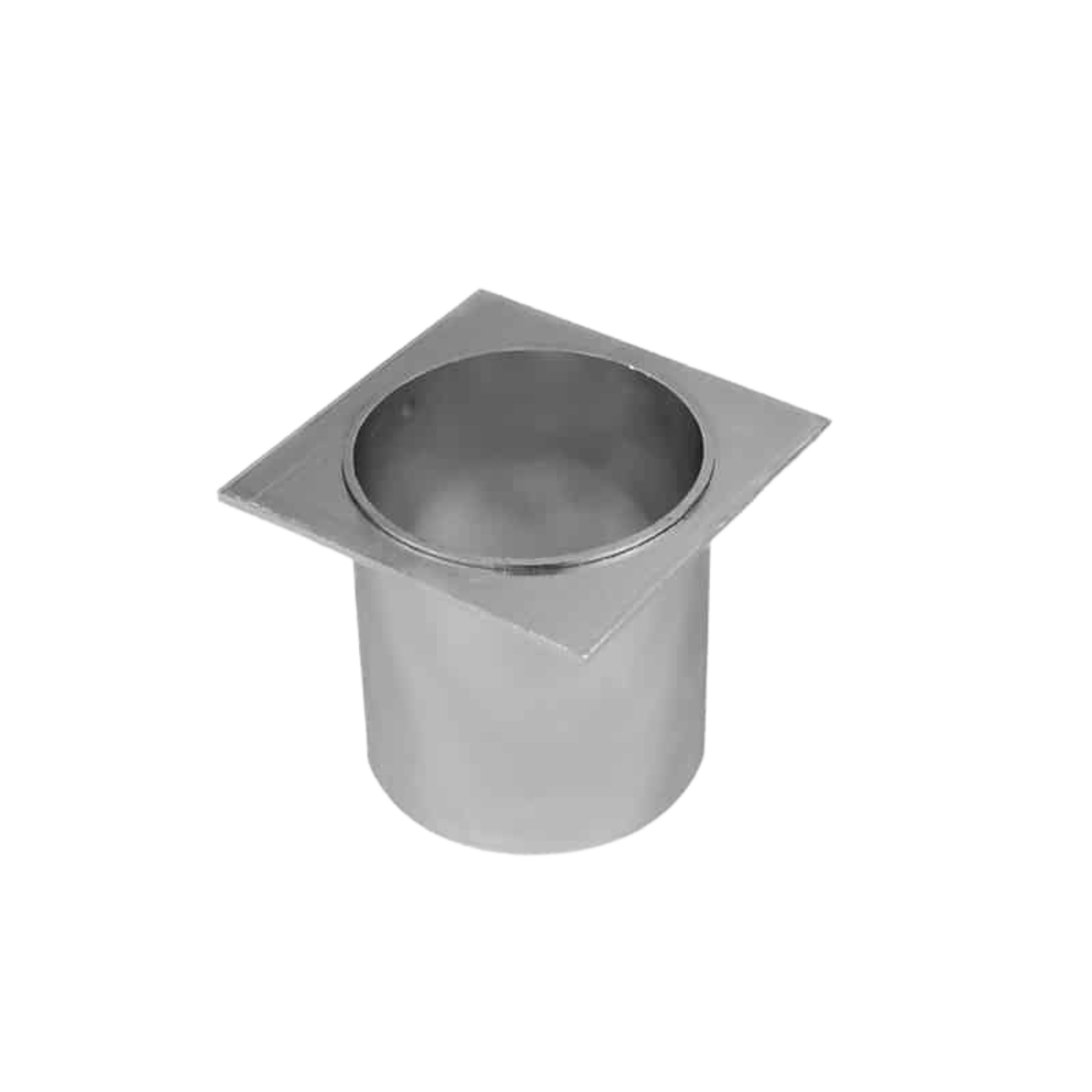

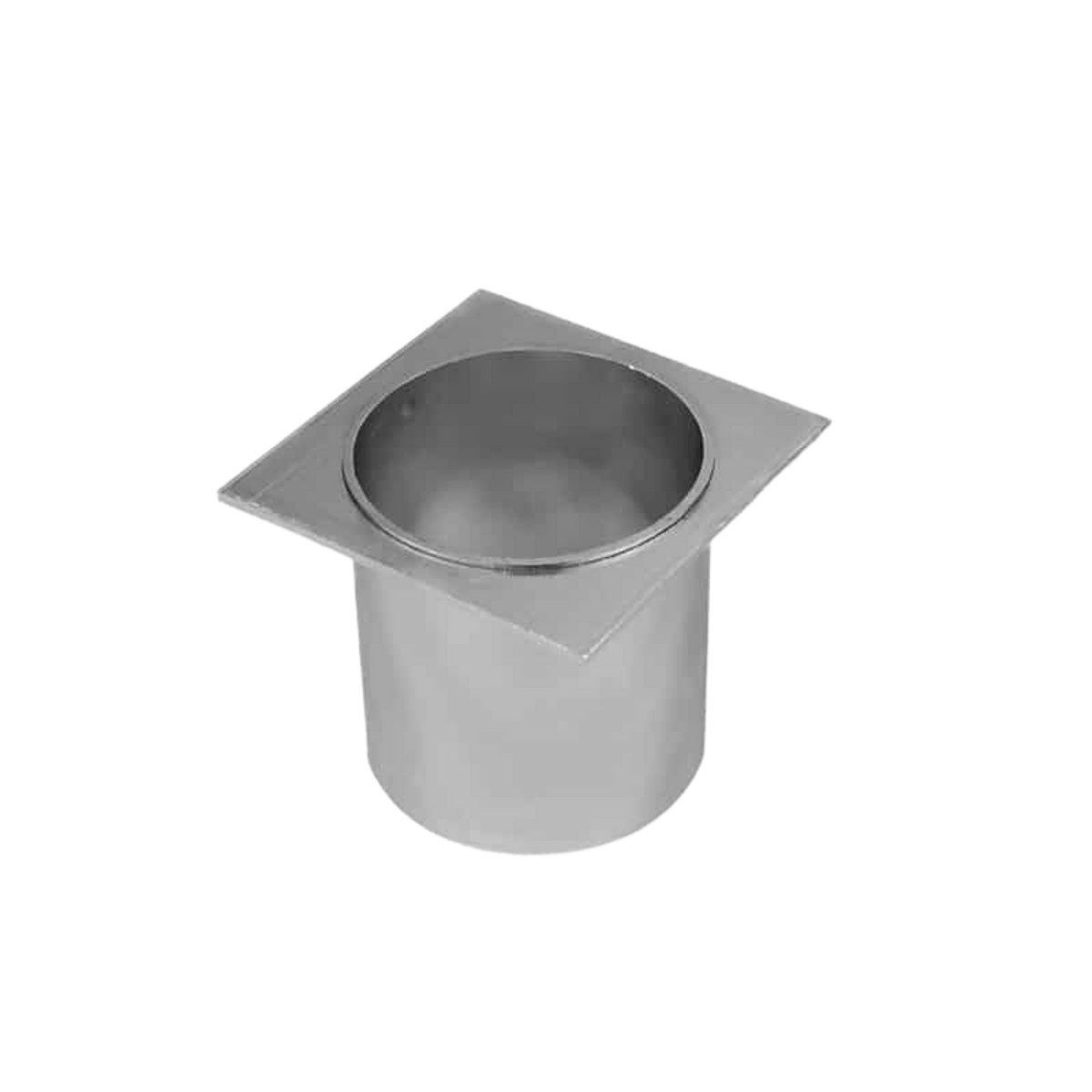

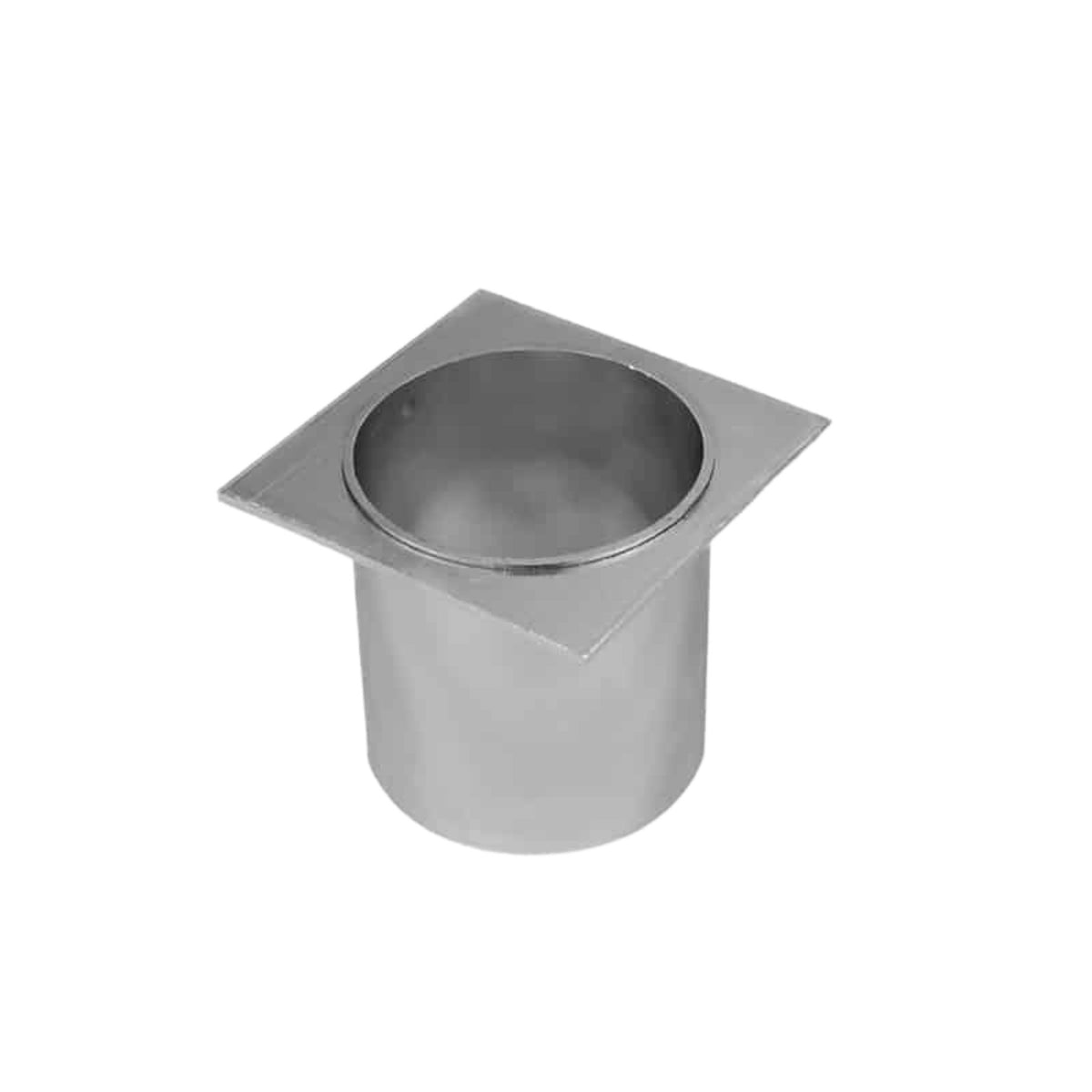

Lauxes Waste Outlets connect the underside of a compatible grate tray to the drainage pipe and are available in 40mm, 50mm, 72mm and 80mm sizes. The outlets are anodised aluminium and are specified for indoor and outdoor applications.
Use a matching Lauxes hole saw to drill the waste opening in the tray at the position required to align with the drain pipe. Apply neutral-cure silicone around the outlet lip and secure the outlet to the underside of the bottom tray.
Select an outlet size that suits both the grate profile and local plumbing requirements; Lauxes states the outlet size must meet state or territory regulations. STI 21 is specified for 72mm and 80mm outlets, while the 70mm Standard Floor Grate is specified for 40mm and 50mm outlets.
Underside of compatible Lauxes anodised aluminium grate trays, aligned to the project drain pipe or puddle flange.
Lauxes Grates Waste Outlets Physical Properties
| Property | Value |
|---|---|
| Product Type | Waste Outlet |
| Material | Anodised aluminium |
| Outlet Sizes | 40mm, 50mm, 72mm, 80mm |
| Sellable Options | ERP-backed size/finish combinations only |
