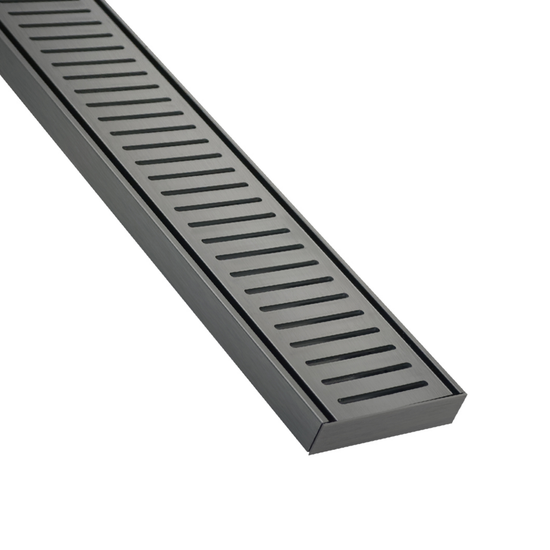

For indoor and outdoor drainage installations requiring a low-profile, high-load linear system, the NeXT Generation NXT21 Linear Drain Kit offers an anodised aluminium solution with a depth of just 21 mm. This WaterMark certified system is designed to prevent water tracking across floors while supporting vehicle and pedestrian traffic up to Class B standards.
Low-profile drainage with high load capacity
The NXT21 drainage system operates via a shallow 21 mm depth profile, making it suitable for installations where screed depth or structural clearance is limited. Water enters the anodised aluminium tray and is directed to the waste outlet without tracking along the underside of the grate, maintaining dry margins on adjacent tiled or paved surfaces. An easy roll-out feature allows the top grate to be lifted out smoothly for regular trench clearance and maintenance.
Numbers that matter
- 21 mm depth: Low-profile vertical clearance suitable for shallow screed depths in bathrooms, balconies, and courtyards.
- Class B load rating: Accommodates light vehicular and pedestrian traffic with a maximum load capacity of 10.2 tons.
- 100 mm width: Standard linear channel width for high-capacity surface water collection.
- DN90 40/50/72/80 mm: Multi-size scope of use for direct connection to standard floor waste pipe dimensions.
Where to use it
This linear drain kit is suitable for installation in both indoor wet areas and outdoor drainage pathways. Common applications include walk-in showers, bathroom thresholds, domestic driveways, patios, balconies, and courtyards. The UV stable anodised finish protects the metal from discolouration under direct sunlight in exterior settings, and the material carries a lifetime rustproof warranty.
Installation and cutting instructions
The NXT21 kit is designed to be cut and configured on-site to match the exact dimensions of the drainage run:
- Tray preparation: Cut the bottom tray 3 mm shorter than the final installation length to allow clearance for the end caps. Use a compound mitre saw fitted with a multi-material cutting blade (80 teeth or more).
- Grate preparation: Cut the top grate 1 mm shorter than the bottom tray to ensure an easy roll-in fit and clean visual finish.
- Outlet preparation: Use a Lauxes TCT hole saw to drill out the waste hole in the bottom tray, aligning it with the subfloor waste pipe. Secure the pop waste to the underside of the tray with silicone.
- End caps: Insert the end caps into the bottom tray and secure by applying a bead of silicone to the outside of the joint.
- Plumbing compliance: Installation must be completed by a licensed plumber in accordance with AS/NZS 3500.2. All grates and accessories hold WaterMark Certification under WMTS - 040.
Limitations
- Wet cement contact: Do not allow the anodised aluminium grate to come into contact with wet cement-based products during installation. A template must be used to protect the finish.
- Chemical cleaning restrictions: Clean regular build-up with soapy water. Do not use abrasive cloths, scouring pads, or acidic chemicals on the anodised grates.
- Usable length limits: For the 3.0m kit (3.2m total length) and 5.6m kit (5.8m total length), the usable lengths are limited to 3.0m and 5.6m respectively to account for anodising process wastage on the ends.
Frequently Asked Questions About NeXT Generation 21 (NXT21)
Q: Can the NXT21 be used on balconies or outdoor patios?
A: Yes, it’s fully UV stable and rustproof, making it ideal for any outdoor applications including balconies, alfresco areas, and even pool surrounds.
Q: How do I clean the grate?
A: The roll-out feature allows for easy access to internal drainage. Simply roll the grate up and clean with a soft brush and hose.
Q: Can it be cut on-site?
A: Absolutely. It is designed for easy onsite cutting using a drop saw or hacksaw. Always deburr edges after cutting.
Q: Will it rust over time in coastal areas?
A: No. It carries a Lifetime Rustproof Warranty and is manufactured from anodised aluminium, ideal for salt air environments.
Use NeXT Generation 21 (NXT21) for:
- Indoor linear shower drains
- Outdoor patios and pool edges
- Balcony drainage
- Commercial bathrooms and wet zones
Why Use NeXT Generation 21 (NXT21):
- Rust-free for life – ideal for high-moisture zones
- 25-year fade warranty – great for exposed installations
- Faster onsite adjustments – cut, connect and drain with ease
How to apply NeXT Generation 21 (NXT21):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
NeXT Generation 21 (NXT21) limitations:
- Minimum installation depth is 21mm – unsuitable for ultra-slimline floor designs
- May require tray packing for uneven screeds – always check with a level before installation
Safety precautions when using NeXT Generation 21 (NXT21):
- Personal Protective Equipment: Gloves, safety glasses when cutting aluminium
- Ventilation: Not required for product, but adhesive use may require ventilation
- Handling: Handle with care when cut to avoid sharp aluminium edges
- First Aid: Rinse eyes immediately if debris enters during cutting; seek medical attention if needed
NeXT Generation 21 (NXT21) can be used on the following substrates:
- concrete – for recessed tray installation in wet areas
- tile – suitable for flush finish in indoor bathrooms
- timber – can be mounted with waterproofing underlay
- pavers – ideal for outdoor or landscaping applications
- waterproofing membranes – compatible with bonded waterproofing systems
Lauxes NeXT Generation NXT21 Linear Drain Kit Physical Properties
| Property | Value |
|---|---|
| Product Name | NeXT Generation 21 (NXT21) |
| Dimensions | 5600mm x 100mm x 21mm |
| Material | Anodised Aluminium |

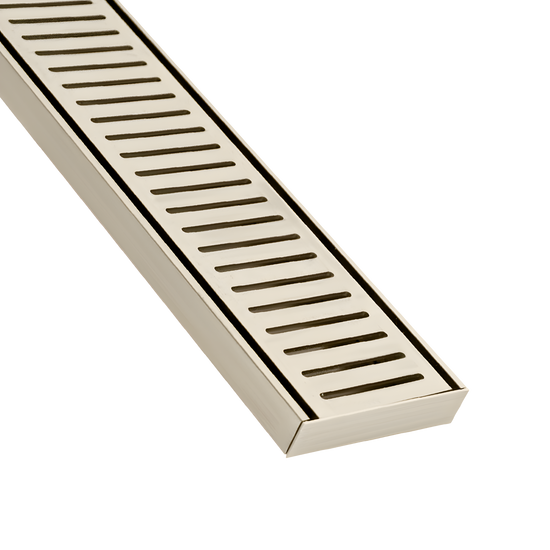

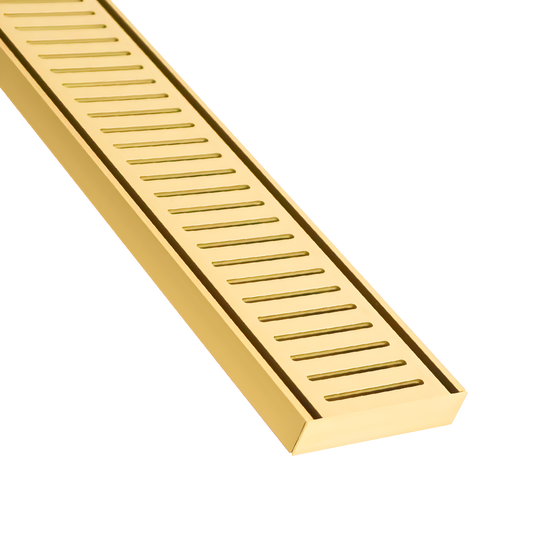

| Available Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| Finish | UV Stable Anodised |
| Length Options | 1m, 3m and 5.6m, Custom lengths on request |
| Grate Depth | 21mm |
| Grate Width | 100mm |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Cutting Capability | Easily cut onsite to desired length |
| Joiner Compatibility | Compatible with Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Cleaning Access | Easy roll-out feature for cleaning and maintenance |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
