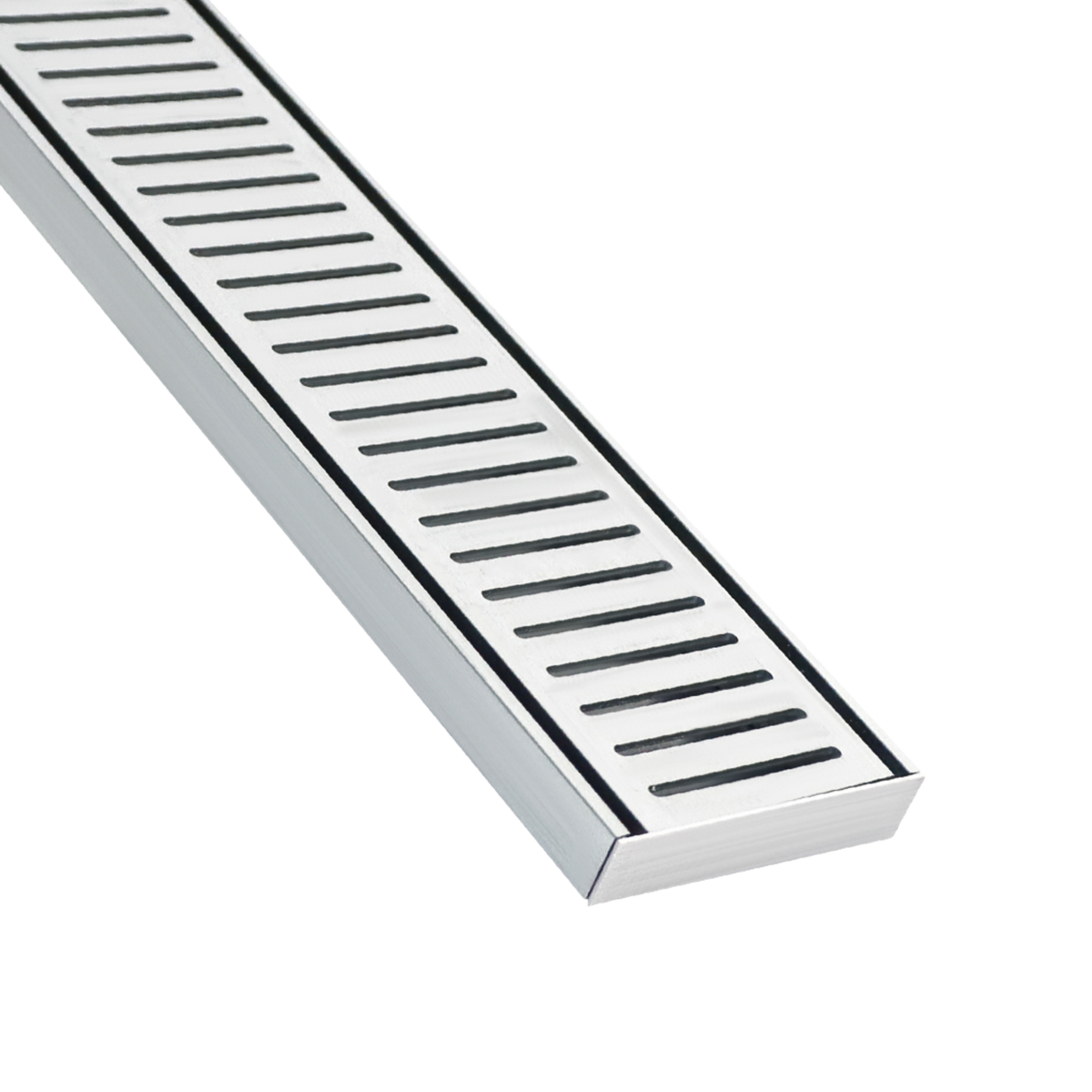

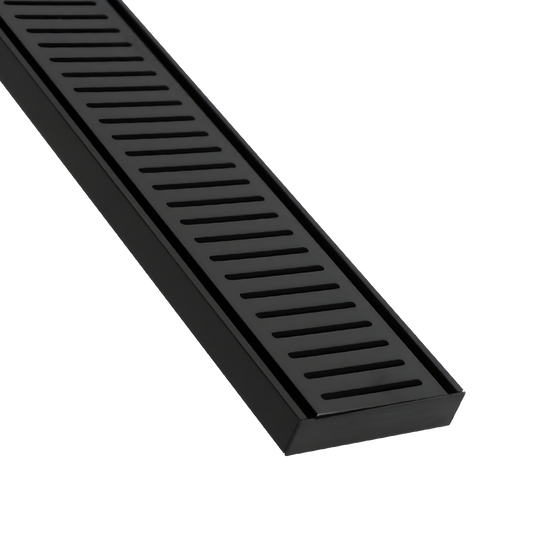

Lauxes Grates NeXT Generation NXT21 Linear Drain Kit is a 21mm low-profile linear drainage system engineered for high-performance wet area management in residential and commercial projects. Constructed from anodised aluminium with a UV-stable finish, this kit features integrated anti-tracking technology designed to eliminate capillary action and stop water migration beneath the tile bed.
The system ensures long-term watertight integrity by protecting the waterproofing membrane from sub-tile moisture damage, making it a critical component for flush-floor transitions in bathrooms, balconies, and coastal pool surrounds. With a lifetime rustproof guarantee and a 25-year anti-fade warranty, it maintains structural and aesthetic standards even in harsh salt-air environments.
Frequently Asked Questions About NeXT Generation 21 (NXT21)
Q: Can the NXT21 be used on balconies or outdoor patios?
A: Yes, it’s fully UV stable and rustproof, making it ideal for any outdoor applications including balconies, alfresco areas, and even pool surrounds.
Q: How do I clean the grate?
A: The roll-out feature allows for easy access to internal drainage. Simply roll the grate up and clean with a soft brush and hose.
Q: Can it be cut on-site?
A: Absolutely. It is designed for easy onsite cutting using a drop saw or hacksaw. Always deburr edges after cutting.
Q: Will it rust over time in coastal areas?
A: No. It carries a Lifetime Rustproof Warranty and is manufactured from anodised aluminium, ideal for salt air environments.
Use NeXT Generation 21 (NXT21) for:
- Indoor linear shower drains
- Outdoor patios and pool edges
- Balcony drainage
- Commercial bathrooms and wet zones
Why Use NeXT Generation 21 (NXT21):
- Rust-free for life – ideal for high-moisture zones
- 25-year fade warranty – great for exposed installations
- Faster onsite adjustments – cut, connect and drain with ease
How to apply NeXT Generation 21 (NXT21):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
NeXT Generation 21 (NXT21) limitations:
- Minimum installation depth is 21mm – unsuitable for ultra-slimline floor designs
- May require tray packing for uneven screeds – always check with a level before installation
Safety precautions when using NeXT Generation 21 (NXT21):
- Personal Protective Equipment: Gloves, safety glasses when cutting aluminium
- Ventilation: Not required for product, but adhesive use may require ventilation
- Handling: Handle with care when cut to avoid sharp aluminium edges
- First Aid: Rinse eyes immediately if debris enters during cutting; seek medical attention if needed
NeXT Generation 21 (NXT21) can be used on the following substrates:
- concrete – for recessed tray installation in wet areas
- tile – suitable for flush finish in indoor bathrooms
- timber – can be mounted with waterproofing underlay
- pavers – ideal for outdoor or landscaping applications
- waterproofing membranes – compatible with bonded waterproofing systems
Lauxes Grates NeXT Generation NXT21 Linear Drain Kit Physical Properties
| Property | Value |
|---|---|
| Product Name | NeXT Generation 21 (NXT21) |
| Dimensions | 5600mm x 100mm x 21mm |
| Material | Anodised Aluminium |
| Available Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| Finish | UV Stable Anodised |
| Length Options | 1m, 3m and 5.6m, Custom lengths on request |
| Grate Depth | 21mm |
| Grate Width | 100mm |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Cutting Capability | Easily cut onsite to desired length |
| Joiner Compatibility | Compatible with Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Cleaning Access | Easy roll-out feature for cleaning and maintenance |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
