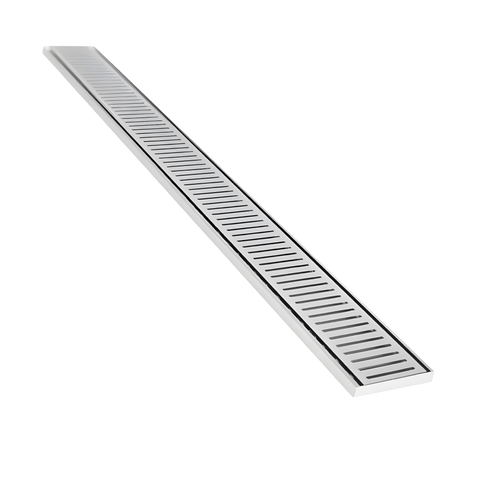

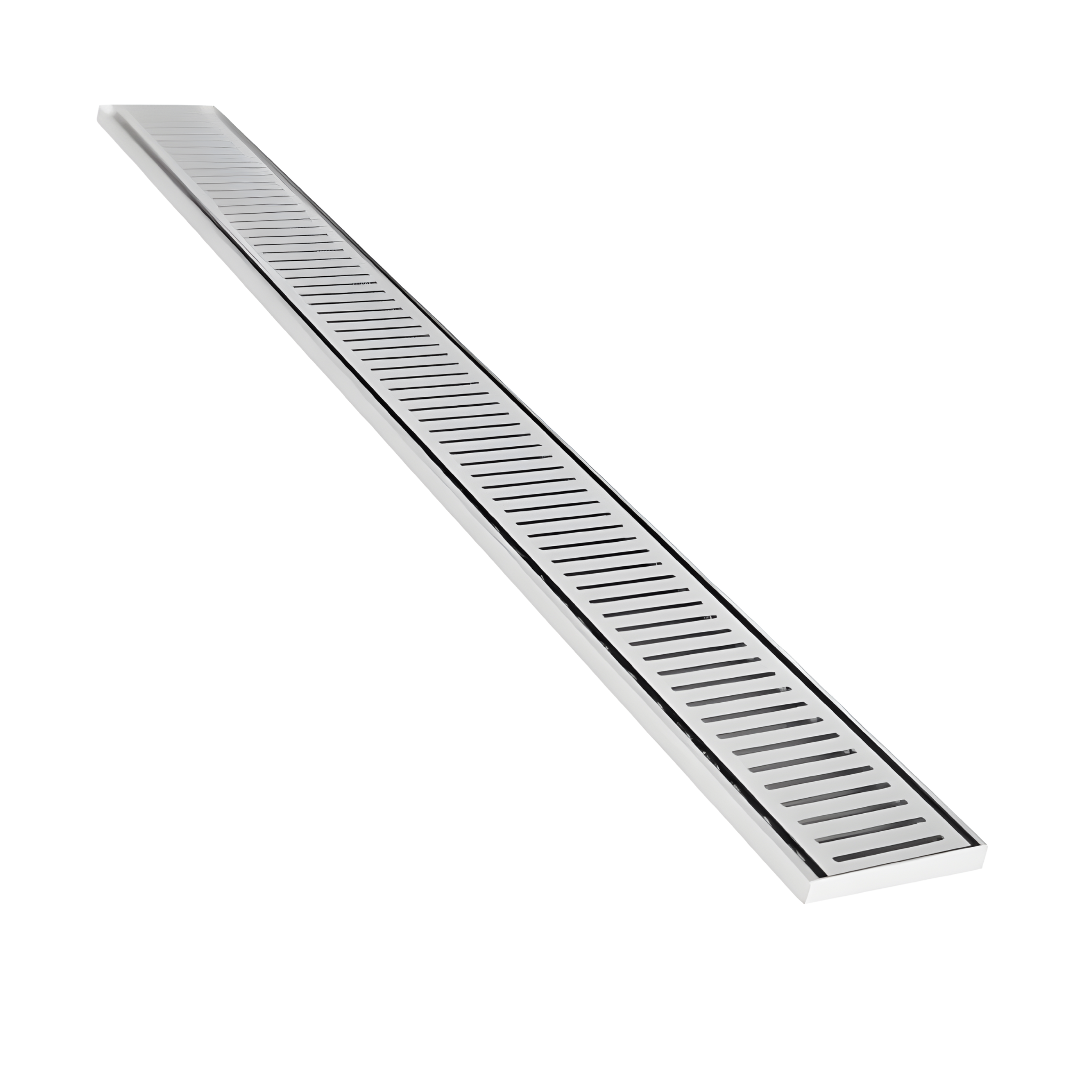

Lauxes Grates NXT 14 is the shallowest profile in the NXT range: a 100mm wide, 14mm deep anodised aluminium linear drain designed for low-build-up indoor and outdoor drainage.
The NXT roll-out grate is easy to remove for cleaning, while the anti-water-tracking design helps keep water directed through the channel. The grate can be cut to length on site and the waste outlet positioned to suit the plumbing layout.
Key features
- 100mm wide x 14mm deep profile
- Anodised aluminium construction
- Anti-water-tracking design and easy roll-out grate
- Suitable for indoor and outdoor use
- 40mm, 50mm, 72mm and 80mm waste outlet options
- Cut to length on site with flexible outlet positioning
- Trafficable up to 10.2 tonnes
- Lifetime rustproof warranty and UV-stable finish
- WaterMark-certified for approved Australian installations
NXT 14 is particularly well suited to balconies, thresholds and other installations where available depth is limited.
Can the NXT14 be used outdoors?
Yes. The anodised aluminium is UV stable and rustproof, so it suits balconies, alfresco areas, and pool surrounds.
How do I clean the grate?
Roll the grate out for access, then clean the channel with a soft brush and hose.
Can I cut it to length onsite?
Yes. Cut with a drop saw or hacksaw, then deburr the edges.
Will it rust or fade near the coast?
No. It carries a lifetime rustproof warranty and a 25-year UV warranty against salt air and sun.
How deep does the recess need to be?
At least 14 mm to seat the 14 mm profile.
- Concrete: Set the tray into a recessed wet area bed with fall to the drain.
- Tile: Bed the tray so the grate finishes flush with the tile.
- Waterproofing membranes: Suits bonded systems; integrate to the membrane maker's specification.
- Outdoors: Install to falls in patios and pool surrounds.
Lauxes Grates NXT 14 Linear Drain Kit Physical Properties
| Property | Value |
|---|---|
| Material | Anodised Aluminium |
| Finish | UV Stable Anodised |
| Cleaning Access | Easy roll-out feature |
| Cutting Capability | Easily cut onsite to desired length |
| Warranty | 25-Year UV Warranty, Lifetime Rustproof Warranty |
| Product Name | NeXT Generation 14 (NXT14) |
| Dimensions | 5600 mm × 100 mm × 14 mm |

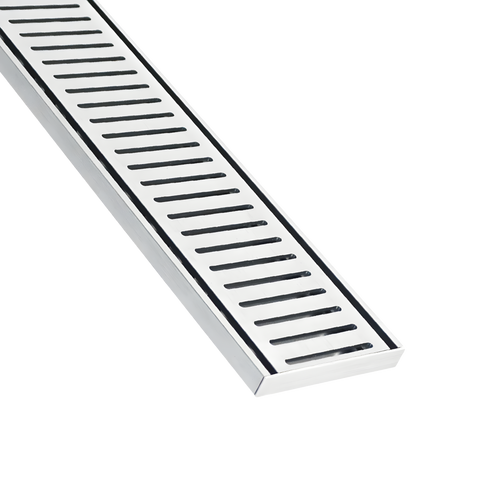

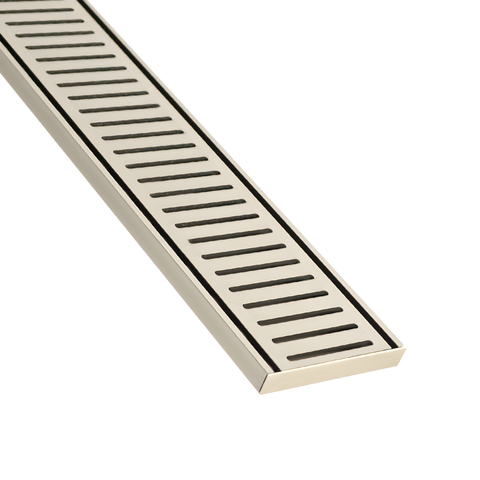

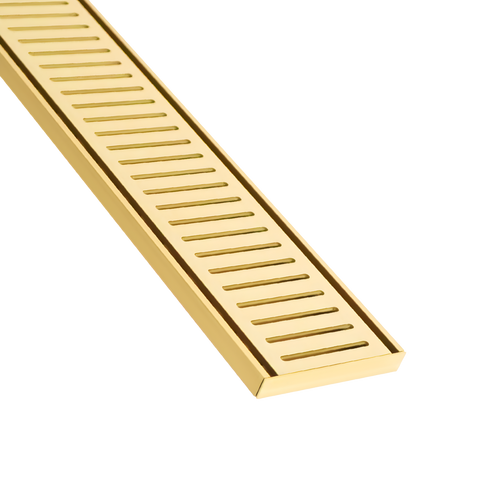

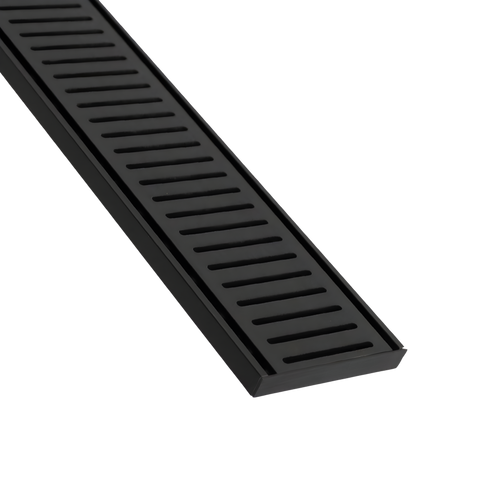

| Available Colours | Silk Silver, Matte Gold, Midnight Black, Brushed Nickel |
| Length Options | 1m, 3m, 5.6m, Custom lengths on request |
| Grate Depth | 14 mm |
| Grate Width | 100 mm |
| Joiner Compatibility | Lauxes Joiners |
| Outlet Flexibility | Waste outlet can be positioned anywhere along the bottom tray |
| Application Suitability | Indoor, Outdoor |
| Tracking Prevention | Anti-tracking technology |
