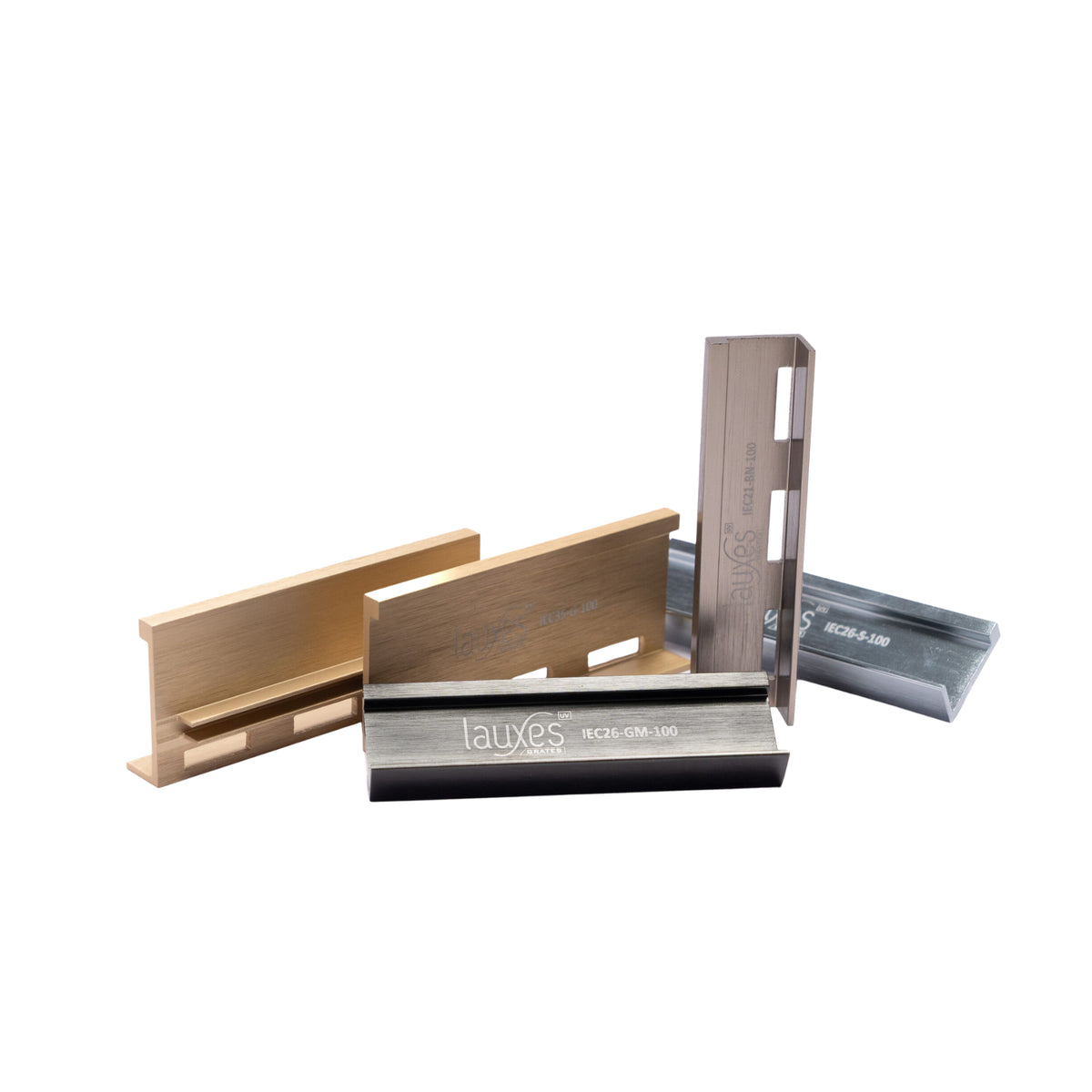

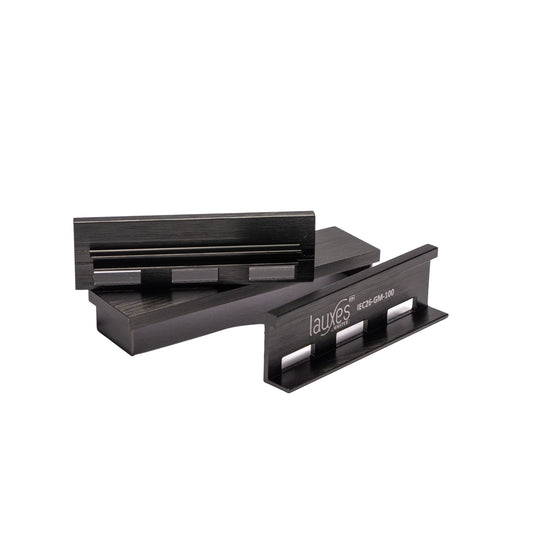

Lauxes Grates Internal End Caps are colour-matched anodised aluminium accessories for finishing compatible Lauxes grate profiles. They are supplied as a pair.
The 2026 Lauxes catalogue includes Internal End Caps across multiple profile depths and finishes. Adheseal currently ranges the 26mm sizes, so this listing is limited to those combinations.
Are Internal End Caps supplied as a pair? Yes. The 2026 Lauxes catalogue lists Internal End Caps as pairs.
How much clearance is needed in the top grate? Cut the top grate 22mm shorter than the bottom tray internal length when Internal End Caps are used.
Internal End Caps provide an internal end finish for compatible Lauxes grate and tile-insert profiles while preserving access to the roll-out top. The 2026 catalogue lists internal cap options across compatible 14mm, 21mm, 26mm and 35mm profiles.
Secure Internal End Caps with neutral-cure silicone. Lauxes instructs the top grate to be cut 22mm shorter than the bottom tray internal length when Internal End Caps are used so the roll-out feature remains available.
Internal End Caps are finishing components only and must match the compatible profile depth, family and finish. The top grate must be shortened for clearance; without that clearance the roll-out feature is not maintained.
Compatible Lauxes anodised aluminium grate and tile-insert channels.
Lauxes Grates Internal End Caps Physical Properties
| Property | Value |
|---|---|
| Product Type | Internal End Caps (Pair) |
| Material | Anodised aluminium |
| Profile Depth | 26mm |
| ERP-backed Finishes | Silk Silver, Midnight, Gold, Brushed Nickel, Gunmetal |
